We also offer a full power solution of LiFePO4 battery pack + BMS
Our range covers from 12V – 24V – 48V – 72V – 80V – 96V – 144V – 300V With a capacity of 50Ah -100Ah – 200Ah – 300Ah – 400Ah – 600Ah – 800Ah
BMS : RS485, RS232 , bluetooth , SMBUS,I2C,CANBUS.....
3.7V 30Ah 50Ah 100Ah 150Ah....NMC cells for choices .
3.2V prismatic LiFePO4 cells
Item
Capacity
Size
Weight
HF3229135215-85
3.2V 85Ah
48*174*128
1900g
HF3229174203-100
3.2V 100Ah
29*174*203
2120g
HF3248173168-120
3.2V 120Ah
48*173*168
2800g
HF3248174166-130
3.2V 130Ah
48*174*166
2910g
HF3246200168-140
3.2V 140Ah
46*200*168
3050g
HF3254174201-176
3.2V 176Ah
54*174*201
3820g
HF3254174201-202
3.2V 202Ah
54*174*201
3850g
HF3272174200-240
3.2V 240Ah
72*174*200
5100g
HF3272174200-272
3.2V 272Ah
72*174*200
5150g
Other brands
Ganfeng 3.2V 100Ah
3.2V 100Ah
48*174*133
2280g
CALB 3.2V 100Ah
3.2V 100Ah
67*142*216
2250g
EVE 100Ah
3.2V 100Ah
37.2*131*201
2250g
EVE 280Ah
3.2V 280Ah
72*174*205
5220g
Lishen 272Ah
3.2V 272Ah
173.8*200.8*71.45
5302g
Ganfeng 277Ah
3.2V 277Ah
71.8*175*207
5540g
SLP 200Ah
3.2V 200Ah
69.5*181*281
5800g
SLP 300Ah
3.2V 300Ah
53.5*361*309
9500g
SLP 400Ah
3.2V 400Ah
72*450*286
12800g
3.7V NMC prismatic cells
Item
Capacity
Size
Weight
HF372117386-30
3.7V 30Ah
21*173*86MM
700g
HF372714892-40
3.7V 40Ah
27*148*92MM
810g
HF372714892-50
3.7V 50Ah
27*148*92MM
810g
HF374014892-70
3.7V 70Ah
40*148*92MM
1250g
HF375214896-100
3.7V 100Ah
52*148*96MM
1700g
HF377914896-126
3.7V 126Ah
79*148*96MM
2450g
HF377914896-150
3.7V 150Ah
79*148*96MM
2550g
Packing & Delivery

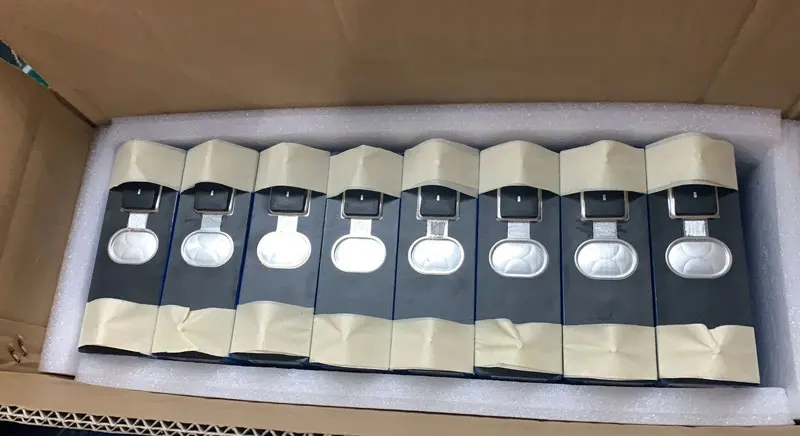

4PCS/carton
GW: 9KGS
Train / Sea/ Air shipping ways for choices .
Application
Application
High power LiFePO4 (LFP) storage battery produced for energy storage system, small EV and other high power applications, with capacity of 100Ah 200Ah 300Ah 400Ah Lishen Battery Cell. Applications of Lifepo4 battery pack Electric Propelling Applications Engine Starting Battery Commercial Bus and Transit: E-car, E-bus, Golf troller/car, RV, AGV, Marine, Tourist car, Caravan
Energy Storage Battery 12V 24V 48V 100Ah 200Ah 300Ah 400Ah Solar-Wind Power System City Grid (On/Off)
Back-up System and UPS Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
How to building a 12v lithium battery ?
By 4PCS 3.2V cells in series

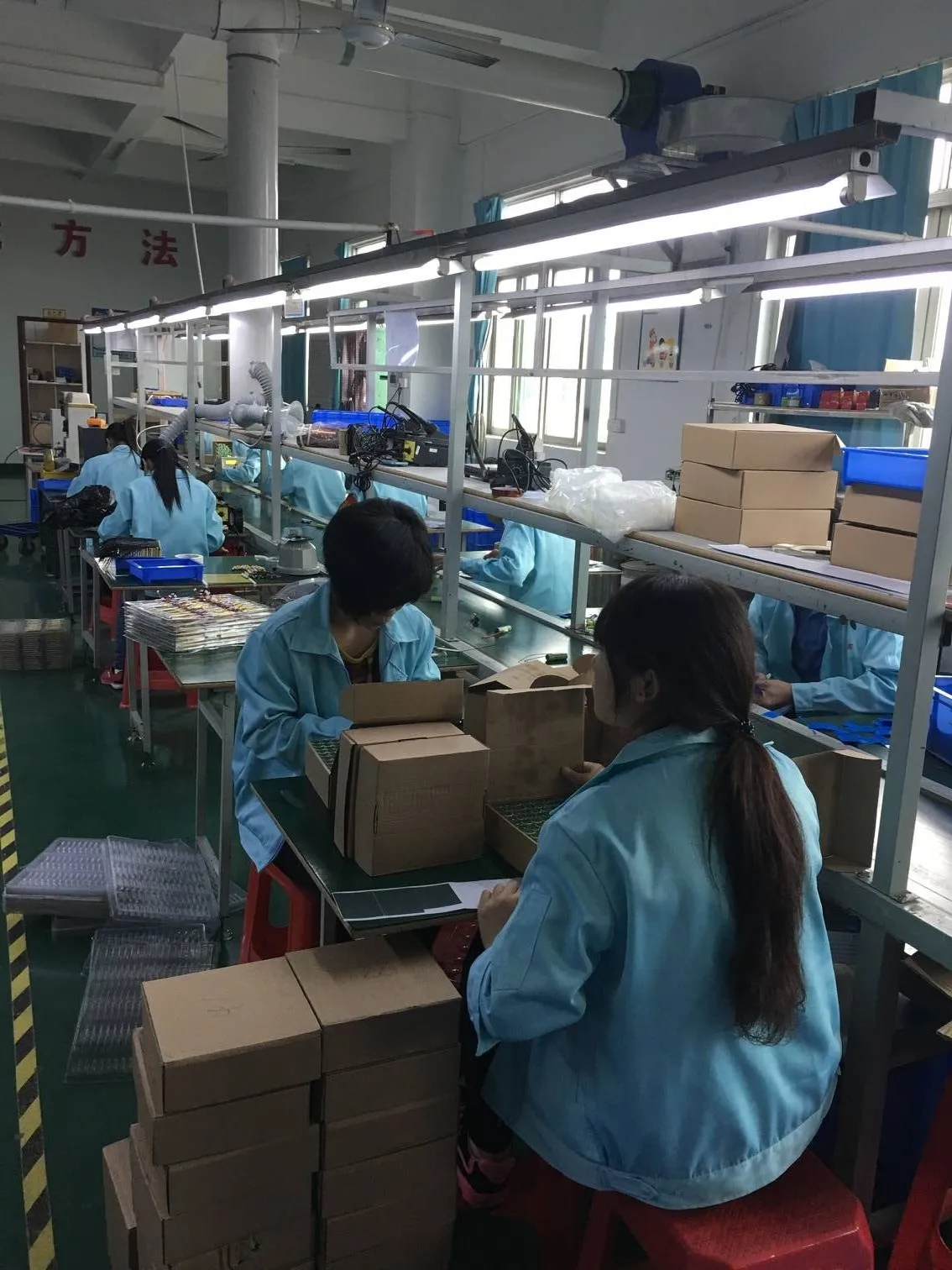

Company Profile
FAQ
Q:Can I mount my Lithium battery in any position? A:Yes Lithium batteries can safely be mounted in any position.
Q:What size battery do I need? A:We recommend adding all the device wattages used daily and dividing this number by 12V to get a rough estimate on the amount of amperage needed per day.
Q:What is your sample policy? A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
