Liquid Gas LNG/CO2/N2/O2/Ammonia Tank Transport Lng Container
Description and Specification of Commodity
Loading Capacity for this Tank container
22tons
Overall Size for this Tank container
6058*2438*2591/mm
Compartment for this Tank container
Single
Painting for this Tank container
Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2 coats of final paint.
Design data sheet for this Tank container
Code and Regulations for this Tank container
ASME BOILER AND PRESSURE VESSEL CODE,SECT.VIII. DIV.2 WITH U2-STAM RID/ADR,IMDG T50,UIC,CSC,TC,TIR/CCC,ISO 1496/3
DESIGN PRESSURE(MPa) for this Tank container
1.52
PRESSURE-RETAINING PARTS
Shell
SA-612M NORMALIZED
MAWP,acc IMDG(MPa) for this Tank container
1.38
Heads
SA-612M NORMALIZED
MEAWP(MPa) for this Tank container
0.1
EXTERNAL DEMENSIONS(L/W/H)
6058/2438/2591
DESIGN TEMPERATURE(ºC) for this Tank container
55
INSULATION OR SUN SHIELD
SUN SHIELD
OPERATING TEMPERATURE(ºC) for this Tank container
-40~50
Paint
Frame
30μm+40μm+50μm
MDMT(ºC) for this Tank container
-40
Shell
30μm+40μm+50μm
NOMINAL VOLUME(L) for this Tank container
25000
MAX. GROSS MASS (KG)
35000
FILLING MEDIUM for this Tank container
1,1,1,2-Tetrafluoroethane
TARE MASS (KG)
6800
MEDIUM UN NUMBER for this Tank container
UN3159
MAX. FILLING DENSITY (t/m 3 )
1.04
TANK INSTRUCTION for this Tank container
T50
MAX. PAYLOAD (KG)
22568
CORROSION ALLOWANCE(mm) for this Tank container
0
JOINT EFFICIENCY(SHELL/HEAD)
1
PWHT(YES/NO) for this Tank container
YES
TEST
HYDRO.TEST PRESSURE(MPa)
2.18
U2 STAMP for this Tank container
YES
LEAKAGE TEST PRESSURE(MPa)
1.38
INSPECTION AUTHORITY for this Tank container
BV/TUV
N/A
N/A
Product Description
The functions of this series container tanker/Tank Container: ***This series tank semi trailers aresuitable for the transportation 1,1,1,2-Tetrafluoroethane,LNG,LPG,CNG,GPL,LN2,LO2,LCO2,Chlorine,Ammonia,Etc. Gas. *** The volume is under 25 cube meters, we can manufacture it according to your needs.
Design proposal for the 20feet ISO tank container: ---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mm baffle; ---Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the bottom , DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape; ---Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube, two 4kg fire extinguishers.

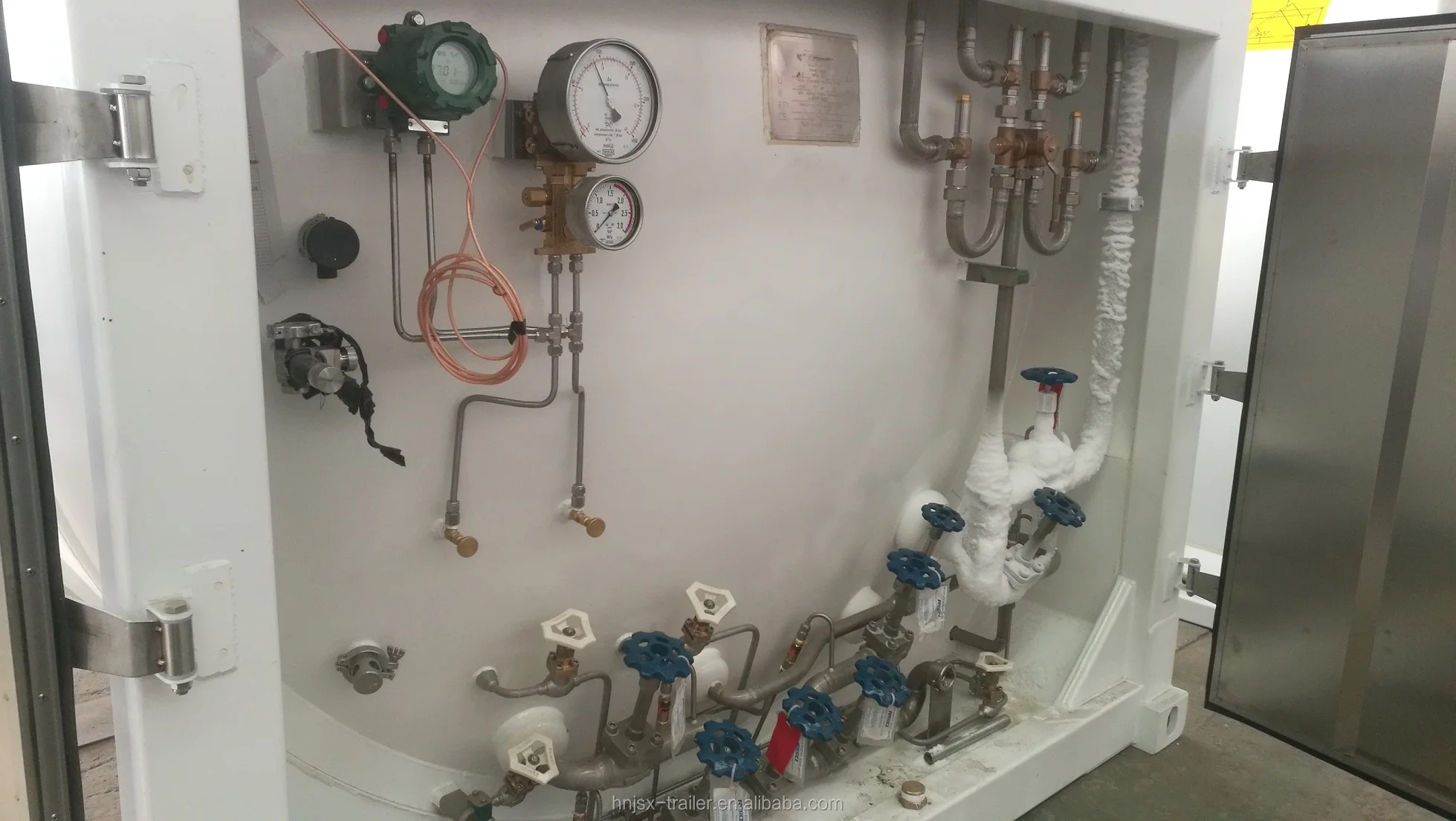

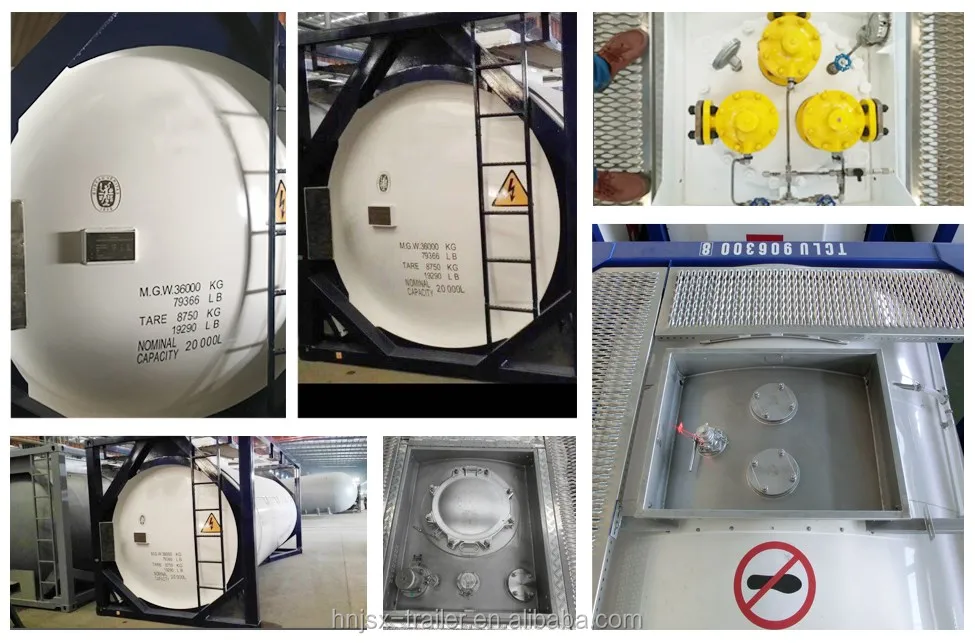

Product display

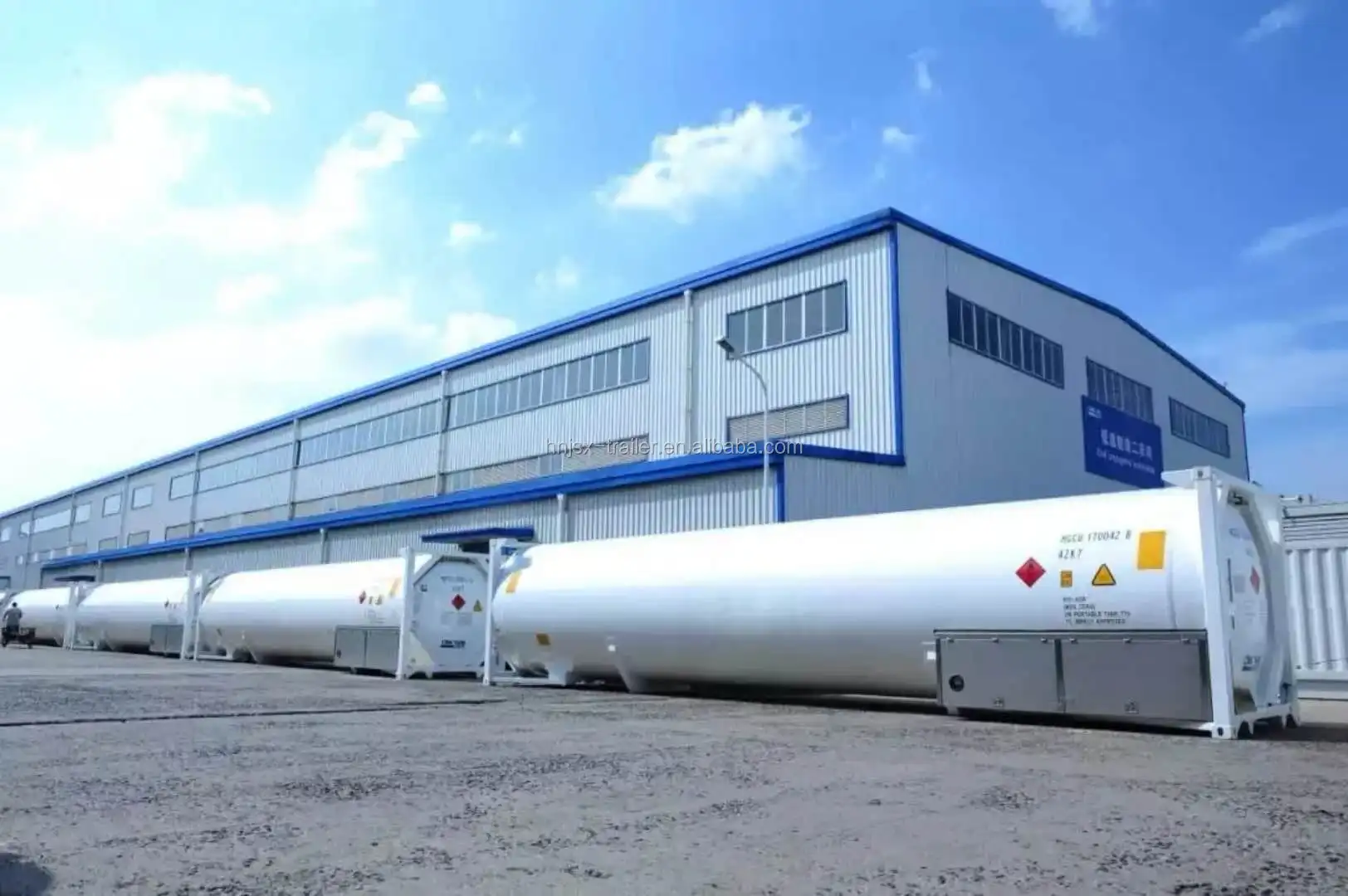

Production workshop
BRIEF INTRODUCTION TO OUR FACTORY: He Nan Ju Shi Xin, a special vehicle manufacturing corporation with the professional experience more than 20 years, certified by the Chinese government manufacture,Majored in semi trailer, special vehicle manufacturing, our products are mainly exported to Philippine, Ethiopia, Thailand, Myanmar, Vietnam,Congo, Kenya, Tanzania, etc...More than 20 countries.
Our Services
FlEXIBLESERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY: >>>Offering the one-stop full lifecycle services; >>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service; >>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise; >>> Small Order Can Be Accepted; >>>Any Color & Logo Available; >>>The Product Dimension + Specifications Can Be Designed As Your Needs.
Buying Guides for this ISO Storage Tank Container: **You please send us your enquiry; **We shall reply you with the quotation within 12 hours; **We negotiate on the configuration that you need; **Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production; **Manufacturing process updated news → completing production; **Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.

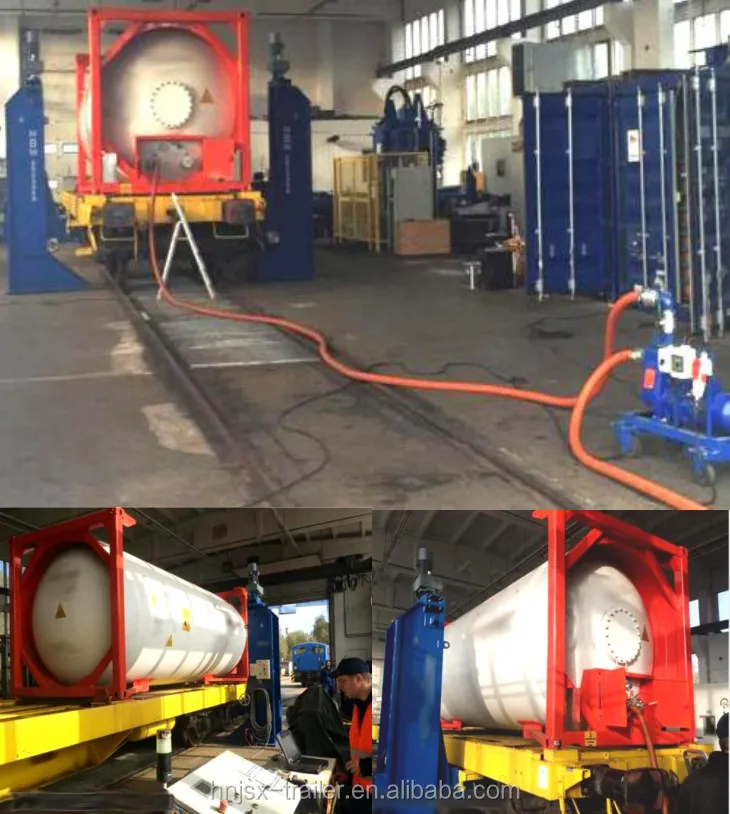

The tank containers are all tested and inspected by special equipments:

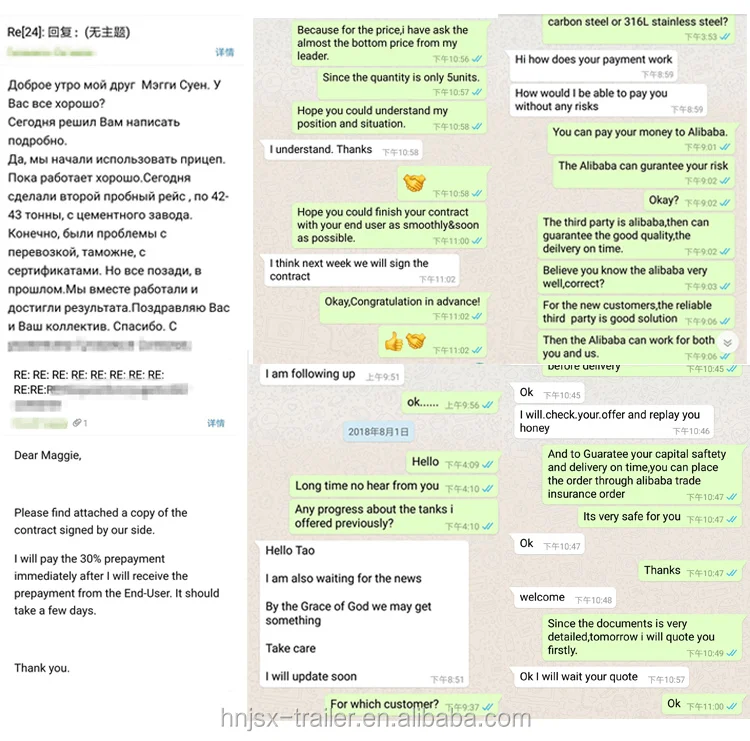

Some Feedback about the Feedback from our clients

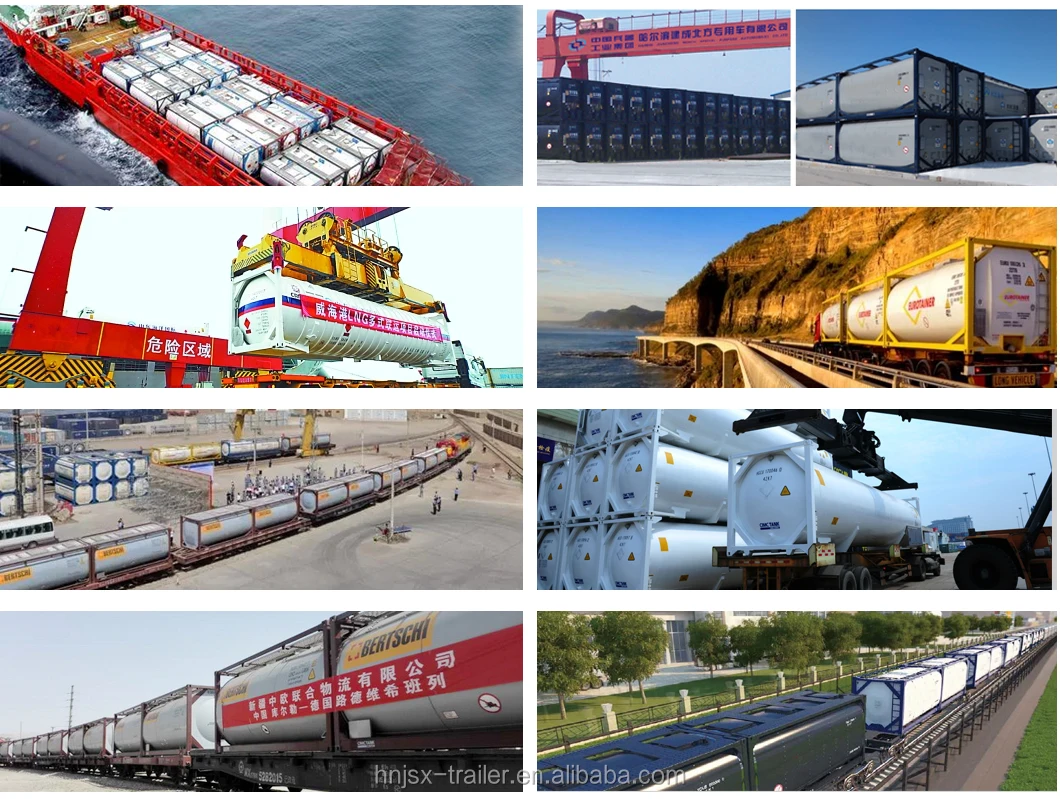

Packaging & Shipping
FAQ
Q: I want the Liquid Gas Tank Container with Loading&unloading system,especially the steam heating system,can you supply?
A:Yes,the Loading&unloading system are all the option configuration,you can choose it as you want.
Q: Do you have the certificates to meet us the transportation ways of the land truck,Sea Boat and Railway?
A:Yeah,of course,but the price will be very different by different transportation ways;So kindly please let me know your exact transportation ways before the quoting;And also the certificates will be ready after the tank container passed all kinds of the testing&inspection.
Q: Do you have the stocked tank containers?
A:Yes,but the price will be higher than the normal one.

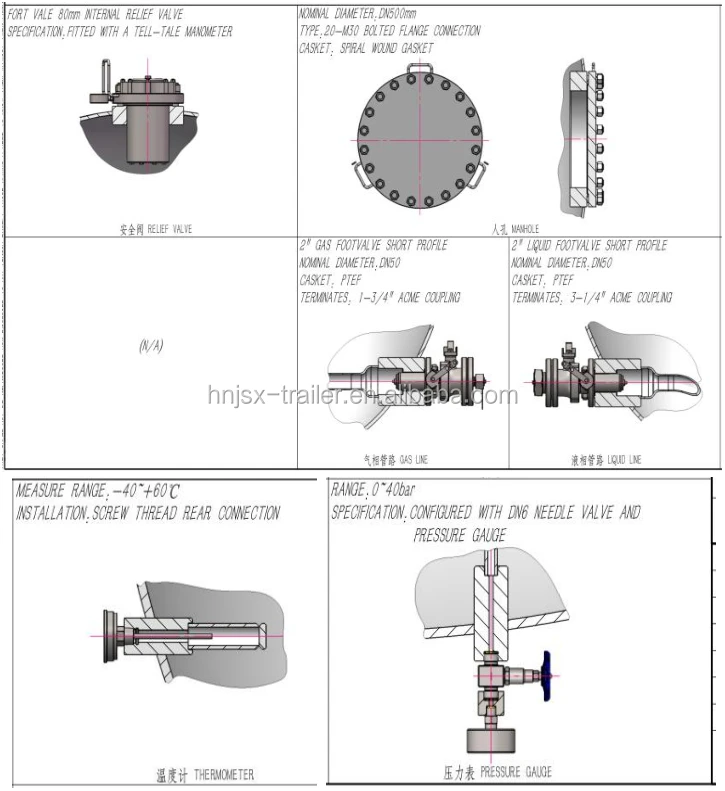

Q: Can i have the drawings of this ISO Storage tank containers?
A:Yeah,the existing simple similar drawings of the tank container for your reference only for the beginning,will make the more precise drawings after getting the down payment,and will send this drawing to you for your confirmation before production.

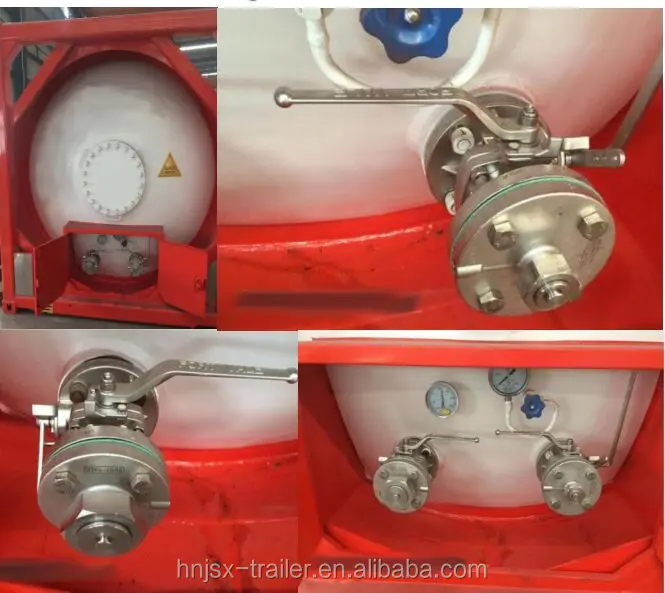

Q: Can i make the discharging valves at the bottom?
A:Yes,the discharging valves can be at the bottom or at the top,you can choose as your actual request.
Q: How can i pay the money without risk?
A:You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q: Can i do your agent in our country or some district?
A:Yes,if you quantity is enough,no problem,the 50units for the first time is okay.
