Product Description

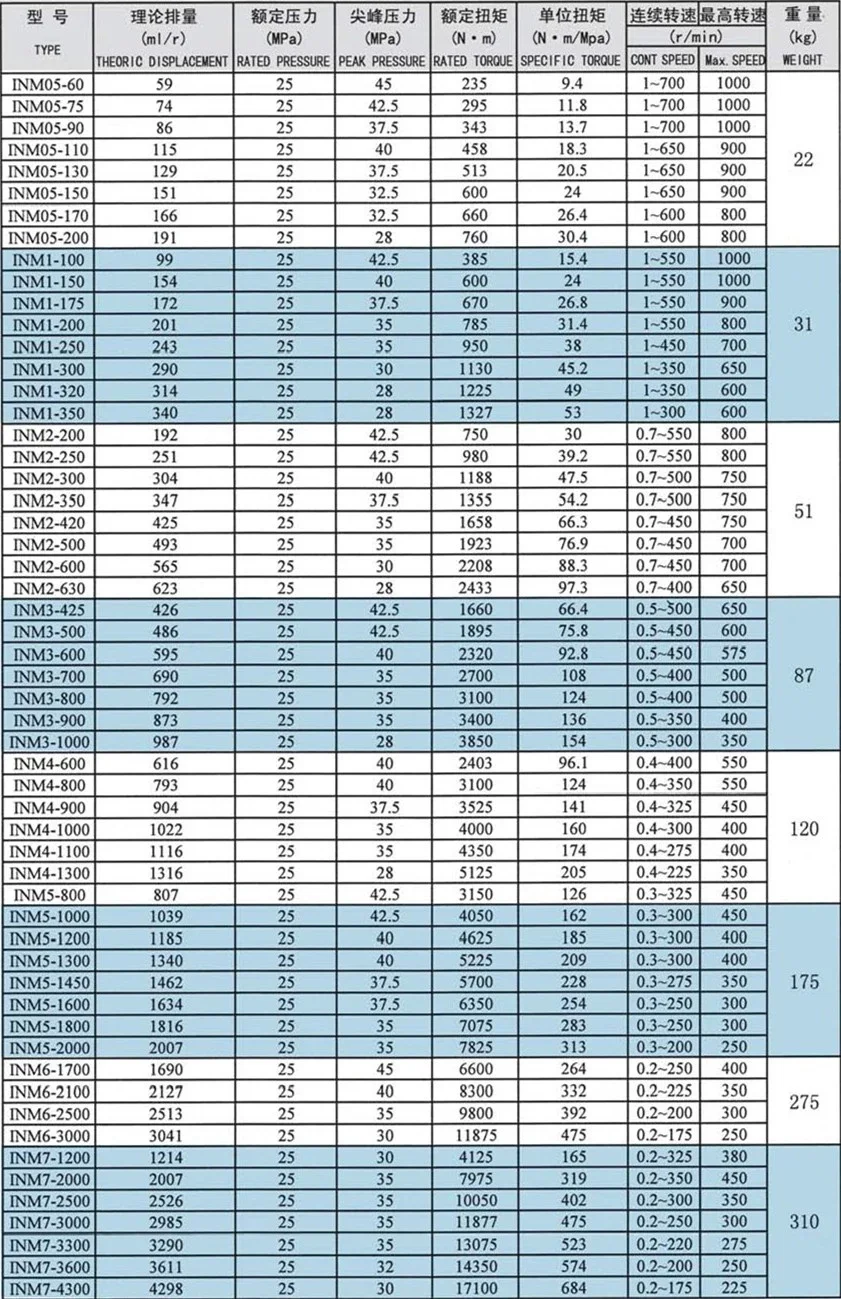

INM series range varies from 59cc/rev up to 4298 cc/rev in displacement.
INM series motors are developed based on Italian technology and incorporated design variations intended to increase the strength of the motor casings and load capacity of internal dynamic components. Compared with other radial piston motors, they have many excellent features:
1.high volumetric efficiency (higher than 0.99) and mechanical efficiency (higher than 0.92)
2.wide speed range (1-1000 rpm)
3.they could run in pump condition and freewheeling condition.
4.stable running in extremely unfavorable environment from -50℃ to 70℃.
5.long lifetime.
INM series motors are developed based on Italian technology and incorporated design variations intended to increase the strength of the motor casings and load capacity of internal dynamic components. Compared with other radial piston motors, they have many excellent features:
1.high volumetric efficiency (higher than 0.99) and mechanical efficiency (higher than 0.92)
2.wide speed range (1-1000 rpm)
3.they could run in pump condition and freewheeling condition.
4.stable running in extremely unfavorable environment from -50℃ to 70℃.
5.long lifetime.
Product Name | Hydraulic Motor | Material | Metal Steel |
Color | OEM or Customer's Request | Application | Heavy Machinery |
Motor | Hydraulic Motor | Certificate | ISO9001:2008 |
Power | Hydraulic System | OEM | Yes |
Technology: radial piston
Other characteristics: fixed-displacement
Rotational speed: Max.: 1000 rpm (6283.19 rad.min-1)，Min.: 1 rpm (6.28 rad.min-1)
Displacement: Max.: 4298 cm³ (145.33 fl us oz)，Min.: 59 cm³ (2 fl us oz)
Other characteristics: fixed-displacement
Rotational speed: Max.: 1000 rpm (6283.19 rad.min-1)，Min.: 1 rpm (6.28 rad.min-1)
Displacement: Max.: 4298 cm³ (145.33 fl us oz)，Min.: 59 cm³ (2 fl us oz)
Other Products
IMB Series High Torque Radial Piston Hydraulic Motor
•Technology: Radial Piston
•Displacement: Min.: 988 cm³ (33.41 fl us oz),Max.: 6807 cm³ (230.17 fl us oz)
•Application: heavy duty applications such as ship and deck machinery, construction machinery and equipment, plastic injection machine, heavy metallurgical machinery.
•Displacement: Min.: 988 cm³ (33.41 fl us oz),Max.: 6807 cm³ (230.17 fl us oz)
•Application: heavy duty applications such as ship and deck machinery, construction machinery and equipment, plastic injection machine, heavy metallurgical machinery.
IPM Series Radial Piston Hydraulic Motor
•Technology: Radial Piston
•Characteristics: Fixed-Displacement, Low-speed, High-Torque Compact Design, Light Weight. Good Sealing Capability Low Leakage
•Displacement: Max: 22875 cm³ (773.5 fl us oz),Min.: 56 cm³ (1.89 fl us oz)
•Application: It Has Been Widely Used In Light Indutry, Epecially For Plastic Injection Machines.
•Characteristics: Fixed-Displacement, Low-speed, High-Torque Compact Design, Light Weight. Good Sealing Capability Low Leakage
•Displacement: Max: 22875 cm³ (773.5 fl us oz),Min.: 56 cm³ (1.89 fl us oz)
•Application: It Has Been Widely Used In Light Indutry, Epecially For Plastic Injection Machines.
IPM-2 Series Radial Piston Hydraulic Motor
•Technology: Radial Piston
•Characteristics: Fixed-Displacement, Low-speed, High-Torque Compact Design, Light Weight. Good Sealing Capability Low Leakage
•Displacement: Max.: 22875 cm³ (773.5 fl us oz),Min.: 56 cm³ (1.89 fl us oz)
•Application: It has been widely used in light indutry, epecially for plastic injection machines.
•Characteristics: Fixed-Displacement, Low-speed, High-Torque Compact Design, Light Weight. Good Sealing Capability Low Leakage
•Displacement: Max.: 22875 cm³ (773.5 fl us oz),Min.: 56 cm³ (1.89 fl us oz)
•Application: It has been widely used in light indutry, epecially for plastic injection machines.
IMC Series Hydraulic Motor
•The IMC Series Hydraulic Motor Inherits The IMB Series Hydrortatic Balance Motor Structure，High Efficiency，High Starting Torque，High Volumetric Efficiency Etc.
•Two Speed-Low Speed & High Torque
•Application: Captan, Hoist,Windless Machinery,Hydraulic Drive for Automobiles Etc.
•Two Speed-Low Speed & High Torque
•Application: Captan, Hoist,Windless Machinery,Hydraulic Drive for Automobiles Etc.
INM-3 Series Hydraulic Motor
• Incorporate A Number Of Design Variations With Respect To The Technology Intended To Increase The Strength Of The Motor Casings
• The Load Capacity Of The Internal Dynamic Components.
• High Continuous Power Ratings Because of the High Mechanical
• Volumetric Efficiency that Contribute in Reducing the Amount of Heat Produced
• The Load Capacity Of The Internal Dynamic Components.
• High Continuous Power Ratings Because of the High Mechanical
• Volumetric Efficiency that Contribute in Reducing the Amount of Heat Produced
INM Series Radial Piston Hydraulic Motor
•Technology: Radial Piston
•Other Characteristics: Fixed-Displacement
•Rotational Speed: Max.: 1000 Rpm (6283.19 Rad.Min-1),Min.: 1 Rpm (6.28 Rad.Min-1)
•Displacement: Max.: 4298 Cm³ (145.33 Fl Us Oz),Min.: 59 Cm³ (2 Fl Us Oz)
•Application: Plastic Injection Machines Hoisting Winches And Capstans Swing Drives, Ship And Deck Machinery
•Other Characteristics: Fixed-Displacement
•Rotational Speed: Max.: 1000 Rpm (6283.19 Rad.Min-1),Min.: 1 Rpm (6.28 Rad.Min-1)
•Displacement: Max.: 4298 Cm³ (145.33 Fl Us Oz),Min.: 59 Cm³ (2 Fl Us Oz)
•Application: Plastic Injection Machines Hoisting Winches And Capstans Swing Drives, Ship And Deck Machinery
Main product
Recommend Products
Our Services & Strength
We're among the first and best hydraulic products manufactuers in China. We specialize in designing and manufacturing hydraulic winches, hydraulic motors,hydraulic slewing drives, wheel and track drives, planetary gearboxes,travel motors and wheel motors, hydraulic capstans,hydraulic power units, and hydraulic pumps. We have broad product range, and we can provide one-stop and tailored solutions for driving, controlling and moving to our customers.
