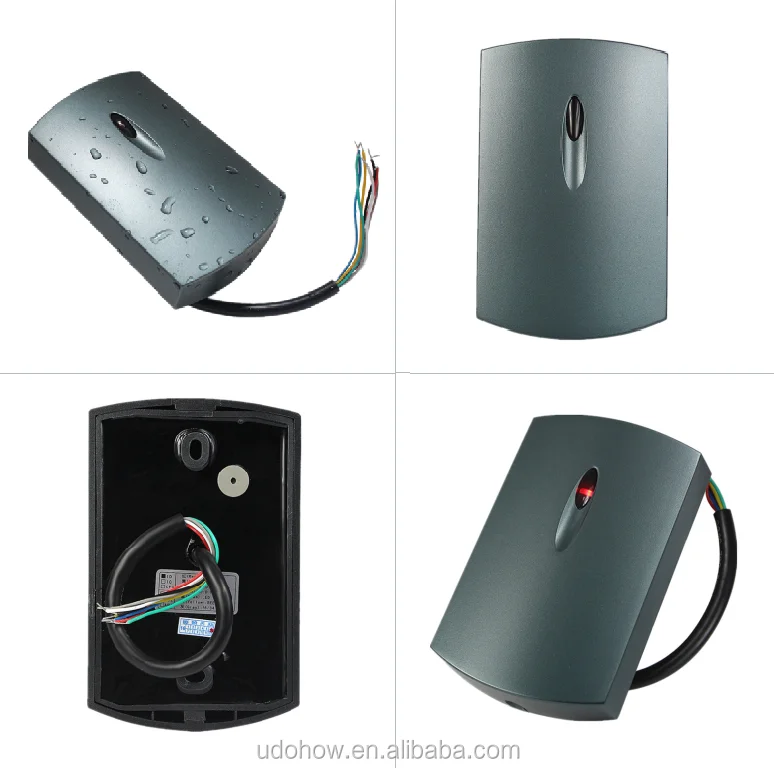

Считыватель карт доступа с дистанционным управлением через приложение

1.Product Specifications

Installation

1. The reader inside the sticker on the position of reader to be installed. According to location Drilling two holes and an Middle outlet hole, in sert rubber plug into the fixed hole.(Note: If you install on the wall, then concealed need to install the 86 embedded box)
2.Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
3. The reader cable through the outlet hole, connected by line instructions, it will panel and rear panel of the screw fixed.

Notice

1. Confirm the electric voltage DC12V and differentiate positive anode and cathode of power supply

2. When external Power is used, suggest to use same power GND with controoller panel.

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.

Wire Connection

Application

For access control, attendance, fees, patrol, card, building on say, parking systems, highways and rfid application.

Advantage

This series of reader with high sensitivity receiver, small operation current, single DC power supply, low price, and high reliability.

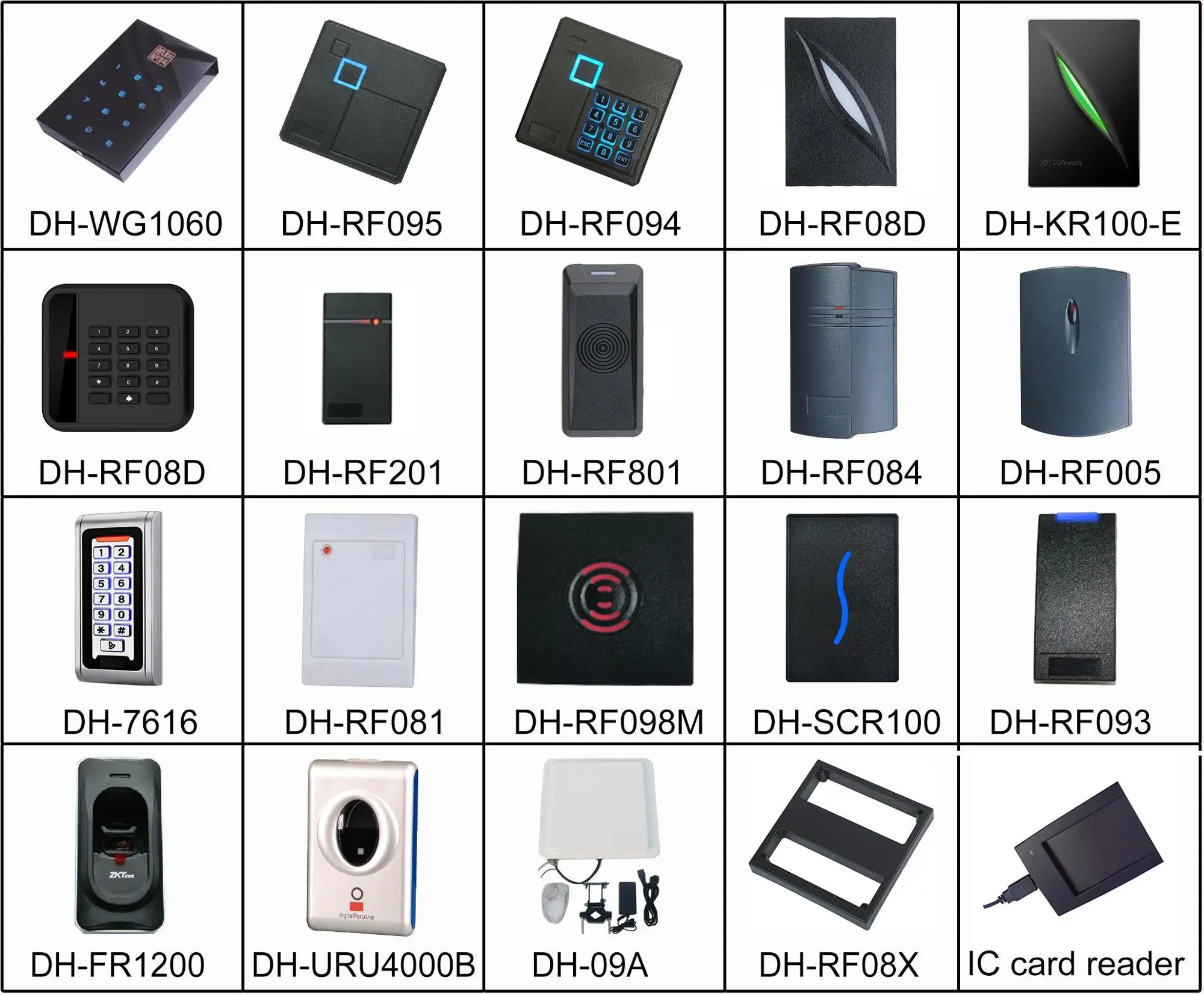

Other model:

Q1. Are you a manufacture or a trade company?

   A: We are a real manufacture and have been in this line for more than 20 years.

Q2. How we can trust you?

   A: We are Alibaba Trade Assurance Supplier and 8 years Ali Gold Supplier.

Q3. What is the warranty?

   A: The warranty is 1 year without man-made damage,A lifetime technical support.

Q4. What’s your delivery time?

   A:Around 2~10 working days according to exact order quantity and stock situation.

Q5. Your products can be customized?

   A:Yes,sure. pls talk to sales about your exact requirements. Udohow offer the OEM or ODM service.

Q6: Your software is free and easy to use?

   A:Our software is free and we have manual to teach you how to use it.
