2 Пост Автомобильный Грузовые лифты для дома в гараже двойной автоматической


Поделиться:

Цена:1 200,00 $ - 2 100,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Ethan


2 Post Car Lifts for Home Garage Double Auto Parking


- OEM  & ODM Service -





































































































Model



TPL2321



TPL2721



TPL3221



Lifting Capacity



2.3 Tons



2.7 Tons



3.2 Tons



Lifting Height



2100 mm



2100 mm



2100 mm



Drive Through Width



2100mm



2100mm



2100mm



Post Height



3000 mm



3500 mm



3500 mm



Weight



1050kg



1150kg



1250kg



Product Size



4016*2565*3010mm



4242*2565*3500mm



4242*2565*3500mm



Package Dimension



3800*800*800mm



3850*1000*970mm



3850*1000*970mm



Surface Finish



Powder Coating



Powder Coating



Powder Coating



Operation mode



Automatic


(Push Button)



Automatic


(Push Button)



Automatic


(Push Button)



Rise/Drop time



50s/40s



50s/40s



50s/40s



Motor capacity



2.2KW



2.2KW



2.2KW



Cylinder



Italy Aston seal ring, double high pressure resin tubing, 100% no oil leakage



Voltage (V)



As per customer local standard



Test



115% dynamic load test and 150% static load test



Car Parking Quantity



2*n pcs



Loading Qty 20’/40’



10pcs/20pcs



Tow Posts Car Parking Lift adopt hydraulic driving methods,hydraulic pump output high pressure oil push the hydraulic cylinder to drive the car packing board up and down,


achieve the purpose of parking.When the car parking board to the parking place on the ground,the vehicle can enter or exit. Offer customized service.






Product Description





1 .jpg

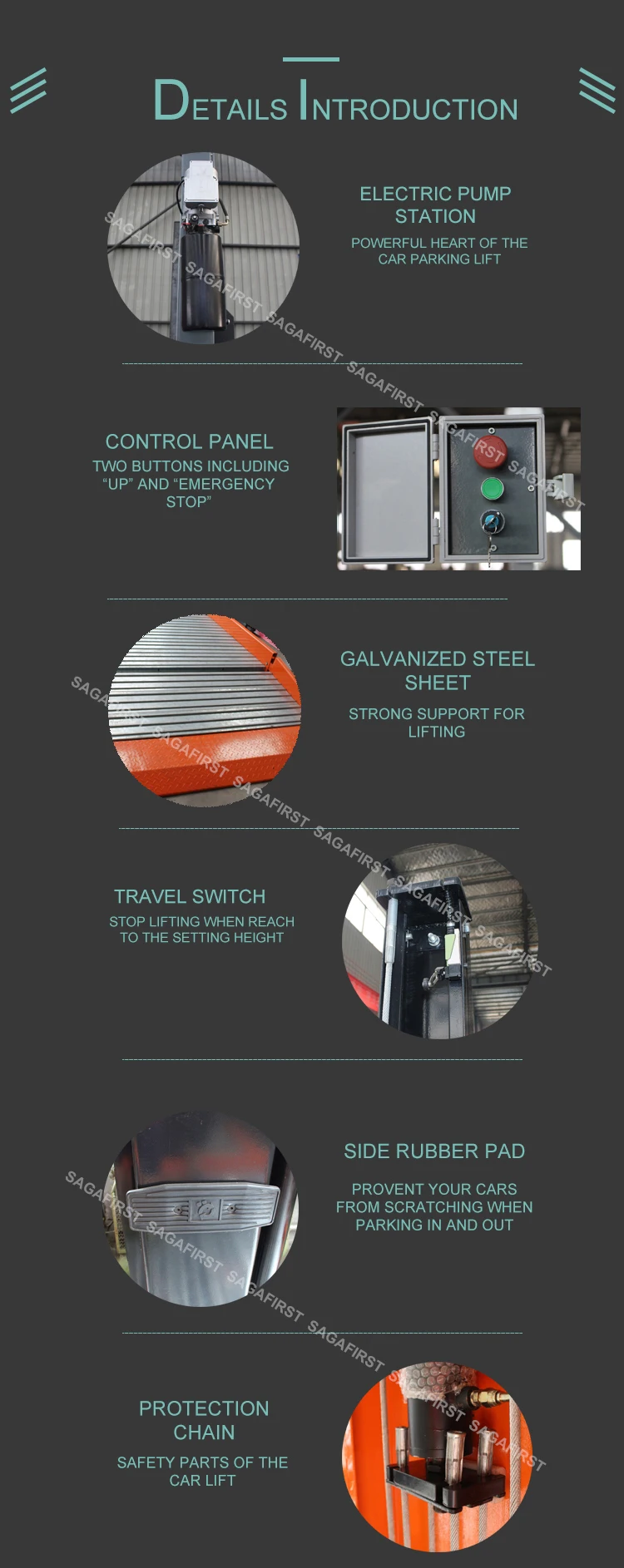

Detailed Images


1. Easy and fast installation,simple operation,safe and reliable,ultra low noise


2. Less space occupation,3.5m~4.1m ceiling height is enough for parking 2 cars


3. Both suitable for home use and public use,beautiful and fashionable in appearance.


4. Two stage dual-Cylinder lifting system, Hydraulic direct driven, chain-balancing system.


5. Electric lock release system. Multi-levels locking system (7 holes) for different adjustable parking heights, Operational remote control.


6. High polymer polyethylene slide blocks, self-lubricating, wear-resistance and high temperature resistance.










 SAGA FIRST can also provide customer many options like wireless controller, metal rain cover, wooden carton and so on,


customer can provide their need to SINOFIRST, and we will try to fulfill all customers’ need.













Certifications







FAQ
















































 Questions



 Answers



 Are you a factory or trading company?



 We're factory with over 12years exporting experience.



 What's the MOQ?



 1UNIT,the more,the better.



 What's the payment terms?



 <USD4999: 100%TT in advance.


 >USD5000:  30%TT in advance,balance before shipment.


 >USD100,00: TT or Irrevocable L/C At Sight.



 Do you offer OEM&ODM service?



 Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.



 What's the delivery time?



 15~20days after down payment



 What's the quality warranty?



 24 months.Offer free parts for replacement.



 How can I get the after-sales service?



 We offer videos,pictures and technical guidance immediately.



 What's your QA&QC policy?



 3times 100% inspection before shipping.



 Can you tell me your clients in my country?



 Of course. But only after the permittance of customers.
