Трансформатор тока Q110 коэффициент 600/5A to 2000/5A трансформатор с разделенным сердечником 110 мм для
- Категории: Transformers >>>
- Поставщик: Yueqing,Heyi,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
HEYI Electrical Co., LTD. is a comprehensive multi-business industry and trade integration of high-tech enterprises.
We own one strong R&D and QC team continues to innovate new solutions for customers in the area of Smart
Grid Industry all covering distribution, Saving&Protecting&Metering Electicty, and Power System.
Product Description
Q110 of split core current transformers have been specifically designed to be mini size which implement the installation of small space, calmp-on design
could be easily fit around cables without breaking the circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage
output.
could be easily fit around cables without breaking the circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage
output.

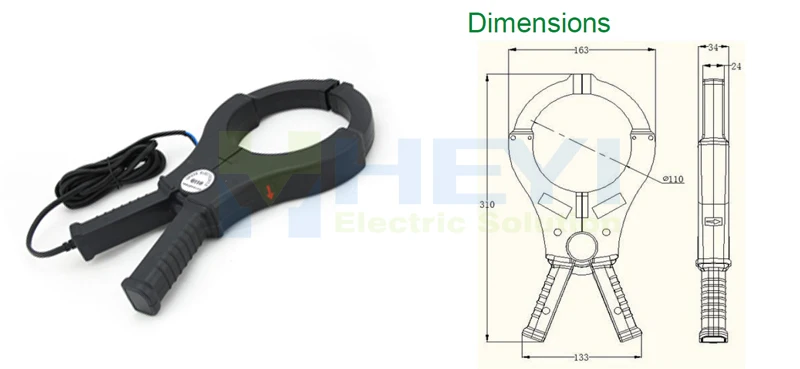

Q110 display
Features
1) The structure of the self-locking, safe, easy to install, portable Wide
2) inner window, allowing clamping of big cables or bus-bars Wide range
of sizes to accommodate all the existing installations Isolated plastic
3) case recognized according to UL94-V0
4) Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs
Specification
| Model | Q110 Clamp on Current Transformer |
| Diameter of Aperture | 110mm |
| Features&Applications | This CT can apply to large current testing, and it can also work with cable-fault measuring-testing instruments and Cable identification instrument for cable testing. |
| Load | ≤4Ω(mA output),0.1Ω(1A output),2.5VA (5A output) |
| Weight | About 1.0kg |
| Others | Providing customization |
| Primary Current | Secondary Current | Compensating turns | Class |
| 600A-1000A | 1A | Null | 0.2/0.5 |
| 600A-1000A | 5A | Null | 0.2/0.5 |
Note: The Current Ratio above are common type, that's ok to customise the ration according to
customers' requirement.
Applications
1) Current measurement, monitoring and protection for electrical wiring and equipment.
2) Current and power measurement for electric motors, lighting, air compressor, heating
and ventilation system, air-condition equipment and automation – control system.
3) Current, power and energy monitoring device.
4) Relay protection device.
Packaging & Shipping
Delivery (Global courier, Ocean transpor, Air transport)
