Save 35% solar system cost solar hybrid inverter running without battery
Product Description
Off grid inverter work without battery Technical advantages:
1) Solar off grid system without battery, 35% cost off compared to traditional solar system
2) Connect generator And PV complementary
3) Wide input voltage range, can adapt to many areas and complex power grid
4) GPRS &WIFI network
Off grid working without battery Inverter Application
Use for the off grid solar system but without battery
Home solar system
Office solar system
Use this off grid power but can run without battery solar new system, save 35% cost than normal with battery design off grid solar system.
Off grid inverter running without battery specification
Model
TF-smart-2000-24
TF-smart-3200-24
TF-smart-5000-48
RATED POWER
2000VA/2000W
3200VA/3200W
5000VA/5000W
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
230VAC ± 5%
Surge Power
6400VA
10000VA
Efficiency (Peak) PV to INV.
97%
Efficiency (Peak) Battery to INV.
94%
Transfer Time
10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform
Pure sine wave
BATTERY & AC CHARGER
Battery Voltage
24 VDC
48 VDC
Floating Charge Voltage
27 VDC
54 VDC
Overcharge Protection
33 VDC
63 VDC
Maximum Charge Current
80 A
60 A
SOLAR CHARGER
Maximum PV Array Power
4000W
5000W
MPPT Range @ Operating Voltage
120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage
500 VDC
Maximum Charging Current
80A
Maximum Efficiency
98%
PHYSICAL
Dimension, D x W x H (mm)
100 x 300 x 440
Net Weight (kgs)
11.5
12.1
Communication interface
USB/RS232
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
–15°C - 60°C
Product specifications are subject to change without further notice

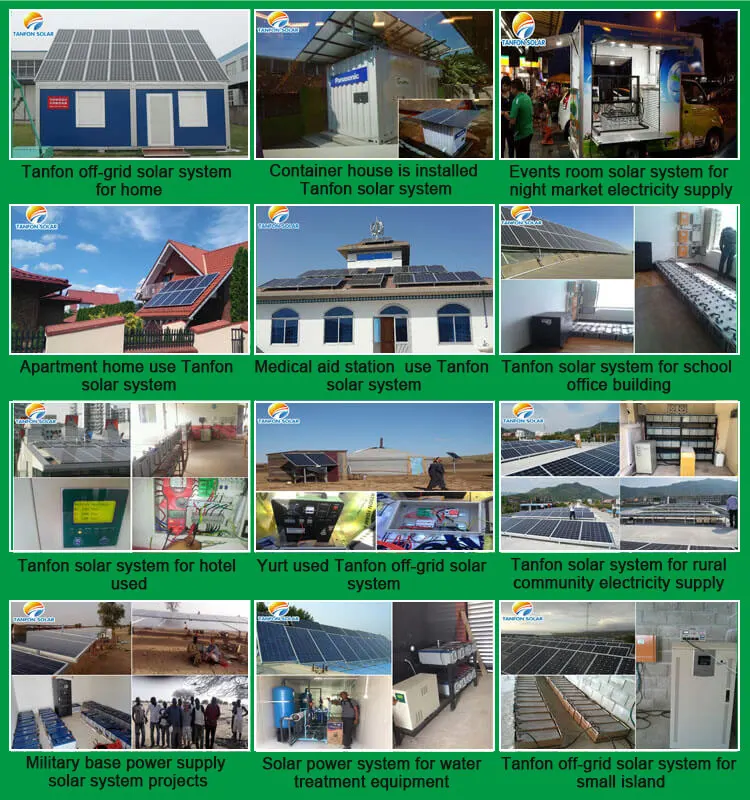

Project Cases
Company Information
Certificate

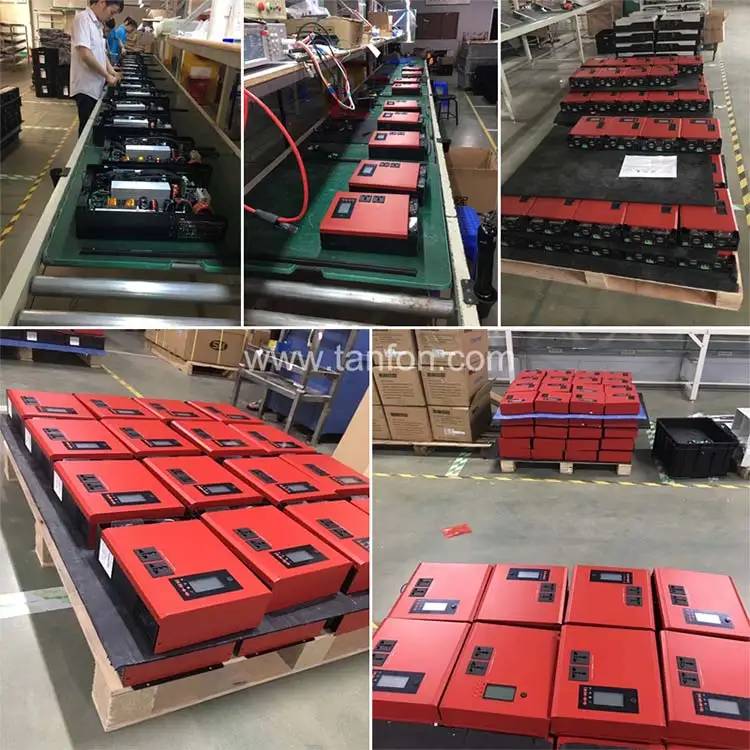

Tanfon Workshop

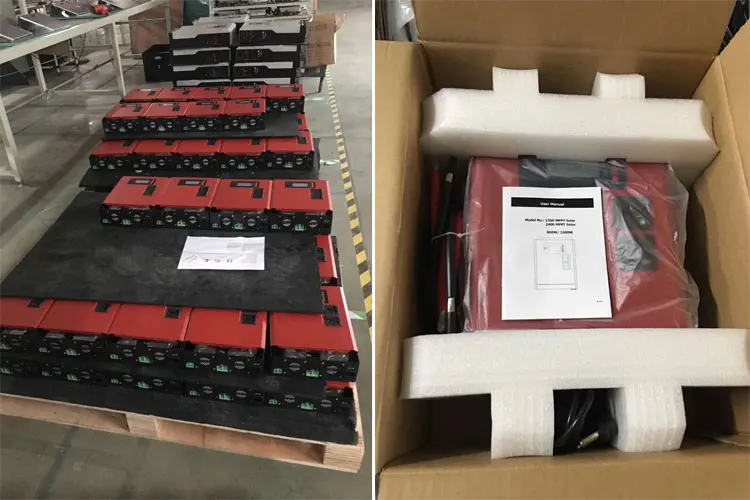

Packaging & Shipping
Off grid solar system without battery design bebnefits
It can be running without batteries, energy share from utility and solar to loads alternatively.
Without batteries, it can help to reduce the whole solar system cost and more importantly it can save electricity fee.
It combines a high PV input MPPT controller, it can convert solar energy form PV to loads directly and the same time the remaining solar energy converted to batteries.
When PV output is reduces by clouds or at night, resulting in no surplus PV power available, loads powered by utility and batteries is charged, when utility outage, batteries discharged.
Off grid solar system running without battery can help to reduce the cost and save electricity fee, energy share from utility and solar to loads alternatively.
