Свинцово-кислотный гель 12 в 250 Ач гелевая батарея для солнечной энергетической системы

Свинцово-кислотный гель 12 в 250 Ач гелевая батарея для солнечной энергетической системы

Категории: >>>
Поставщик: Ningbo,Cinco,Solar,Co.,Ltd.

Цена:235,00 $ - 250,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

GEL Solar Battery

GEL series battery by combining the newly developed nanometer GEL electrolyte, high tin content cathode plate and AGM separator,this series battery enjoys excellet discharging performance,long cycle life and stable performance at high and low temperature surrounding.
Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.

Products Description

1. Valve sealed design,no free electrolyte,maintenance-free.
2. Designed floating service life:12 years(2V),10 Years(12V) as 25℃
3. Wide operating temperature range from -40℃ to 60℃
4. Nnometer gel electrolytes eliminate the acid stratification and proling cycle life
5. Low self-discharge rate:≤3%/month

Product Paramenters

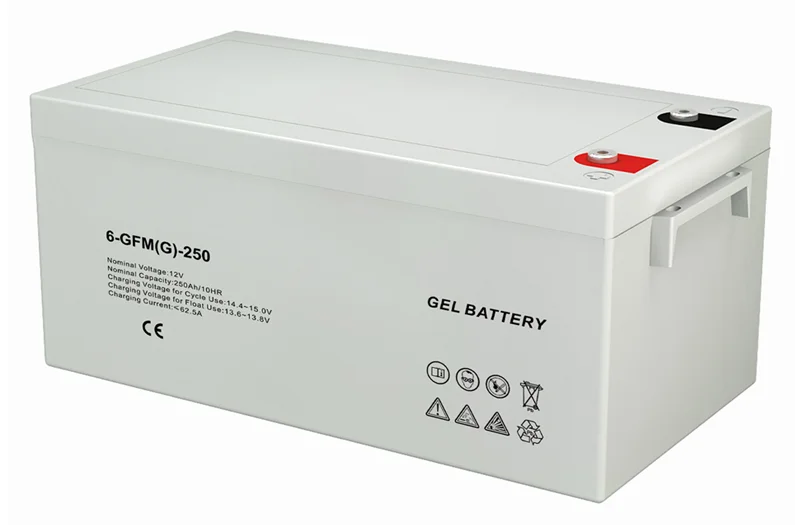

Model			6-GFM(G)-250
Nominal Voltage			12V
Nominal Capacity			250Ah
Design life			10Years
Dimension	Length	520mm
		Width	268mm
		Height	220mm
		Total Height	223mm
Reference weight			71kg
Charateristics
Rated Capacity	10Hour rate	250Ah
		3Hour rate	197Ah
		1Hour rate	160Ah
Interal resistance(Full charged at 25℃)			2.9mΩ
Self-discharge (at 25℃.)			3％ of the capacity per month
Discharge Temperature			-40～60℃
Charge Temperature			-20～50℃
Storage Temperature			-20～50℃
Cyclic charging voltage (at 25℃)			14.4～15.0V
Initinal current (at 25℃)			62.5A
Temperature Compensation			-30mV/℃
Float Use (at 25℃)			13.5-13.8V
Temperature Compensation (at 25℃)			-20mV/℃
Dimension
Rate Capacity	Lengh(mm)	Width(mm)	Height(mm)	Total Height(mm)
AGM 12V 38AH	197	165	170	170
AGM 12V 45AH	197	165	170	170
AGM 12V 50AH	229	138	212	215
AGM 12V 65AH	350	166	175	175
AGM 12V 70AH	260	168	212	215
AGM 12V 80AH	260	168	212	215
AGM 12V 90AH	330	171	216	219
AGM 12V 100AH	330	171	216	219
AGM 12V 120AH	407	170	220	233
AGM 12V 150AH	483	170	241	241
AGM 12V 200AH	522	240	219	222
AGM 12V 220AH	522	240	219	222
AGM 12V 250AH	520	268	220	223
