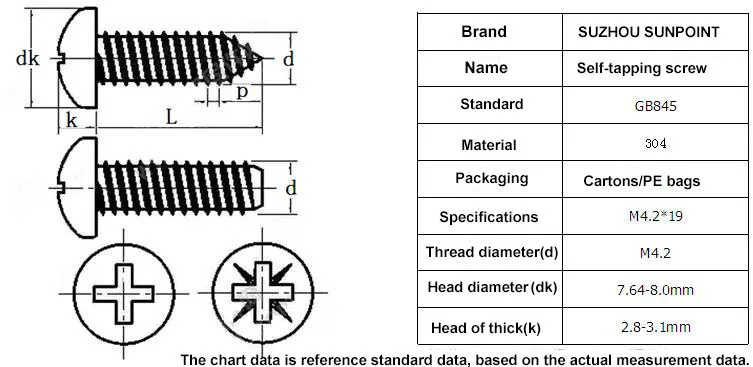

Self-tapping screw for pan head with cross groove in metric

Описание и отзывы

Характеристики



Nominal diameter(d)	pitch	head diameter(dk)		Head of thick(k)		Slot number
	p	min	max	min	max
ST2.2	0.8	3.7	4	1.4	1.6	0
ST2.9	1.1	5.3	5.6	2.15	2.4	1
ST3.5	1.3	6.64	7	2.35	2.6	2
ST4.2	1.4	7.64	8	2.8	3.1	2
ST4.8	1.6	9.14	9.5	3.4	3.7	2
ST5.5	1.8	10.57	11	3.7	4	3
ST6.3	1.8	11.57	12	4.3	4.6	3
ST8	2.1	15.57	16	5.6	6	4
ST9.5	2.1	19.48	20	7.1	7.5	4





Q1: What do you need to provide a quote?
A1: Please kindly send us the drawing of your product. Details below should be included,
A. Materials B. Surface Finish C.Specifications D.Quantity

Q2: How does the payment process work?
A2: Payment terms are flexible for us in accordance with specific conditions. Generally we advise 50%TT deposit, balance be paid before shipment.

Q3: What will you do for after sales?
A3: When our metal parts apply to your products, we will follow up and await you feedback. Any question related to our metal parts, our experienced engineers are ready to help.

*Drawings, photos and samples are welcomed.
*We can according to your requirement or samples to do the product.
*Any questions or need more information, please feel free to conact with us.
*We are looking forward to have a good cooperation with you.
*welcome to visit our factory!
