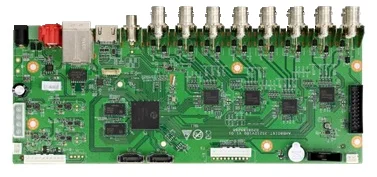

High Quality DVR Board 8ch Wholesale
Features:
Ø Support H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings;
Ø Support VGA, HDMI full HD output simultaneously;
Ø Support ONVIF; access third party;
Ø Support multiplecloud technology, networkpenetration, alarm information pushed to your phone and other functions;
Ø Support web, CMS, center platform management software MYEYE, provide SDK development;
Ø Support various mobile monitoring (iPhone, Android);
Ø Remote Access, With DNS (ARSP),easy to monitor remotely
Ø Support UTC, control signal& video stream transmit through one single coaxial
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Specifications:
| Model | AHB8016T-LM |
System | Main processor | Hi3521D |
Interface | Preview | 1/4/8/9/16 |
Video | Codec | H.265 |
Monitor quality | VGA(1080P at most);HDMI(1080P at most) | |
Preview ability | 16*1080N(6 in 1) | |
Encode ability | 16*1080N@15fps(6 in 1)/8*1080N(6 in 1) | |
Decode ability | 16*1080N@15fps(6 in 1)/8*1080N(6 in 1) | |
Multi-mode input | Analog:16*1080N;8*1080N; Digital to analog conversion:support hybrid: 8*1080N(analog)+8*960P(network) network:8*1080P+8*960P ; 4*3M;4*5M | |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 16ch(analog input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner | |
External Interface | Video input | 16ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Loop Vout | N/A | |
Audio I/O | 2(Can be extended to 6ch)/1 | |
Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | 1*RS485, Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 2*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
General | Power supply | 12V/4A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa | |
Dimension | 235mm*90mm | |
Weight | 279g |
Shenzhen eTsoon Import & Export trading Co.,LTD was founded in 2014. It is a professional manufacturer and exporter that is concerned with the design, development, and production of security products. We're specialized in providing BNC, Adapter, DVR, CCTV, CCTV Camera, PTZ Camera, Video Balun, CCTV accessories, and so on.
We are located in Shenzhen, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
In order to make it easier for customers to purchase, we set up our own stores in Iran in 2015.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the United state, Russia, the Middle East, Southeast Asia, and other countries.
We have established a good relationship with customers between products, marketing, cooperation and Win-win development.
Transport and Delivery:
We cooperate with various shipping companies to offer you the most convenient and cost-effective shipping ways:
DHL, UPS, FedEx ,TNT normally take 3-7 days for delivery;
EMS and Airport cargo take around 4-10 days;
Sea cargo takes 10-50 days.
Small MOQ, fast delivery in about 3-30days.
They are all available based on your requirement.
We extend several exhibitions overseas every year. We know well the request of clients from different countries. We have got many reputations from customers in United States, Russia, Asia, Middle East, Southeast Asia, etc.
Our product is high quality under professional workmanship, strict QA and QC system, meet CE,FCC,ROHS standard. Repair rate is only 0.1%, and we can provide with 1 year warranty.
