Product Description

ESP-5 series covers 2G/3G/4G mobile network. It converts serial port RS232/RS485 to GPRS (ESP-5100) ,and to 3G/4G(ESP-5307). ESP-5100 is good option for applications which does not ask high speed communication. ESP-5307 is advanced version with fater transmission speed.
ESP-5307 supports TD-LTE/FDD-LTE/WCDMA/TD-SCDMA/GSM. An extra Ethernet port is provided, which can be used at same time when
2G/3G/4G is working. P2P connection is also possible.

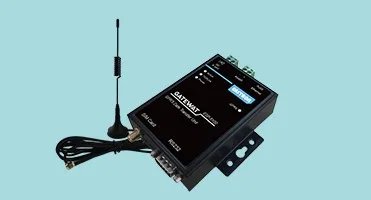

ESP-5100 RS232 RS485 to GSM GPRS Ethernet Modem 2G                                 serial port server router

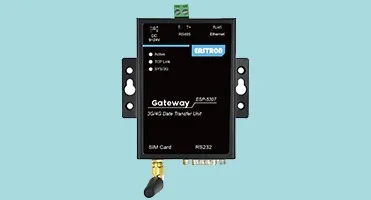

 ESP-5307 serial port RS232 RS485 to 3G/4G converter GSM                     modem Router Modbus Gateway

Parameter
\t
ESP-5100
\t
Serial Port Type
\t
RS232/RS485
\t
Baud Rate
\t
1200~115200bps
\t
Frequency range
\t
900MHZ/1800MHZ，GPRS multi-slot class 10/8,GPRS mobile station class B
\t
Transmission Rate
\t
Downlink Max：85.6kbps；Uplink Max：42.8kbps； Support PBCCH，Coding schemes CS 1,2,3,4, CSD up to14.4kbps, USSD, PPP-stack
\t
SIM Card Voltage
\t
3V，1.8V
\t
Antenna Interface
\t
50Ω/SMA (Female)
\t
Interface Type
\t
2 line Terminal or 5.5mm, inside positive outside negative, standard power plug (alternative)
\t
Input Voltage
\t
9~24V DC
\t
Current
\t
No card or standby in 77mA
\t
Size
\t
L×W×H=9.4cm×6.5cm×2.5cm
\t
Work Temp. Humidity
\t
-40~85℃，5~95% RH
\t
ESP-8307
\t
Transmission Rate
\t
1)3G net speed：uplink 5.76Mbps downlink 7.2Mbps.
2)4G net speed：uplink 2Mbps downlink 68Mbps.
\t
SIM Card
\t
Voltage: 3V，1.8V; Size: Big Card
\t
Antenna Interface
\t
Optional 50Ω/SMA glue stick antenna or sucker antenna
\t
Serial Port Type
\t
RS232/RS485
\t
Serial Parameter
\t
Baud Rate：1200~115200bps
\t
Power Port
\t
Q2.1 outlet, can be customized to power terminal input
\t
Input Voltage
\t
9~24V DC
\t
Current
\t
<200mA@9V
\t
Size
\t
L×W×H=9.4cm×6.5cm×2.5cm
\t
Work Temp. Humidity
\t
-40~85℃，5~95% RH
Related Products

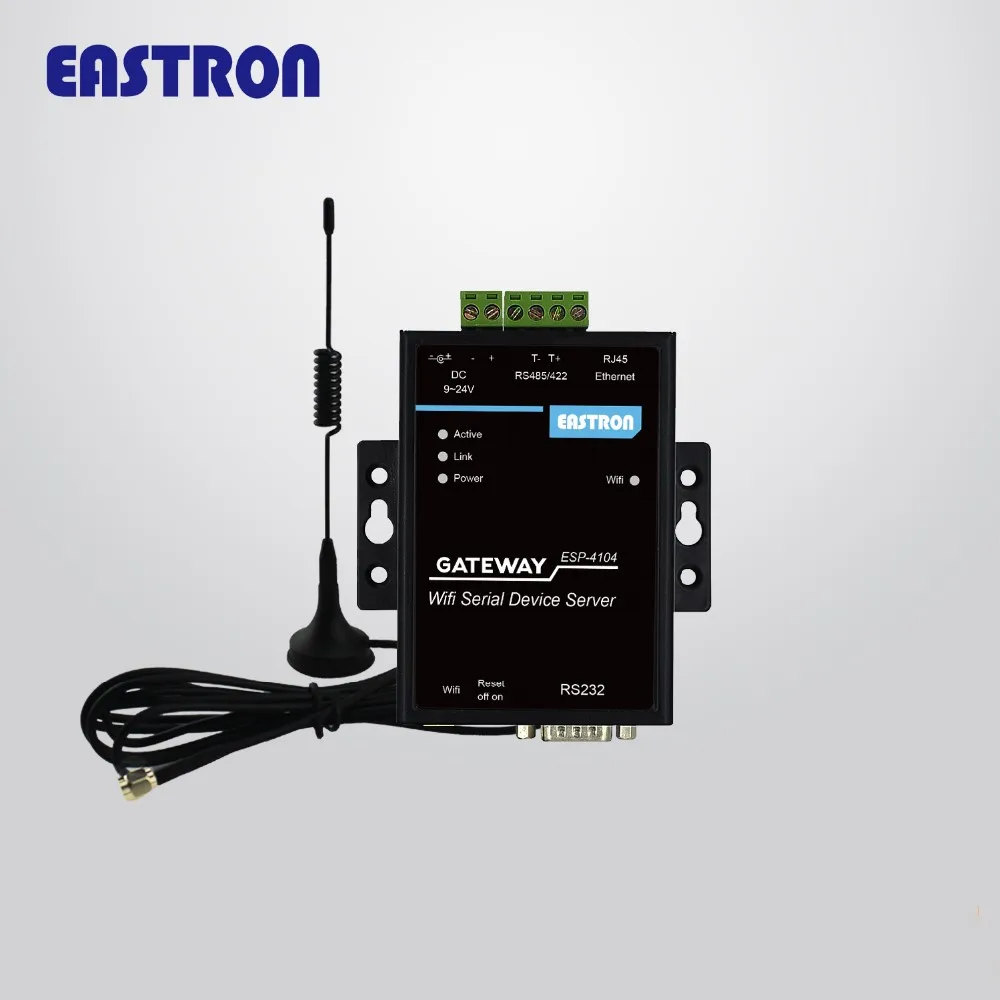

ESP-4000 Series Serial to WIFI


ESP-2000 Series Serial to TCP/IP


ESP-6000 Series Serial to Lora


Our Company
Certifications
Packing & Delivery
FAQ

1. Can I ask for samples?
 Yes, for sample orders, pls order from our online shop: Aliexpress


2. Where can I get a user manual?
 User manual can be downloaded from our official website: eastrongroup

3. What's the warranty of your products?
 18 months

4. What's the lead time?
 Depend on the quantity and model of the order, normally it takes around 10-15 days, but the exact lead time should be discussed with our sales.

5. Do you have software?
 we offer simple software for testing.

6. Can you offer Modbus protocol instruction/ modbus register map?
 Yes, we have and welcome contact us.

EASTRON is a technological enterprise with strong R&D resources and good sales. Welcome inquiry.
