QR3210 дробеструйная машина с автоматической

QR3210 tumble belt shot blasting machine with auto loading device

Tumbling rubber belt shot blasting machines ideal to tumble in bulk loads small and medium sizes parts.



This small shot blasting machine uses wear proof rubber belt to load castings.

The tumble blast machines with rubber belt conveyor are employed for the surface treatment of batches of parts, loaded manually or automatically by means of a hydraulic skip loader.

The belt conveyor is made of wear-proof rubber. Its rotation makes the parts tumbling, and by this movement the whole surfaces of the parts are exposed to the shots thrown by the turbines.

The offloading of the parts is obtained by the rotation of the belt conveyor in the opposite sense. Parts can fall directly into the empty container or through an offloading belt or vibrating conveyor.

The max loading capacity can vary from 200 to 600 Kilos in weight.



Application

It is suitable for surface cleaning, remove rust and strengthen of various medium, small casting, forging and heat treatment workpiece.



Technical parameter

Item	Unit	Q326C	QR3210	QR3220	15GN	28GN
Productivity	T/h	0.6-1.2	1.5-2.5	4-5	5-6	10-12
Max. feeding amount	Kg	200	600	1200	1300	3500
Max. single workpiece weight	Kg	10	30	40	230	363
End disk diameter	mm	∅650	∅1000	∅1000	∅1092	∅1245
Effective volume	m³	0.15	0.3	0.4	0.43	0.79
Blasting capacity	Kg/min	100	250	500	480	700
Ventilation volume	m³/h	2200	5000	10000	5300	6500
Power consumption	Kw	12.6	24.3	51	49.3	64.5

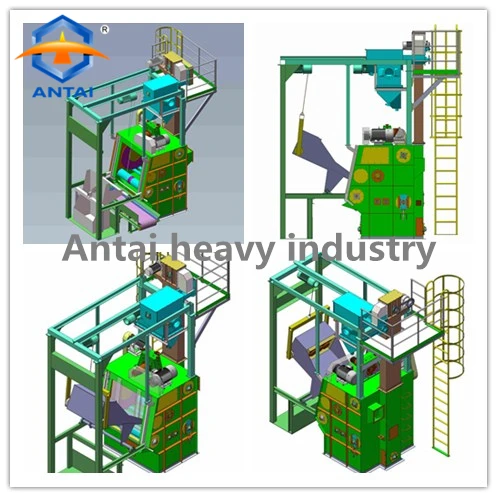

Detailed image
