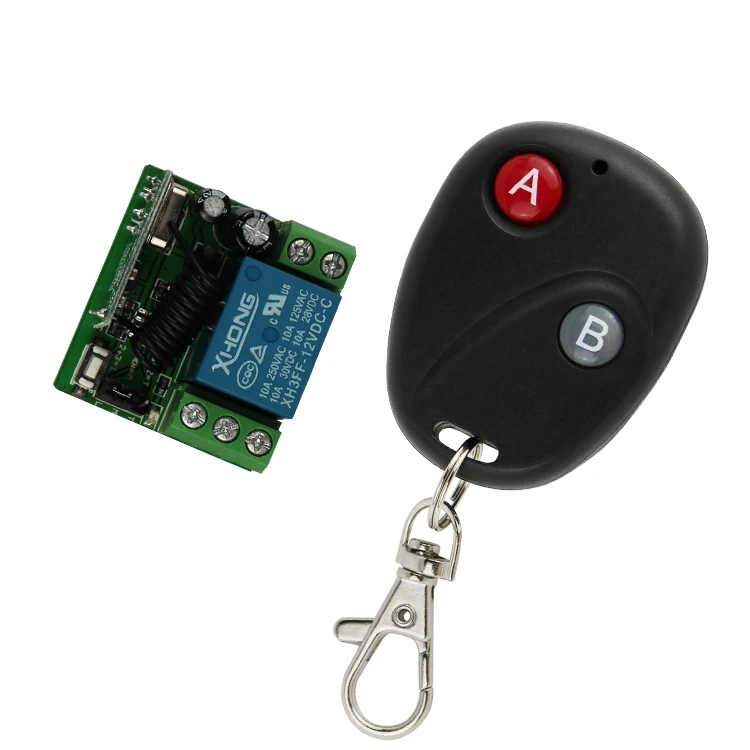

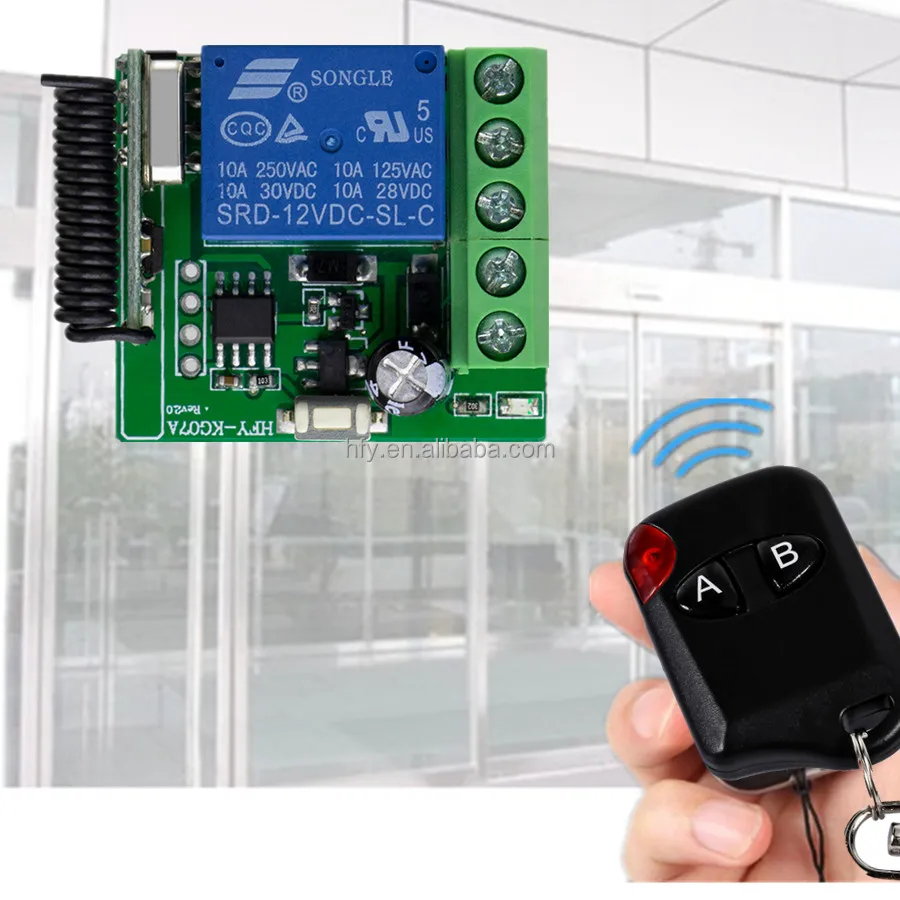

DC 12v wireless remote switch remote control kit for gate door
For Receiver Module:
Model: HFY
Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC 10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >97dbm
Remote Control Range: >50m (Free Space).
Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )

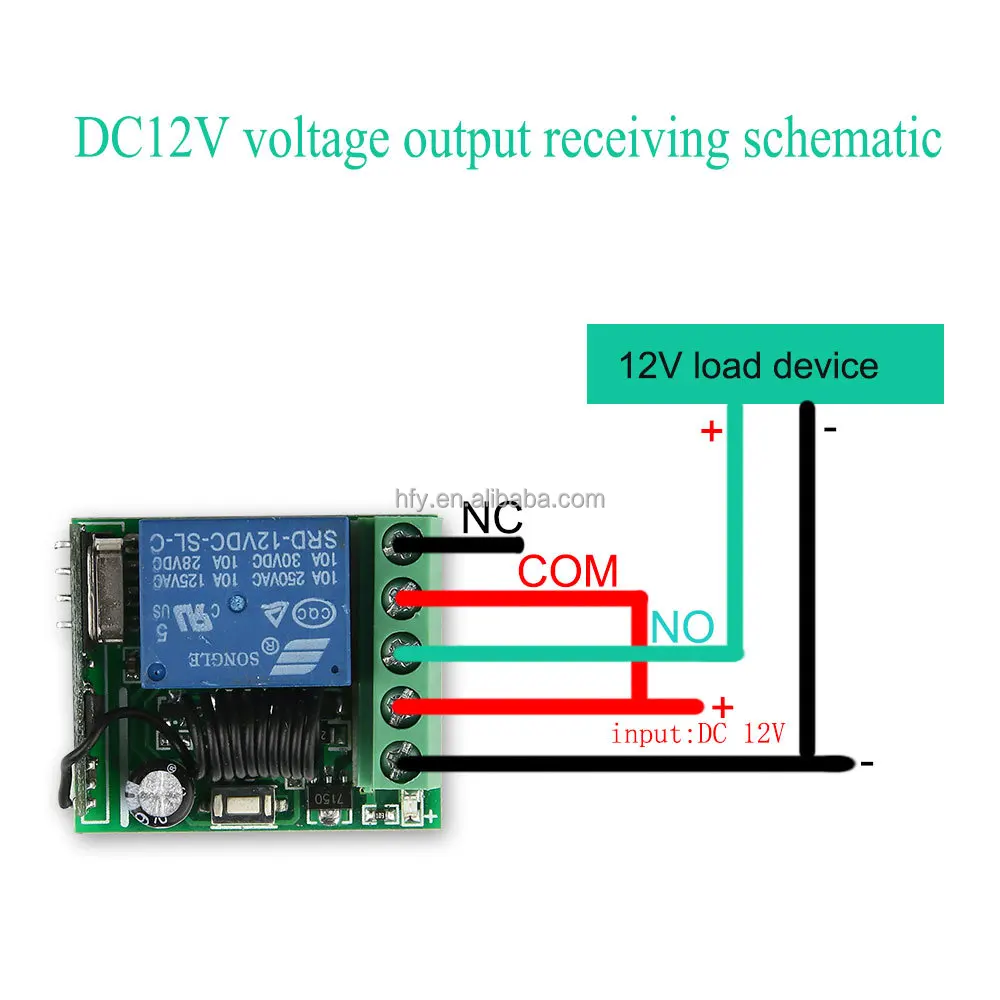

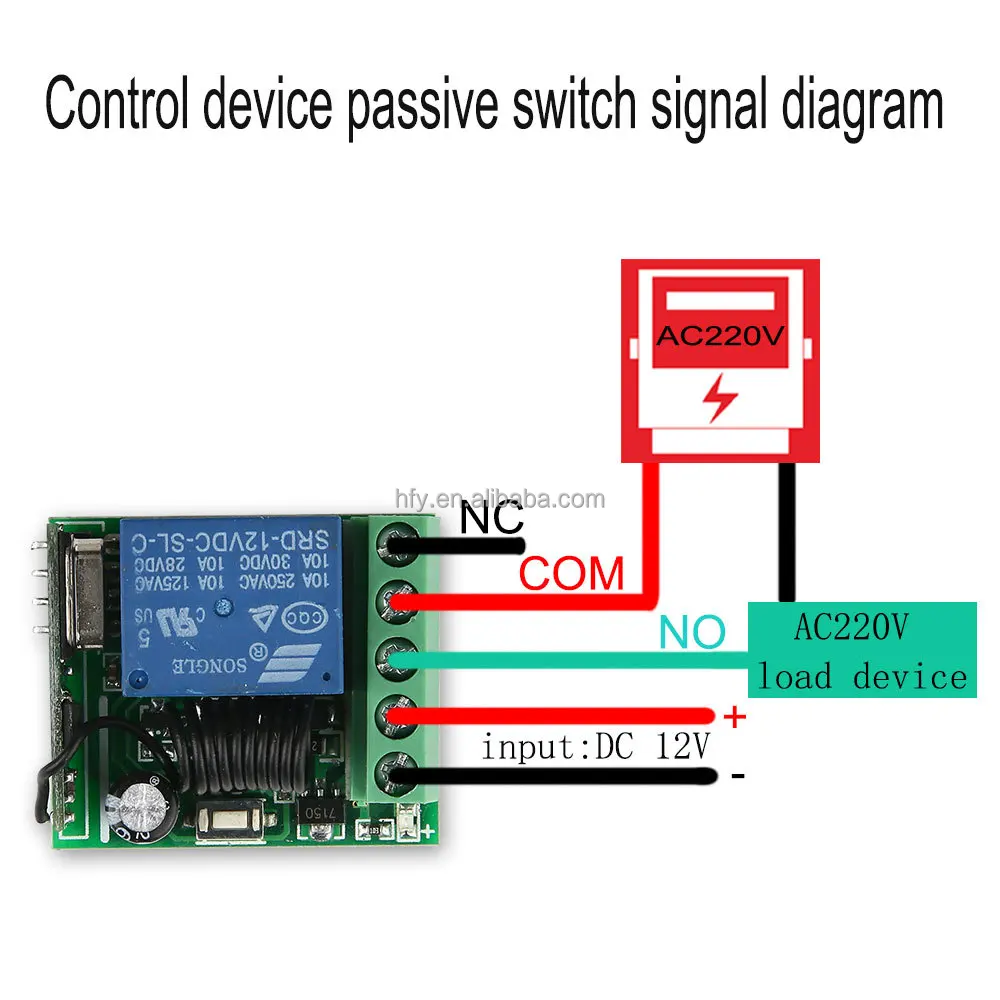

Wiring Diagram 1:
+V : 12V + (Input).
- V: 12V - (Input).
NO: Normal Open(Output).
COM:Common(Output).
NC: Normal Close(Output).
Color: Green (PCB Board), Black(Outside Shell)
Circuit Board Size: 3.5 * 3.0 * 1.8cm/ 1.37 * 1.18 * 0.7in
Circuit Board Weight:16.4g/0.57oz
Package Size:3.9 * 3.5 * 2.5cm / 1.53 * 1.18 * 0.98in
Package Weight: 27.2g / 0.95oz
|
Specifications:
Product Type: 4-CH Remote Control Transmitter + Receiver Module
RF Frequency: 433 MHz
Encoding Type: Learning Code(1527), Fixed Code(2262).
RF Working Mode: Superheterodyne Reception
Modulation System: ASK
For Transmitter:
Channel Supported: Four Channel
Buttons: Four Buttons
Power by 27A 12V battery
Operating Voltage:DC12V
Operating Current:12mA
Transmitting Power: 10mW
Transmission Distance: 50m(free space).
Color: Brown
Main Item Size: 6.5 * 3.2 * 1.2cm / 2.55 * 1.25 * 0.47in
Main Item Weight: 26g/o.9oz
Package Size: 6.8 * 3.5 * 1.5cm / 2.67 * 1.37 * 0.59in
Package Weight: 28g/1.0oz
|
PC Bag, Blister Package, Paper Box, according to customer's requirements.Every singal one has singal bag
Shippment Terms
1) We will pack and send your goods within 1-3 working days after we confirmed your payment. For quickly packing and sending, please tell us when you finish the payment.
2) We will inform you the lead time if we have to purchase from manufactory.
3) We usually ship by DHL, UPS, TNT, FedEx, Aramex or EMS. It usually takes 3-7 days to arrive. Air cargo and sea shipping are aslo optional.
4) We need your shipping information including your name, address and phone number for shipping your parcel.
5) Tracking number will be shared with you when we got it from the logistics company.
We have advanced equipment in our factory. At the same time, we ensure that our wireless products and security systems are of the highest standard to meet international market and we get CE and RoHS certification .Our products are sold in North America ,South America ,Iran,Southeast Asia, Western Europe, Africa and Brazil and so on. Moreover, we can rapidly develope and produce wireless RF products as every customers' requirement onOEM or ODM basis.

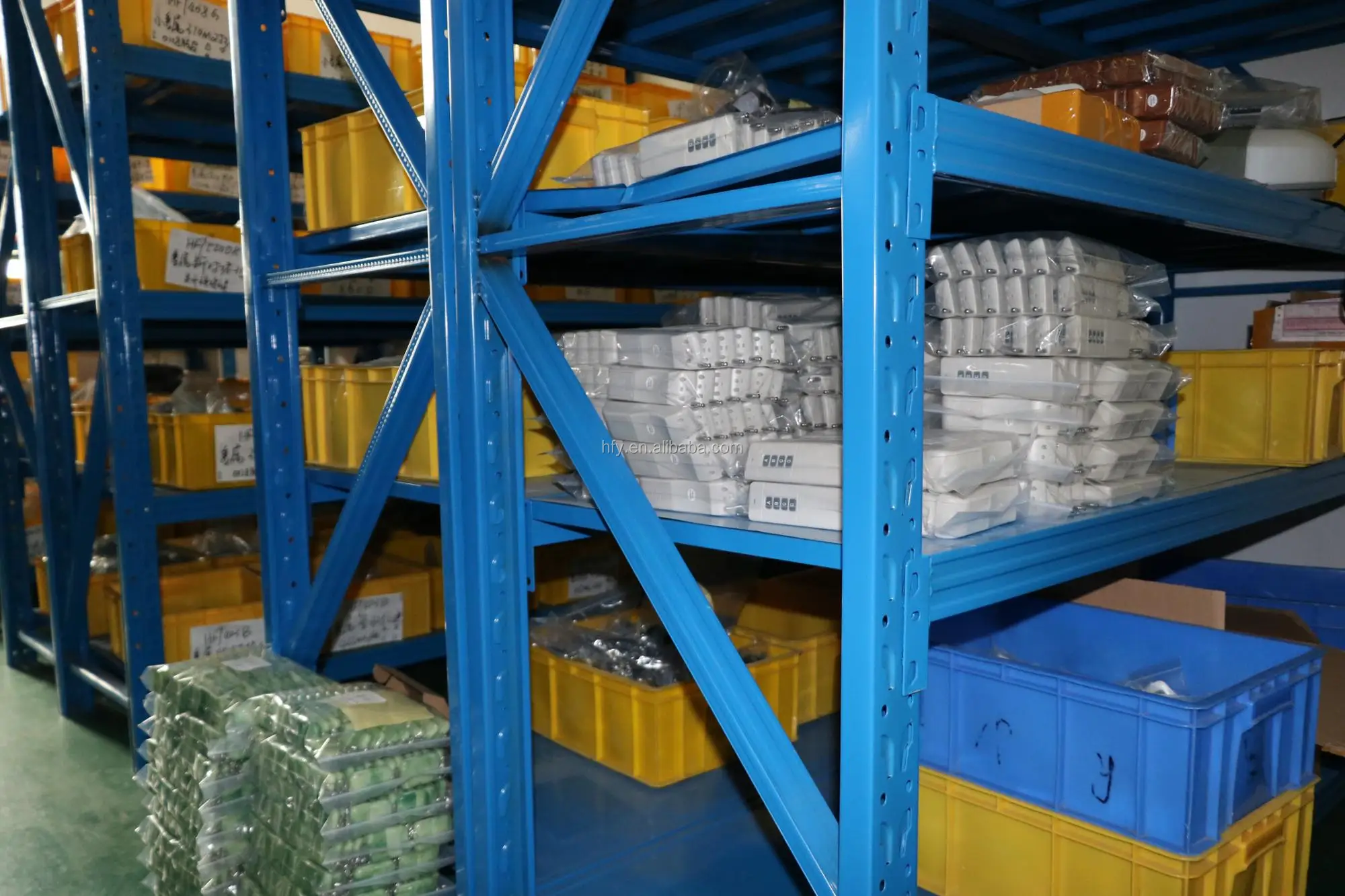

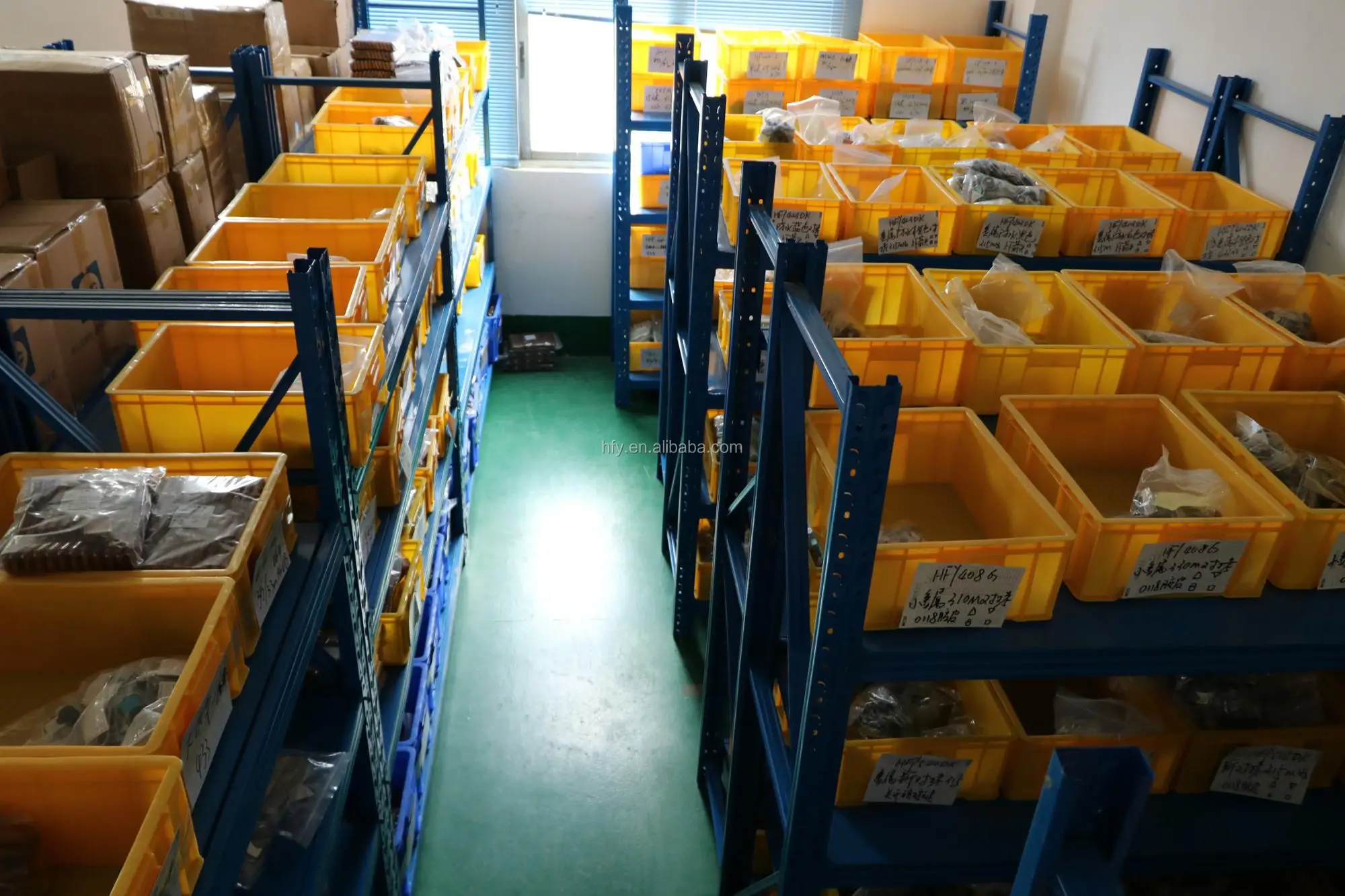

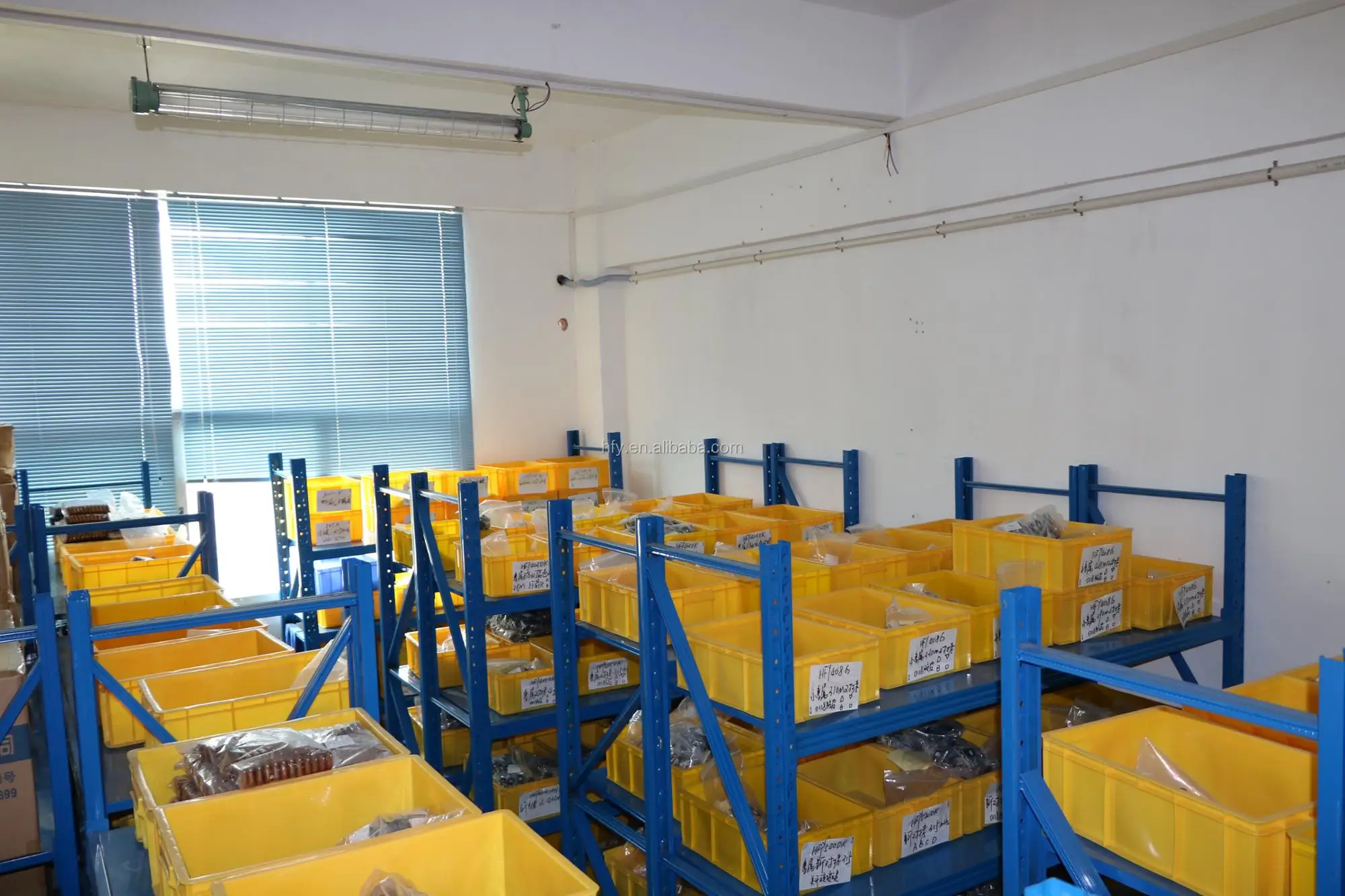

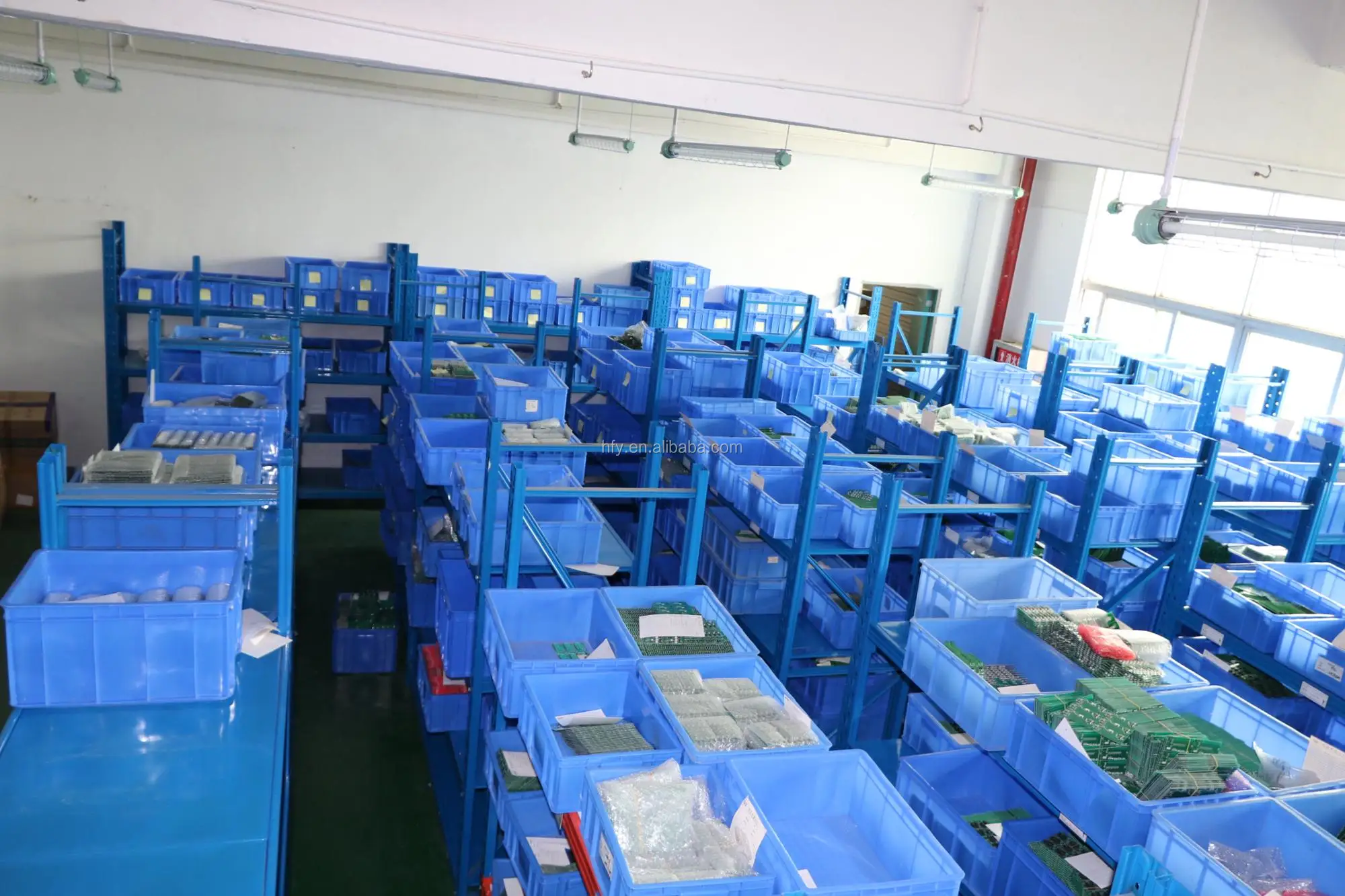

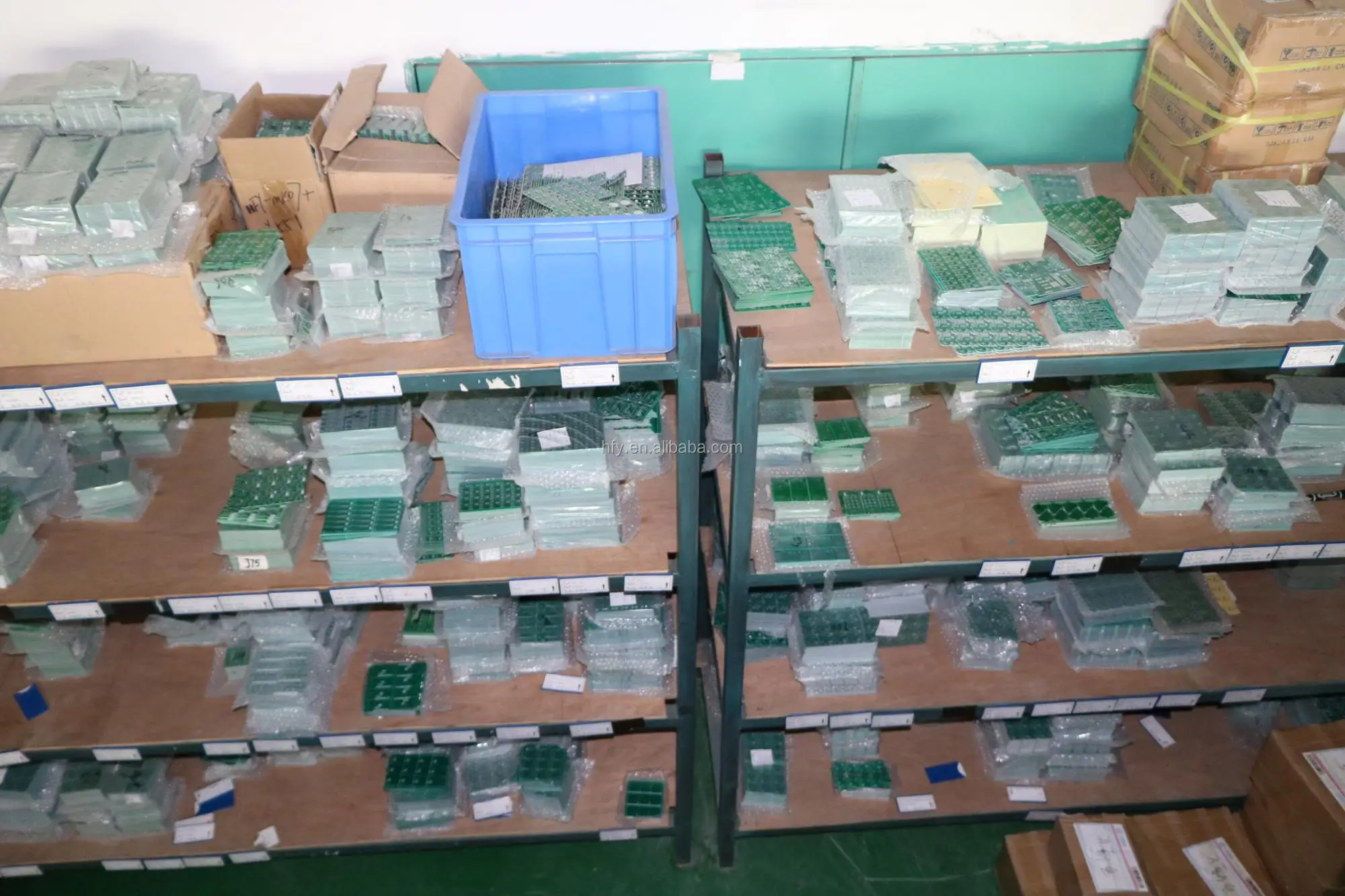

Our warehouse
Q: What is your MOQ?
A :Our MOQ is 200pcs.The more quantity you order ,our material cost will be less, the price we offer to you will better.
Q: How about your price?
A:We will do our best to offer a good price for our customers, usually our price is worked out according to the current exchange rate, probable order quantity, most important is your sincerity on cooperation.
Q: Can you supply sample for customer?
A:We can supply sample for customer's quality checking before
placing new order to us, the delivery cost will be charged on customer's account.
Q:Can you customize for customers?
A: Yes,we can customize according to customers'requirements.
Q: How about your delivery date?
A:Normally our delivery date is about 15-20days after the payment received.
Q:How about the quality of your products?
A:We use best quality (original) components to ensure our product in high level.
All products we sold out are strictly tested by our QC department.
Q:Can I visit your factory?
A:Yes,welcome to our company.
Q:How long do your products does?
A:120-200M
Q:Can I have your free sample?
A :Yes,but the CIF will be on you
The address of our company:2/F,NO.182,xinmu RD. xinmu village .pinghu town.longgang district ,shenzhen city,China
Quality Warranty
1) Our products are all original and new from manufacturer. It must be work if the model number is correct.
2) We offer 30-90 days warranty to our products.
3) During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 7 days after delivery, we will return the new products when we got your message.
