manual obd ii gps gprs gsm car tracker NR-B20 smallest easy install obdii vehicle gps tracking with SDK&API



1.  Specifications
1.OBDII interface , 16 PIN
2.Built-in GSM&GPS module(850/900/1800/1900MHz)
3.G-Sensor three-axis acceleration
4.Can bus and K-Line protocol
5.Working current:<110mA@12V
6.Standby current:<10mA@12V
7.Work voltage: 11~18V
8.Position mode :GPS+LBS position
9.Size:45.5mm×25.5mm×30mm
10.Operating Temperature:-45°C ~75°C
11.Humidity: 5%~95%

2.  Main Functions:
1.Realtime GPS location tracking
2.Fuel consumption monitoring

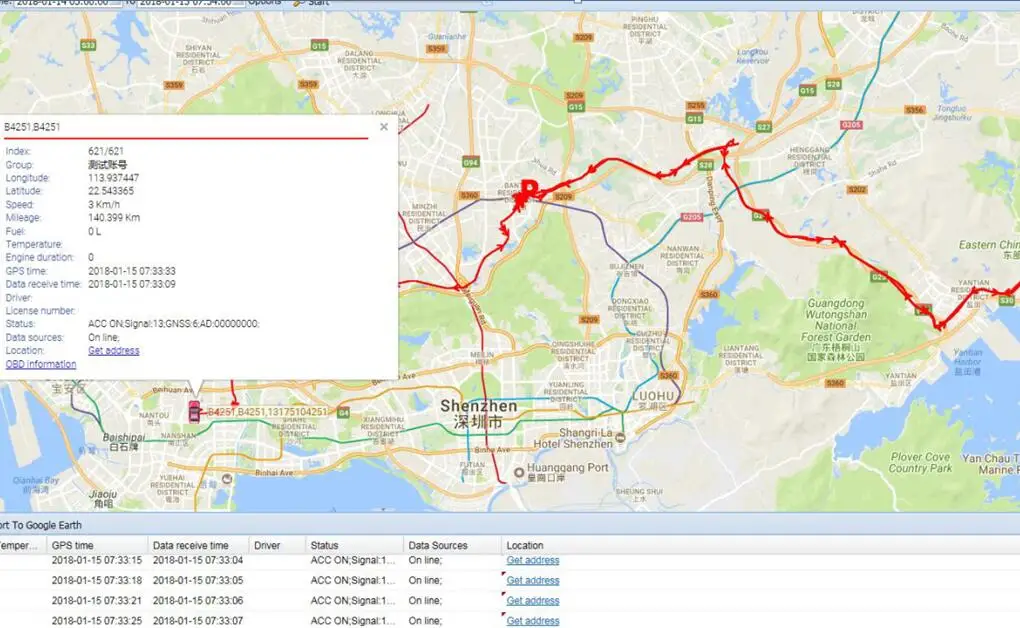

3.History track playback

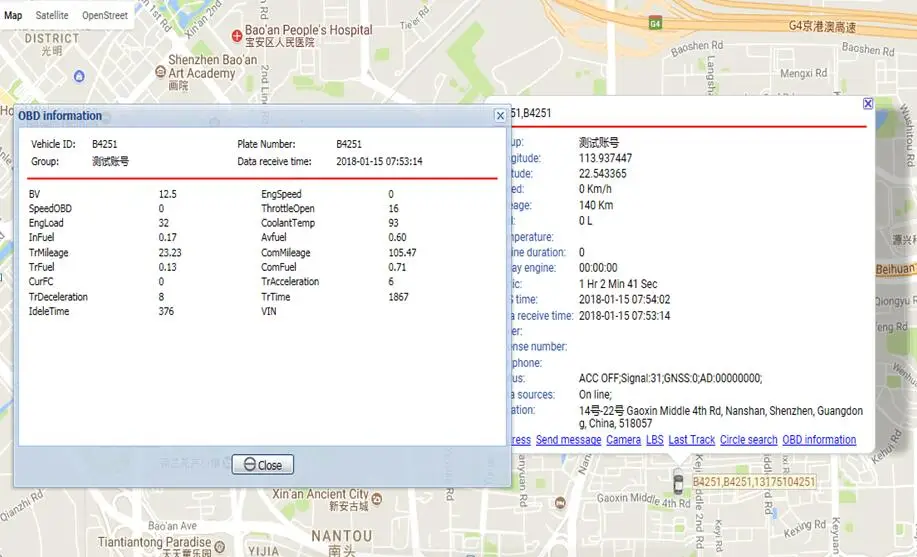

4.Read dashboard data remotely

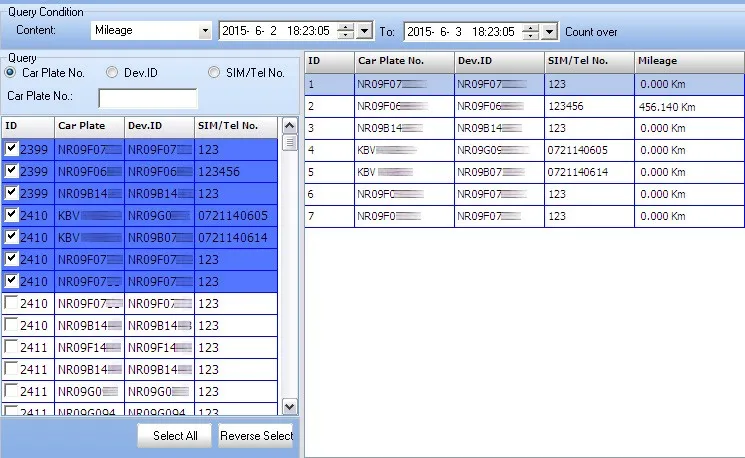

5.Mileage statistics
6.Web tracking, android &IOS mobile tracking
7.Fleet management

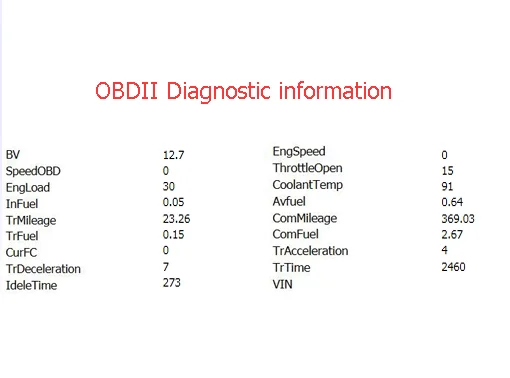

8.Car diagnosis and maintenance
9.Read EUC error code remotely
10.Read Dashboard data remotely
11.Vehicle scheduling
12.Overspeed alarm/geo-fence alarm
13.Alarm while remove it from car
14.Battery voltage monitoring



3.   Driving behavior analysis
1.Accumulated travel time/current driving time
2.Accumulated idle time/The idling time
3.Average speed
4.The highest speed in history / the highest speed
5.Cumulative number of rapid acceleration
6.The total mileage
7.Real time driving fuel consumption
8.Idle fuel consumption

















4. Installation

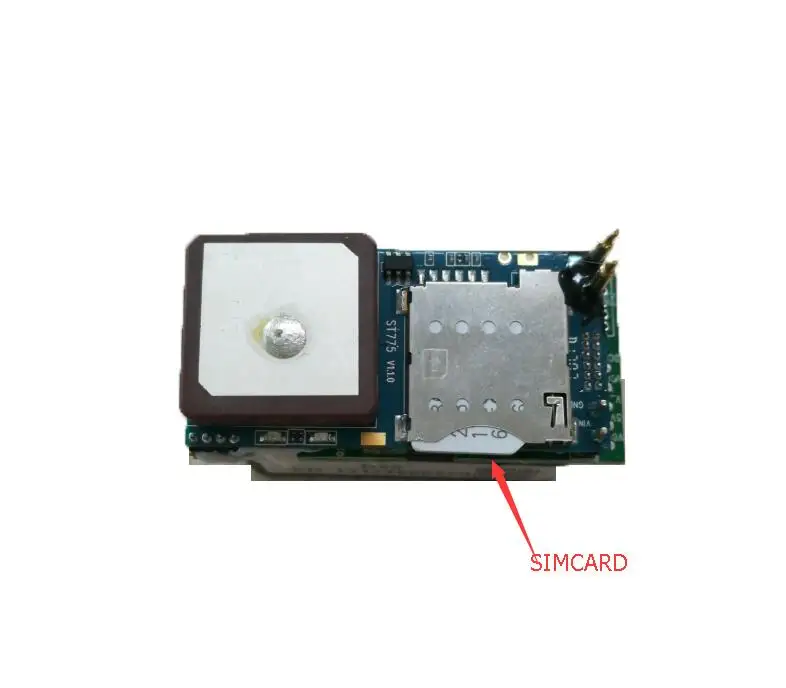

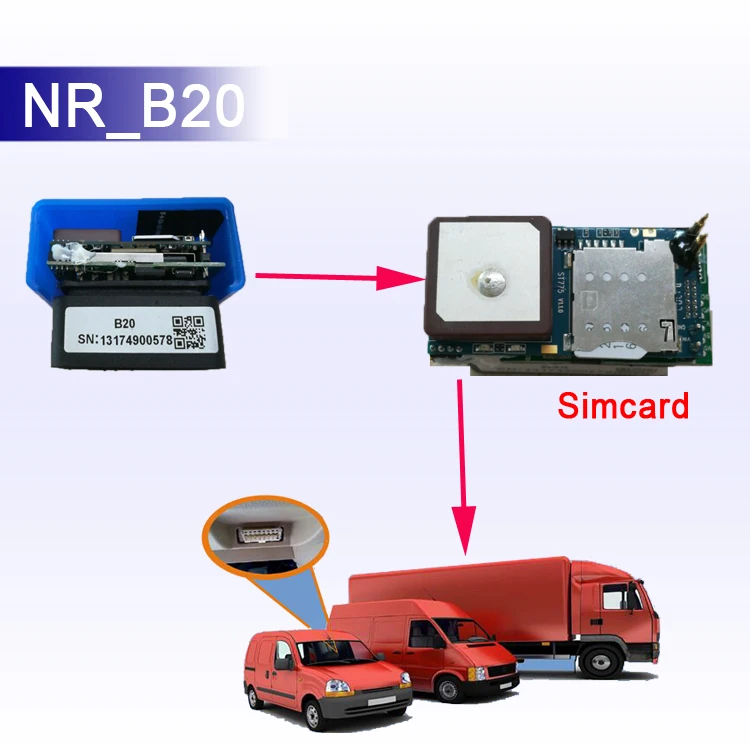

Step1: insert the simcard into the device

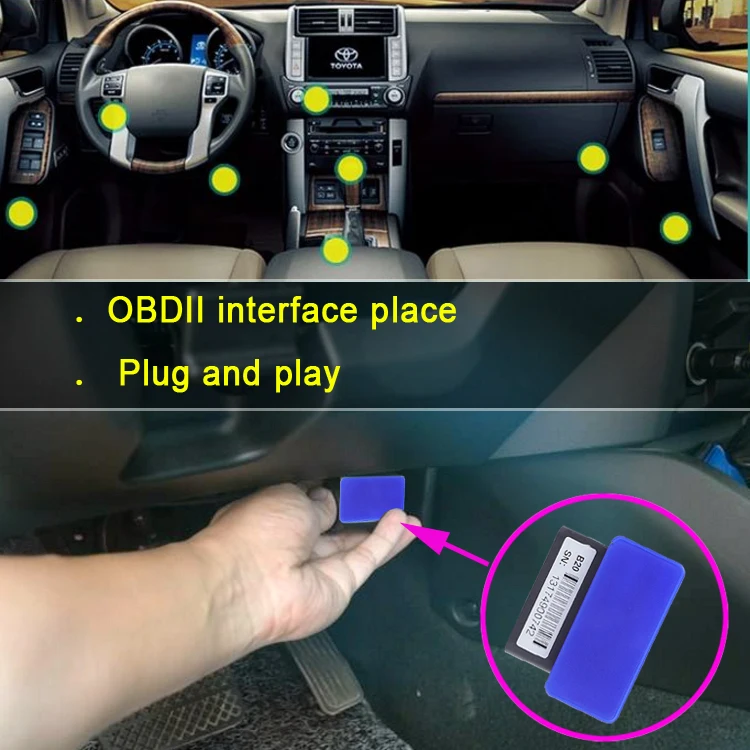

Step2: Plug device into the vehicle OBDII interface (16PIN)

OBD 2 GPS Tracking Function and Gps Tracker Type gps trackerOBD 2 GPS Tracking Function and Gps Tracker Type gps tracker
Step3: Set Parameters of GPRS, let the device connect to internet
Step4: Tracking on mobile app,website,fleet management
FAE online ( Skype:smartkw )





5.  Our services



1. We provide web tracking system, Android APP and IOS App free
2. Our device can send data to your own server, we will provide SDK and API for integrate
3. we will install the tracking system into your server if you have own server
4. We provide OEM and ODM services, it is free if you only add logo and company name
5. Warranty: 24-month



6.Packaging list

·Device Size/Weight:72(L)X48(W)X24(H)mm/80g

·All sets Size/Weight:147mm(L)*95mm(W)*68mm(H)/100g
