 Single Screw Extruder Mould Vacuum Forming Cooling Tank Plastic HDPE Pipe Machinery

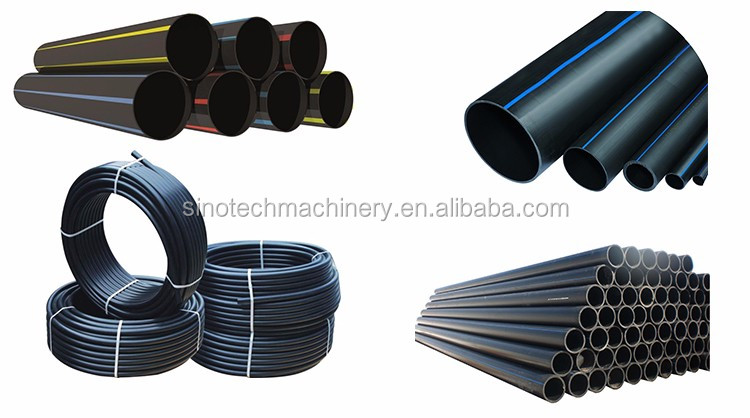

HDPE Pipe Application:

Agricultural Irrigation water supply&Sweage drainage pipe&Discharge system&Gas supplly system&Architectural water supply.

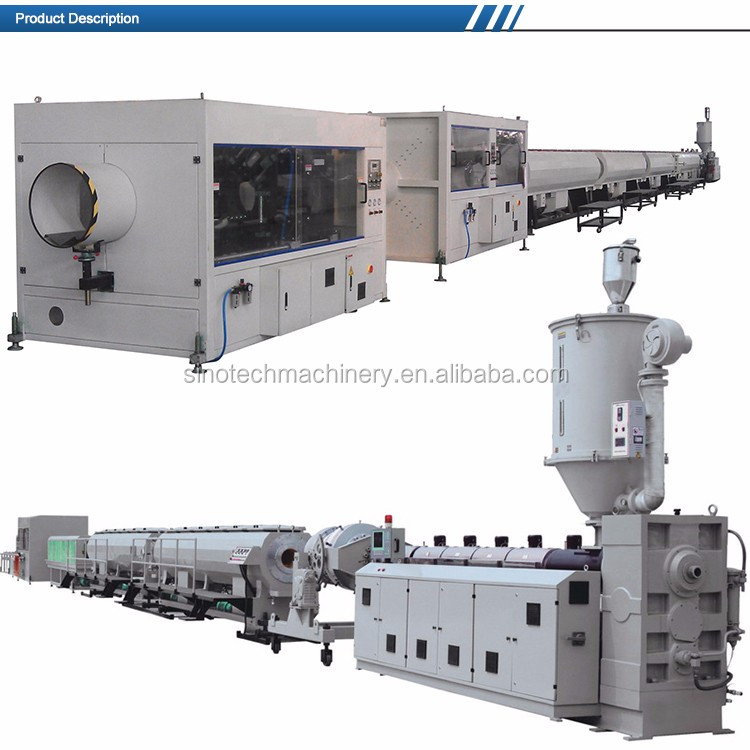

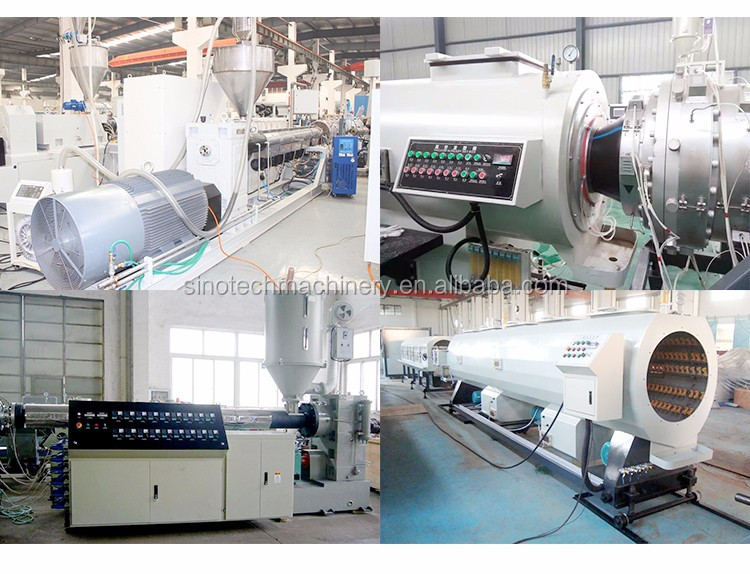

Production Flow of Pipe Production Line:

Material →Color Mixer →Automatic Feeder→Hopper Dryer →Single Screw Extruder →Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →Cutter →Stacker or Coiler

Features of Pipe Machiner:

1- 30m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
2- The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running   of extruder.
3- Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4- Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5- High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6- PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length     of extrusion line, and improve quality of inner pipe surface;
7- Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8- Chip-free cutter ensuing flat and smooth cutting surface of pipe.

Main Technical Parameter:

Machine model	Pipe diameter	Vacuum Calibration Tank			Spray Cooling Tank		Haul-off unit		Cutter
		Vacuum pump	Water pump	Length(mm)	Water pump	Length(mm)	caterpillar Quantity	Motor	Cutting type
HDPE63	φ16mm-φ63mm	3kw*2	3kw*2	6000mm	3kw*1	6000mm	2	1.5kw*2	No dust cutter
HDPE-110C	Φ40mm-φ110mm	4kw*2	3kw*2	6000mm	3kw*1	6000mm	2	3kw	No dust cutter
HDPE-160	Φ50mm-φ110mm	4kw*2	4kw*2	6000mm	4kw*1	6000mm	3	1.1*3	Planetary cutter
HDPE-250	Φ75mm-φ250mm	5.5kw*2	5.5kw*2	6000mm	4kw*1	6000mm	3	1.1kw*3	Planetary cutter
HDPE-315	Φ110mm-φ315mm	5.5kw*2	5.5kw*2	6000mm	5.5kw*1	6000mm	4	1.1kw*4	Planetary cutter
HDPE-630	Φ315mm-φ630mm	7.5kw*2	7.5kw*2	6000mm	7.5kw*1	6000mm	6	1.1kw*6	Planetary cutter
HDPE-800	Φ400mm-φ800mm	5.5kw*2(2m)	5.5kw*2(2m)	6000mm	5.5kw*2	6000mm	8	1.1kw*8	Planetary cutter
		7.5kw*2(10m)	7.5kw*2(10m)
HDPE-1200	Φ630mm-φ1200mm	5.5kw*2	7.5kw*2	6000mm	7.5kw*2	6000mm	10	1.1kw*10	Planetary cutter
