JX PDI-HV2107MG 7 4 Высокое напряжение 9 кг. См тонкий крыла с прямым приводом сервопривода для летательных
- Категории: Toy Parts >>>
- Поставщик: Hangzhou,Reacher,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
JX PDI-HV2107MG 7.4V High Voltage 7.9kg.cm slim wing Direct Drive servo for aircraft
Product Description
Specifications:
Dead band: 2μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12 sec/60°
Stall Torque (6V): 6.8 kg.cm
Stall Torque (7.4V): 7.9 kg.cm
Potentiometer Drive: Direct Drive
Dimensions: 30.0X10.0X35.5mm
Weight: 21g
Connector Wire Length: JR/Futaba 220 mm
Bearing: 2BB
| Item No | PDI-HV2107MG |
| Dead band | 2μs |
| Control System | +Pulse Width Control |
| Working frequence | 1520μs / 330hz |
| Operating Voltage | DC6~7.4 V |
| Operating Temperature Range | -10 to + 60°C |
| Operating Speed (6.0V) | 0.14sec/60° |
| Operating Speed (7.4V) | 0.12 sec/60° |
| Stall Torque (6.0V) | 6.8kg.cm |
| Stall Torque (7.4V) | 7.9kg.cm |
| Potentiometer Drive | Direct Drive |
| Dimensions | 30.0X10.0X35.5mm /1.18 X0.39X1.40 in |
| Weight | 21 g (0.74oz) |
| Connector Wire Length | JR/Futaba 220 mm |
| Bearing | 2BB |

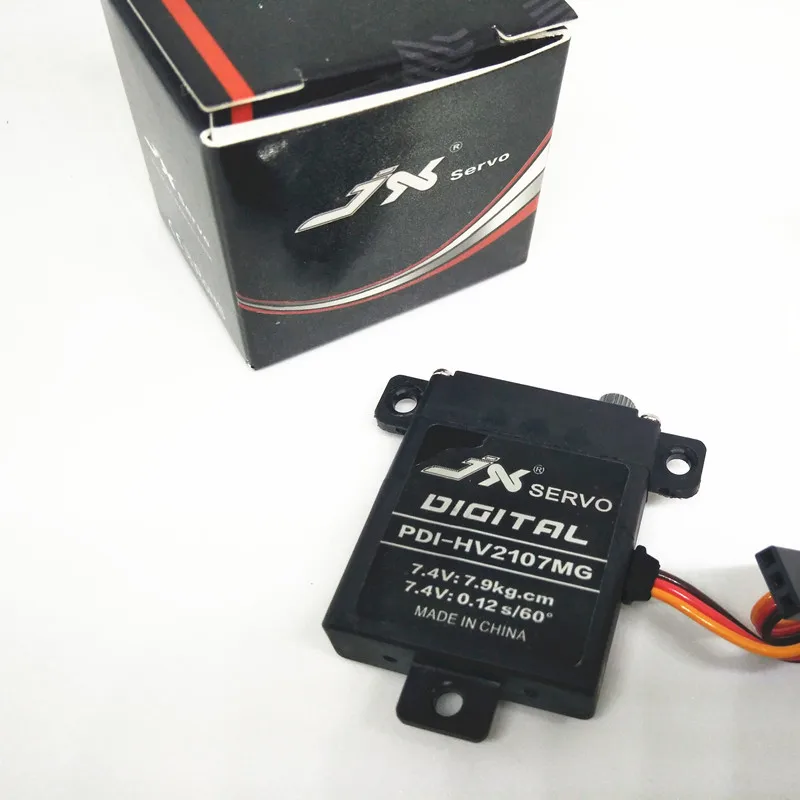

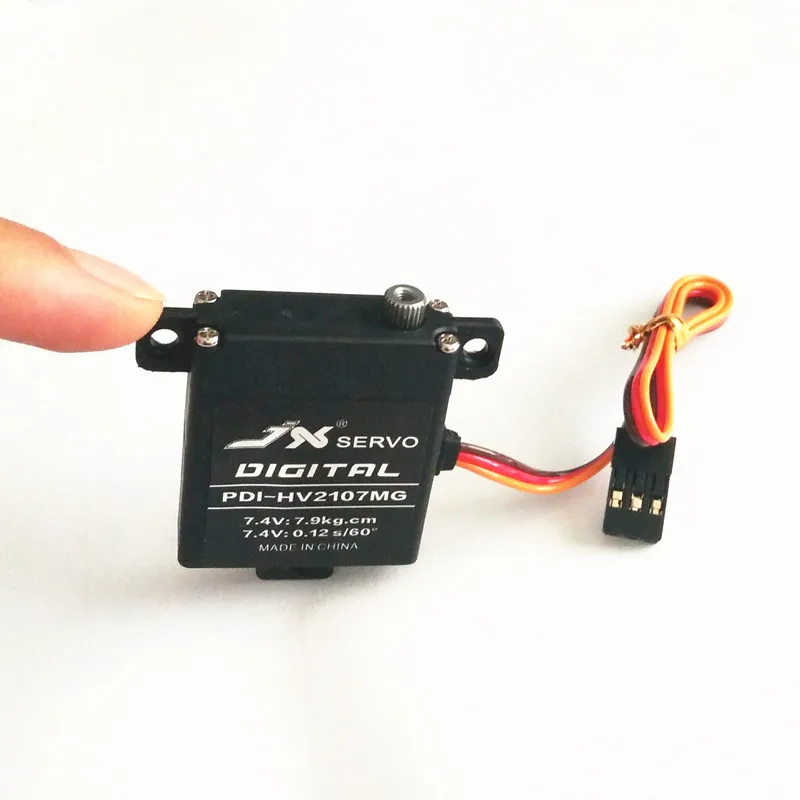

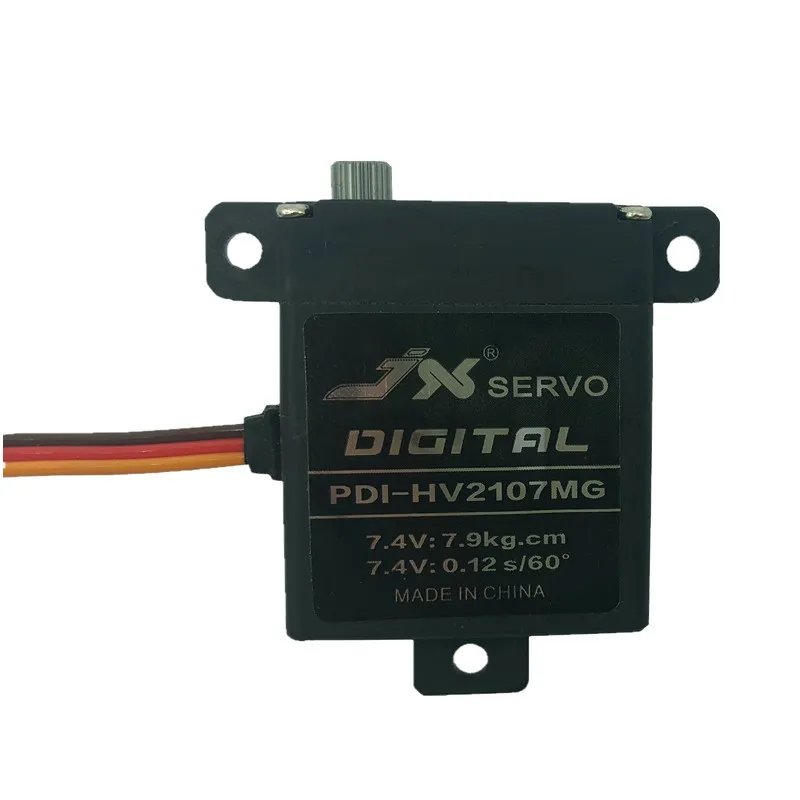

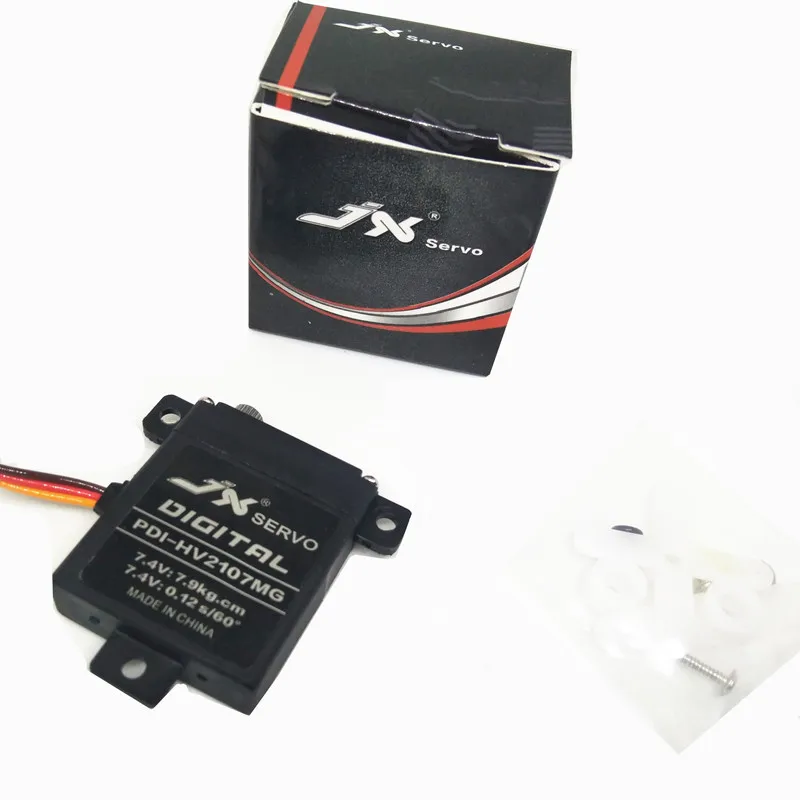

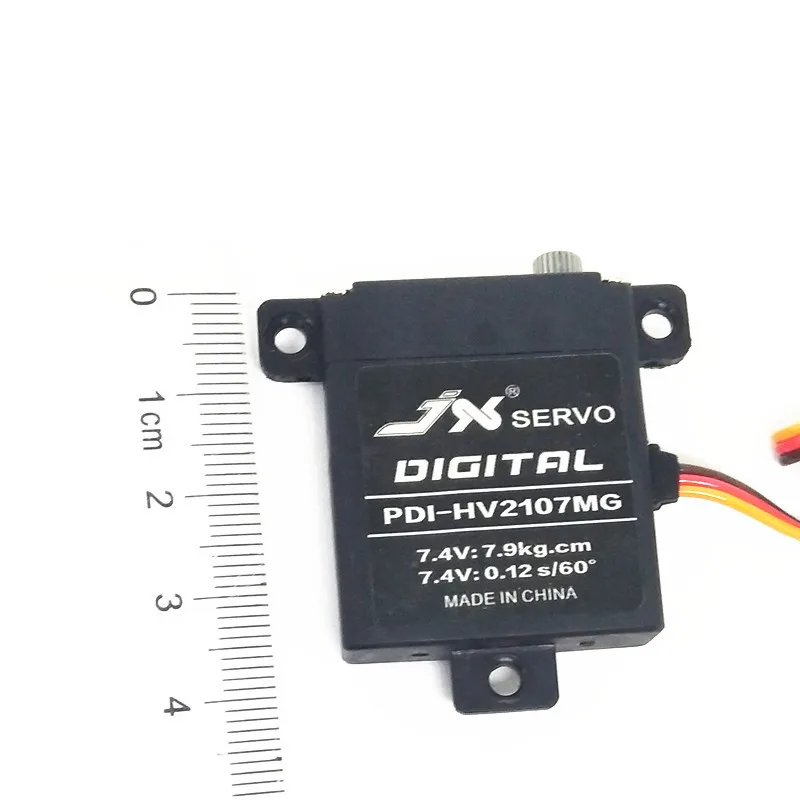

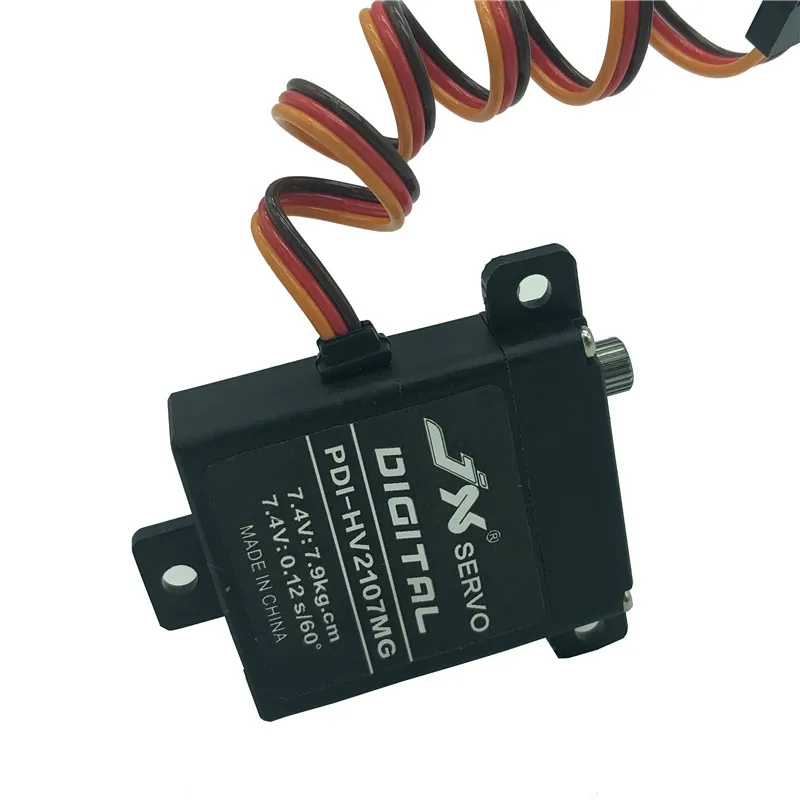

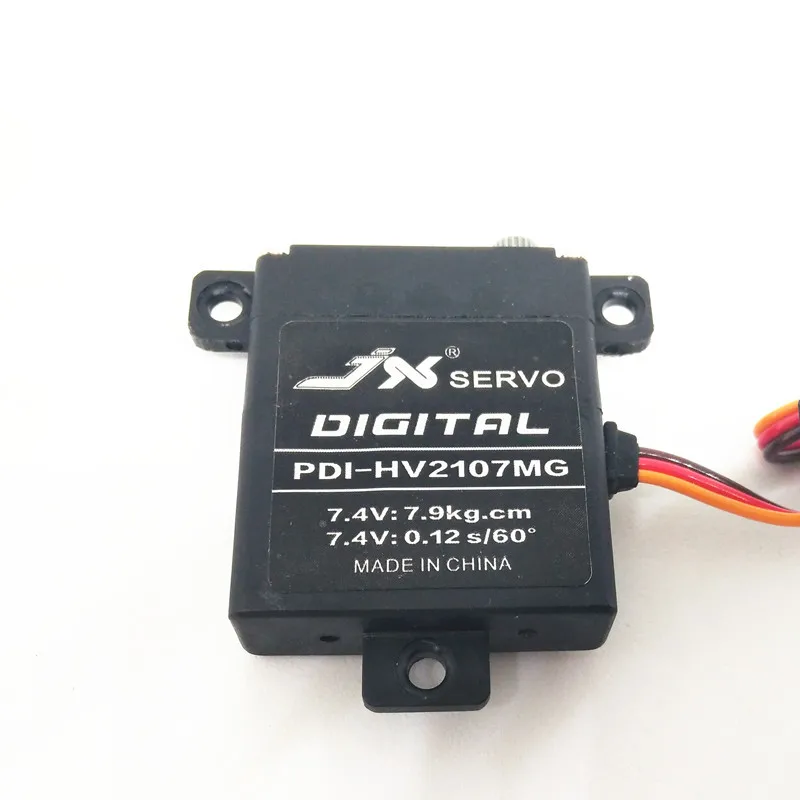

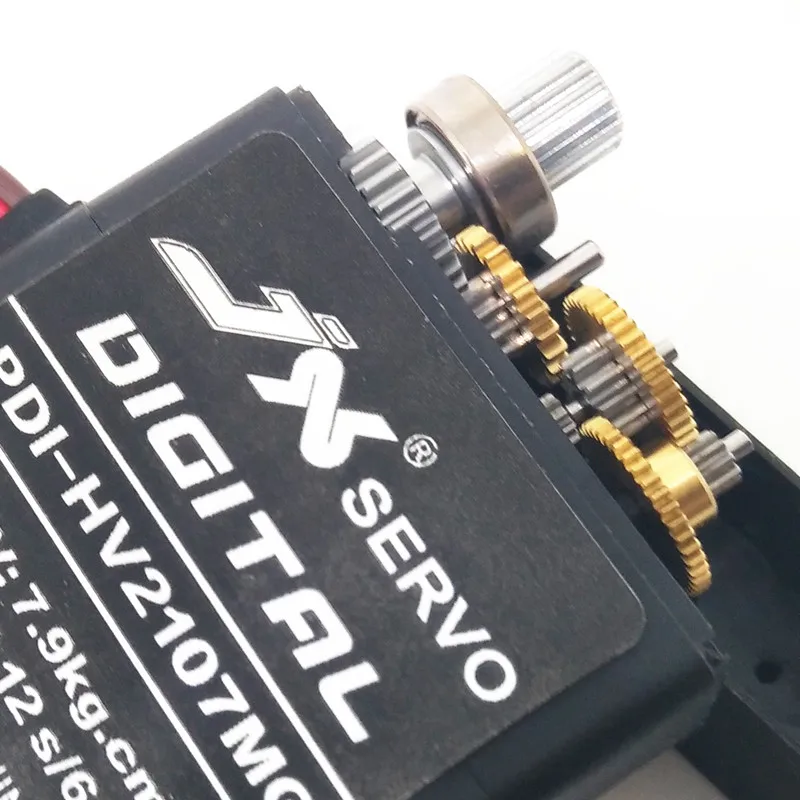

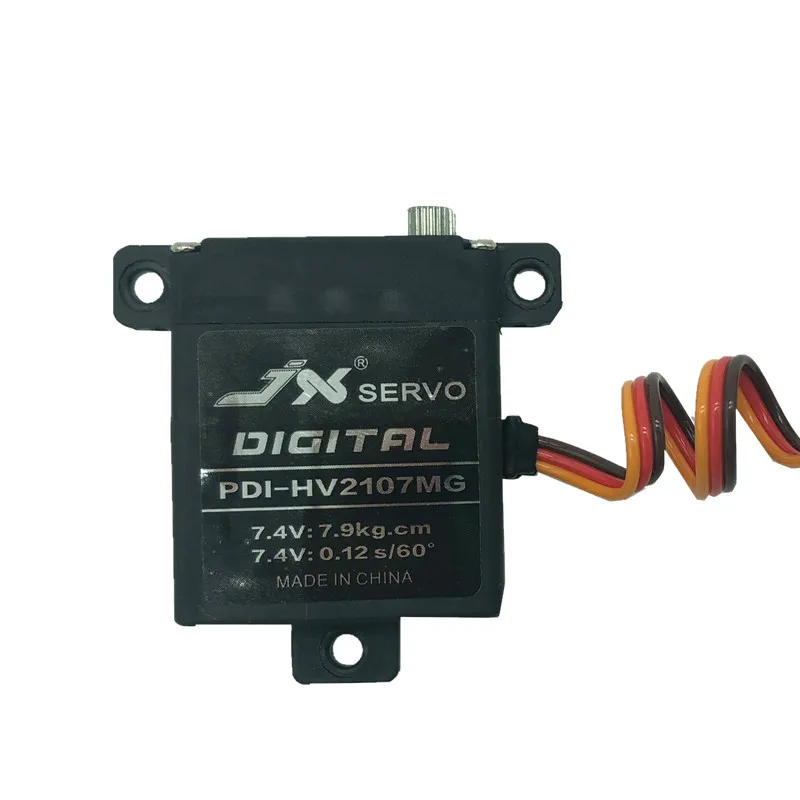

Product Pictures
Our Certificate

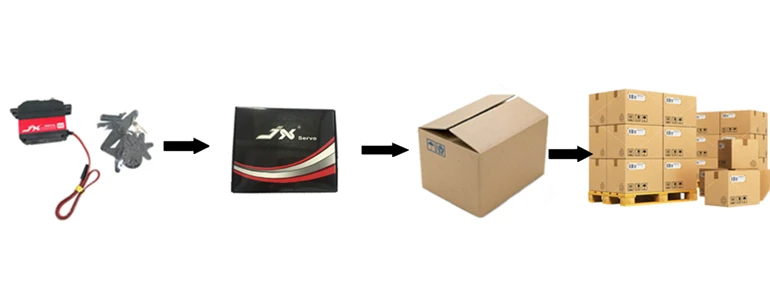

Product Packing
Our Factory
Reacher Technology Co., Ltd is devoted in designing,manufacturing and selling Brushless Motors,
ESCs, Propellers, Analog and Digital Servos, Battery and Charger for RC models, such as RC
aircrafts, Helicopters, Boats, Cars and Truggies,Surfboards.Currently new developing areas like
Go Kart motors, sailboat motors sales are increasing.
The owner has more than 10 years professional experience in RC Areas. Our products conform to
the requirements of the EU environmental standards ROHS , FCC, CE.
Special design requirement, OEM and ODM orders are warm welcomed!
We provide customers with high quality and stability of the products and professional services
at "customer first, service first" philosophy. It is our goal, our mission, to provide the best brushless
products at the best prices.
Our Clients
Shipping Advice
Shipping Methods Optional
1.For normal products, we suggest to ship via EMS/UPS/DHL/FEDEX/TNT Express, we will
choose the economic one for you depends on the different discount.
2.For product like motor, servo with magnet inside, China inland express refused to ship magnet
product except to do the extra magnetic inspection. So we always ship via Hongkong DHL, to
save time and cost.
3.For the special product with battery or the pure battery products, as it’s very serious for battery
shipping. We choose the battery special shipping line, every day shipping charge is floating.
4.For big jet plane sample, as the length+(width+height)*2>3m, all the China inland EMS refused
to ship, the only shipping way is via Singapore Post.
5.For Bulk qtys order, we will choose shipping via Air or by sea depends on the final volume and
weight.
