Водяной циклонный

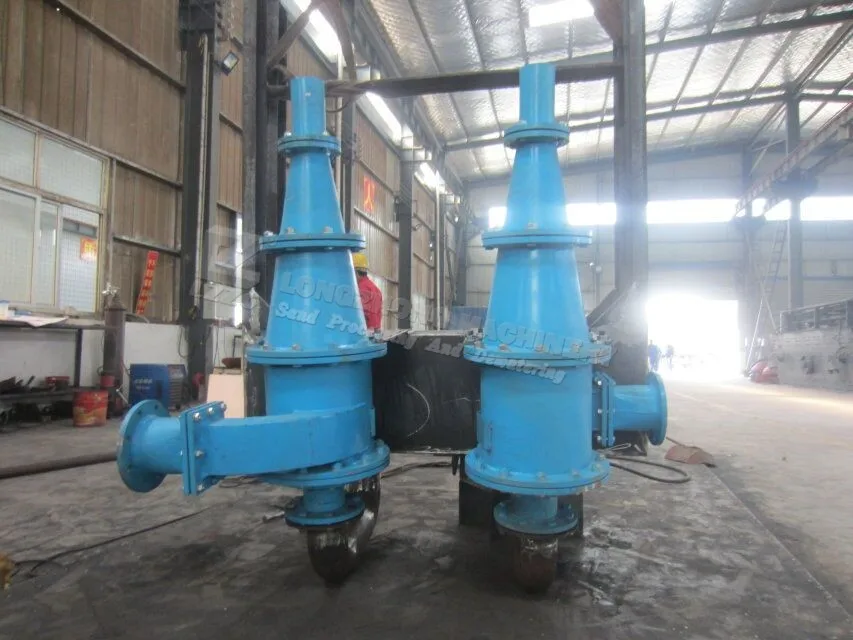

This is a continuously operating classifying device that utilizes centrifugal force to accelerate the settling rate of particles. sand cyclone  is one of the most important deviced in the minerals industry, its main use in mineral processing being as a classifier,ehich has proved extremely efficient at fine separation size. it is wideely used in closes-circuit grinding operaions but has found many other uses,such as desliming,degtritting, and thickening.

Through extensive testing, LZZG fine sand cyclone performance has been proven in a wide variety of applications including:
1.Closed circuit grinding
2.Mineral Classification
3.Concentrate or Tailings Thickening, Dewatering
4.Tailings damming and filling
5.Usually used in the following similiar process of gold,silver,copper, lead zinc, fluorite and so on.

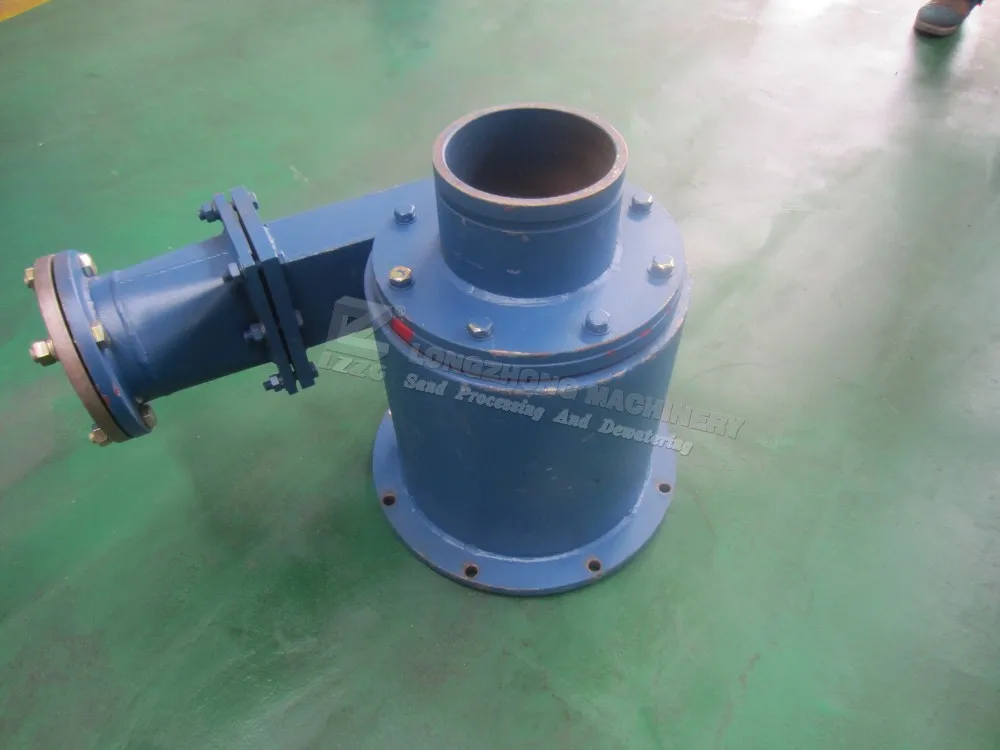

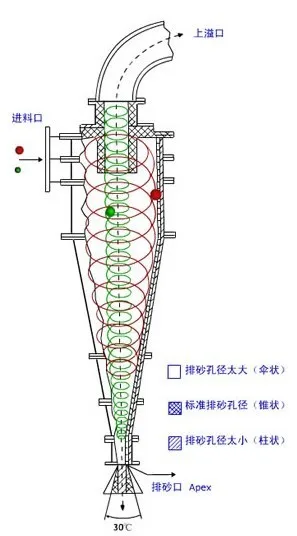

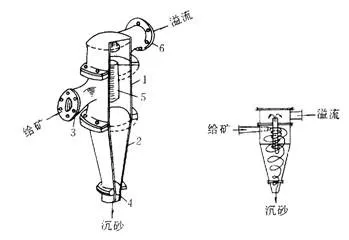

The feed is introduced under pressure through the trangential entry which imparts a swirling motion to the pulp. This generates a vortex in the cyclone, with a low pressure zone along the vertical axis. An air core develops along the axis ,normally connected to the atmosphere through the apex opening, but in part created by dissolved air coming out of solution in the zone of low pressure. Cyclone have repaled mechanical classifiers in many modern grinding plants,as they are more efficent, especially in the finer size ranges,they also need less floor space and consume less power. Due to the relatively short residence time of particles within the cyclone,the mill circuit can rapidly be brought into balance if any changes are made abd oxidation of particels within the circuit is reduced.
