7 дюймов такси рекламный монитор с ЖК-дисплеем доска объявлений 9 digital signage информационный рекламы заднего

PROJECT

PARAMETER & PERFORMANCE

REMARK

MODE

GD-AL070

Touch Type Mode : GD-TL070

MATERIAL

Plastic frame  Leather pillow                   Digital panel  HD main board

Acrylic front-panel  Car power-lines

Touch type no acrylic front-panel

PANEL

TYPE

7” LCD

RESOLUTION

800×480

SHOW TATIO

16:9

ACTIVE AREA

154.08×85.92mm

Different brands is small differences

BRIGHTNESS

500cd / m2

VIEWING ANGLE

R: 70  L: 70   U: 70  D: 50

COLORS

16.2M colors

POWER SUPPLY

Car Power DC:9V~36V (50 / 60Hz)

Vehicle wide voltage

POWER CONSUMPTION

≤6W

AUDIO OUTPUT POWER

8Ω 2×≤1W

Available

FUNCTION

STANDARD FUNCTION

CLOCK

Turn on/off clock to show, and in different place

Accept customize other function

SENSOR

With body infrared sensor function, can be realize sensor on/off function by remote control, to save energy

REPEAT MODEL

Repeat file & Repeat disc

SCROLL

Chinese & English scroll. Can set F-color and B-color and scroll speed

PLAY RECORD

Form playlist automatically, provide files playing status check

RESUME

Supply choice multi-time for resume

TIMER

Can set 5 groups timer, support power on/off in different time everyday

PLAY MODEL

Timer turn on auto play / play appointed files / playlist

SPLIT / FULL

Full screen or Splitscreen play, free plot area

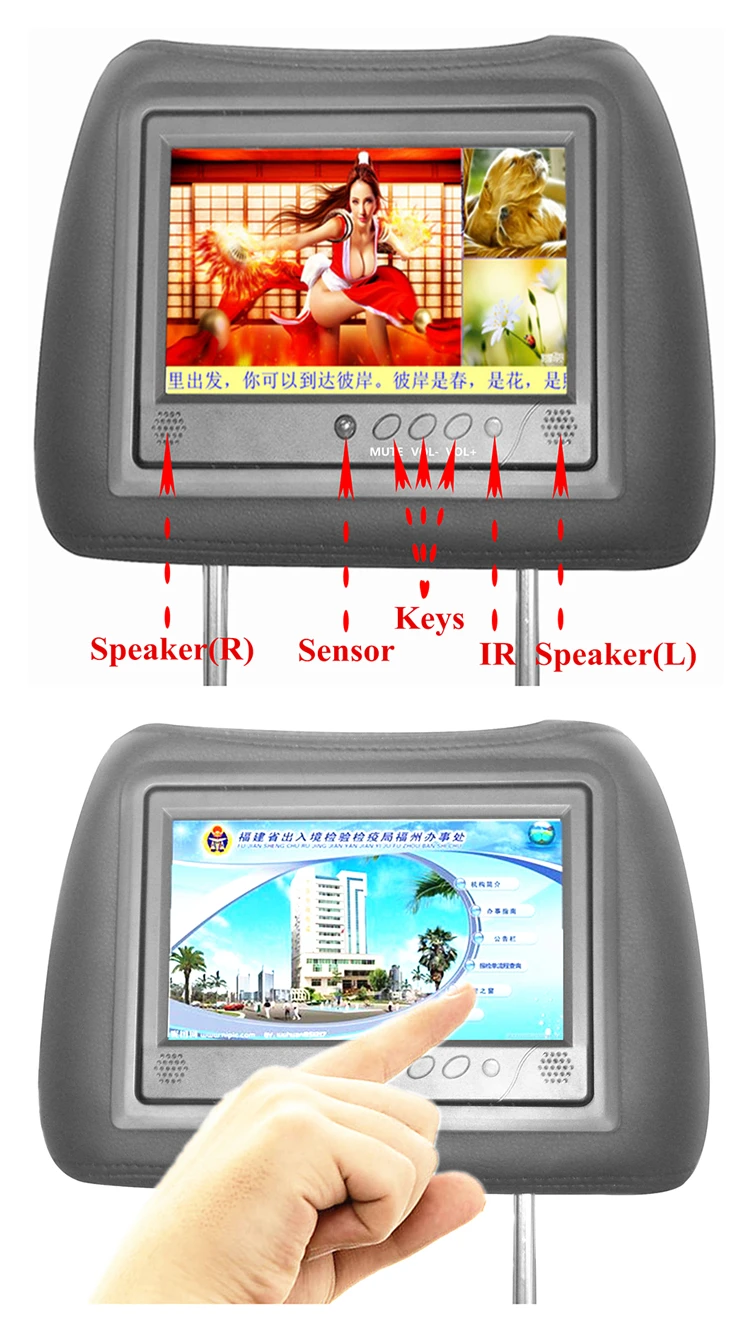

BUTTONS

MUTE / V- / V+

EXPANSIBILITY

KEYS

Diversified control to play by keys

Paid to provided

TAXIMETERCONTROL

Control to play by taximeter, no play when empty

TOUCH

Support single-point touch, free link to files between

FILE FORMAT

MPG/  MPG-1/ MPG-2/ MPG-4/ AVI/ MP4/ DIV/ TS/TRP/ MKV/ WMV/ RM/ RMVB/ JPEG/ BMP/ MP3/ WMA etc.

Support 1080P full HD video

INPUT

SD Card / USB2.0

USB2.0 used Copy(Un-standard configuration)

SYSTEM

Microcontroller

WORKING TEMPERATURE

-5°C~50°C

STORAGE TEMPERATURE

-20°C~70°C

STORAGE HUMIDITY

<40%

Not suitable store long

SIZE

290×200×105mm

COLOR AVAILABLE

Black  Grey  Beige

N.G.

1.5 kg

POWER LINE

L: 3.0M  Filter in the middle of line

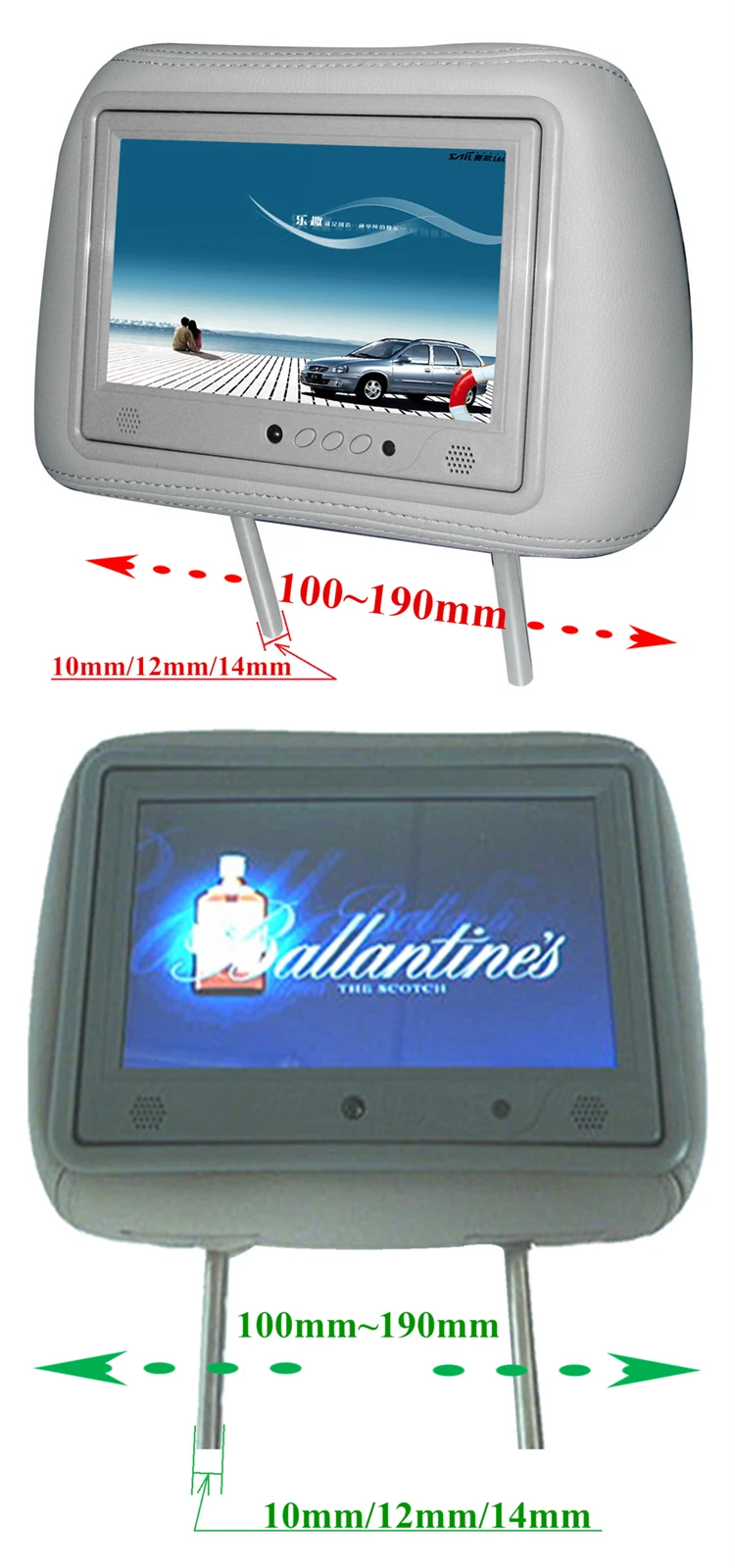

ADJUSTABLE      TUBE DIAMETER

10~12 mm

ADJUSTABLE      TUBE DISTANCE

100~190 mm

ACCESSORIES

Remote / Specification / Keys / Tubes / Plastic Scoops

OUTER PARKING

Carton

Paid to provide wood yoke repacking

PACKING SIZE

630×510×260mm

For reference only

Qty.

8 SET/CTN

W.G.

20 kg

For reference only
