Product Description

Split Film Ball Winder


The machine is suitable for winding different size of PP Split-film, flat yarn, cotton, jute, sisal into ball shape.


Features:
--Take up small space, simple structure
--Easy to operate and maintain

Detailed Images

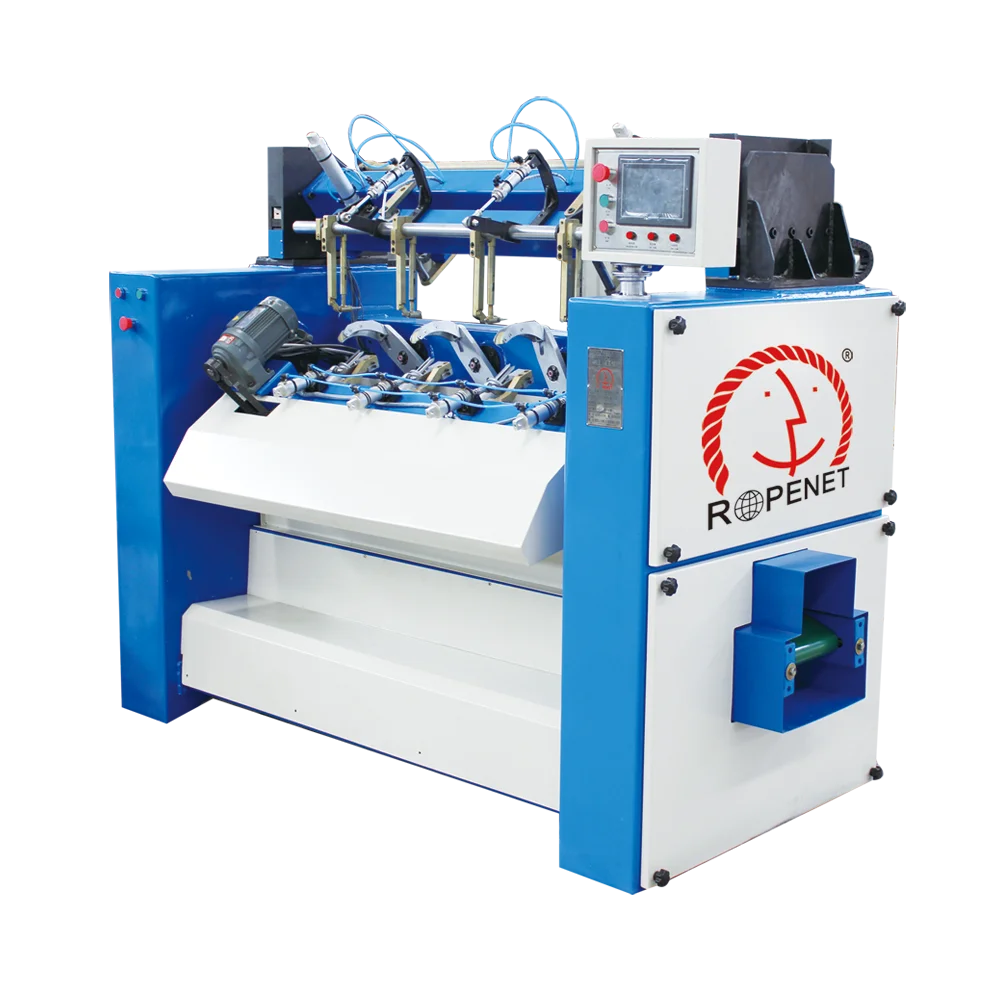

Model 1: automatic ball winder machine


Features:


--The PLC control system makes it feeding automatically, break line automatically, unloading automatically, convey automatically, count automatically, yarn break stop automatically.
--automatic feeding
--automatic clipping
--automatic doffing
--automatic winding tension adjustment
--easy to operate and maintain
--reliable in continuous operation

Model 2: 6/10/12 heads ball winder machine


Features:

--multi balls work at the same time
--PLC control, easy to operate
--count automatically
--different ball shape
--easy to maintain
--durable and stable

Model 3: 5 heads ball winder machine


Features:

--automatic weight counting
--single head single control
--shape various

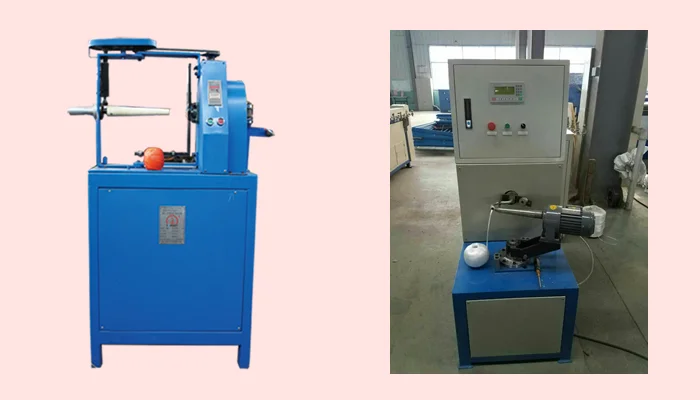

Model 4: single head ball winder machine

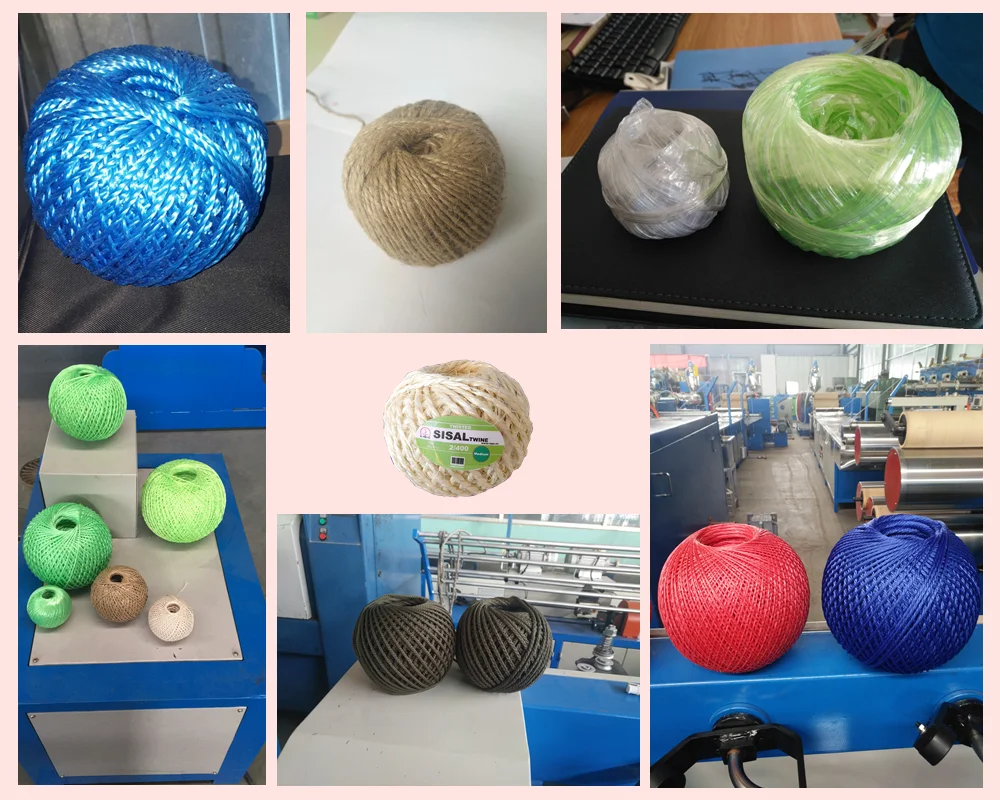

Final products:

Technical Parameters

Model 1: automatic ball winder machine

\t
MODEL
\t
RMBL-80
\t
RMBL-100
\t
RMBL-120
\t
RMBL-140
\t
SIZE OF TWINE
\t
0.8-2MM
\t
0.8-2MM
\t
0.8-2MM
\t
0.8-2MM
\t
DIA. OF BALL
\t
40-80MM
\t
60-100MM
\t
80-120MM
\t
100-140MM
\t
WINDING SPEED
\t
0-600RPM
\t
0-600RPM
\t
0-600RPM
\t
0-600RPM
\t
AIR PRESSURE
\t
0.6-0.8MPA
\t
0.6-0.8MPA
\t
0.6-0.8MPA
\t
0.6-0.8MPA
\t
TOTAL POWER
\t
2KW
\t
2.2KW
\t
2.5KW
\t
3KW

Model 2: 6/12 heads ball winder machine

\t
MODEL
\t
RMBL-06
\t
RMBL-12
\t
NO. OF HEADS
\t
6
\t
12
\t
FLYER SPEED
\t
0-650RPM
\t
0-650RPM
\t
WINDING SPEED
\t
5-70RPM
\t
5-70RPM
\t
SIZE OF NYLON BOBBIN
\t
31*27*205MM
\t
31*27*205MM
\t
MAX. OUTLINE SIZE OF BALL
\t
160*160MM
\t
160*160MM
\t
WEIGHT
\t
370KG
\t
520KG

Model 3: 5 heads ball winder machine

\t
MODEL
\t
RMBL-05
\t
NO. OF HEADS
\t
5
\t
YARN WINDING MOTOR POWER
\t
0.25KW
\t
BALL WINDING MOTOR POWER
\t
0.1KW
\t
ANGULAR ADJUSTMENT MOTOR POWER
\t
0.18KW
\t
OPERATION
\t
PLC CONTROL
\t
MAX BALL WEIGHT
\t
1000G
Packing & Delivery

Export packing: Normally plywood, container-shipping, also can as per client's requests.

About us


Basic Introduction
-Established in April 2002
-Specialized in Full Line Rope Making Machine
-90% export sales
-More than 1000 employees

Our Abvantages

-Customers in almost 40 countries
-14 years' experience as a proven professional manufacturer
-ISO 9001 certification
-CE certification for different machines
-Innovative Research
-Continual product development
-Expertise in advanced technology
-Delivers quickly and on time

Our Services

-Installation Service
 Installation Service is available, which will surely keep machine use safely.
-Technical Know-How
 Supply technical know-how of rope making from A to Z and make customers convenience.
-Customer Training
 Train your staff how to use machine properly and how to maintain optimal operational productivity.
-After-sale Service
 Offer the preventative maintenance and after-sale service.

Contact Us

We are committed to Full Line Rope Making Line, from extruders, ring twisters, rope making machines to rope packaging machines, etc.


Based on years' experience and strict quality control system, we are able to make the most suitable solutions as different requirements.


So if any interests/questions, please do not hesitate to contact us.
