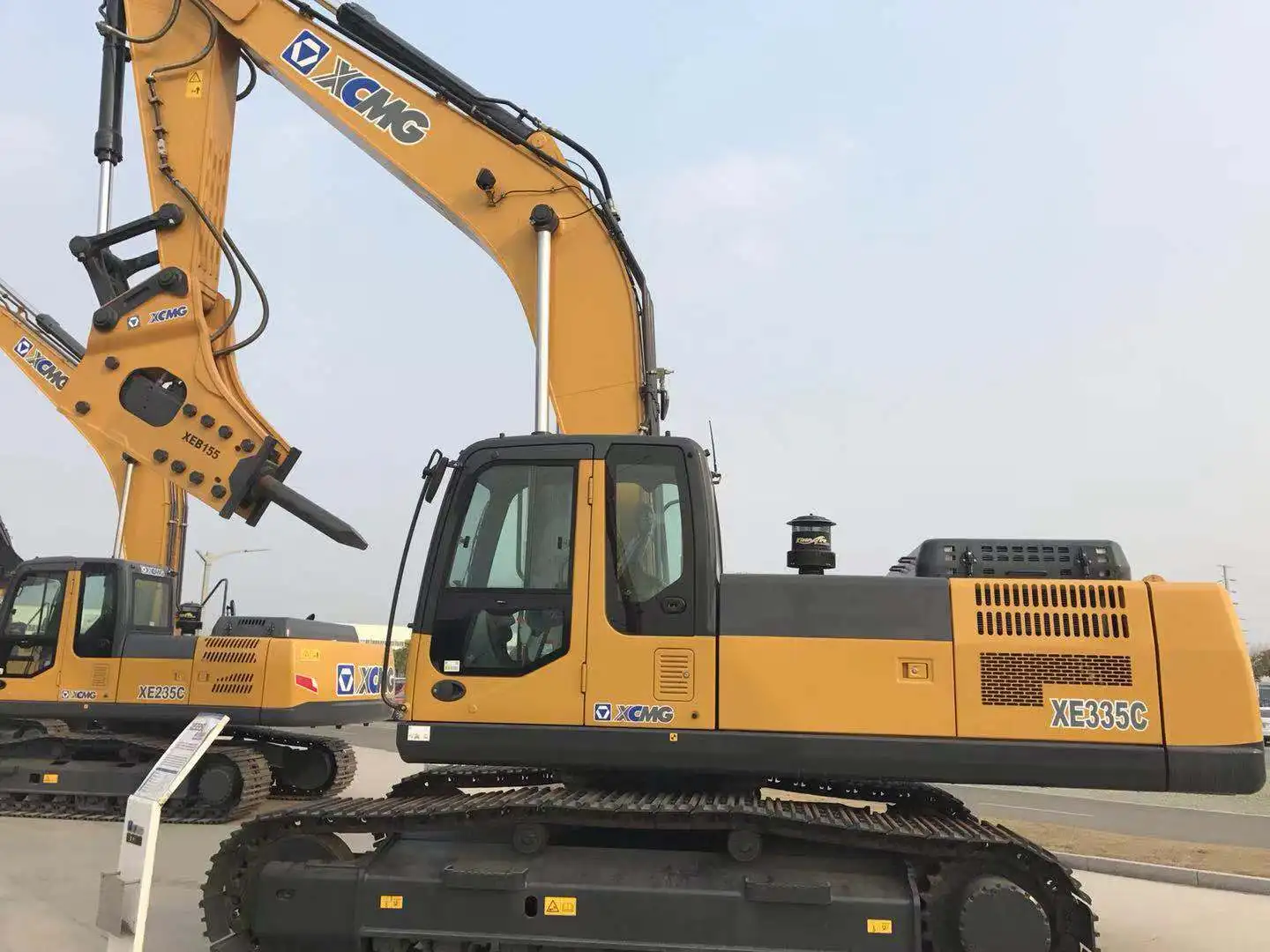

Earthmoving Machinery china XCM G 30 ton crawler excavator XE335C for sale
Product Description
XCM G XE335C hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, mines, tunnels and other harsh construction environment.
It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of “high efficiency, excellent energy saving and outstanding environmental protection”, and the ultimate target of “powerful functions, wide scope of applications and creation of more value for customers”.
1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
| Description | Unit | Parameter value | |||
| Operating weight | kg | 33800 | |||
| Bucket capacity | m³ | 1.4 | |||
| Engine | Model | Engine | ISUZU | ||
| AA-6HK1XQP | |||||
| Style | Direct injection | --- | √ | ||
| Four strokes | --- | √ | |||
| Water cooling | --- | √ | |||
| Turbo-charging | --- | √ | |||
| Air to air intercooler | --- | √ | |||
| No. of cylinders | --- | 6 | |||
| Output power | kW/ r/min | 190.5/2000 | |||
| torque/speed | N.m | 872.8/1700 | |||
| Displacement | L | 7.79 | |||
| Main performance | Travel speed(H/L) | km/h | 5.5/3.3 | ||
| Rotating speed | r/min | 9.7 | |||
| Gradeability | ° | ≤35 | |||
| Ground pressure | kPa | 66 | |||
| Bucket digging force | kN | 263 | |||
| Arm digging force | kN | 225 | |||
| Maximum traction | kN | 261 | |||
| Hydraulic system | Main pump | -- | 2 | ||
| Rated flow of main pump | L/min | 2×280 | |||
| Pressure of prime valve | MPa | 34.3/37 | |||
| Pressure of travel system | MPa | 34.3 | |||
| Pressure of swing system | MPa | 26.5 | |||
| Pressure of pilot system | MPa | 3.9 | |||
| Oil Capacity | Fuel tank capacity | L | 630 | ||
| Hydraulic tank capacity | L | 350 | |||
| Engine oil capacity | L | 28 | |||
| Appearance size | Overall length | mm | 11388 | ||
| Overall width | mm | 3190 | |||
| Overall height | mm | 3515 | |||
| Width of platform | mm | 2950 | |||
| Length of crawler | mm | 4725 | |||
| Overall width of chassis | mm | 3190 | |||
| Width of crawler | mm | 600 | |||
| Wheel base of crawler | mm | 3183 | |||
| Crawler gauge | mm | 2590 | |||
| Clearance under counterweight | mm | 1700 | |||
| Min. ground clearance | mm | 495 | |||
| Min. tail swing radius | mm | 3570 | |||
| Working scope | Max. digging height | mm | 10074 | ||
| Max. dumping height | mm | 6898 | |||
| Max. digging depth | mm | 6972 | |||
| Max. digging depth at the range of level 8 feet | mm | 6728 | |||
| Max. vertical wall digging depth | mm | 5366 | |||
| Max. digging reach | mm | 10650 | |||
| Min. swing radius | mm | 4424 | |||
| Worker | Standard | Length of boom | mm | 6400 | |
| Length of arm | mm | 2670 | |||
| Bucket capacity | m³ | 1.4 | |||
| Length of arm | m³ | 2900 | |||
| Bucket capacity | m³ | 1.6 /1.4 | |||
