Product Introduction

The gangway is the flexible connection of the vehicle absorbing all relative movements between the cars, and ensuring the passenger a safe and confortable passage-way from one car to another.



The gangway is composed of connection frame, bellows, step plate, bridge plate, pull rod, sealing strip, and various fasteners.

Connection frame is made of aluminum profile with required strength and light weight. It could achieve quick coupling and uncoupling.

Bellows is made with Hypalon 1.5~2.0mm thickness and aluminum profile bone, service life is more than 12 years.

Step plate and bridge plate are made of stainless steel SUS304, with solid and strong loading capacity.

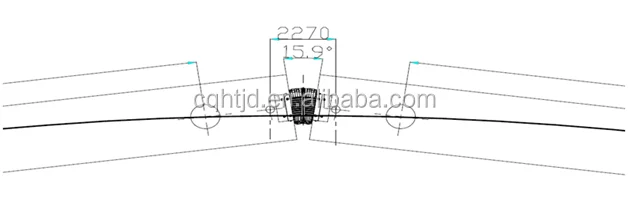

Perfect and reliable design to ensure the stability, safety and reliability for the car passing through small curve.

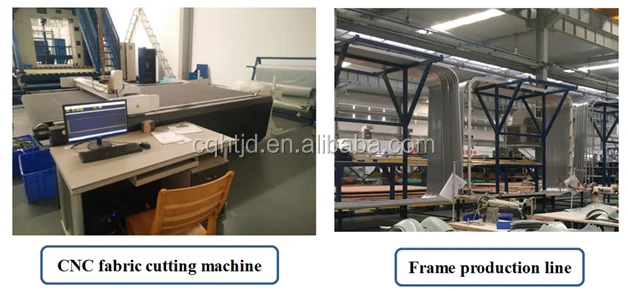

Production & Test Gallery





We have professional RAMS engineer, analyzing from the design source, ensure reliability, availability, maintainability and safety. We obtain ISO9001, IRIS system certificates. We will execute strictly according to the requirements of IRIS system for each project.

To meet the requirements of customer is our mission. We look forward to the cooperation with your esteemed company.
