Product Description
Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems. During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity.
It is built in energy saving BLDC motor, F9 filter, high efficiency enthalpy heat exchanger. Ideal ventilation solution for residential and light commercial project.

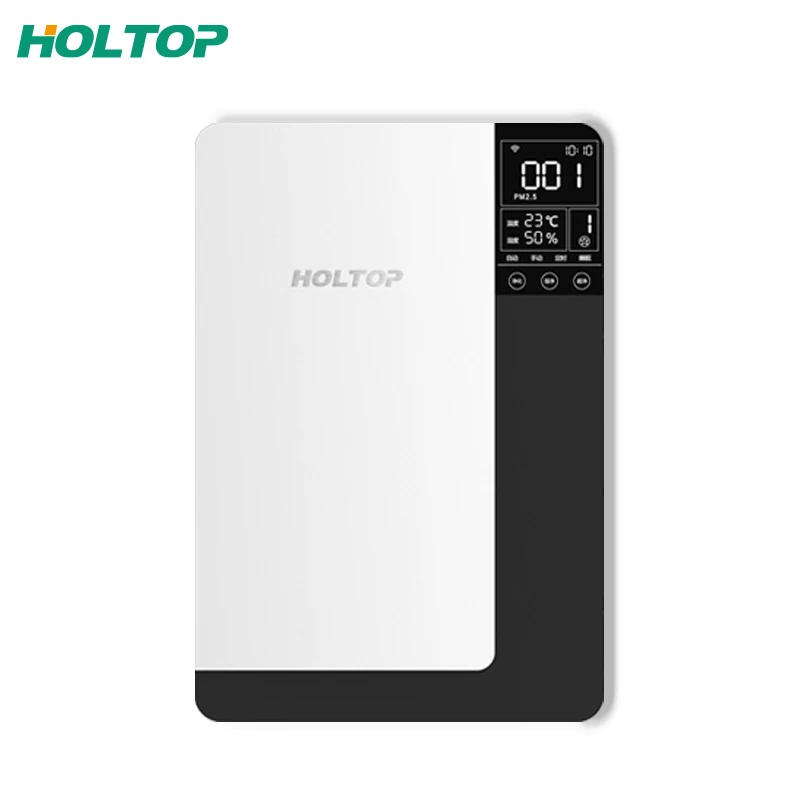

Passive house recuperation system mechanical ventilation heat recovery
Fresh Fresh air + Energy recovery, reducing running cost of cooling or heating system
Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems. During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity.
New Eco-Smart HEPA Energy Recovery Ventilator is ERP 2018 compliant.
It is built in energy saving BLDC motor, F9 filter, high efficiency enthalpy heat exchanger. Ideal ventilation solution for residential and light commercial project.
Main Features of DMTH series energy recovery ventilator:
1)Energy saving BLDC motor, 10 speeds control
2)High eficiency enthalpy heat recovery, more comfortable indoor climate
3) G3+F9 filter, eficiency over 96% to filter the particulate from 2.5µm to 10µm
4) Intelligent control system, optional CO 2 and humidity control function, external control and BMS control available
5)Double filter alarm, timer alarm or diferent pressure gauge alarm available
6) Auto bypass, intelligent controlled by outdoor temperature
| Specification of DMTH series energy recovery ventilator | |||||||||
| Model | Rated Air Flow (m3/h) | Rated E.S.P (Pa) | Enthaply efficiency % | Temperature efficiency % | Noise dB(A) | Voltage (V) | Power Input (W) | Weight (kg) | |
| Cooling | Heating | ||||||||
| XHBQ-D1.5DMTHA | 150 | 70 | 60 ~ 65 | 63 ~ 70 | 75 ~ 80 | 31.5 | 220 ~ 240 | 24 | 25 |
| XHBQ-D2.5DMTHA | 250 | 90 | 62 ~ 71 | 65 ~ 73 | 73 ~ 81 | 34.5 | 220~ 240 | 56 | 27 |
| XHBQ-D3.5DMTHA | 350 | 140 | 62 ~ 70 | 65 ~ 73 | 74 ~ 82 | 37.5 | 220 ~ 240 | 65 | 33 |
| XHBQ-D5DMTHA | 500 | 110 | 63 ~ 72 | 67 ~ 75 | 76 ~ 84 | 39 | 220 ~ 240 | 76 | 38 |
| XHBQ-D6.5DMTHA | 650 | 100 | 60 ~ 67 | 65 ~ 71 | 74 ~ 82 | 41 | 220 ~ 240 | 153 | 62 |
| XHBQ-D8DMTHA | 800 | 140 | 63 ~ 71 | 65 ~ 73 | 76 ~ 82 | 42 | 220 ~ 240 | 192 | 72 |
| XHBQ-D10DMTHA | 1000 | 140 | 60 ~ 68 | 62 ~ 72 | 76 ~ 82 | 43 | 220 ~ 240 | 245 | 81 |
| XHBQ-D13DMTHA | 1300 | 135 | 58 ~ 71 | 59 ~ 75 | 74 ~ 82 | 43 | 220 ~ 240 | 315 | 81 |
| XHBQ-D15DMTHA | 1500 | 95 | 63 ~ 71 | 65 ~ 73 | 76 ~ 80 | 50 | 220 ~ 240 | 384 | 147 |
| XHBQ-D20DMTHA | 2000 | 115 | 60 ~ 68 | 62 ~ 72 | 76 ~ 82 | 51.5 | 220 ~ 240 | 490 | 167 |
Detailed Images
Energy Efficiency Class of A or A+ According to EU NO.1254/2014
More energy saving of Eco Smart ERV
Full series Eco Smart energy recovery ventilator are built in higher efficiency brushless DC motors, power consumption is reduced by up to 70%, resulting in significant energy saving. VSD control which is suitable for most of the projects air volume and ESP requirement.
High Efficiency Heat Exchanger
High efficiency enthalpy heat recovery, more comfortable indoor climate
G3+F9 Filter, effectively purifiy PM2.5 Particulate
Double filter alarm
timer alarm or diferent pressure gauge alarm available
Automatic Energy Recovery Ventilation or Nature Ventilation
In summer or winter when cooling or heating devices are in used. Bypass system is closed for energy recovery, when in spring or autumn when the outdoor temperature is soft, bypass system is open for nature ventilation
Related Products
Wall mounted ERV
Miss Slim ERV
HRV with heat pump unit
Packing & Delivery
Controllers
Different controller models for different ERV series. Please confirm the latest suitable models with Holtop sales team.
| Intelligent controller Function | ||||||
| 1) Individual supply and exhaust fan speeds and ESP control (AC 3 speeds DC 10 speeds) | ||||||
| 2) outdoor temperature, indoor temperature, supply air temperature and exhaust air temperature display | ||||||
| 3) weekly timmer function | ||||||
| 4) Auto bypass and auto defrost funciton | ||||||
| 5) Intergated RS485 connector for BMS control(on PCB) | ||||||
| 6) External on/off control and fire alarm control, inter lock function (on PCB) | ||||||
| 7) Faulty signal output for monitoring function (on PCB) | ||||||
| 8) Night free cooling function (on PCB) | ||||||
| 9) Optional CO2 sensor and humidity sensor to control CO2 concentration and indoor humidity | ||||||
| 10)Optional electical heater for supply air or outdoor air (alternative for comfort ventialtion or extremly winter low temperture defrost) | ||||||
| 11)Optional central control by one multi controller (up to 16pcs ERV controlled by one controller) | ||||||
App is available to IOS and Android phones with the following functions: | ||||||
| 1. Monitoring indoor air quality | ||||||
| Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living. | ||||||
| 2.Variable setting | ||||||
| Timely switch, speed settings, bypass/timer/filter alarm/temperature setting. | ||||||
| 3.Optional language | ||||||
| Different language English/French/Italian/Spanish and so on to meet your requirement. | ||||||
| 4.Group control | ||||||
One APP can control multiple units. |
