Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300

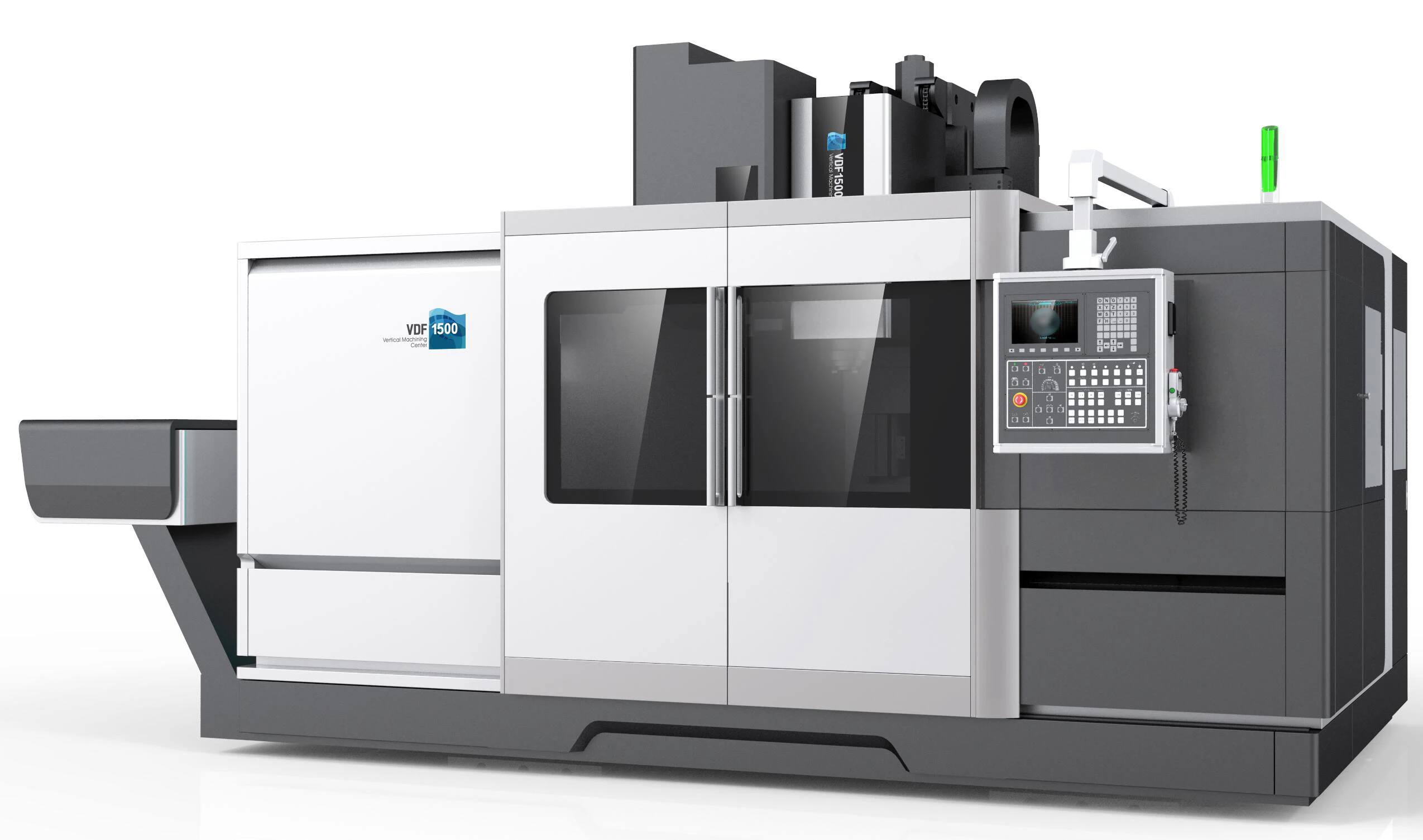

VDF1500 Cheap Vertical Machining Center cnc millinging machine
- Категории: Machine Centre >>>
- Поставщик: Dalian,Dahui,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application

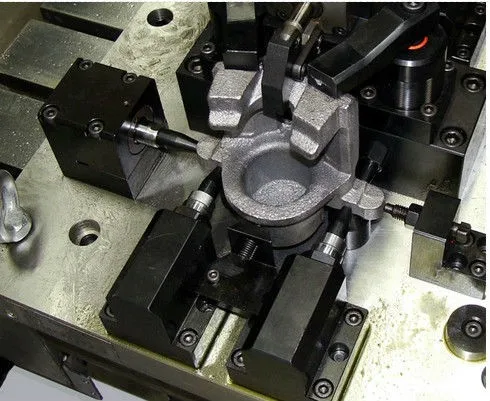

The machine is fully hardened moving slides, combined with precision grinding, combine to produce a satisfactory quality. It is not only suitable for the processing of plates, discs, shells, precision parts, but also for mold processing. The machine is equipped with an automatic tool change system (ATC), a fully enclosed guard, an automatic lubrication system, a cooling system, an automatic chip evacuation device, a manual spray gun and a portable manual operating device (MPG).
Main Features

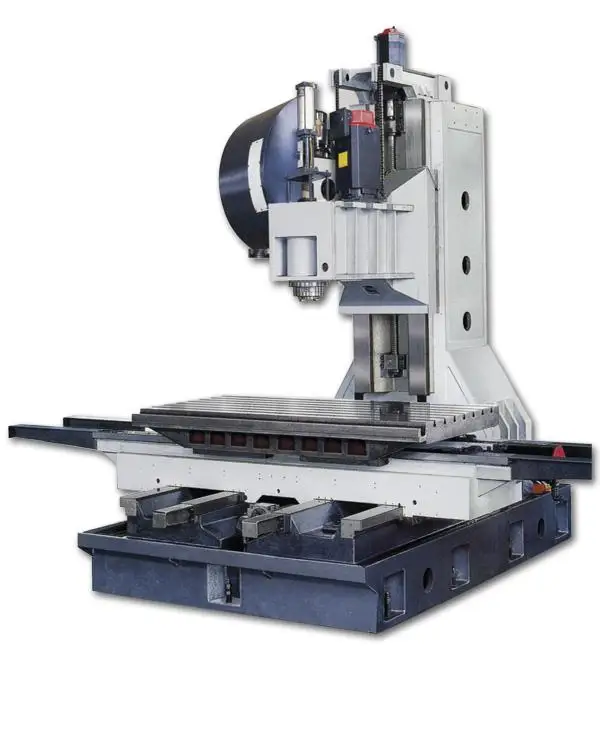

1) The foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. The inner metallographical structure is very steady.
2) The basic parts have high steel nature by collocating with the reinforcing rib. With the wide foundation, box-shaped cavity column, broaden & lengthening sliding base.
3) With transmission of the high torsion tooth form leather belt, the electric machine works no slipping and escapes the emergence of noise and heat.
4) According with the CE safety specification, the wirings in the electrical box can control the system without external disturbance.
5)Designed with compensation, the location of the spindles can be made more accurate and the machine can work out high precision parts by high precision laser admeasuring apparatus.
SPECIFICATION
ITEM | VDF850 | VDF1200 | VDF1500 | VDF1800 | |||
Worktable(L×W)(mm) | 1000×500 | 1220×620 | 1700*800 | 2000×800 | |||
Max. table load (kg) | 500 | 1200 | 2500 | 2500 | |||
The distance from spindle nose end face to table upper surface(mm) | 140-705 | 85-770 | 187-976 | 166-956 | |||
X/Y/Z travel(mm) | 860/510/560 | 1220/620/685 | 1560/830/790 | 1880/830/790 | |||
Spindle motor power(kW) | 7.5/11 | 7.5/11 | 15/18.5 | 15/18.5 | |||
Spindle speed range (r/min) | 8000 | 6000 | 6000 | 6000 | |||
Tool shank | BT40 | BT50 | BT50 | BT50 | |||

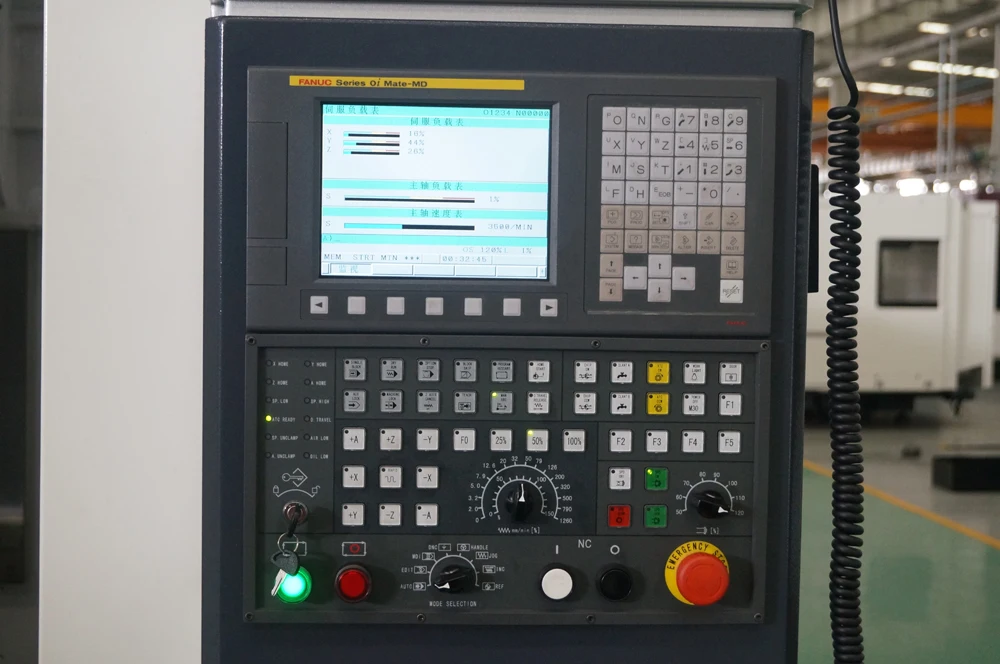

CNC control system | Fanuc/Siemens/GSK/Mitsubishi/Huazhong Numeral Control | ||||||
Detailed Images

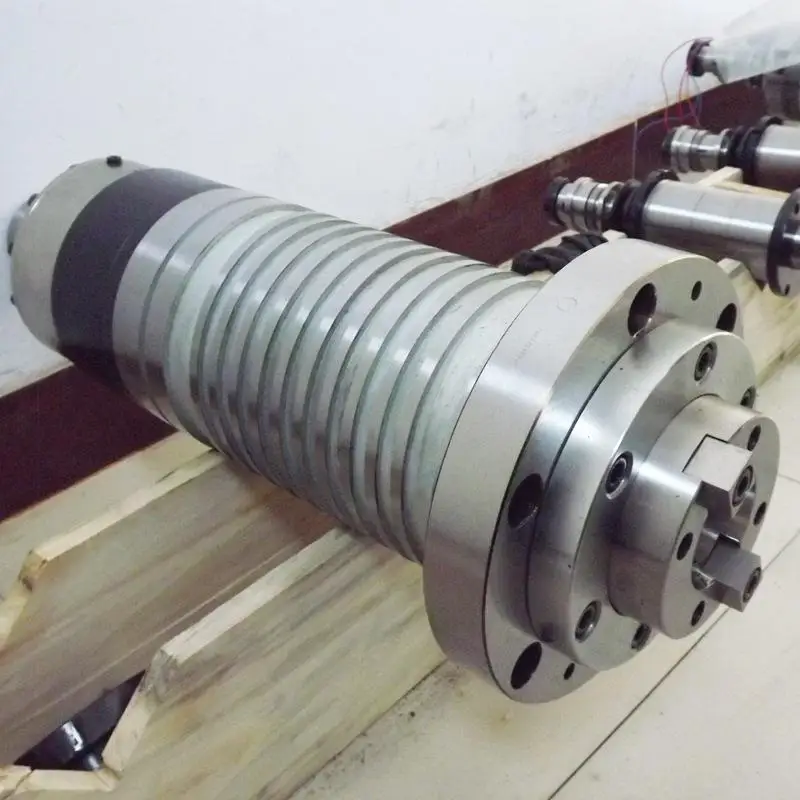

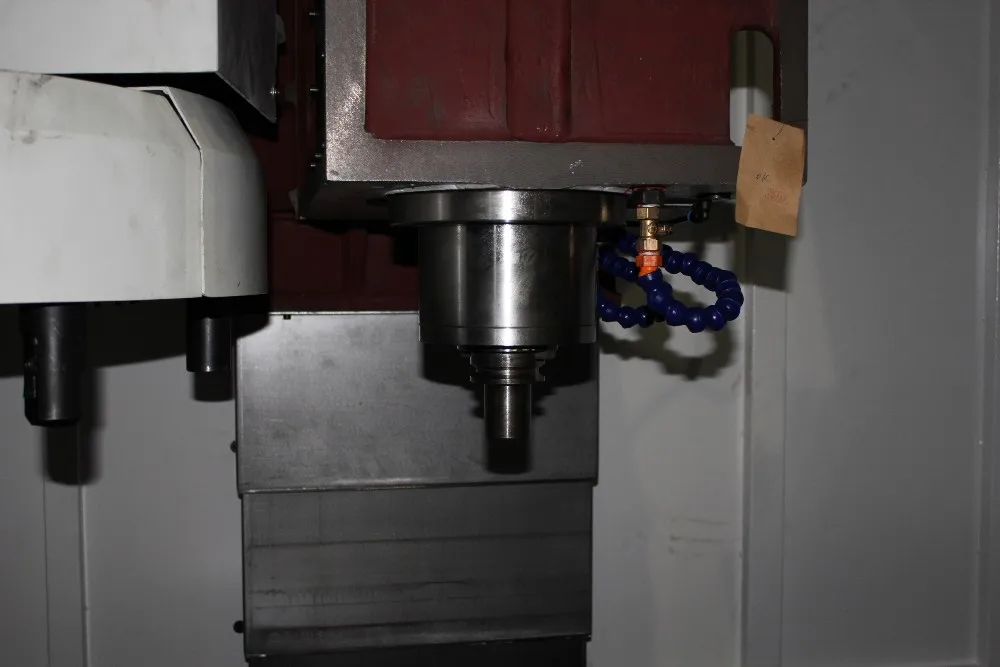

Name: Spindle
High-speed, high-precision spindle: Synchronous toothed belt transmission through high torque, no slipping, and can greatly reduce transmission noise and heat generation.
Name: Guideway
X, Y axis feed using the linear rolling guide rail support, Z axis adopt sliding guide support, high precision, good bearing performance, to ensure the positioning precision of the machine tool and repeat positioning accuracy.

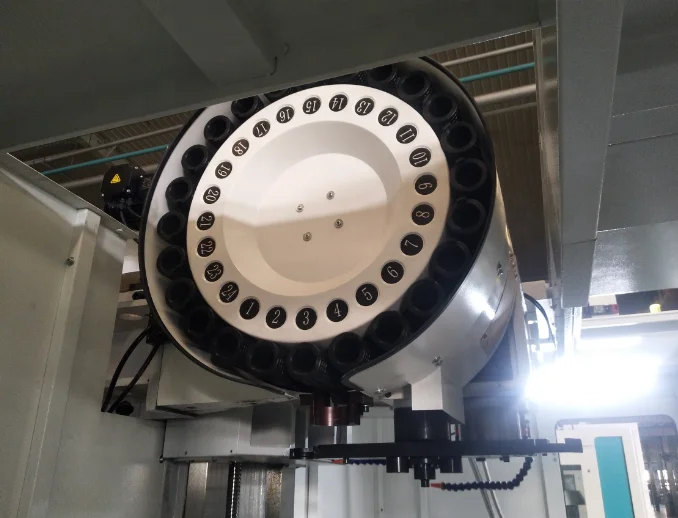

Name:Tool Magazine
There are two types of tool magazines to choose from: bucket-type tool magazines and tool-arm tool magazines. All tool magazines
are purchased from Taiwan. Extreme tool change time maximizes processing efficiency.
are purchased from Taiwan. Extreme tool change time maximizes processing efficiency.

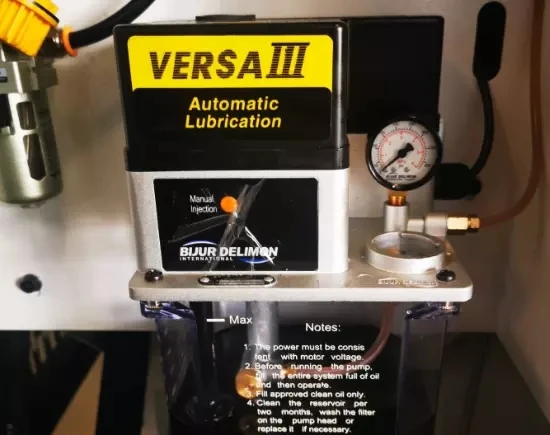

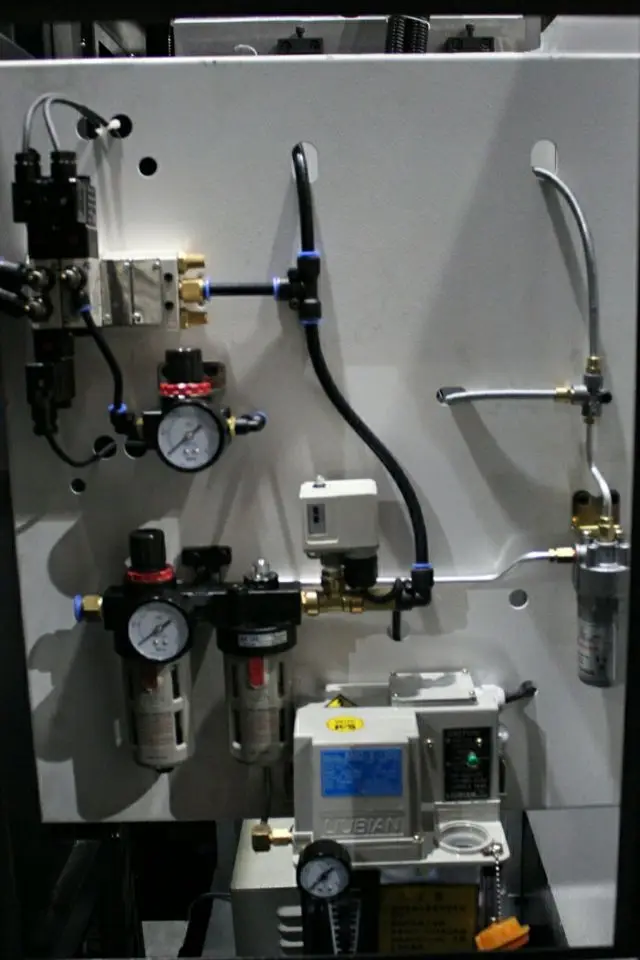

Name:Automatic lubricating device
timing and quantitative automatic intermittent lubrication
Name: Worktable
Machine table high strength cast iron casting, casting structure after machine tool dynamics analysis and finite element analysis, tie-in and reasonable reinforcement, in the cross slide under the condition of full load support to ensure that the process of heavy load capacity.Ensure the basis a high rigidity.

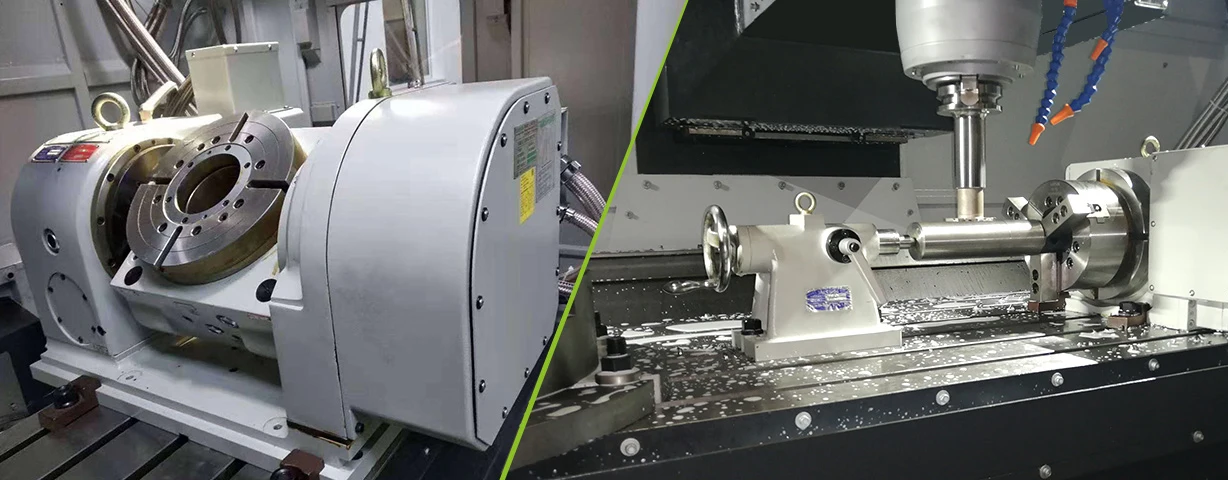

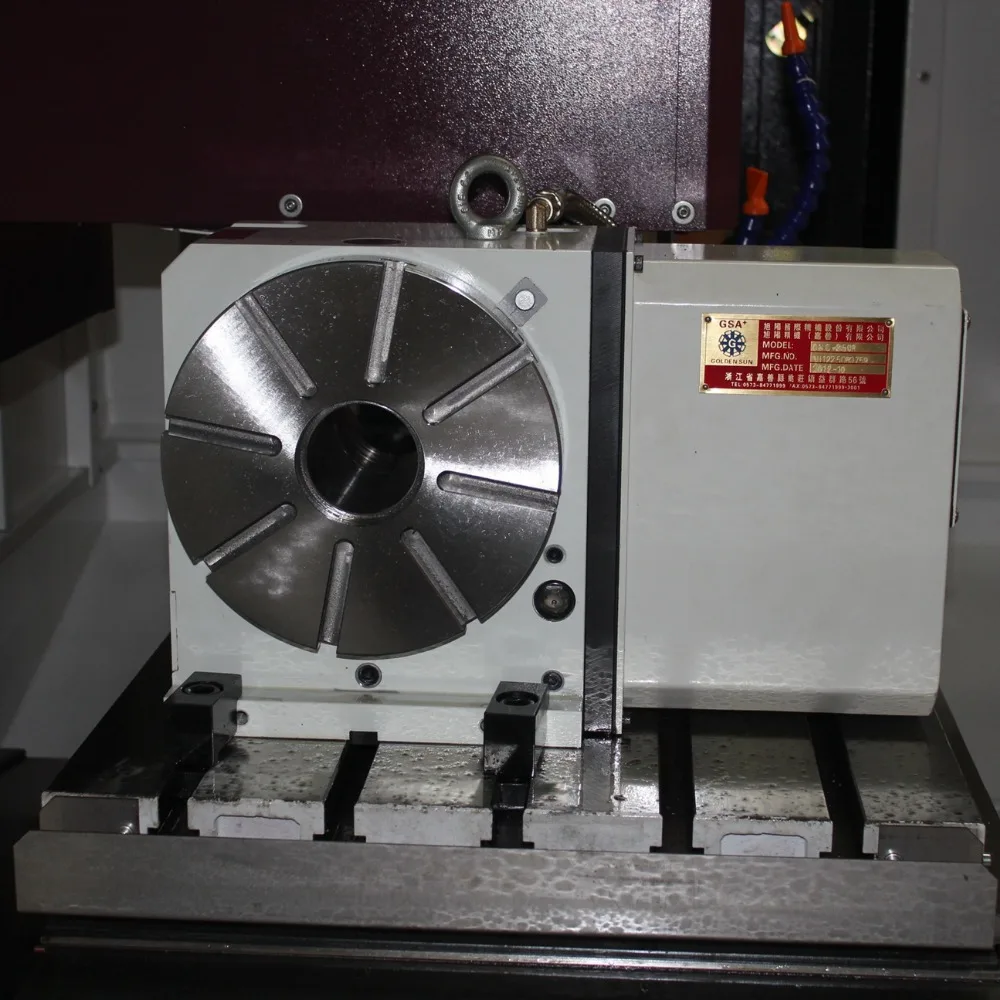

4 axis and 5 axis
The machining center can support horizontal four axis mode and vertical five axis mode, processing space without interference and the system with an extended five axis CNC port, to achieve CNC five axis and five linkage function.

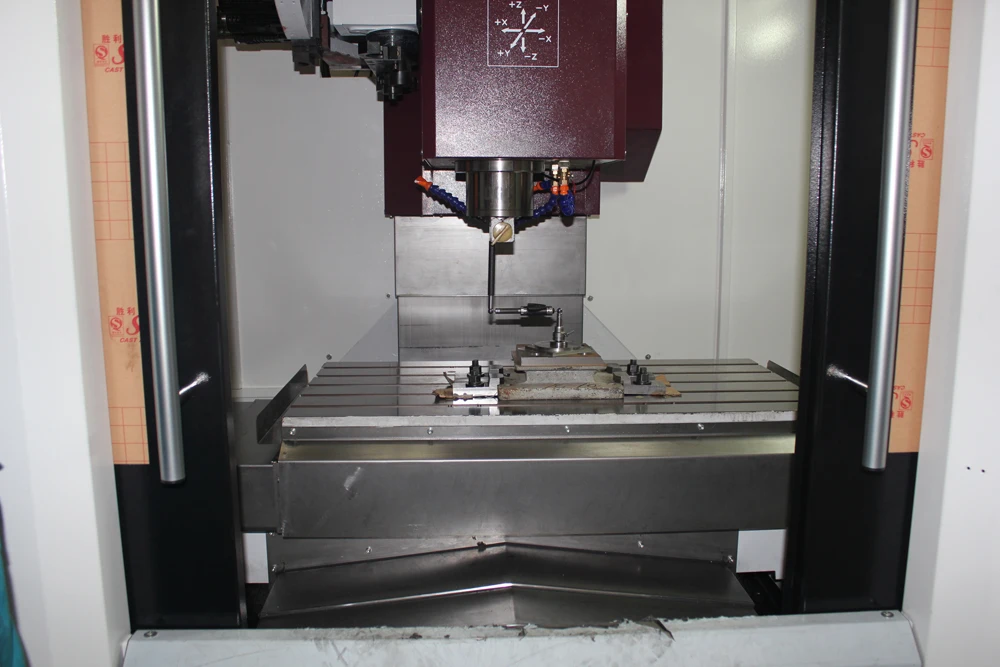

Machines Picture
CERTIFICATES
Packing&Shipping
Company Introduction
Dalian Dahui Machinery Equipment Co., Ltd. is a professional company engaged in the export of various types of machine tools such like: CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.
Our Services & Strength
Our service:
DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service.
With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.
With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.
Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales
questions.
questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Advantage 9: Low MOQ for only 1 unit.
Advantage 9: Low MOQ for only 1 unit.
Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
