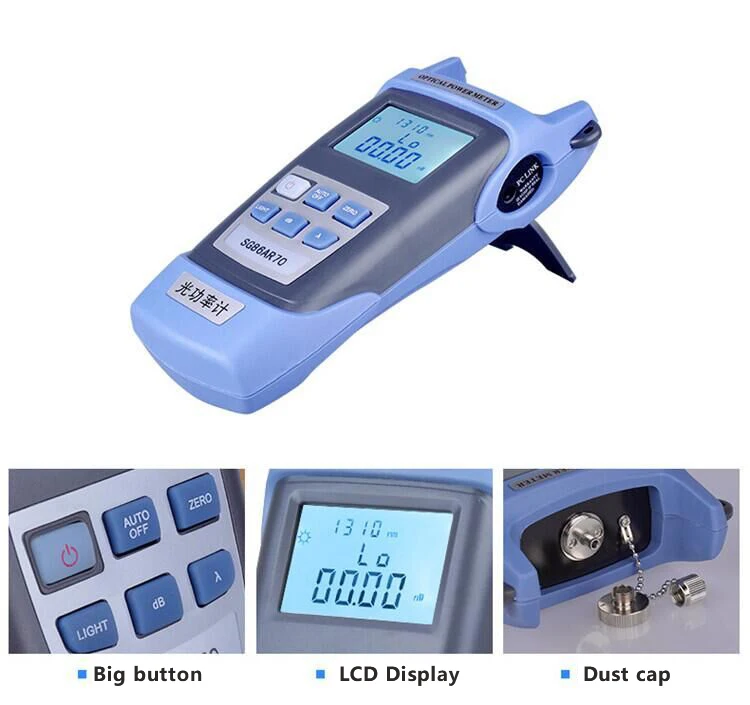

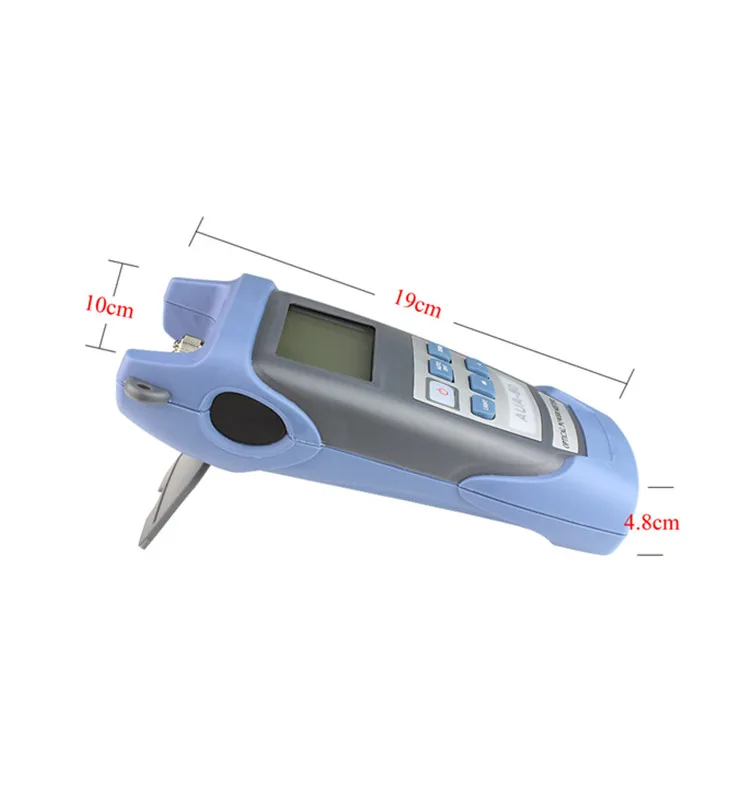

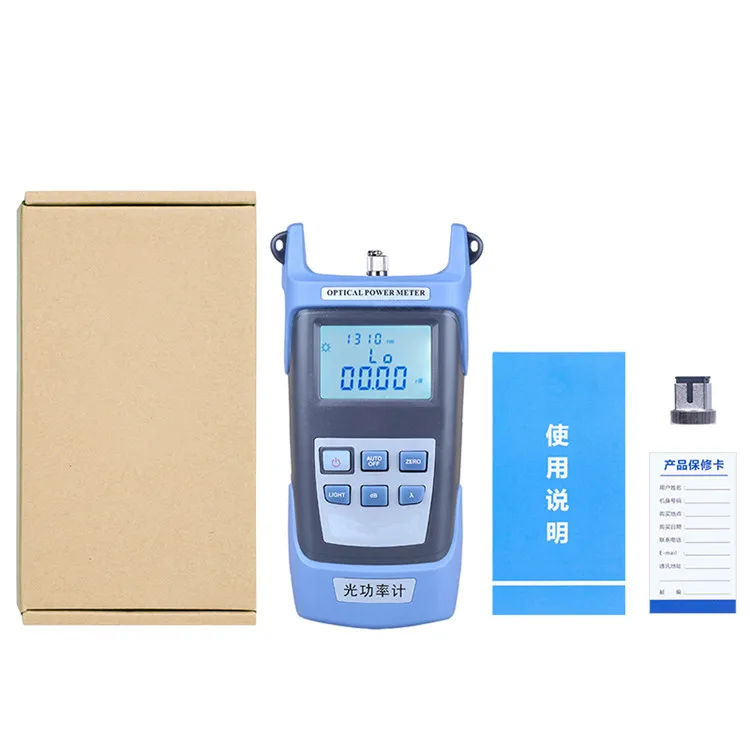

FTTH Tool Fiber Optical SC FC ST Light Source Power Meter
FTTH Tool Fiber Optical SC FC ST Light Source Power Meter is an accurate and durable handheld meter designed for the installation,
operation and maintenance of optical fibre network. It is a compact device with backlight switch and auto power on-off ability.
Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition,
it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same
operation and maintenance of optical fibre network. It is a compact device with backlight switch and auto power on-off ability.
Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition,
it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same
Function:
1.Self calibration by user himself
2.Rechargeable lithium battery supports continuous work for up to 48 hours.
3.Linear indicators (mW) and non-linear indicators (dBm) display in one screen
4.UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion VFL function
5.4-digit LCD display, supporting three display formats: dB,nw and dBm
6.Automatic range switching
7.Automatic power-off, BacklightON/OFF
8.Multi-wavelength measurement
9.Low power indication
2.Rechargeable lithium battery supports continuous work for up to 48 hours.
3.Linear indicators (mW) and non-linear indicators (dBm) display in one screen
4.UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion VFL function
5.4-digit LCD display, supporting three display formats: dB,nw and dBm
6.Automatic range switching
7.Automatic power-off, BacklightON/OFF
8.Multi-wavelength measurement
9.Low power indication
Specification
Model Parameter | Optical Power meter | Optical Power meter With VFL Function | |
Calibation Wavelenth(nm) | 850,1300, 1310,1490,1550,1625 | ||
Measurement Range(dBm) | -70~+6 | -50~+26 | |
Linearity (dB) | ±0.01 | ||
Resolution (dB) | ±0.1 | ||
Uncertainty (dB) | ±0.25 | ||
Frequency Identification Range | <10K | ||
Connector | FC/SC/ST | ||
