Product Description
SY Waterproof IP68 PG Type M Size CE Nylon and Plastic Cable Gland M8 M10 M12 M16 M20 M25 M27 M32
| Thread specifications: | Metric thread, in line with the eu norms. |
| Products Material: | A.C.E.F part made of nylon PA66 (fire rating UL 94 v - 2), B and D part adopts EPDM weather resistance rubber. All kinds of aperture, material of rubber can accept customization |
| Product certification: | European CE certificate,European environmentalROHS, REACH certificate,The United States UL certification, and explosion-proof certification of the EX. |
| Protection Level : | Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, achieve IP68-5 bar. |
| Color type: | Black, grey, blue, red, white, add letters after all sorts of color please contact with the product. For example: MA12-08 b black and so on. |
| Working temperature: | Static: - 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃. |
| Product features: | Special clamping claw, and the design of the clamping ring is concave and convex clasped with forced tight head assembly time-savers, cable clamping range is big, strong tensile resistance, can waterproof, dustproof, salt resistance, resistance to acid and alkali, alcohol, grease and common solvent. |
Cable Gland Details

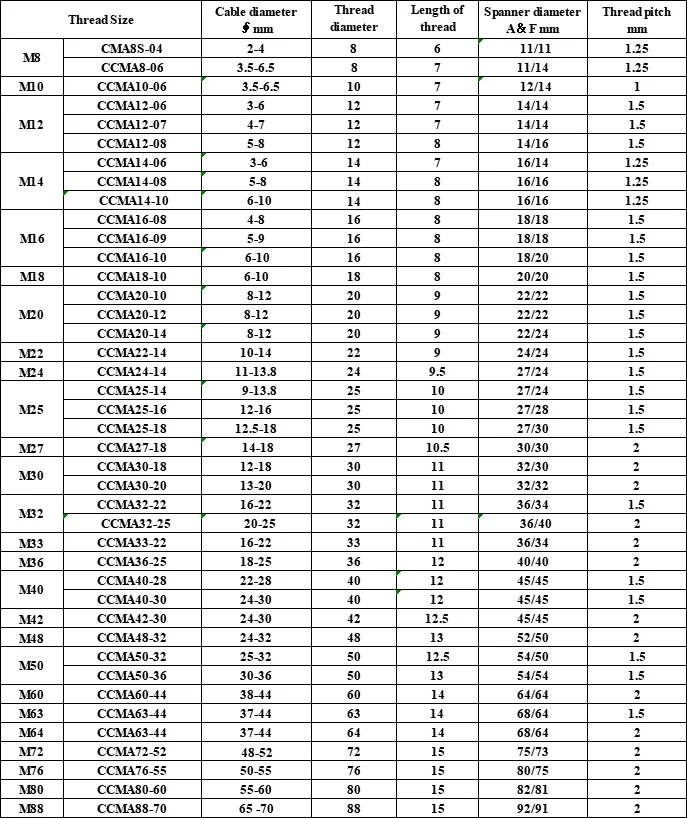

Technical Specifications
product application
Packing & Delivery
Packaging Details:
- Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other
- packing can be supplied according customers request.
- Delivery Detail:
- Shipped in 7 days after payment
Our company
Established in 1999, ShengYang electric company has been boomed and prospered in areas of Shanghai, Jiaxing, etc.. Ever since then, the company has been dedicated to the R&D of cable wiring equipment, the manufacture and the sales.The series of fixed head cables have been rated as the top-selling products since 2008 among peers in industry.
Certifications
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer with professional R&D team, and providing OEM & ODM services.
Q2: Where is your factory located?
A: Our factory located in Jiaxing Zhejiang Province that is closed to Shanghai and Hangzhou.Welcome to visit us.
Q3: Do you charge for samples and freight cost?
A: In generally,samples will be FREE. Will take reasonable charge if the samples are high-cost, the freight will be bear by yourself or send via your account.
Q4: Are your products conforming to our standards?
A: Yes, our products can pass the testings as your requires, such as REACH,CE,RoHS,IP68 etc.
Q5: Can you give us a favorable discount?
A: Of course, a favorable discount will be offered if the quantity is sizable.
Q6: How do you ship the goods and how long does it take?
A: For small order usually ship by UPS, FEDEX, TNT, DHL,TOLL, EMS etc. It usually takes 5-7 days to arrive. For big order, will take around 20-35 days by sea, 5-10 days by air.
