SUNWAYI TPCMU-E Car Tire Pressure Monitoring System TPMS Wireless RF  Moving Cigarette Lighter Display USB Charging DIY



Product Features:

Item	Parameter	Remark
Frequency	433.92 mHz
Voltage	2.1-3.6 V
Working Pressure	0-94 PSI
Battery Life	24 months
Transmit Power	< 10dBm
IP	IP 67
Sensor Working Temperature	minus 30 - plus 85 degree	Celsuis
Pressure Accuracy	1.5 minus/plus
Sensor Dimension	21mm(Diameter)*17mm(Hight)



Product specification :

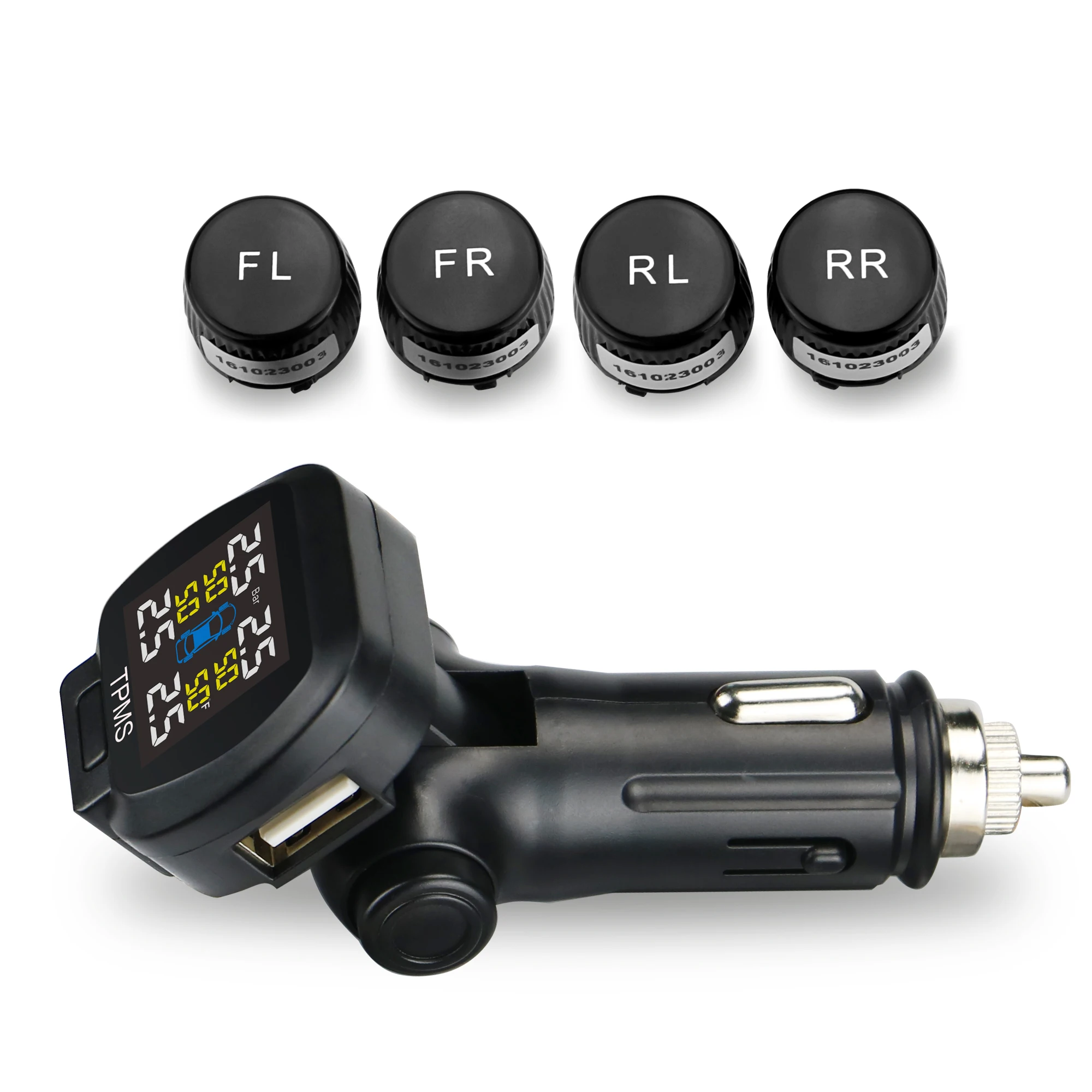

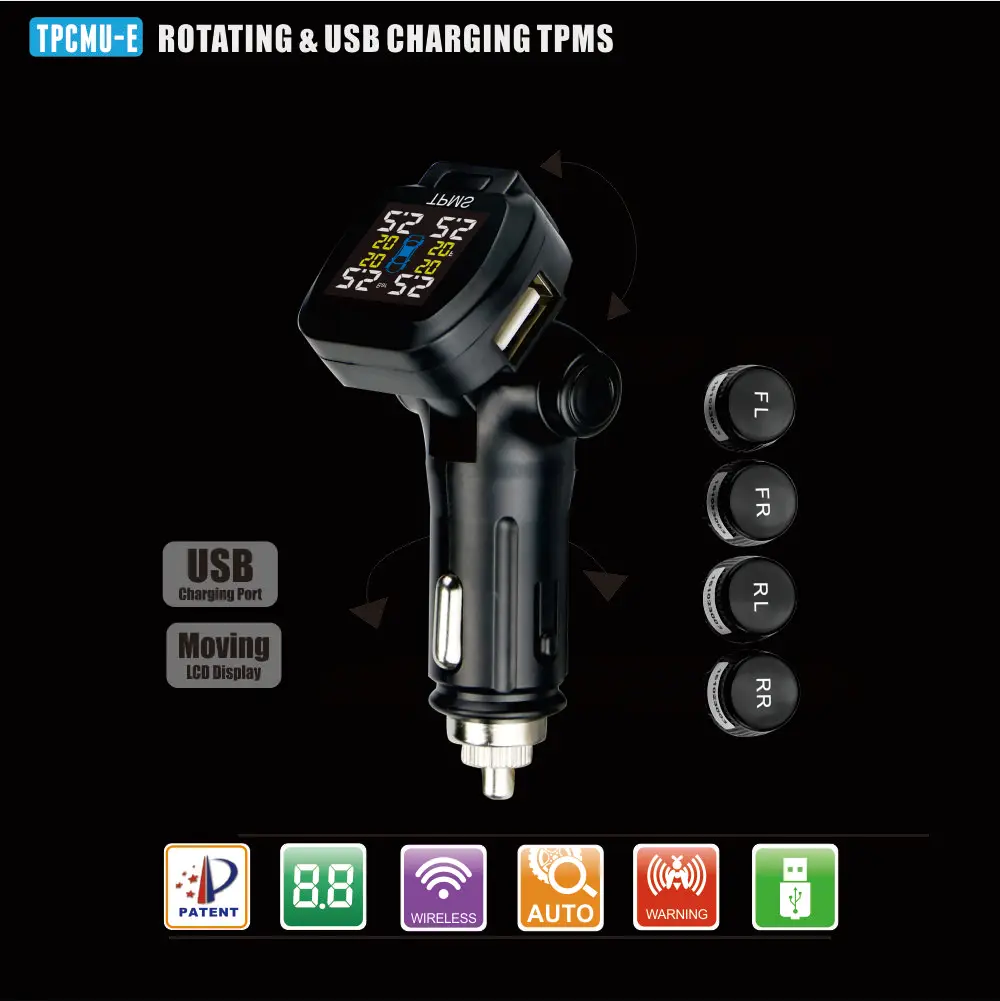

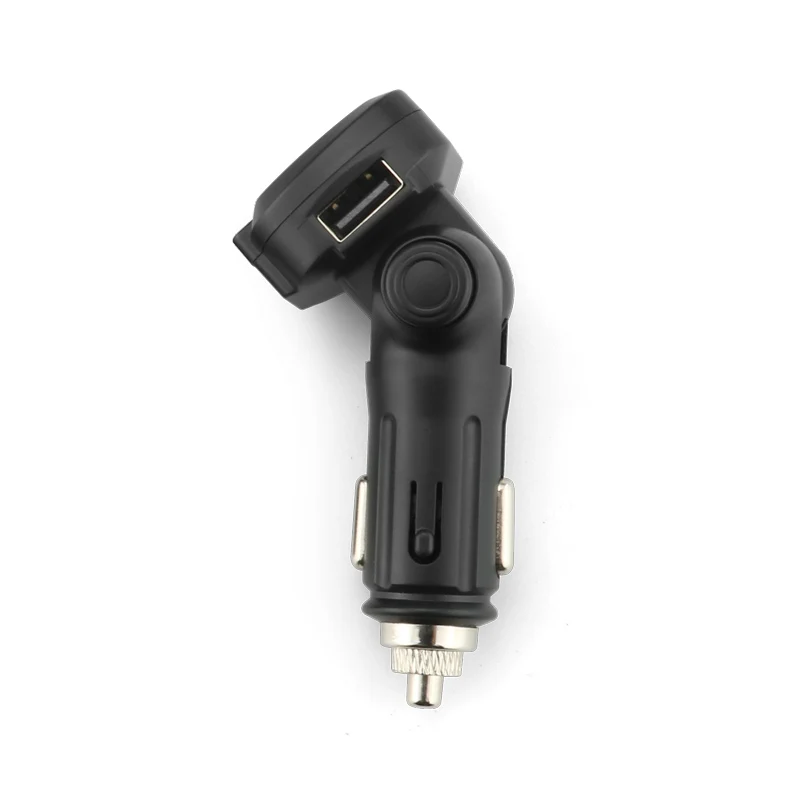

Cigarette Lighter TPMS W/ External Senors:

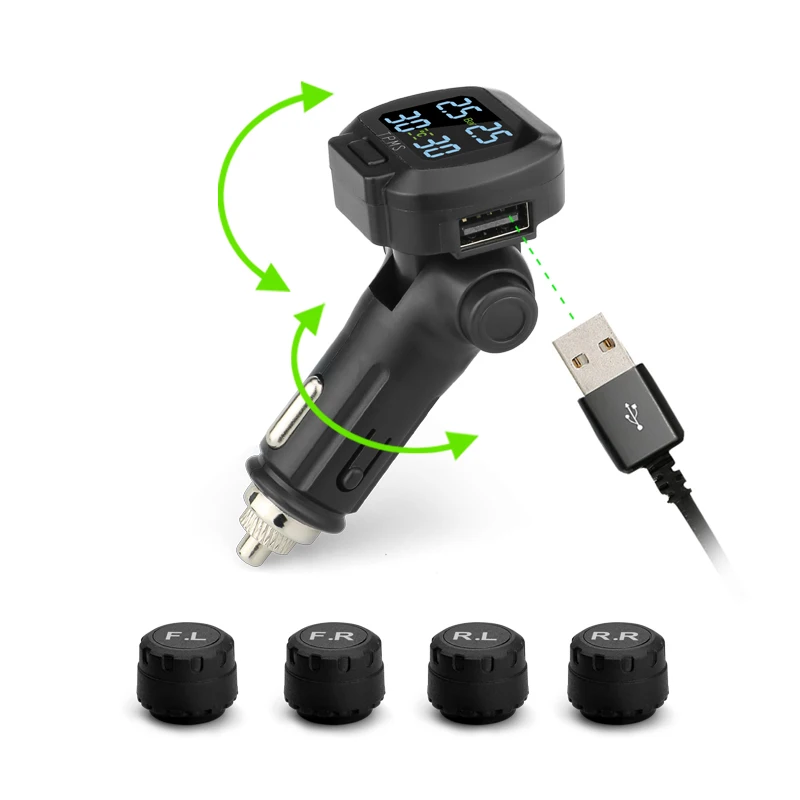

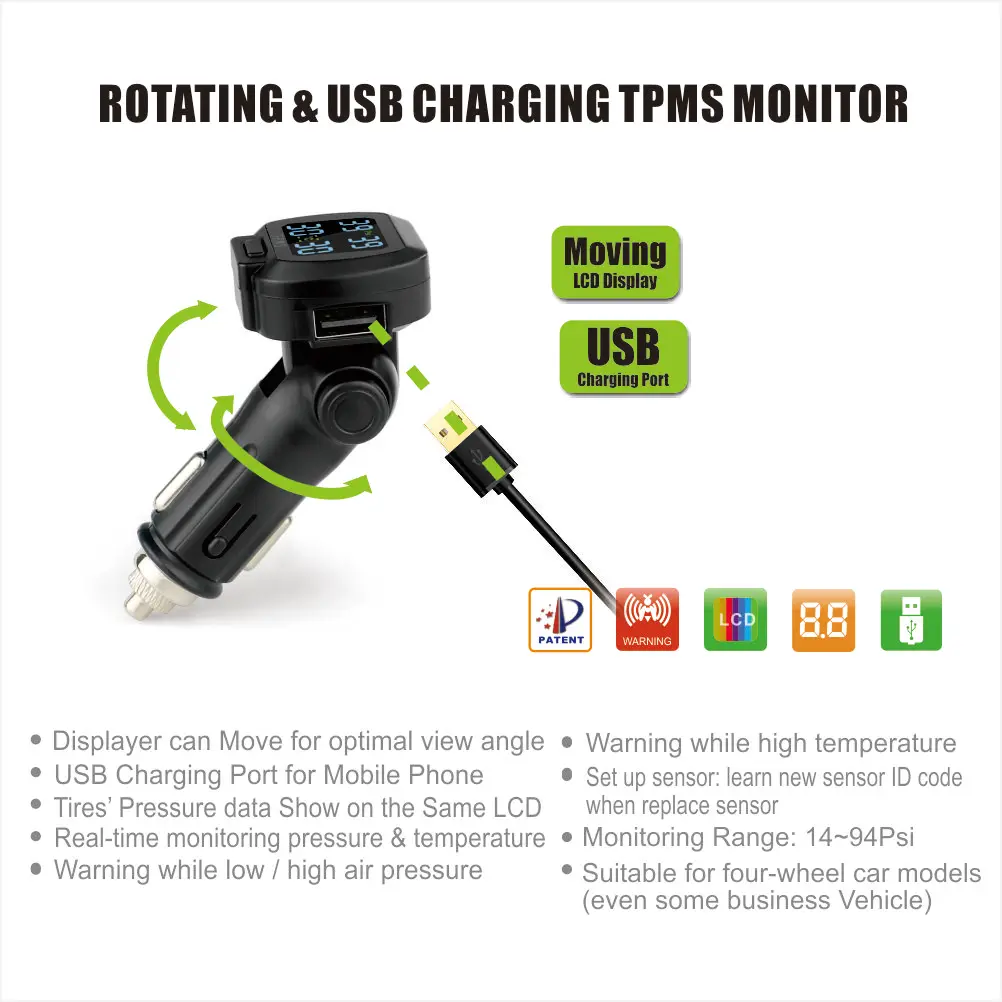

1. Cigarette Displayer can be Moved for best view angle.
2. With USB Charging Port for Mobile Phone Charging.

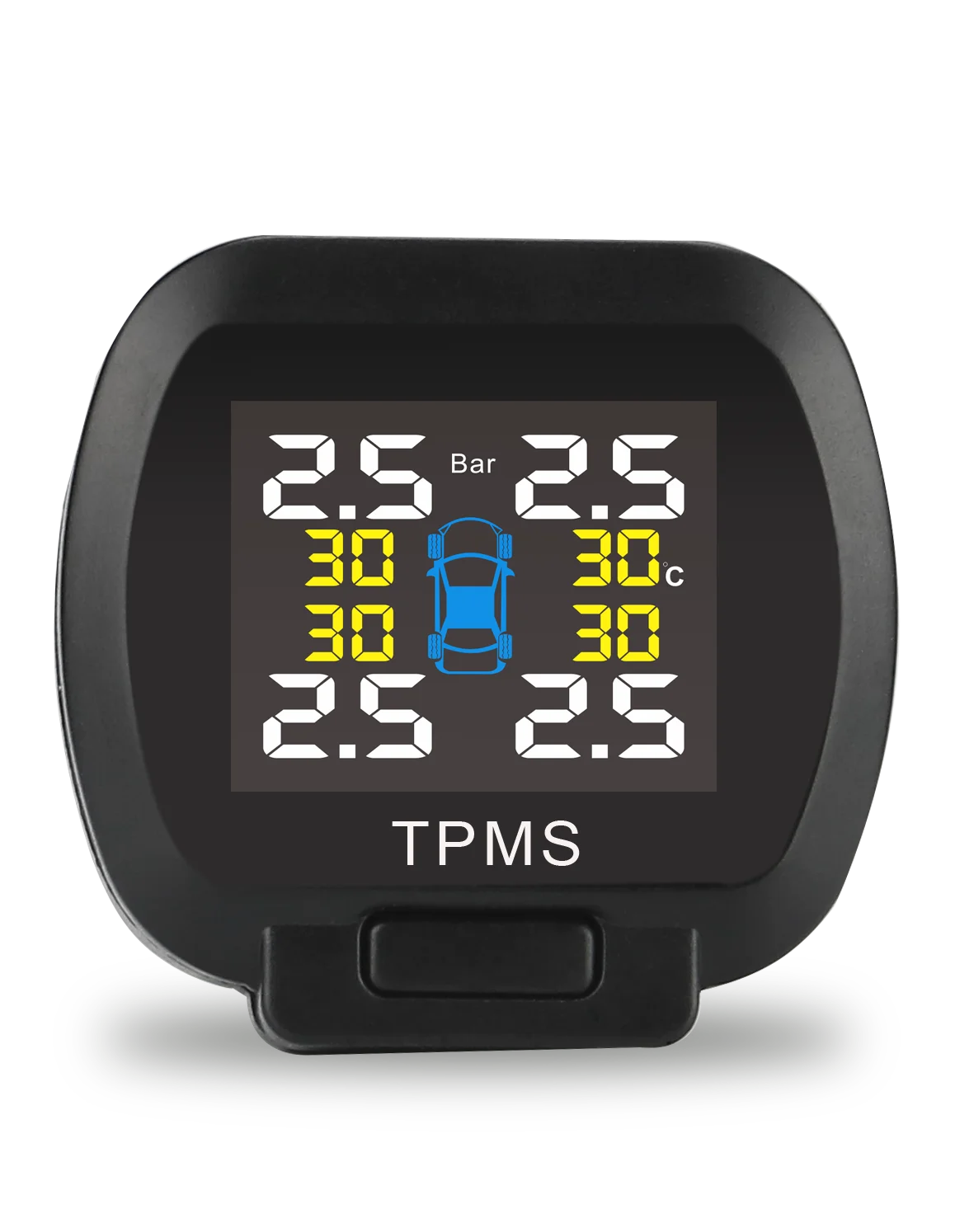

3. Tires’ Pressure data Shew on the Same LCD Displayer.
4. Real-time monitoring the pressure & temperature.
5. Warning while low and high air pressure / high temperature.
6. Set up sensor: learn new sensor ID code when replace sensor.
7. Monitoring Range: 0~51Psi (0~3.5 Bar).
8. Suitable for four wheel car models(even some business auto).

Dimension: 21mm(diameter)*17mm(high)
Weight: 8.0g
Battery life: 24 months
Working pressure: 0~99 Psi
Transmit Frequency: 433.92 MHz
Working Voltage: 2.1~3.6 V
Transmit power: <10dBm
Pressure accuracy: ±1.5Psi
Temperature accuracy: ±2°C
Working temperature: -30~80°C
IP:IP67
Storage temperature: -35~85°C

Packaging Details:  Gift Box Size: 135*95*65CM; Weight: 0.36kgs

Delivery Detail: 1-3 days for sample and 15working days for general order.



♦ Product Advantages







♦ CERTIFICATION

♦ COMPANY ADVANTAGES

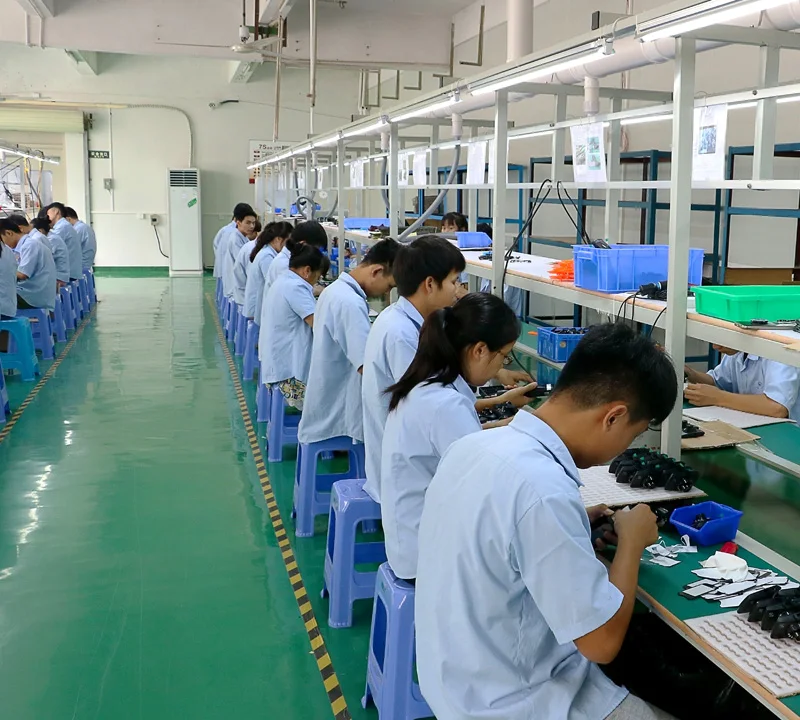

♦ PROFESSIONAL PRODUCTION
