JXPC бестселлер пневматический цилиндр с регулируемым ходом ISO6431 DNC40 *
- Категории: Пневматические и гидравлические системы >>>
- Поставщик: Ningbo,New,Jiaxing,Automatic,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
* Product Name: Air Cylinder
* Model: DNC Series
* Action Type: Double Action
* Port size: G1/8", G1/4", G3/8", G1/2"
* Working Temperature: -5~70℃
* Material: Aluminum Alloy
* Model: DNC Series
* Action Type: Double Action
* Port size: G1/8", G1/4", G3/8", G1/2"
* Working Temperature: -5~70℃
* Material: Aluminum Alloy

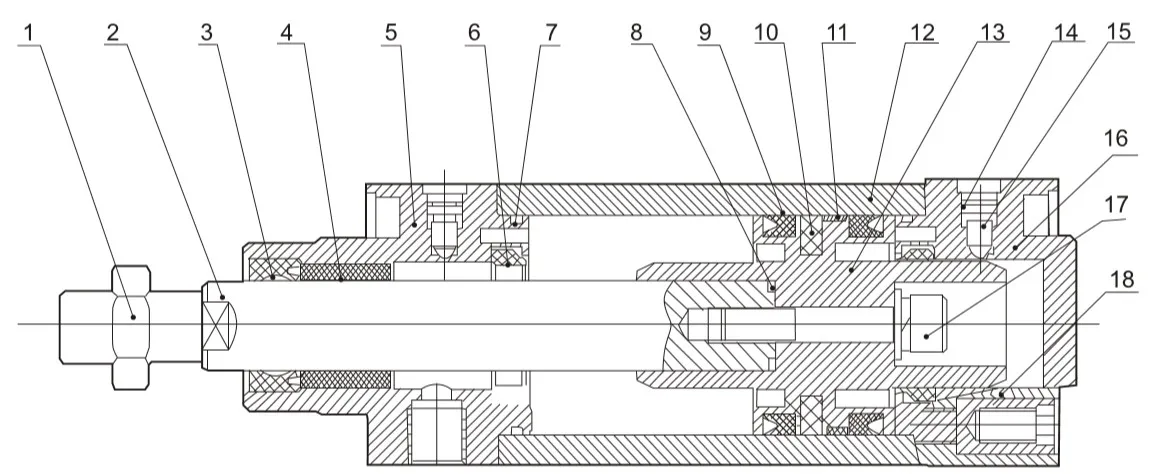

NO. | Designation | NO. | Designation |
1 | Piston Rod Nut | 2 | Piston Rod |
3 | Front Cover Seal Ring | 4 | Oiliness Bearing |
5 | Front Cover | 6 | Cushion Seal |
7 | Cover O-ring | 8 | Piston Rod O-ring |
9 | Piston Seal | 10 | Magnet(Optional) |
11 | Wear Ring | 12 | Barrel |
13 | Piston | 14 | Cushion Seal |
15 | Cushion Needle | 16 | Rear Cover |
17 | Hexagon Screw | 18 | Profile Bolt |
DNC Series | ||||||||||||
Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | ||||||
Motion Pattern | Double Action | |||||||||||
Working Medium | Filtered Air | |||||||||||
Guaranteed Pressure | 1.5Mpa | |||||||||||
Max operating pressure | 1.0Mpa | |||||||||||
Min operating pressure | 0.1Mpa | |||||||||||
Buffer | Air Buffer(Standard) | |||||||||||
Condition Temperature | -5-70°C | |||||||||||
Operating Speed | 50-800mm/s | |||||||||||
Port Size | G1/8'' | G1/4'' | G3/8'' | G1/2'' | ||||||||
Standard Stroke | 25 40 50 80 100 25 160 200 250 320 400 500 | |||||||||||
Buffer Stroke | 20 | 22 | 32 | |||||||||
Stroke Range | 10-2000 | |||||||||||
