Corrugated carton ink printer machine automatic carton flexo printing machinery



Control Unit

1. Fully Servo Control Vacuum Suction Corrugated Box Making Machine.


2.  All position adjustments controlled by PLC, encoder tracking


3. Carton machine computer centralized control, Rexroth Bosch Group servo drivers is for option.


4. Remote after service can be realized


5.  Each unit equipped with man-machine interface, easy to operate, accurate on adjustment.


6. Carton machine and carton making machine are made in very good quality with the best prices.

Carton machine feeding Unit

1. Apply lead edge feeding patent technology, feed all types of corrugated paper board accurately and speedily lx707


2. Paper feeding servo motor drive double rubber roller, without transmission mechanical error, upper roller is wrapped with wearable rubber, air pressure adjustment function to prevent cardboard from deformation, and to keep feeding accurate.


3. Vacuum lead edge feeding, air volume, air pressure adjustable to fit paper size


4. De-dust device removes dust and dirt from printing surface, and enhance printing quality


5. No backlash transmission technology, reduce transmission error to the minimum


6. No need self-circulating lubrication system, achieve environment friendly production


7. Feeding clearance motorized adjustment, touch screen control

Printing Unit

1. Forme roller and pressure roller made of high quality alloy steel, with grinded and chrome plated surface lx707


2. Dynamic and static balancing make steadily running


3. Hanging forme, make installation easy and quick


4. Forme changing both foot switch, and/or PLC panel control (forward / backward run)


5. Anilox roller auto lifting synchronous with paper feeding system (In feeding anilox roller press down whereas in stop, it release)


6. Independent servo motor driving, to eliminate cumulate error of system


7. Carton making machine printing phase automatic adjustment by man-machine interface and servo drive


8. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition


9. Carton machine ceramic anilox rollers, enclosed chamber doctor blade system, achieve 80-90 lines quality printing


10. AC servo control, peristaltic pump ink supplying and spreading, quick, economy, easy cleaning.


11. Arc shaped, aluminum alloy chamber of doctor blade, raise anti-bending ability by 30%, ink reserves decreased by 20%;  Lined with environmental protection fluorine layer, meet requirement of easy and non-stick cleaning


12. Carton making machine suck blower, roller sending, synchronous with pressure roller, over print precision ± 0.35mm lx707


13. Motorized adjust and digital display the forme roller transverse moves, up to 20 mm


14. Clearance between anilox roller and pressure roller automatic adjustment, encoder tracking and recording (Carton machinery Input data at PLC touching panel to make automatic adjustment)


15. Hot air drying or cold air drying can be choosing based on printing speed lx707


16. AC servo motor with no backlash power transmission device, make gear lubrication unnecessary

 Stacking Unit

1. Connection arm can be operated manually or automatically lx707


2. Tension of the driving belt of connection arm can be adjusted alone; Number of connection arms can be set at will


3. Stacking height: 1600 mm


4. Platform elevation and transmission motor has braking function, to prevent from down-slipping


5. A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached


6. Anti slipping belt used in the transport bed, the stacker together with carton machine,  corrugated box making machine.

Technical Parameters



Machine Mode	Unit	1200 x 2200/2400/2600	1400x2200/2400/2600	1600 x 2400/2600/2800
Min Cardboard size	mm	350 x 600	400 x 600	450 x 600
Cardboard thickness	mm	2-8	2-8	2-8
Design speed	pcs/min	160	160	160
Economic speed	pcs/min	120	120	120
Max die cutting size	mm	1200 x 1950/2150/2350	1400 x 1950/2150/2350	1600x2150/2350/2550
Max cardboard size	mm	1200 x 2000	1200 x 2400	1200 x 2600
Mould roller dia	mm	360	432	487





Machine Detailed Photos

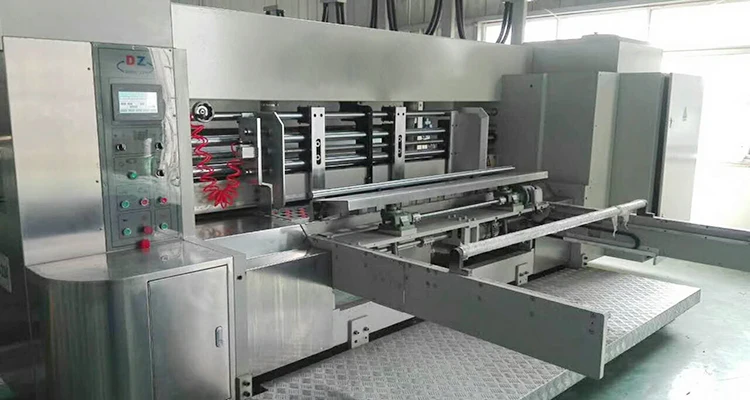

Lead Edge Unit

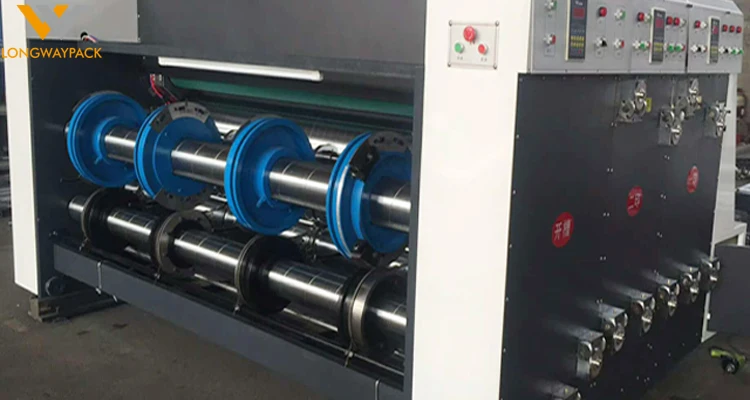

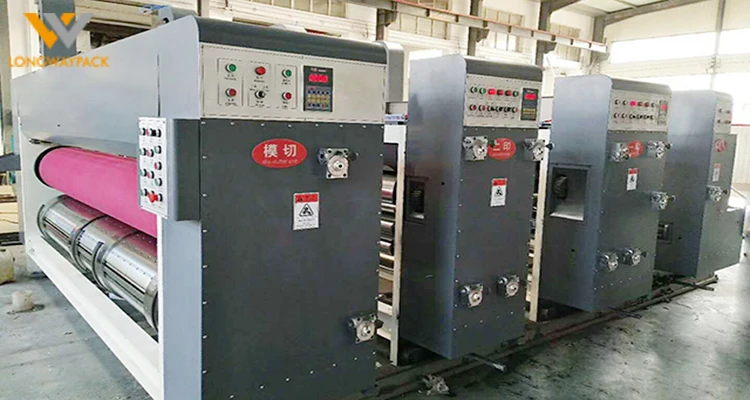

Printing & Die cutting Unit

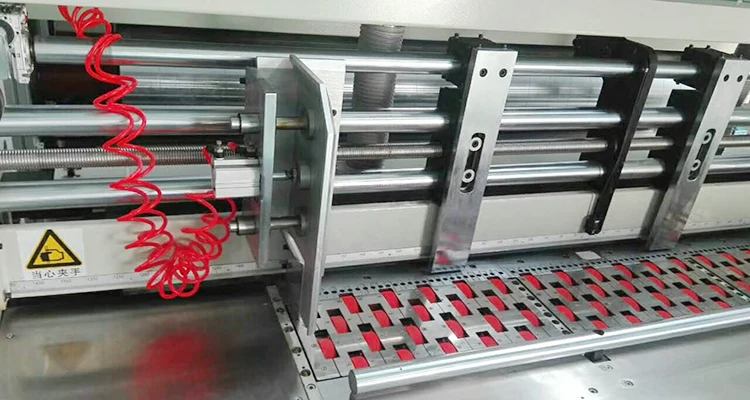

Slotting Unit





Company & Workshop



Our company is Longway Carton Machinery Co.,Ltd founded in 1998,is located to the south of Beijing and north of Jinan city.It has conveniet land and sea facilities. We are a professional enterprise with large scale to produce corrugated carton machinery and flexo ink printing slotting die cutting machinery,folder gluer machine,flute laminator machine,carton stitcher machine,die cutting creasing machine,thin blade slitting scorer machine etc.Our company has 80 staff and workers.There are 10 engineering and technical staff with senior post.We have our own processing center. With rich manufacturing experience ,advanced overhauling measures and integrated managing system ,our company can meet the demand of different clients.Reasonable price and perfect after-sales services,these make our products had won the trust and praise from the clients all over the world.



Our clients Visit & Inspection





Packing & Loading







If you are interested in our Corrugated carton ink printer machine/Good price automatic carton flexo printing machinery,please feel free to send us your inquiry,we promise to provide you the high quality machinery with very good price!
