131763202 шайба дверной замок в

Supplying Demand 131763202 Front Load Washer Door Lock Fits 131763256 131763255





•\tCompatible part numbers include AP6285657, 1312694, 131269400, 131763200, 131763245, 3626240, PA66-GF25

•\tLocated inside the door frame of washing machine door.

•\tIncludes 60 day Money Back Guarantee

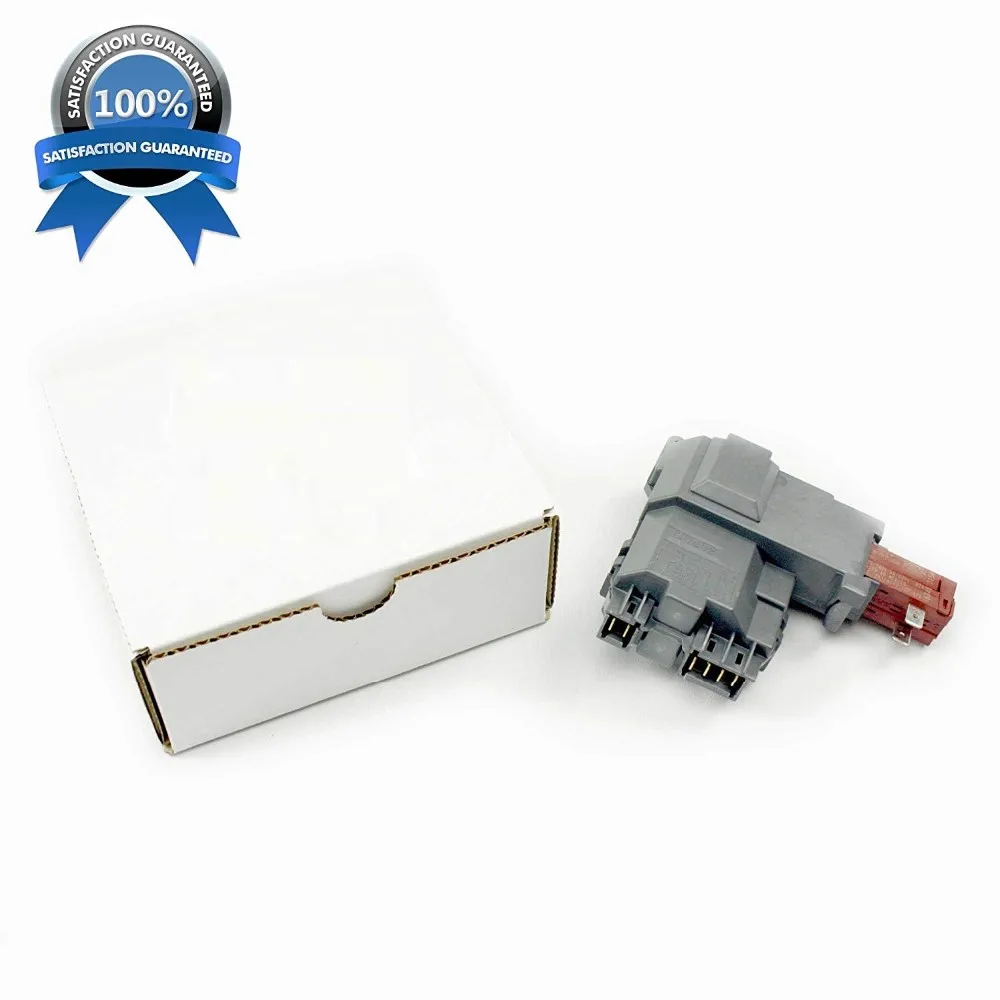

•\tComes in Supplying Demand packaging. 1-year Supplying Demand warranty provided as long as purchased through authorized sellers of Pandora's OEM Appliance Parts.

•\tCompatible with Electrolux brands which include Frigidaire, Kenmore, Sears, etc.





Product description



Replaces Part Numbers



131269400, 131763200

131763202-REPL 131763245

1531974, AH2367737

AP4455026, EA2367737, and PS2367737



Package Include:

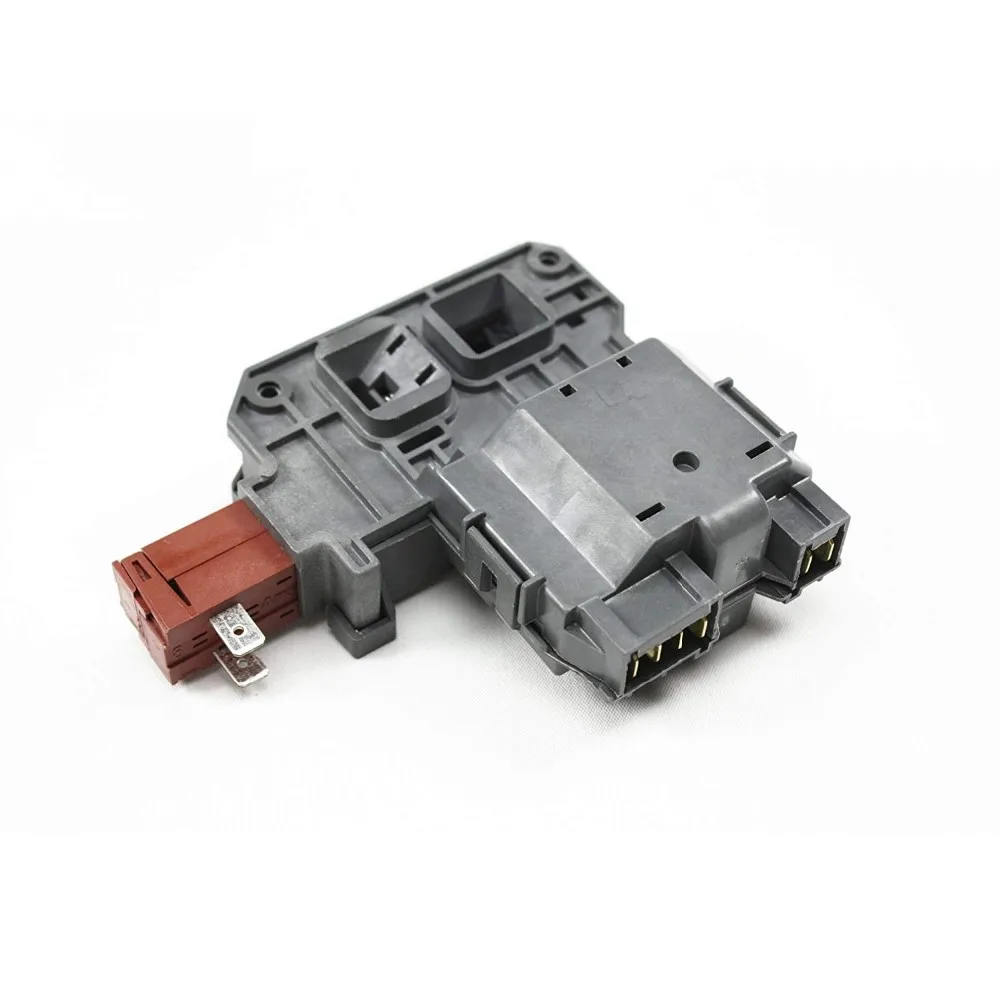

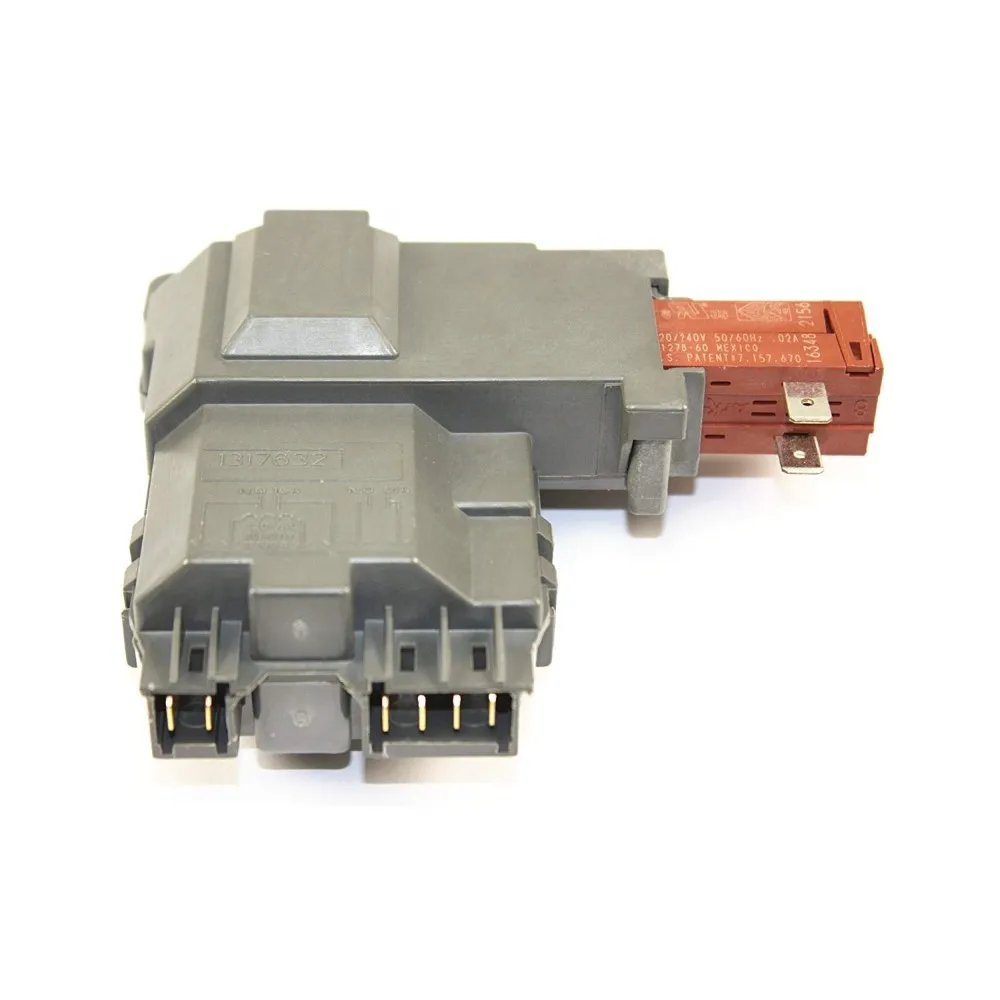

1 x Front Load Washer Lock Switch Assembly

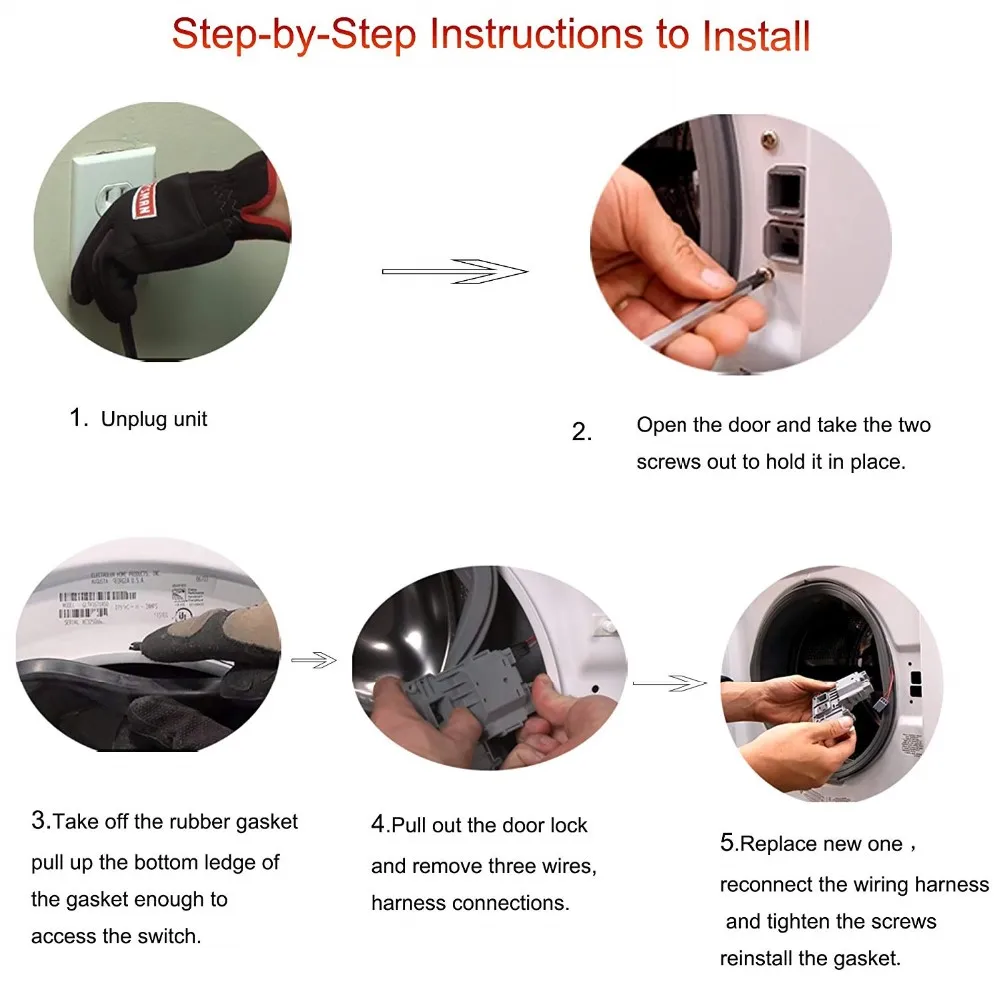

Steps I followed to replace the original unit:



Step 1 - Unplug the washing machine (also remove any access water that might splash)

Step 2 - Open the washer door and use needle-nose pliers to remove the thin, metal wire clamp & spring from the boot seal

Step 3 - Peel back the boot seal near the latch assembly area

Step 4 - Remove the two (2) screws holding the door latch in place

Step 5 - Insert hand behind the boot seal area, grab the door latch assembly, pull it out, and disconnect the wires (3 sets)

Step 6 - Insert your new latch assembly (might be a slightly different color than the original -- this is OK) and reattach the wires

Step 7 - Insert the original two (2) screws to hold the new latch in place, replace boot seal, replace wire clamp & spring

Step 8 - Plug washer back-in and test it out on Spin Cycle
