Вентиляционное устройство eco design 150 м3/ч для восстановления тепла и кондиционирования
- Категории: >>>
- Поставщик: Beijing,Holtop,Air,Conditioning,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
ErP2018 eco design 150 m3/h heat energy recovery air conditioning vent
Product Description

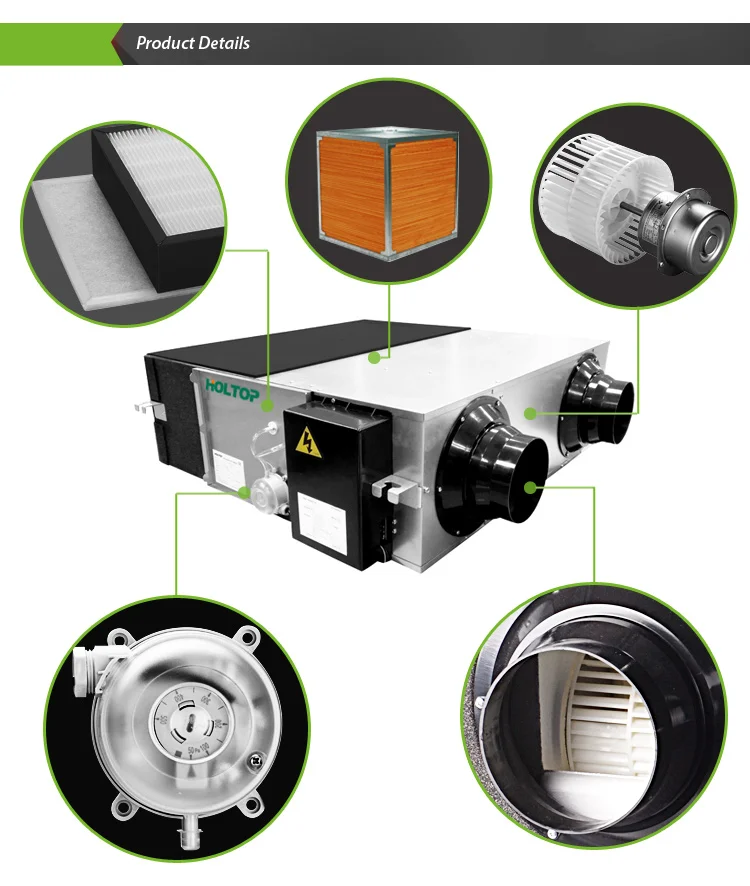

Features
- Energy saving BLDC motor, 10 speeds control
- High efficiency enthalpy heat recovery, more comfortable indoor climate
- G3+F9 filter, efficiency over 96% to filter the particulate from 2.5µm to 10µm
- Intelligent control system, optional CO2 and humidity control function, external control and BMS control available
- Double filter alarm, timer alarm or different pressure gauge alarm available
- Auto bypass, intelligent controlled by outdoor temperature
 |
Energy efficiency class of A according to regulation EU.No.1254/2014. |
Intelligent Controller
Functions
| - Airflow rate switch (10 speeds) - Temperature display - Automatic bypass - Weekly timer - Data memory/power to restart - Automatic defrosting - Electric heater defrosting (optional) | - Comfortable heating (optional) - External ON/OFF - CO2 concentration control - BMS integration - Working condition monitor - Humidity control (optional) - Free night cooling |
Application Places
Selection Guide
1. Choose the proper installation types based on the building structure
2. Determine the fresh airflow required according to the use, size and number of persons
3. Select the right specifications and quantity according to the determined fresh airflow
Example
The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.
If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is
Q1 =N*Q=10*70=700(m3/h)
If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is
Q2 =P*S*H=5*60*3=900(m3)
Since Q2 > Q1 , Q2 is better for selecting the unit.
As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.
Specification of DMTH serires ERV
| Model | Rated Air Flow (m3/h) | Rated E.S.P (Pa) | Enthaply efficiency % | Temperature efficiency % | Noise dB(A) | Voltage (V) | Power Input (W) | Weight (kg) | |
| Cooling | Heating | ||||||||
| XHBQ-D1.5DMTHA | 150 | 70 | 60-65 | 63-70 | 75-80 | 31.5 | 220-240 | 38 | 25 |
| XHBQ-D2.5DMTHA | 250 | 90 | 62-71 | 65-73 | 73-81 | 34.5 | 220-240 | 85 | 27 |
| XHBQ-D3.5DMTHA | 350 | 140 | 62-70 | 65-73 | 74-82 | 37.5 | 220-240 | 107 | 33 |
| XHBQ-D5DMTHA | 500 | 110 | 63-72 | 67-75 | 76-84 | 39 | 220-240 | 140 | 38 |
| XHBQ-D6.5DMTHA | 650 | 100 | 60-67 | 65-71 | 74-82 | 41 | 220-240 | 160 | 62 |
| XHBQ-D8DMTHA | 800 | 140 | 63-71 | 65-73 | 76-82 | 42 | 220-240 | 188 | 72 |
| XHBQ-D10DMTHA | 1000 | 140 | 60-68 | 62-72 | 76-82 | 43 | 220-240 | 312 | 81 |
| XHBQ-D13DMTHA | 1300 | 135 | 58-71 | 59-75 | 74-82 | 43 | 220-240 | 405 | 81 |
| XHBQ-D15DMTHA | 1500 | 95 | 63-71 | 65-73 | 76-80 | 50 | 220-240 | 700 | 147 |
| XHBQ-D20DMTHA | 2000 | 115 | 60-68 | 62-72 | 76-82 | 51.5 | 220-240 | 724 | 167 |
| XHBQ-D26DMTHA | 2600 | 115 | 58-66 | 59-75 | 74-82 | 55 | 220-240 | 810 | 190 |
| XHBQ-D40DMTHA | 4000 | 230 | 60-68 | 61-71 | 73-81 | 59 | 380-400 | 2140 | 335 |
| XHBQ-D50DMTHA | 5000 | 260 | 60-68 | 61-71 | 73-81 | 68 | 380-400 | 2630 | 395 |
| XHBQ-D60DMTHA | 6000 | 300 | 60-68 | 61-71 | 73-81 | 70 | 380-400 | 3030 | 557 |
