Беспроводная мини-ленточная пила для резки металла
US $409.00-$449.00

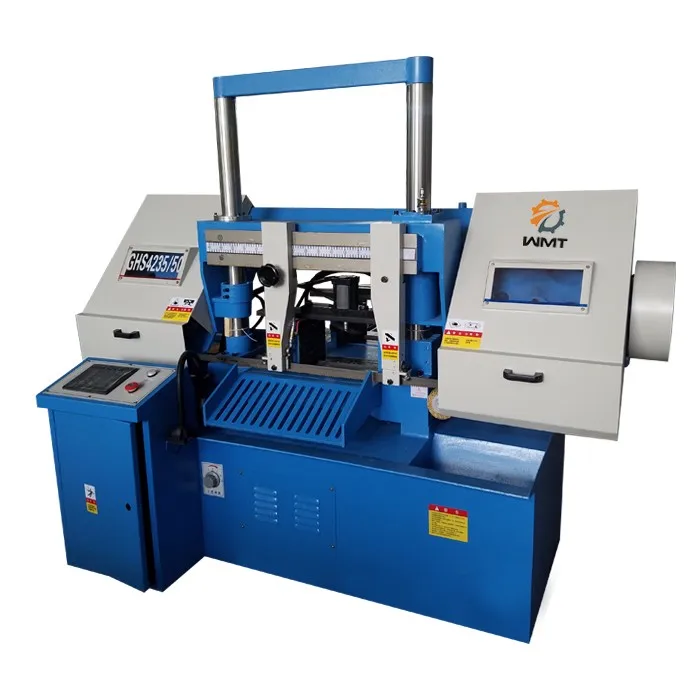

Ленточная пила GH4235 с двумя колоннами для резки
- Категории: Band Saw Machines >>>
- Поставщик: WMT,CNC,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features:
Double column structure vertical lifting with high stability.
The cutting speed is variable and hydraulic.
Workpiece is clamped by hydraulic control and easy to operate.
Hydraulic clamping on three axis is available.
SPECIFICATION FOR BAND SAW MACHINE GHS4235 | ||
Specifications | GH4235 | |
Main motor power | 3KW | |
Hydraulic motor power | 0.75KW | |
Coolant pump motor power | 0.04KW | |
Blade linear speed | 27,45,69m/min | |
Blade feed type | hydraulic stepless | |
Blade size | 4115*34*1.1mm | |
Machine dimensions (L*W*H) | 2000*2500*1500mm | |
Blade tension type | manual | |
Workpiece feed type | CNC hydraulic automatic | |
Workpiece clamp type | hydraulic | |
N.W. | 1200KG | |
CNC system | 7" touch screen | |
PLC controller | ||
power switch | ||
grating ruler | ||
Cutting range (round) | Φ350mm | |
Cutting range (square) | 350*350mm | |

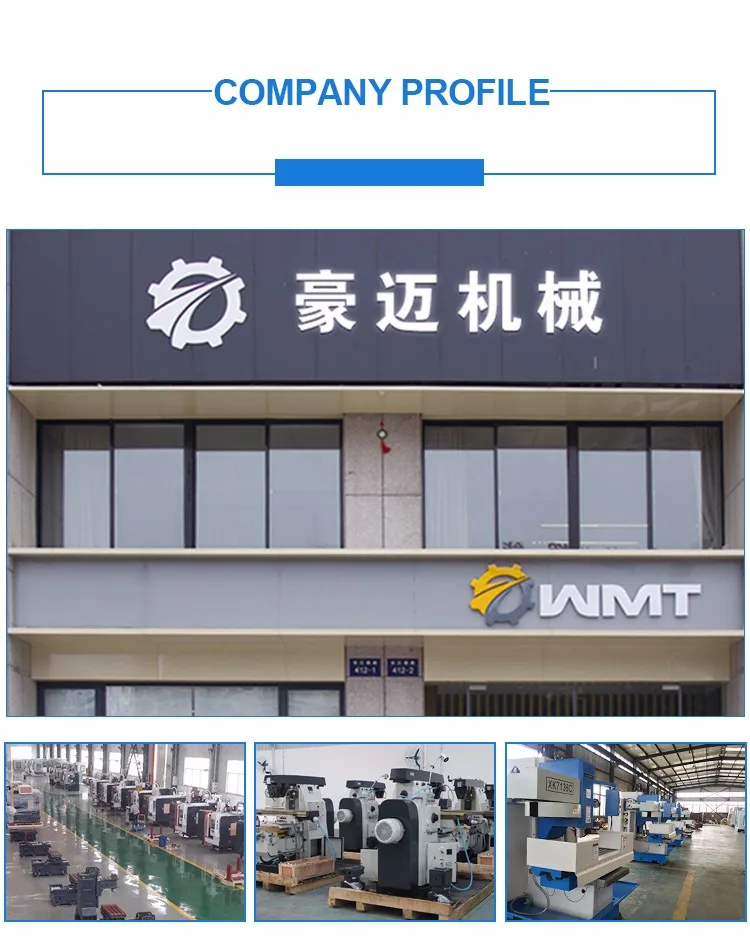

Company Profile
WMT CNC Industrial Co., Ltd. is located in the southwest of the Yangtze River in Anhui Province with famous Buddhist shrine in the north of Jiuhua Mountain. The transportation facilities here are very convenient, directly linked with many metropolis like Shanghai, Beijing and Shenzhen via the highway, international airport, and high-speed railway. As one of the most professional manufacturers in China, WMT company is focused on developing, manufacturing and selling various CNC milling, CNC lathe, milling and drilling machines, drilling machines, lathe machines and multi-purpose machines etc.
Factory Tour
