Product Description

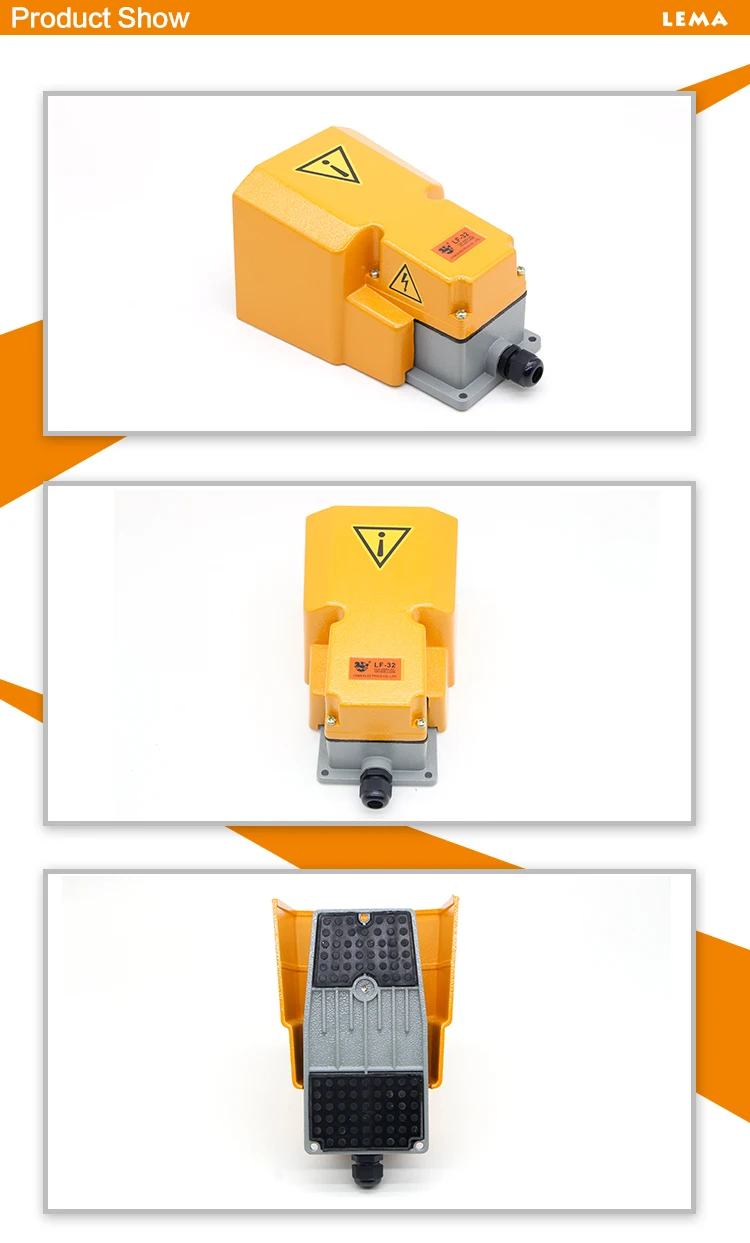

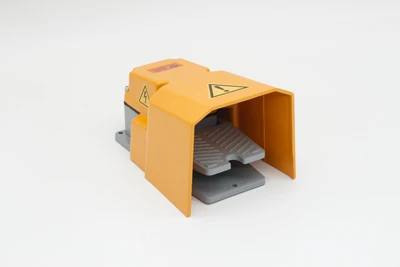

Lema LF-32 15A 250V aluminum alloy metal foot switch pedal one year guarantee
 | ||
 | ||
| Brands | LEMA | |
| Model | LF-32 | |
| Voltage: | 250/125 VAC | |
| Color | Yellow and Grey | |
| Size | 200*100*127mm | |
| Operating Force | 3.2kg | |
| Material | Aluminum alloy | |
| Operating frequency | 30 times/min | |
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 2,000Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 2,000Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Durable: 1000m/s2(100G)max. Malfunction: 300m/s2(30G)max. | |
