Hot selling Automatic Photo Frame Angle Cutting Machine

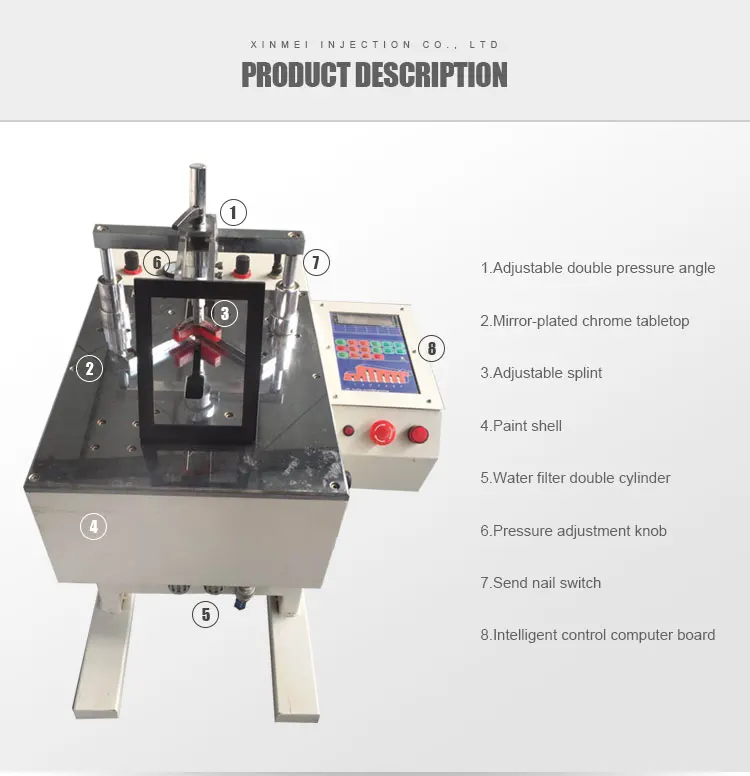

Product Description



The automatic digital control frame joint machine has been designed for mass or unit production of small, medium and large sizes frames. The machine is equipped with an electric control device able to execute very fast the several working programs entered in by the operator, it can insert one or more v nails up to nine different positions; it takes very few seconds to insert v nails in one angle in several positions, the max. nailling scale is nine position with each position max. 9pcs of pins.
Product Parameters




Model
XM579
Power source
380v/50hz
Corner cut degree
45°
Max. corner cut size (width)
160mm
Max. corner cut size (high)
100mm
Saw blade size
Φ355xΦ25.4x3x120T
Gas source
>=0.6-0.8mpa
Speed
5600r/min
Power
4.4kw
Workbench height
850mm
Feeding bench length
3000mm
Overall size
1780x940x1280mm
N.W
465kgs

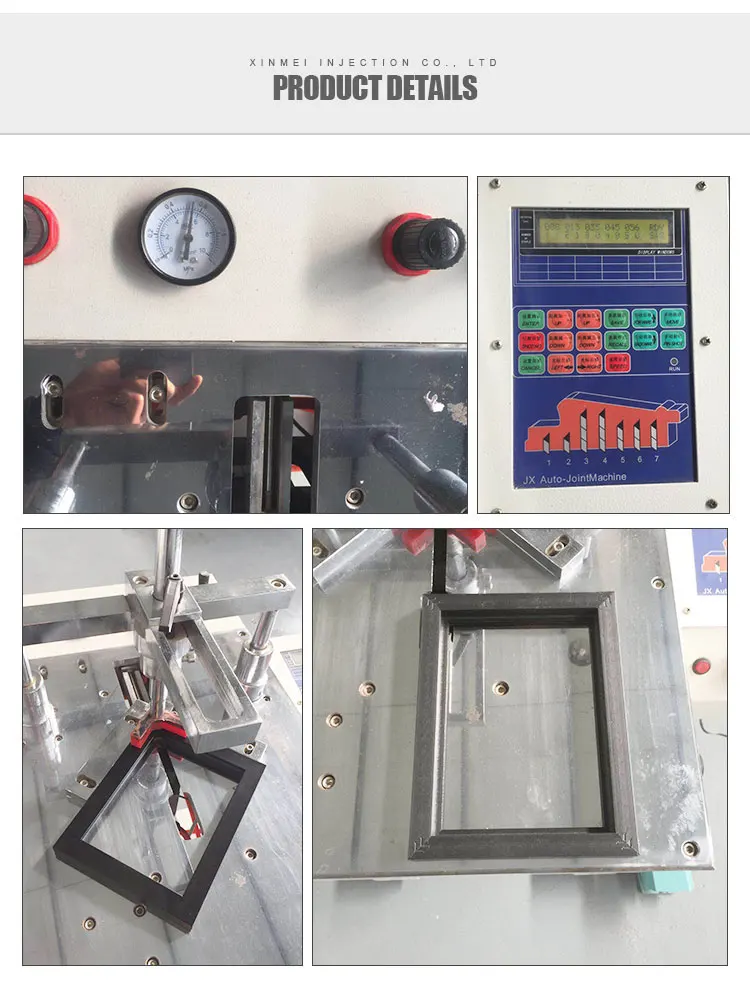

Details




1. 7-9 nailing, fastening any lines

2. It has 8 speed profile arbitrarily switch to meet any  requirements

3. It can automatic manual free conversion and fast operation

4. Its central computer microcontroller stable, not crash

5. Both Type AL & UNI are available in this machine. Just by the V-Nails you like.
6. Attractive & durable design make Btter working.

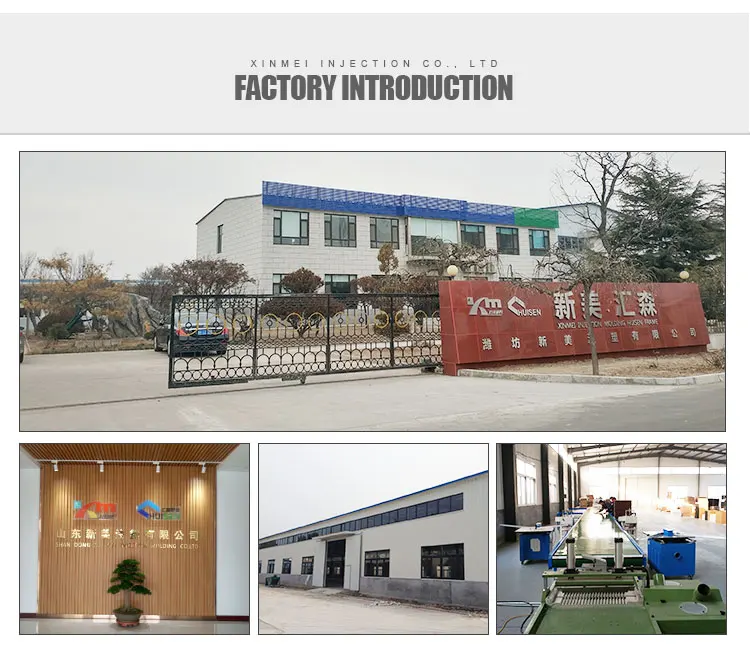

Company Information








Advantage:owing the most developed water resistant coating production line and technology.Weifang Xinmei Injection Co., Ltd. is a specialized and high technology enterprise producing color ink jet media. We have employed a large number of highly educated technical professionals and managers. Our company, which invested 8 million RMB, adopts modern water-proof color ink jet technology from the USA in the manufacture. Our products are challenging the best quality of the kind in the world.

Products sells well all around the world.






1. Quality Management System Certification

2.IOS14001 certification

3. Honest private enterprises in Weifang City

4. Labor Security Unit

5. High-tech enterprises

6. Well-known brands



Related Products



FAQ


Q: Why choose us?
A: 1.Owner of manufacturer and Export all over the world.
     2.Delivery in short Time.
     3.Perfect workmanship and Customs first.
     4.High quality with reasonable price.
     5.Quick response to all your inquiry.



Q: When can I get the price?

A: We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF, etc. You can choose the most convenient or cost effective method for you.


Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
    If you just need a sample to check the design and quality, we will provide you sample for free, as long as you afford the express freight.
