GD-2306 10 kv mega ohm meter digital 10kv megger insulation tester megger high voltage insulation 10 kv tester
Megger insulation tester Brief-Introduction
Digital Insulation resistance tester embedded real-time industrial microcomputer operating system, ultra-thin wire-shaped sheets header with the perfect combination of dot matrix liquid crystal display, the instrument is with a variety of voltage output level(250V,500V,1000V,2500V, 5000V,10000V),high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index), all measured characteristics with the anti-power-down function.
It is suitable for measuring high capacity transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.
Megger insulation tester Specification:
1.Measuring range and accuracy
(Temperature, humidity: 23±5℃, 45~75%RH)
Model | GD2306 Digital 10kV Megger / Megameter / Meg Ohm Meter | ||
Rated Voltage | 5000V | 10000V | |
Measuring Range | 0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~200GΩ | 0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~400GΩ | |
Open circuit Voltage | DC 5000V +20%, -0% | DC 10000V +10%, -0% | |
Short-circuit Current | Approx 3.3mA | ||
Accuracy | ±5%±3dgt | 100GΩor more ±20% |
Operating system:Dual integration
Display: Liquid crystal display(Max. 9999counts) Bar graph / Max. 31points
Low battery warning:Battery mark display (in 4 levels)
Over range indication:“----“ mark appears on insulation resistance range.
Sample rate:approx 0.5~5 times/sec
Operable altitude:2000m or less above sea level
Temperature & humidity range (guaranteed accuracy):23±5℃ / Relative humidity 85% or less (no condensation)
Operating temperature & humidity range: 0℃~+40℃ / Relative humidity 85% or less (no condensation)
Storage temperature & humidity range:-20℃~+60℃ / Relative humidity 75% or less (no condensation)
Insulation resistance:1000MΩ or more /DC 1000V(Between electrical circuit and enclosure)
Dimension:230(L) ×190(W) ×90(D) mm
Weight:approx 3.5kg (battery included)
Power source:DC15V/4A Adapter Power Or DC9.6V: charging battery size AA×8pcs

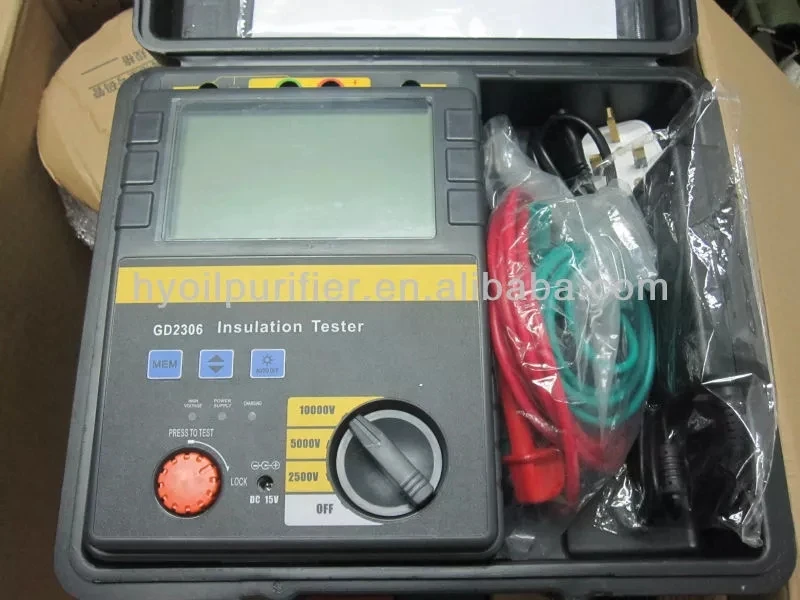

Megger insulation tester details:
Megger insulation tester Series:
Order & Customer Feedback:
Pre-sale Service:
After-sale Service:
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd was founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.
After several years’ development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia,Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
