HDH гидрогенная дегидрогенная печь для производства титанового


Поделиться:

Цена:6 027 032,00 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Ⅰ. Brief Description



This vacuum hydrogenation dehydrogenation furnace(HDH furnace) adopts hydrogenation - dehydrogenation (HDH) process to produce Ti powders. Working condition is vacuum or hydrogen gas based on User's production requirements. Combining with siever or ball miller, the User can produce Ti powder with different sizes.

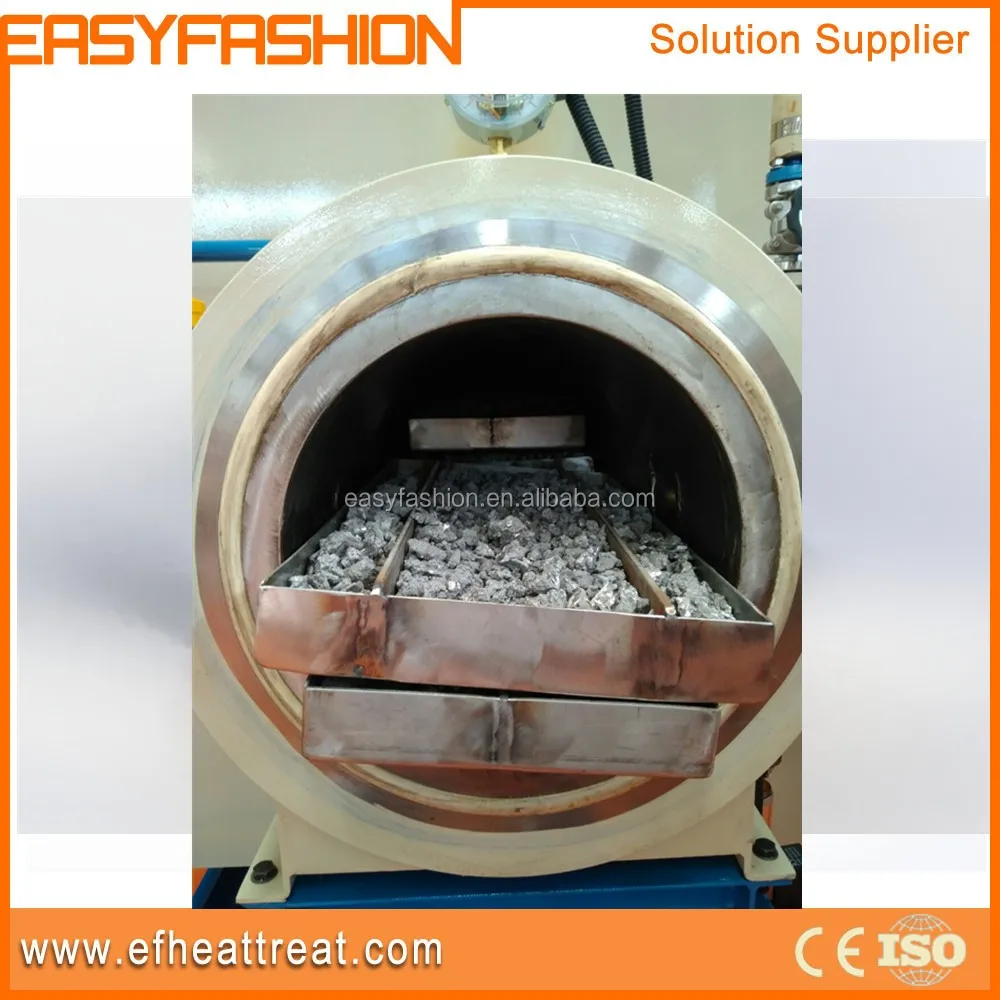

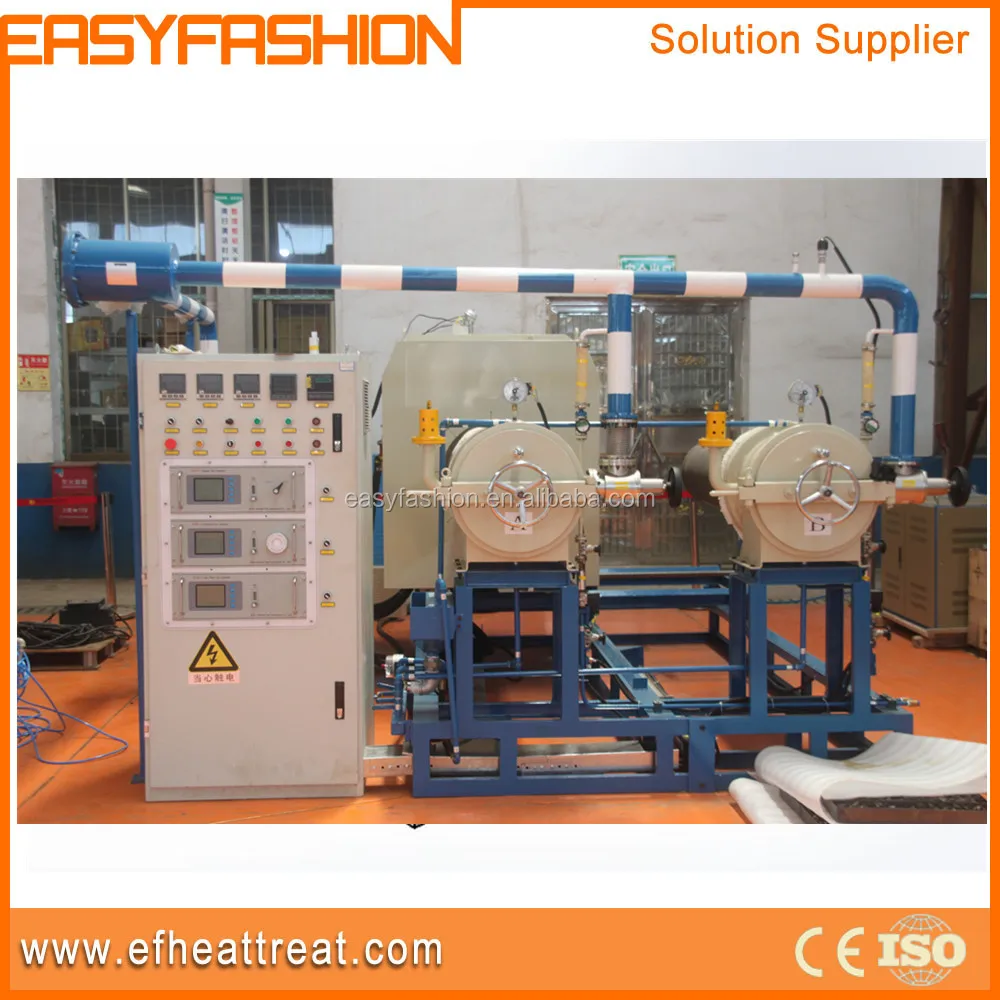

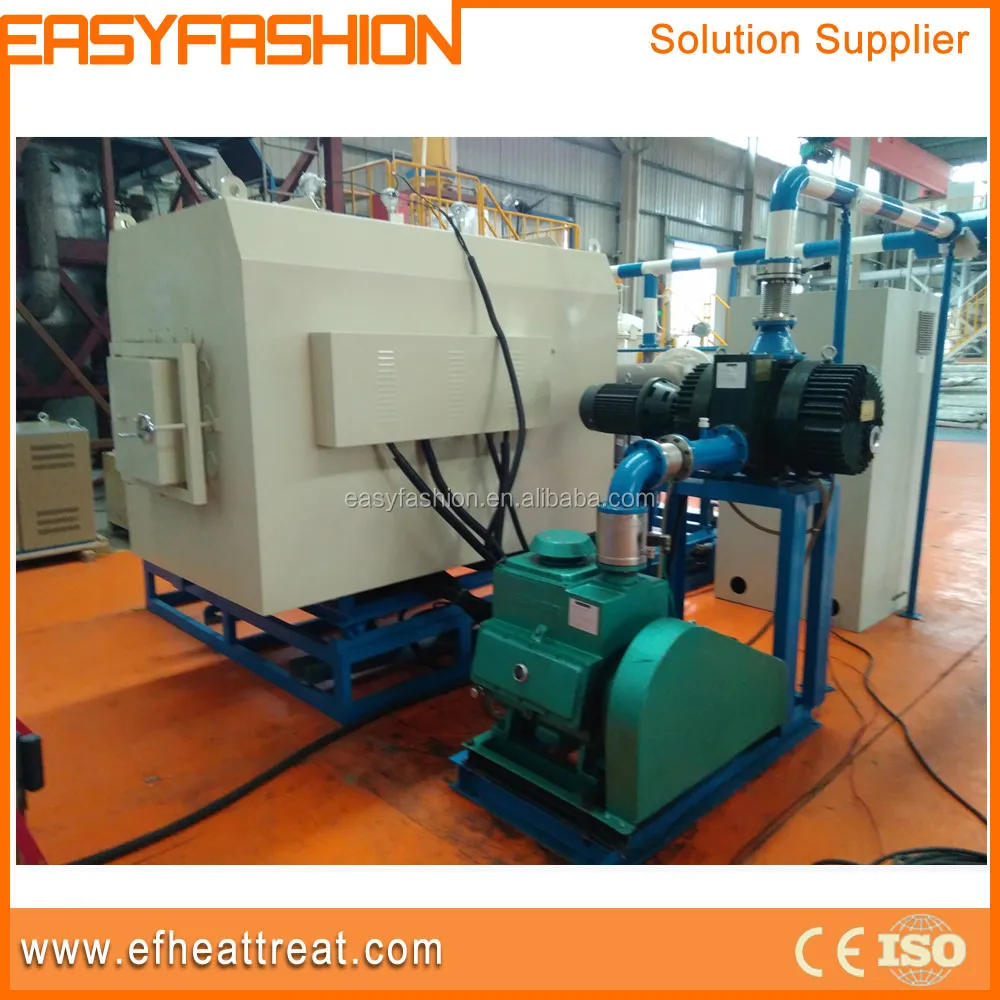

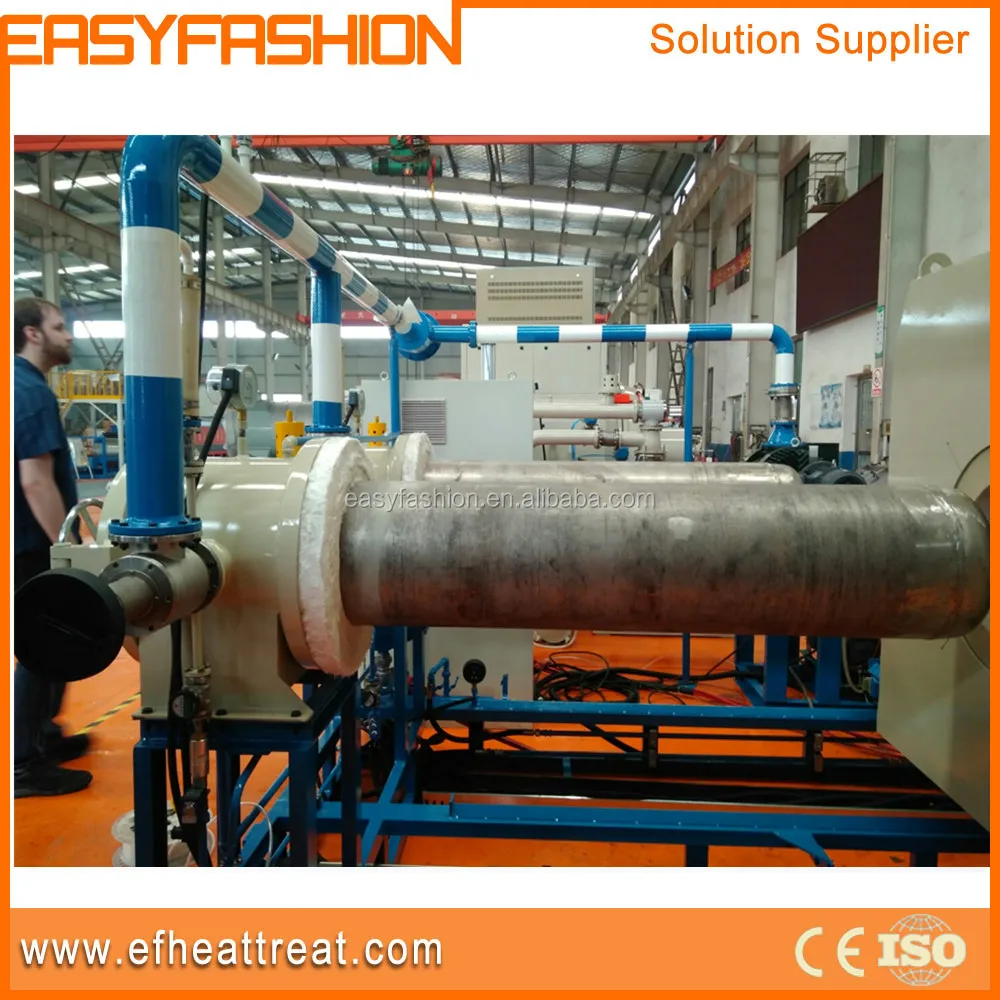

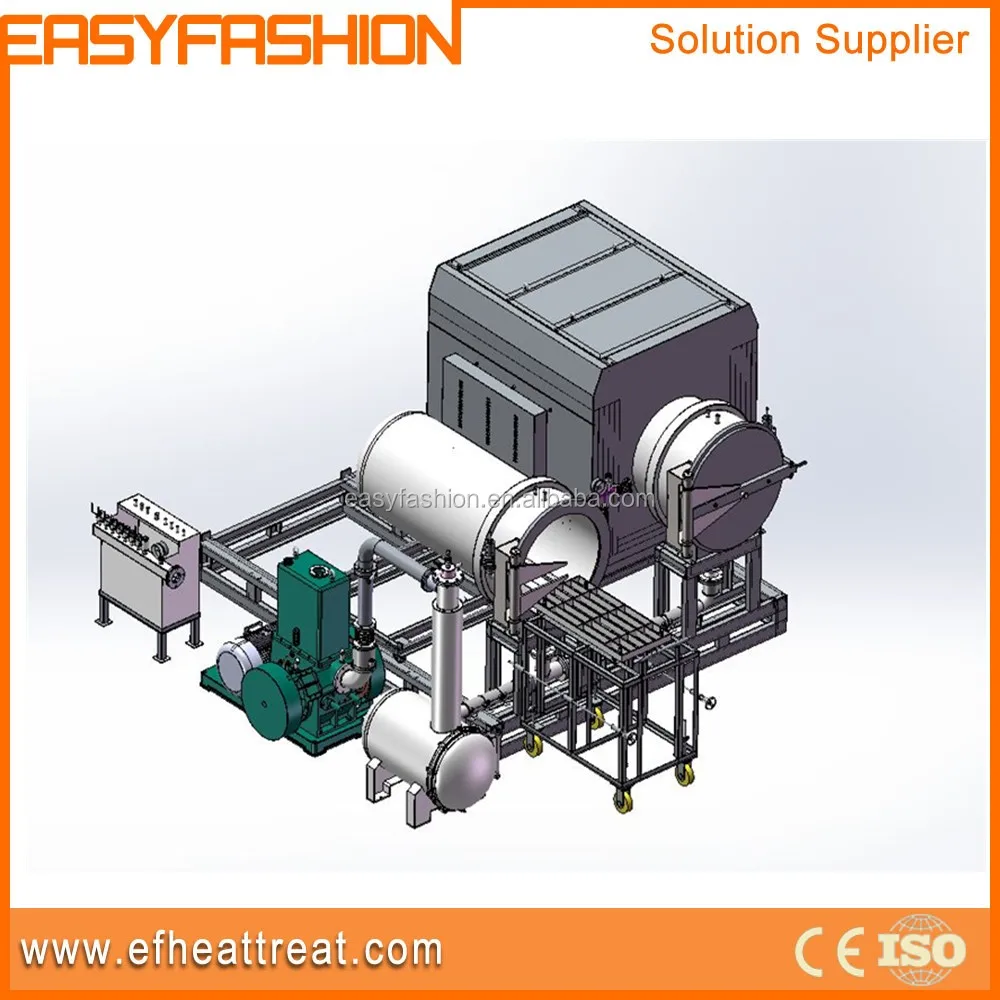

Ⅱ. Main Technical Specifications and Pictures

Item
Specifications
Rated loading capacity
Sponge Ti: 45~50KG; Ti powders: 35~40KG
Rated power
~380V 50HZ 3Phase (When voltage in User's site is over 400V, transformer or voltage stabilizer will be equipped accordingly.)
Rated heating power
20kW (adjustable)
Rated temperature
950°C (temperature rising time about 1 hour)
Max. temperature
1000°C
Ultimate vacuum of unloading furnace in cold state
≤6.7 ×10-1Pa
Pressure rising rate
50Pa/24h
Overall dimension
About 3230mm×3200mm×2122mm (L×W×H) (Remark: actual dimension will be confirmed.)
Effective loading size in heating zone
φ300mm×1000mm
Temperature uniformity
±5°C
Temperature control precision
0.2 grade
Rated filling pressure
≤0.2 MPa

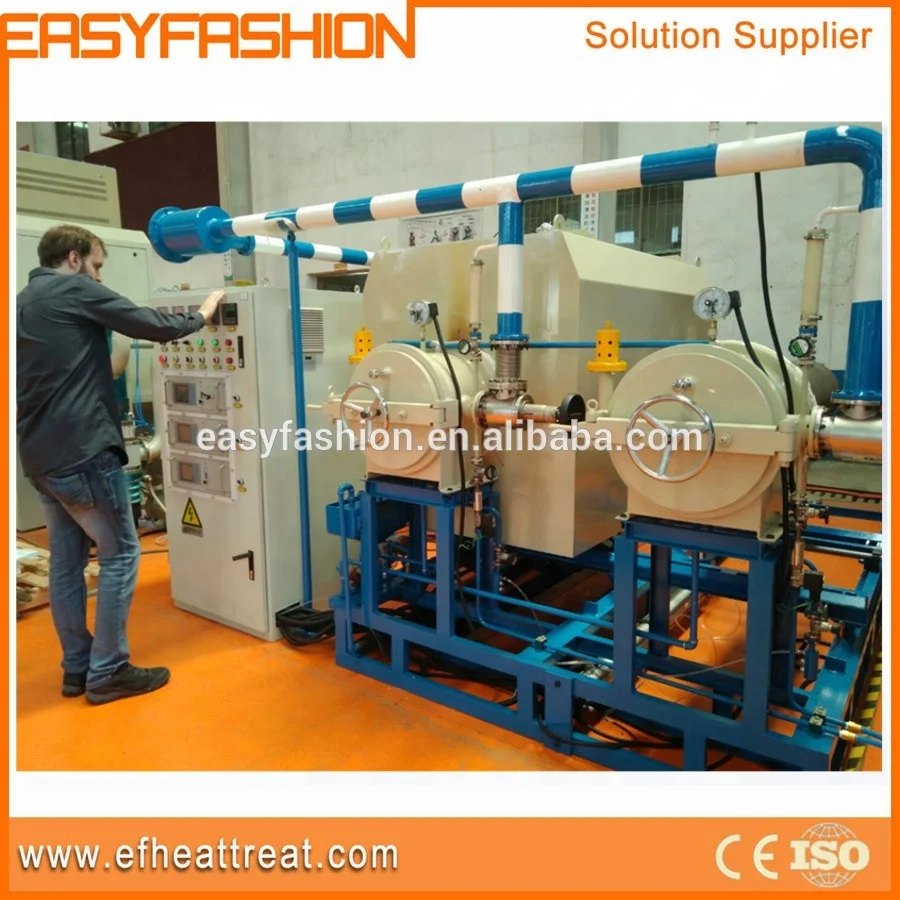

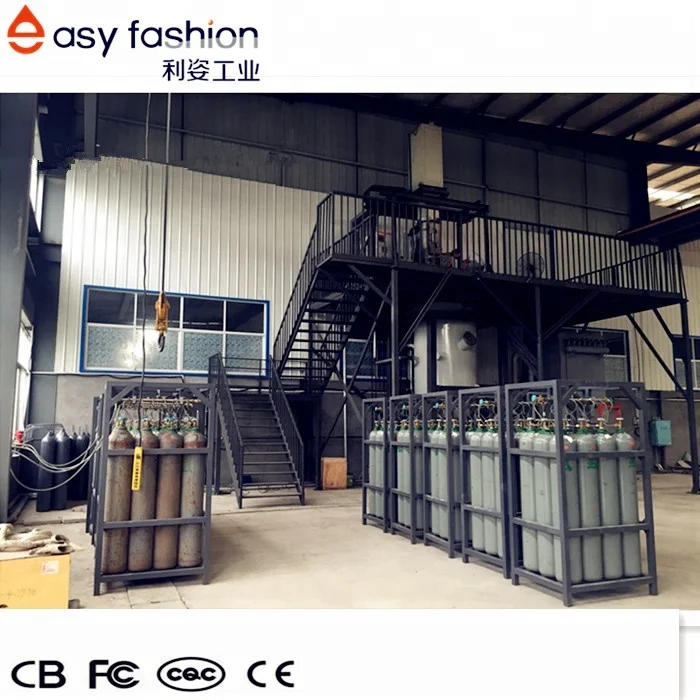

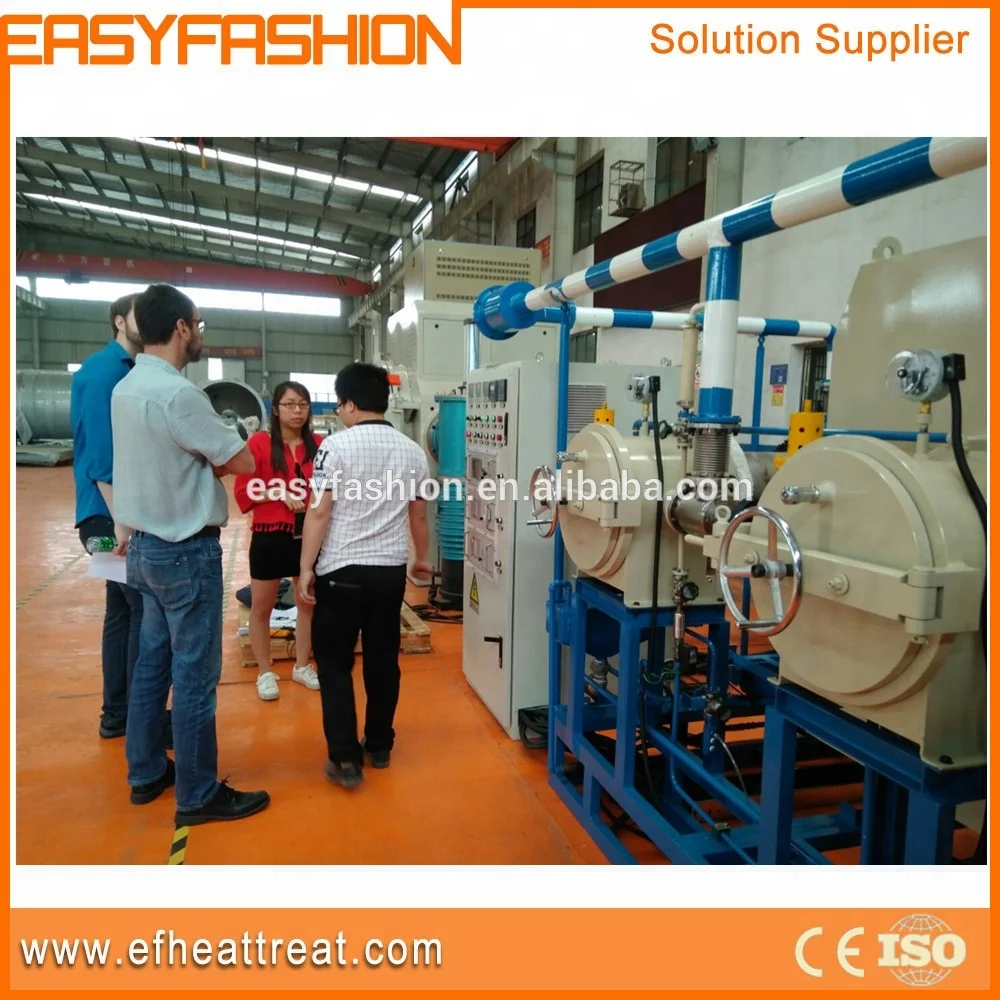

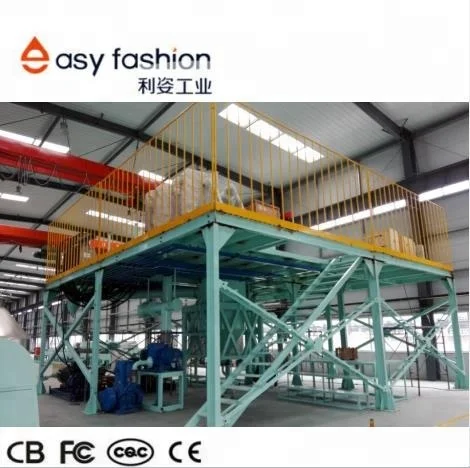

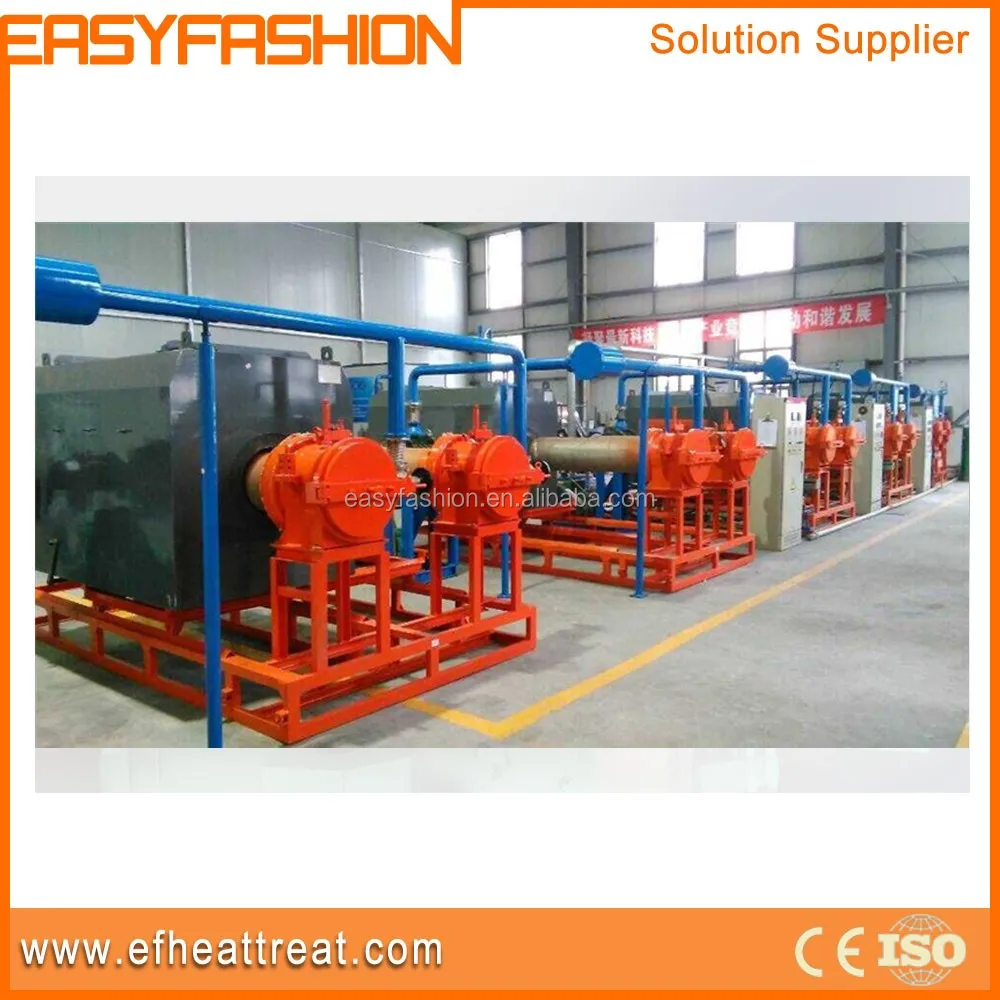

Customers Cases

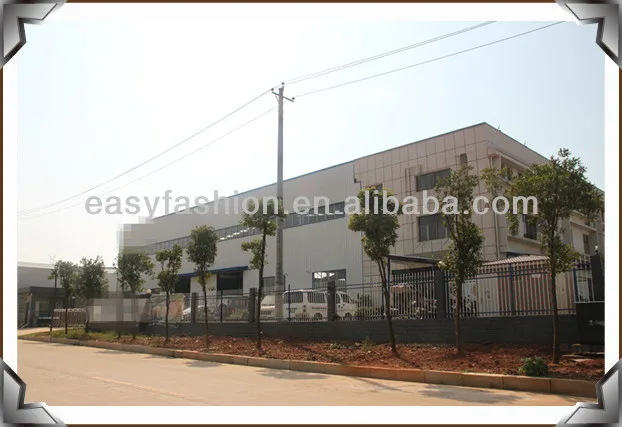

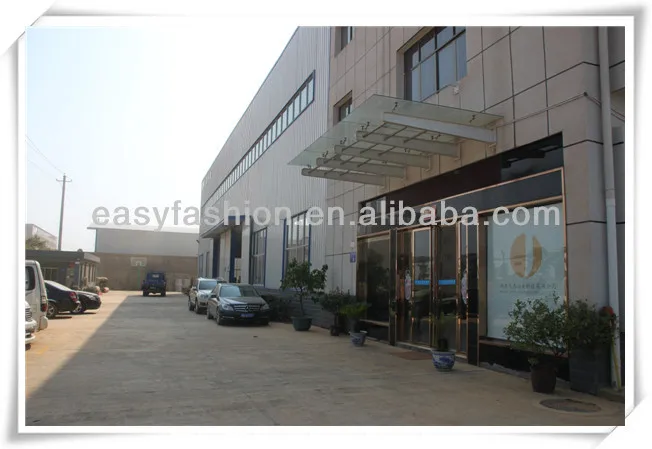

Our Company

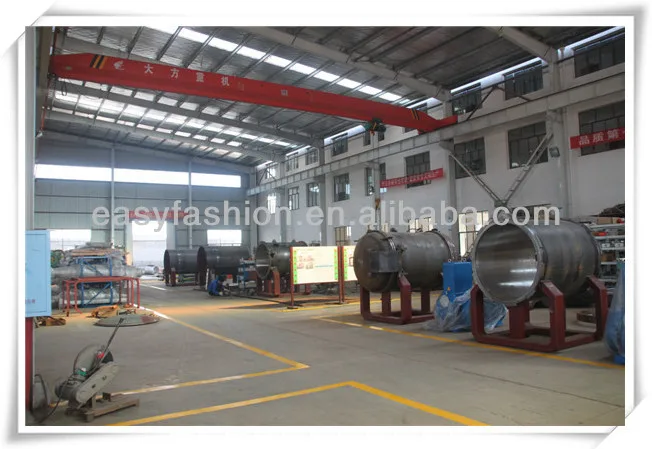

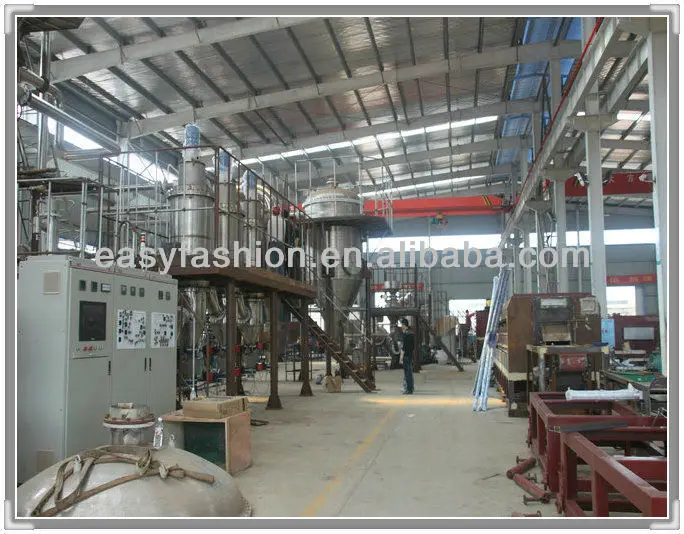

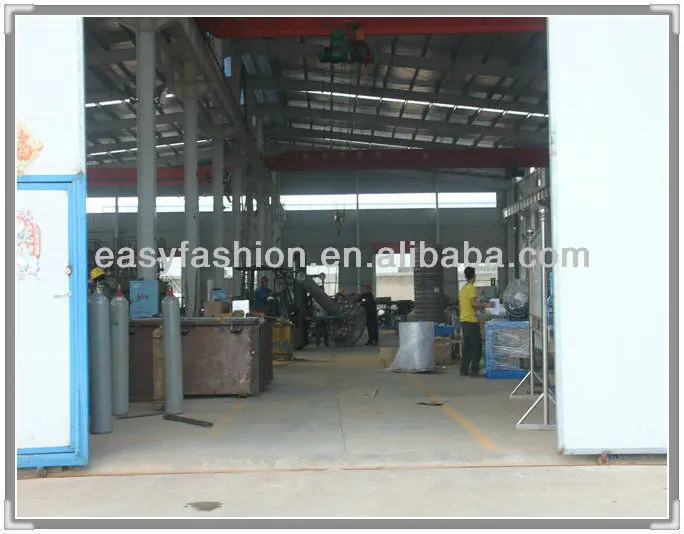

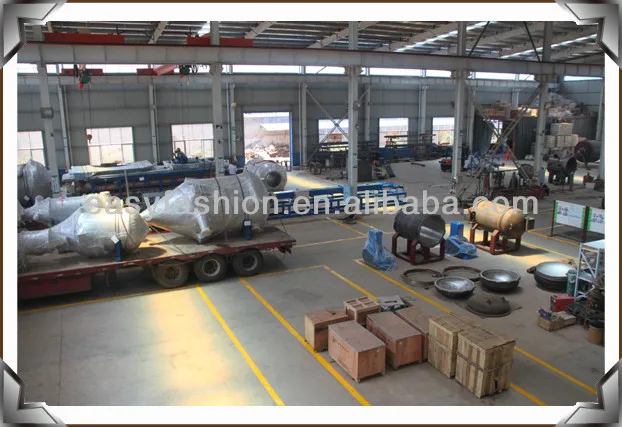

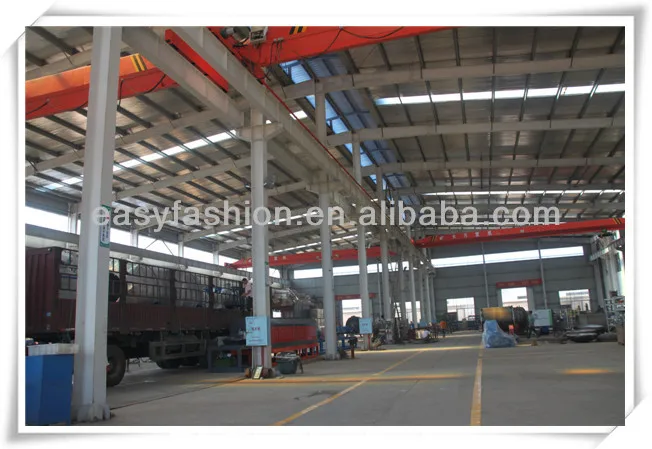

Our Factory
Certifications

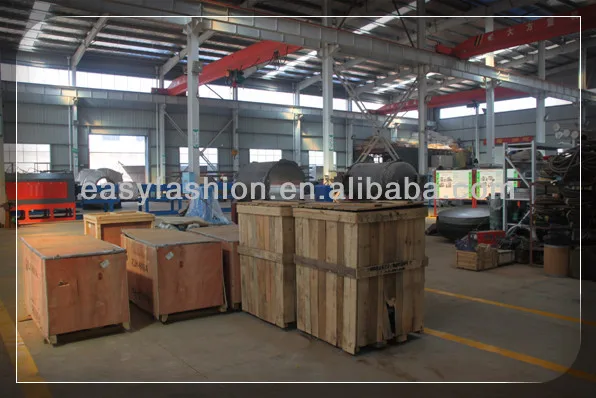

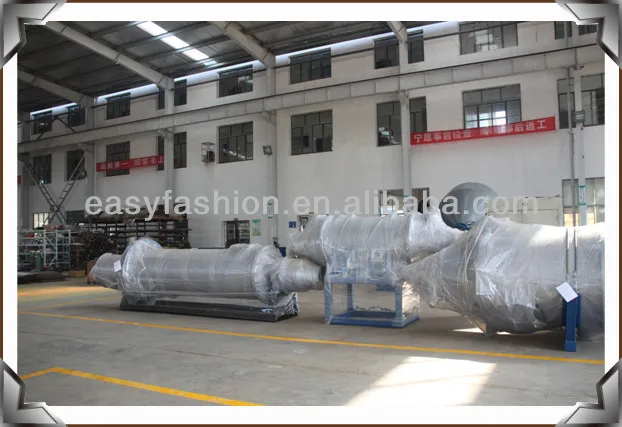

Packing & Delivery
