Environmental Control System Cyclone Industrial Dust Collector for coal plant
Product Description
Industrial Pulse Jet Bag Filter Bag Dust Collector
It is a new type of high-efficiency dust collector with advanced level, which integrates the advantages of dust collector such as chamber back blowing and pulse jet cleaning. It overcomes the shortcomings of pulsed cleaning and filtration, which leads to poor cleaning effect and expands the gas. Due to its special structure, the dust removal efficiency is greatly improved and the service life of the filter bag is prolonged. It is a bag type dust collector with excellent performance.
Industrial Dust Collector classification:
1) Pulse jet Bag dust collector
2) Cyclone dust collector
3) Cartridge filter dust collector
Technical Parameters
Model number | MC24 —Ⅱ | MC36 —Ⅱ | MC48 —Ⅱ | MC60 —Ⅱ | MC72 —Ⅱ | MC84 —Ⅱ | MC96 —Ⅱ | MC120 —Ⅱ | |
Filter area (m2) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | |
Bag quantity (pc) | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 120 | |
Pulse valve (pc) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
Air volume (m3/h) | 2160—4300 | 3250—6480 | 4320—8630 | 5400—10800 | 6450—12900 | 7550—15100 | 8650—17300 | 10800—20800 | |
Dimension (L×W×H) | 1025×1678 ×3700 | 1425×1678 ×3696 | 1823×1678 ×3676 | 2225×1678 ×3676 | 2625×1678 ×3676 | 3075×1678 ×3676 | 3949×1678 ×3676 | 4389—1678 ×3676 | |
Pulse control instrument | JMK—2 type pulse control instrument | ||||||||
Filter bag size (D×L) | ￠125×2050 | ||||||||
Efficiency (%) | 99—99.5 | ||||||||
Resistance mmH2O | 120—150 | ||||||||
Air speed (m/m) | 2—4 | ||||||||
Dust content (g/m3) | 3—15 | ||||||||
Air pressure (kg/cm2) | 4 | ||||||||
Draught Fan model | 4—72—11—4.5A | 4—72—11—5A | 4—72—11—6C | 4—72—11—5A | 4—72—11—6C | ||||
4—72—11—6C | 4—72—11—8C | ||||||||
Compressed air consumption (m3/m) | 0.08—0.34 | 0.13—0.5 | 0.17—0.67 | 0.21—0.84 | 0.25—1.01 | 0.3—1.18 | 0.34—1.34 | 0.42—1.68 | |
Weight (kg) | 830 | 1106 | 1224.30 | 1341.44 | 1564.32 | 2012.35 | 2130.22 | 2410 | |
Detailed Images
Production site

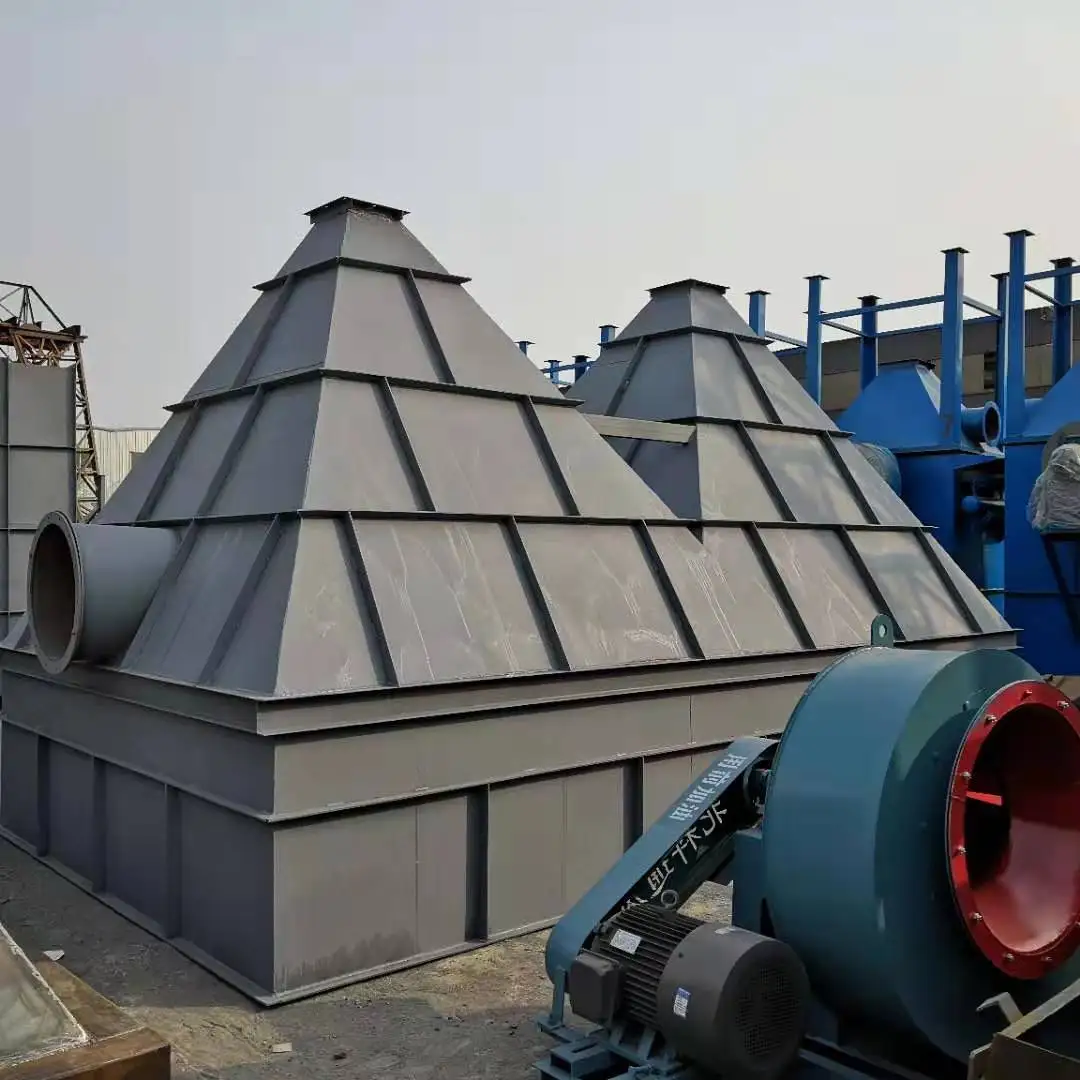

Industry dust collector
Production site
Dust collector
Production site
Bag dust collector
Production site
Fiter cage of dust collector
Galvanized filter cage of dust collector
Shell body of dust collector
Corollary Equipment
Our company is an professional manufacturer of environmental machinery with more than 15 years of
experience in research, design, manufacturing, sales, installation, commissioning and after-sale service.
The main equipments include: environmental series and conveying series equipments. The two major series constitute the production team of 120 production lines with 10 production teams in the 6 main workshops of Ever Lucky Machinery.
We are constantly striving and innovating to win a very high appraisal from our customers with our first-class products and first-class after-sale service.
Warmly welcome you to have a visit of our company, and sincerely hope to have a chance to cooperate with you in near future.
