Product Description

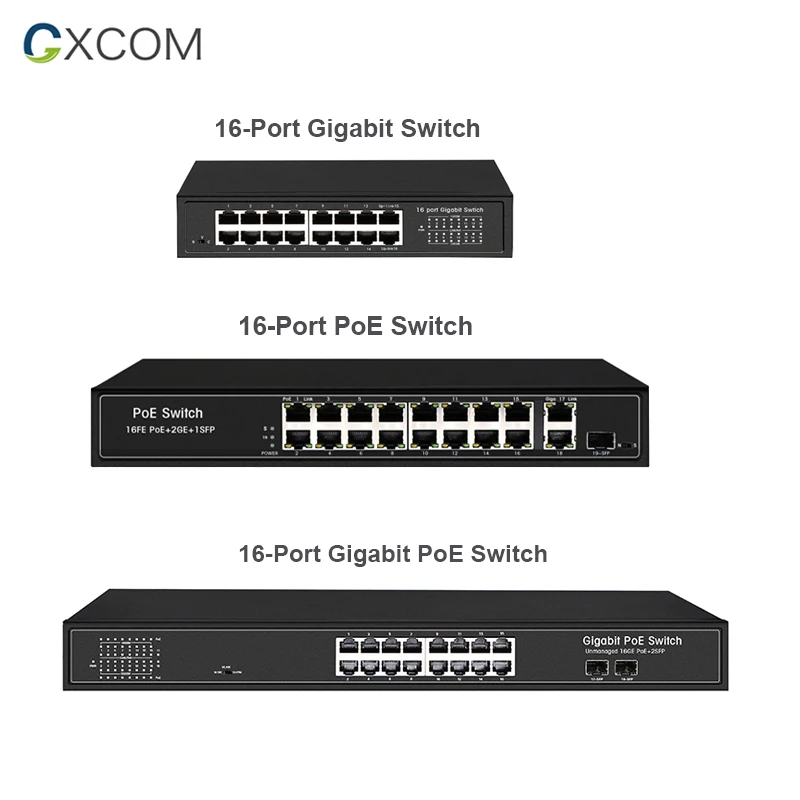

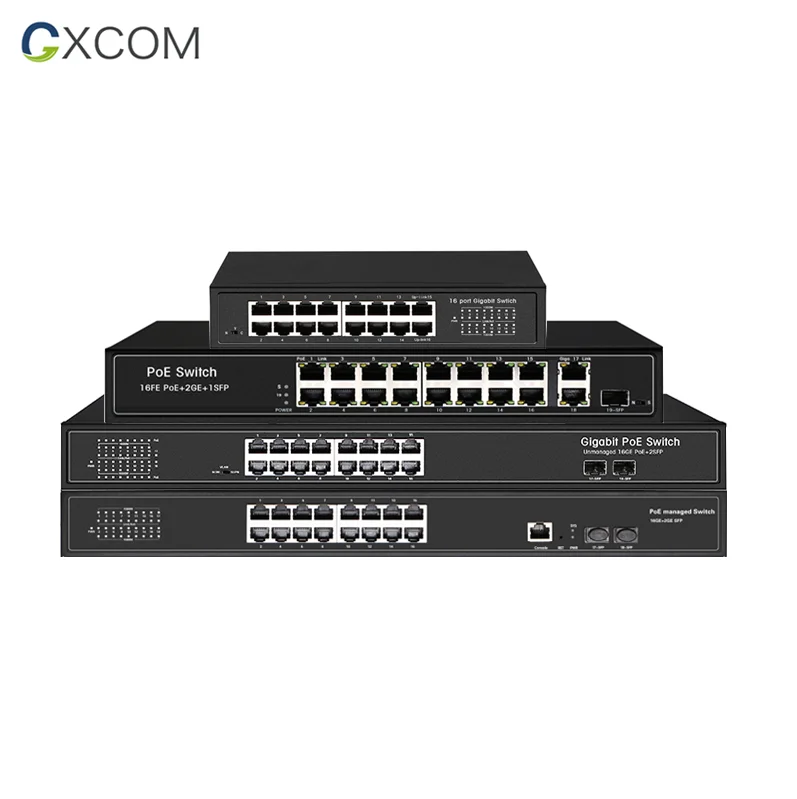

48V Ethernet PoE switch 16 18 19 port gigabit optical fiber network PoE switch for CCTV security IP Camera
（11 years+ professional OEM/ODM manufacturer of PoE switch)
PoE ports: 16*100Mbps PoE Ports
Uplink ports: 2*Gigabit RJ45+1*Gigabit Fiber SFP
TS8216P
PoE ports: 16*1000Mbps PoE Ports
TS8216P-2F
PoE ports: 16*1000Mbps PoE Ports
Uplink ports: 2*Gigabit Fiber SFP
Main Features:
>> Support IEEE802.3AF/AT
>> Whole Power:300W
>> All port supported by MDI/MDIX auto flip and self negotiation
>> Supply 16/18 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
>> Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
>> Each port max. power supply reached 30W.
Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
* IP Camera
* IP Phone
* Computer Networks
Technical items | Description |
Chipset | Realtek |
Interface | TS6216P-2G1F PoE ports: 16*100Mbps PoE Ports Uplink ports: 2*Gigabit RJ45+1*Gigabit Fiber SFP TS8216P PoE ports: 16*1000Mbps PoE Ports TS8216P-2F PoE ports: 16*1000Mbps PoE Ports Uplink ports: 2*Gigabit Fiber SFP |
PoE port | Port 1-16 |
PoE power | 30w per port |
Forwarding rate | 100Mbps:14880pps 1000Mbps:14800pps 1000BASE-T: 1488095pps/port |
Standard | EEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
Network medium | 100/1000BASE-TX: 5 class and above non shielded twisted pair |
Bandwidth | 20G |
Power input | AC100-240V 50/60HZ |
Total power | Max. 300W |
LED indicator | Per port: Link,speed,PoE active |
Working Tem. | 0℃-40℃ |
Detailed Images
GXCOM Company
GXCOM is an innovated enterprise which was established on 2011, starting with Ethernet extender and PoE switch. Since the establishment, we’re focusing on product R&D, quality control and after-sale service, in order to provide the most reliable products to our customers. With 10 years experiences, now we’re not just a source manufacturer of the network products, but also as a global solution supplier for telecommunication, Power Over Ethernet service,CCTV and FTTH.
Our products have been exported to North America, South America, Europe, Middle East and etc. Product range covers various PoE Products, Managed/unmanaged ethernet switch, fiber optic equipment and more.
GXCOM have successfully passed the certifications of CE, FCC and RoHS. We ensure that we will meet your expectation on product quality because of strict inspection performed on each product before shipment.
GXCOM Technology is keeping growing and forward-looking all the time. Recently, we have developed new products to meet the market demands, such as Hipoe 60-90W for building lighting, 24v/48v automatic detection&adaptation PoE switch,24V passive PoE switch and etc.
With 11 years + experiences in network products,our products include but not limited to:
Managed Ethernet Switch
PoE Switch
Reverse PoE Switch
Industrial Switch
GPON EPON ONU
PoE/Ethernet Extender
PoE Injector/Midspan
Our services include:
- Low MOQ or No MOQ up to different request
- OEM - Flexible customization of your private brand/logo on device and packing
- ODM - Any idea from customer is welcomed
- Stock Ready to Ship - Available stock for fast delivery
- Independent R&D based on market demands and technology development
Exhibition
Certifications
FAQ
Q1.Can we get a sample?
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
T/T,L/C at sight,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM provide good OEM/ODM service to our customers.
Q5.How about the payment terms?
T/T,L/C at sight,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
