Машина для прокатки листового металла
US $10000
Стоячий фальц оснастки пластиковые защитные пломбы с замком роликовая формовочная машина для изготовления кровельных
- Категории: Tile Making Machinery >>>
- Поставщик: Cangzhou,Zhongde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Standing seam snap lock self lock roofing sheet roll forming Machine
Standing seam snap lock self lock roofing sheet compared to stadition roof pane,no need seaming and cliper.
Our Standing seam snap lock self lock roofing sheet roll forming Machine can be used a workshop.
The final product can be cut as per set length controller,and the length is automatically measured by encoder.When final product reached set length,machine will stop to cut the sheet automatically.Finish thhis action,the machine will run again continuously.
Product Description

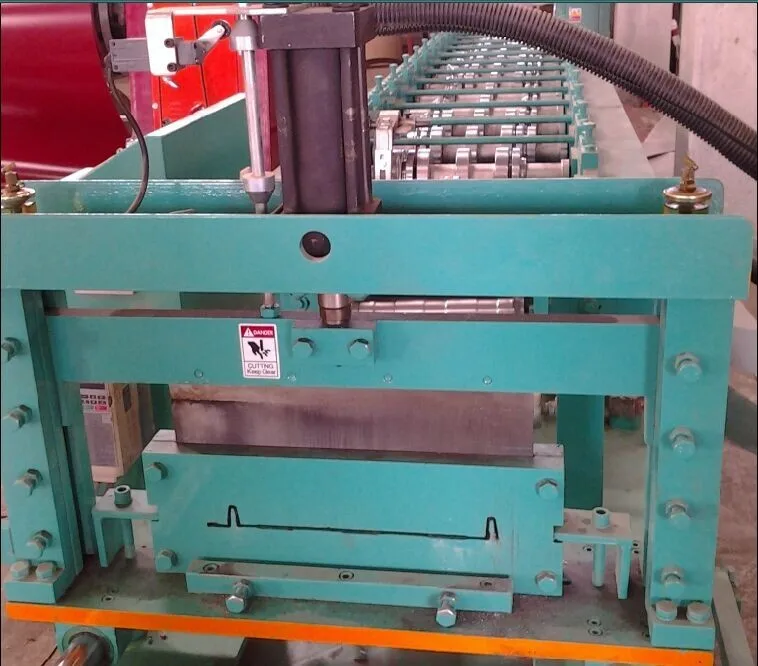

Product Pictures:
(Standing seam snap lock self lock roofing sheet roll forming Machine)

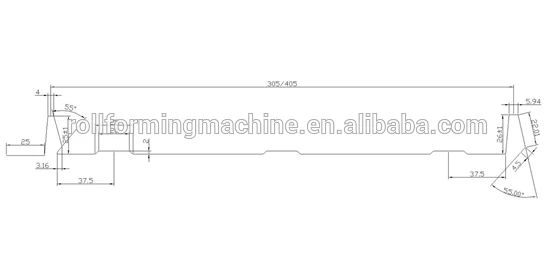

2. Technical Parameters of Standing seam snap lock self lock roofing sheet roll forming Machine:
Standing seam snap lock self lock roofing sheet roll forming Machine | ||
1 | Material Width | 290-600mm |
2 | Effective Width | 220-530mm |
3 | Thickness of Coil | 0.5-0.8mm |
4 | Application | standing seam roof panel |
5 | Estimated Dimension | 1500mmX1100mmX1200mm |
6 | Total Weight | 1.9 Tons |
7 | Main Power | 1.5KW |
8 | Decoiler | Manual or Hydraulic Decoiler |
9 | Inner Diameter | 508mm |
10 | Outer Diameter | 600 |
11 | Loading Weight | 4-5T |
12 | Forming Speed | 0—11m/min |
13 | Forming Station | 6 stations |
14 | Bracket | Welded with 36 # I-steel |
15 | Material of Shaft | High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished |
16 | Diameter of the Roll | 60mm |
17 | Material of Roller | High Quality Cr12 Quenched HRC58-62 ° |
18 | Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
19 | Material of Rack | Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
20 | Transmission | Chain driving |
21 | Material of cutting blade | Cr12 with Quenched Treatment 60-62 ° |
22 | Cutting system | Hydraulic Stop or Tracking Cutting |
23 | Voltage | 380V/50HZ/3 Phase or as Customer Require |
Standing seam snap lock self lock roofing sheet roll forming Machine
3. Production Process of Standing seam snap lock self lock roofing sheet roll forming Machine:
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion(finish goods)
Company Information
Packaging & Shipping
Package
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded in one 20’ container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
Our Services
1. We provide the technical support for whole life of self lock standing seam roof roll forming machine.
2. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
3. When need the technician to go abroad, we will arrange the technician.
