2 ядра 5 пожарной сигнализации кабель BS 6387 Стандартный

Описание и отзывы

Характеристики



Specifications

1.Type:Power Cables
2.Use:Fire Alarm Systems
3.Interface Type:2core 3core 4core
4.Feature:Anti Fire to remain circuit supply power and fire signal

Standards

We use the best quality of material  to achieve the best performance according to LPCB standards:

BS 6397,  BS 7629-1,  EN 50200 ,  BS 5839-1 Clause 26.2d, :

Fire testing:

1. BS 6387:1994. Performance requirements for cables required to maintain circuit integrity under fire
conditions. British Standards Institution, London, 2013.

C – Resistance to fire at 950ºC for 3 hours
W - Resistance to fire and water at 650ºC for 30 minutes and
Z - Resistance to fire and mechanical shock at 950°C for 15 minutes

2. EN 50200:2006. Method of test for resistance to fire of unprotected small cables for use in
emergency circuits. European Committee for Electrotechnical Standardization, Brussels, 2006

3. BS 7629-1:2008. British Standard Specification for 300/500V fire resistant cables having low
emissions of smoke and corrosive gases when affected by fire. British Standards Institution, London,
2008.

4. BS 5839-1:2013 Clause 26.2d states ‘standard fire resisting cables’ should meet the PH30 classification
    when tested in accordance with EN 50200 and additionally the 30 minute survival time when tested in
    accordance with Annex E of that standard.





Brand Name	LLT
Model Number	FR 1831
Use	Fire Alarm systems
Type	Power Cables

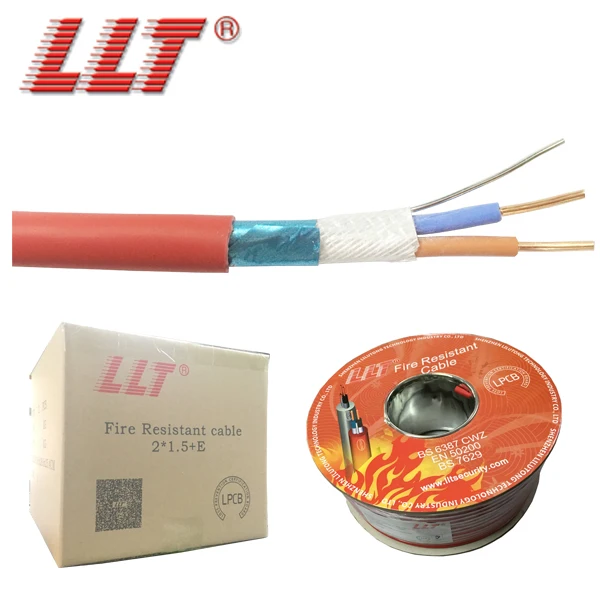

Interface Type	2core 3core 4core
Section area	1.0mm2 1.5mm2 2.5mm2

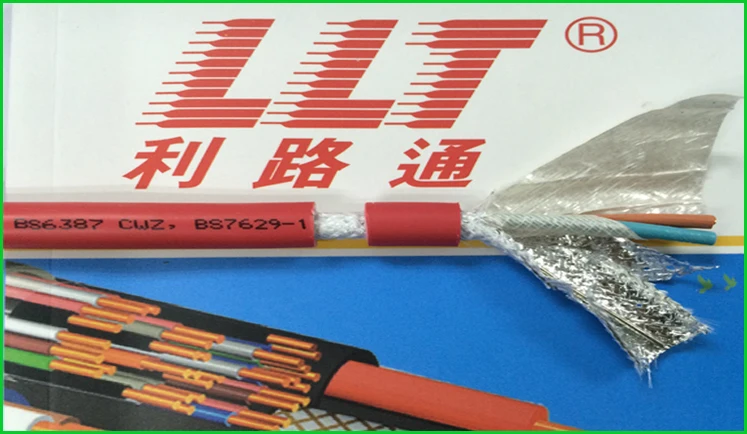

Conductor	Bare copper
Insulation	Silicon E12
Screen	Mica tape with Al foil & fiberglass
Sheath	LSZH polyolefin
Feature	Anti Fire
Price	Get Latest Price
Packaging Details	Standrad Packing
Supply Ability	Available



LLT Fire resistant cable aims to be customer’s first choice to keep safe from the fire situation, by designing, developing the latest technology products with high quality and reliability.Your requirements in fire protection in any commercial or industrial setting will be met. LLT lpcb approved cables will fire resistant , fire alarming, power suplling.

Best material makes the best quality, choose LLT, choose a safeguard. LLT has been approved ISO9001, ISO 14001, UL, VDE, ROHS. LPCB.....









Product range









Product Application
1.Water Spray
2.Sprinkler System
3.Fire Alarm System
4.Dry Riser
5.Valves
6.Foam Systems
7.Smoke Detector
8.Exit Light
9.Fire Men Garments

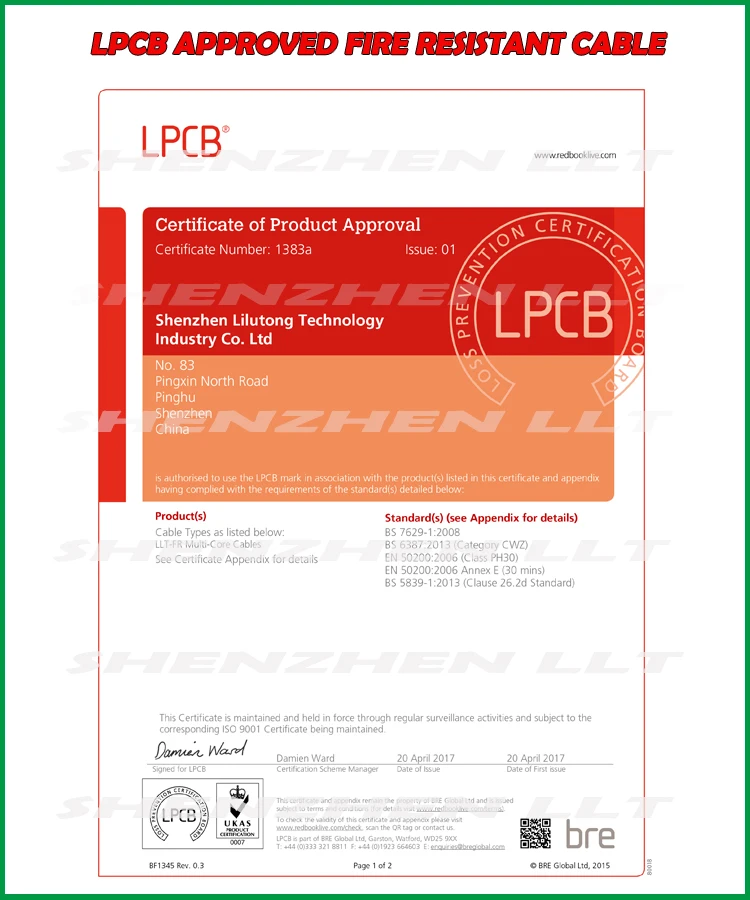

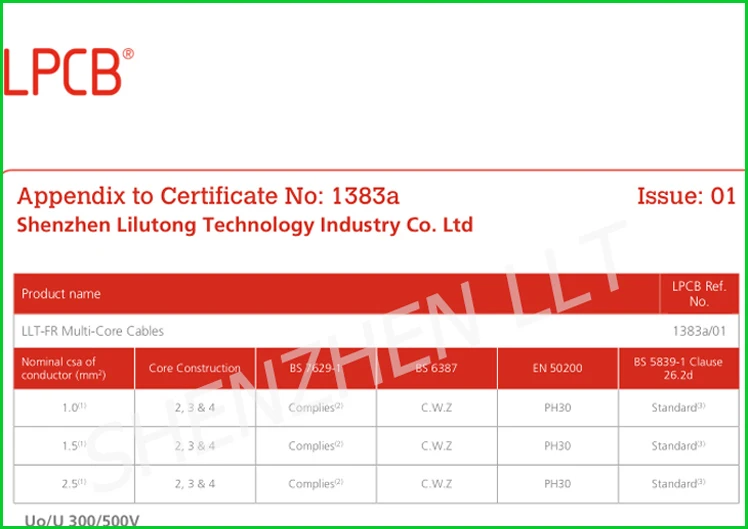

Fire Alarm System-LPCB Approved Power Fire Resistant Cables

Fire Resistant cables are manufactured with latest technology to ensure consistent quality and reliability-LPCB Appoved





Q: Are you a factory or trading company?
A: We are a 16 years factory with more than 10 engineers.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in N0.83 Pingxin North Road, Pinghu Town, Longgang District, Shenzhen, Guangdong China. You can fly to Guangzhou airport or Shenzhen airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Q: How can I get some samples?
A: We are honored to offer you samples according your inquiry

Q: How does your factory do regarding quality control?
A: "Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gained VDE, CE, UL, RoHS, CCC,ISO,LPCB authentication.
