HK-D912R Дунгуань наличие сертификата предоставляет индивидуальный горизонтальный 5 слоев тип ящика рамка экрана

Описание и отзывы

Характеристики

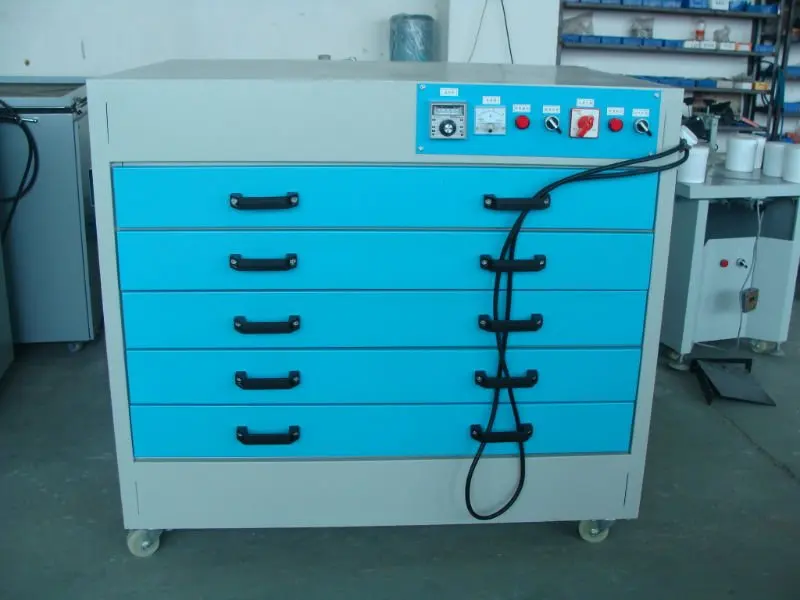

HK-D912R frame Dryer , drying cabinet



1. Oven drying temperature: 50 – 200 cesus

2. Storage inner size: 900 x 1200mm

3. Power of draught fan: 1 kw

4. Heating power: 6 kw

5. Net weight: 100kg

6. Outer dimension: 1000x1200x1600mm

7. Packing dimension: 1310x1040x1290mm.

8. Gross weight: 150kg



About the warranty coverage:
    1).Quality warranty: one year after sale.

    2).We can install and pass on you the printing technology if you need.
    3).We can also match some quick-wear part for you.such as parts of cylinder,power swith ect.

Dryer advantages:

1. Well-distributed drying temperature

2. Steel board treating, stong & light

3. Layering design, easy for drying couple of screen frames drying up

4. Infrared heating, high efficiency, heat easy to concentrate

5. Easy to operate, low cost



This dryer is specially design for drying process of screen frames making: dry up after coated with photo sensitive emulsion; drying up after wash away developing agent; or fix not well covered emulsion dry up, etc. As well as dry the inks up, With excellent performance in well-distributed temperature when drying, specially for precise drying for the surface of mesh on the screen frames.
