Product Description

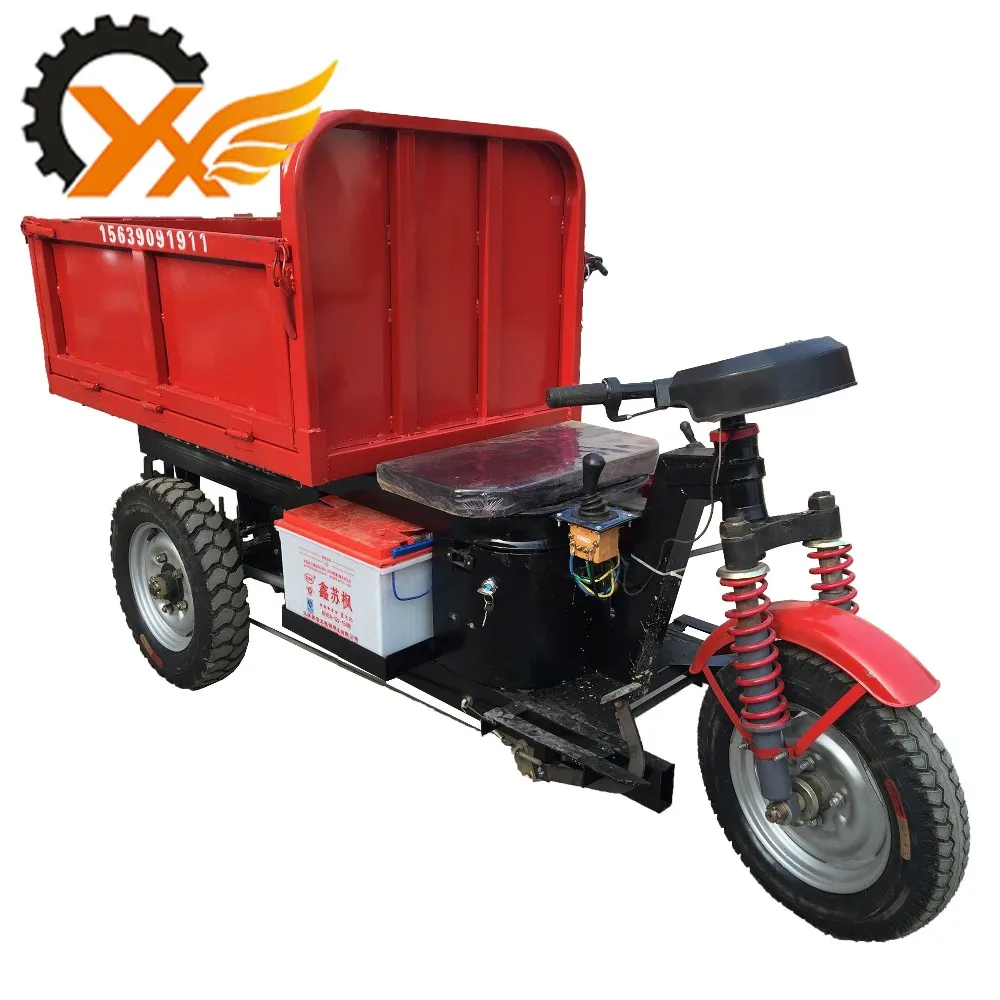

 Electric cargo tricycle is our factory high reputation product, using battery as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.
Our dumpers have been deliveried to United States, Chile, Peru, Canada, Tanzania, United Arab Emirates and etc.
We have three types of electric dumpers, ZY155, ZY165 and ZY180 for you to choose.

Parameter
\t
Item
\t
technical
\t
ZY155
\t
ZY165
\t
ZY180
\t

Weight
\t
Loading capacity
\t
1000kg
\t
1500kg
\t
2000kg
\t
Net weight
\t
520kg
\t
850kg
\t
1000kg
\t


            Battery
\t
Voltage
\t
48V
\t
60V
\t
72V
\t
Battery type
\t
140Ah
\t
160Ah
\t
185Ah
\t
Charging hour
\t
First with 12 hours, then normal with 8 hours
\t
Working hour
\t
10 to 12 hours with a full charge
\t

Motor
\t
Lifting motor power
\t
1000w
\t
1000w
\t
1000w
\t
Driving motor power
\t
1000w
\t
1500w
\t
2000w
\t
Rotating speed
\t
                                                     3500r/min
\t
         Tire
\t
Front type
\t
400-12
\t
450-14
\t
450-14
\t
\t
Rear type
\t
450-14
\t
500-14
\t
600-16
\t


         Size
\t
Overall Size(L×W×H)
\t
2600×900×1200mm
\t
3200×1100×1200mm
\t
3600×1200×1400mm
\t
Box Size(L×W×H)
\t
1400×900×400mm
\t
1700×1100×500mm
\t
1800×1200×500mm
\t
Thickness of Box
\t
5mm
\t
5mm
\t
5mm
\t
Workbench Height
\t
600mm
\t
700mm
\t
720mm
\t
      Others
\t
Operating speed
\t
                                              15-20Km/h
\t
\t
Maximun
\t
                                              25 degrees
Detailed Images

Main features
1) Large capacity, wide application
2) Simple operation, convenient maintain
3) Big power, small demands for road
4) No pollution, energy saving

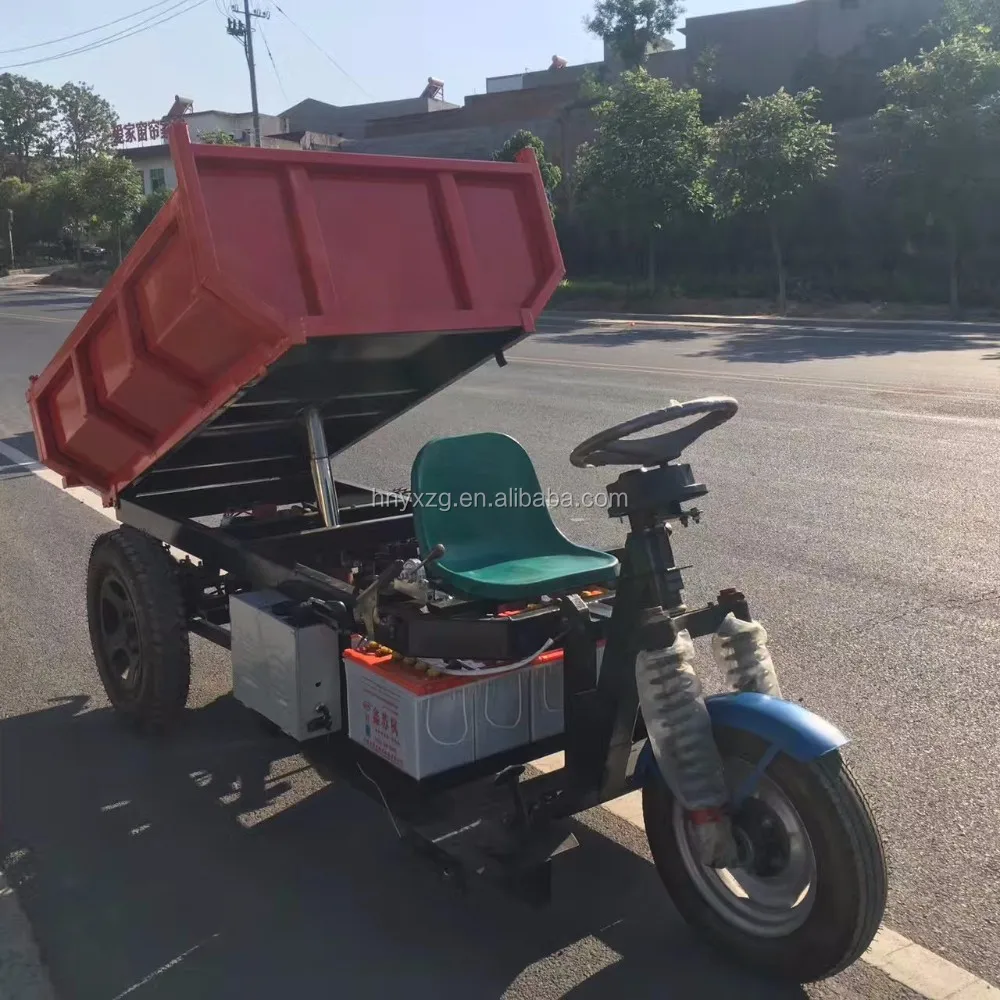

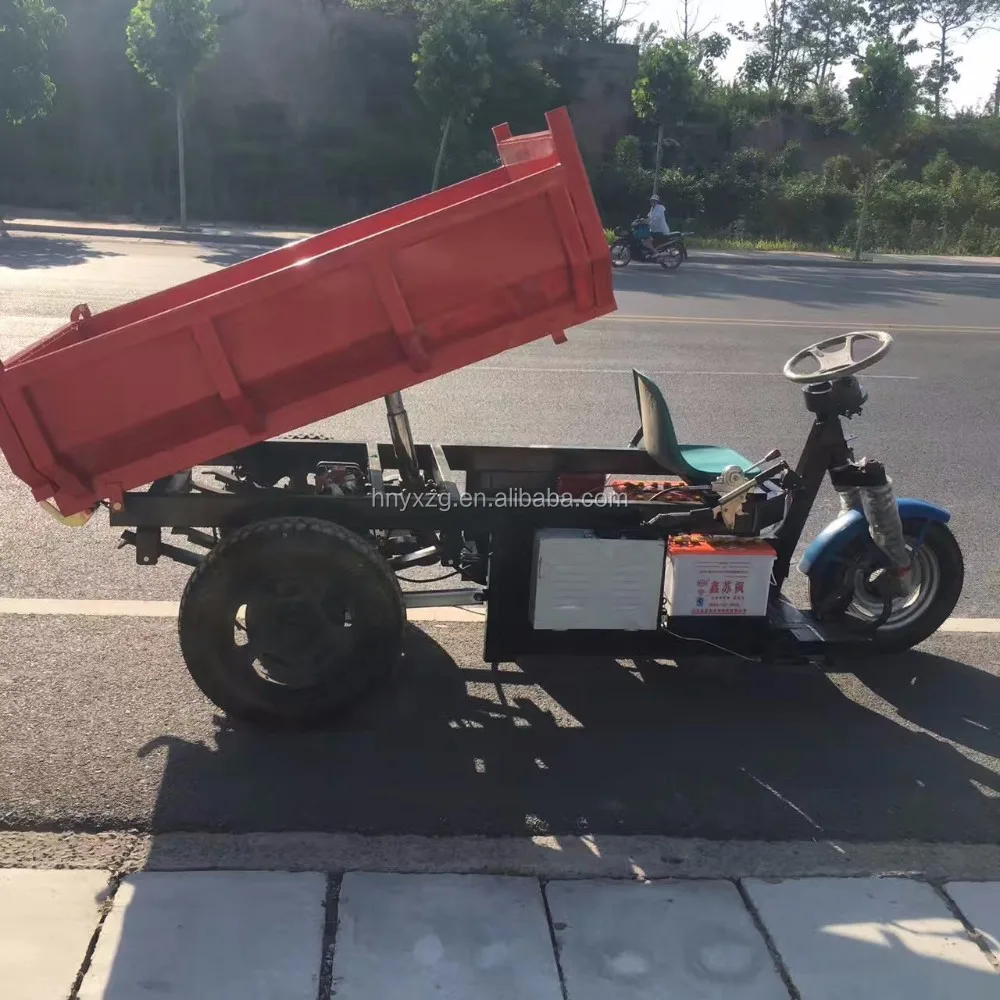

Dump size

Overall size: 3600*1200*1400mm

Cargo box: 1800*1200*500mm

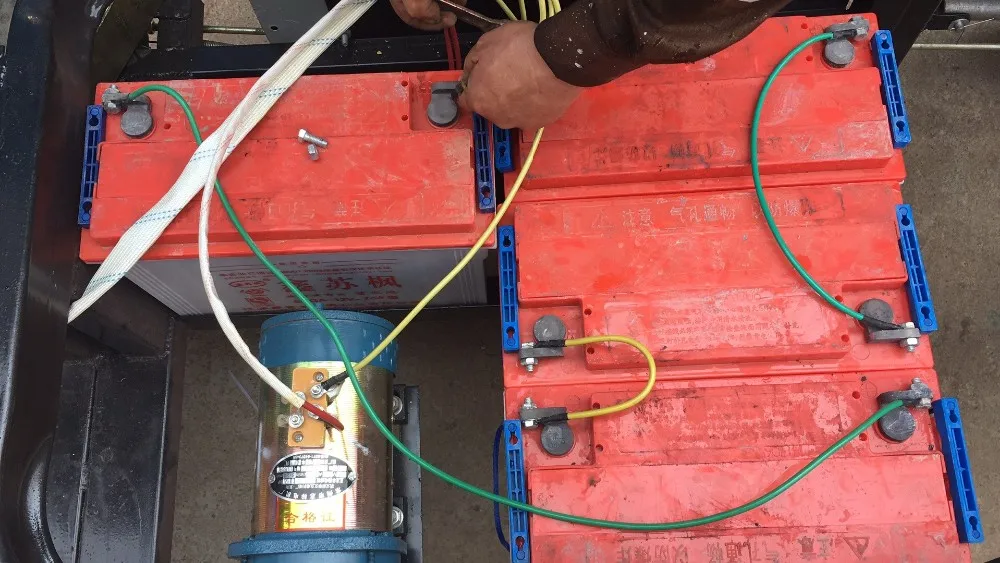

Name: battery

No pollution, no noise, energy saving, and low cost
They use electric as power source, and an electric
charge can achieve sustained discharge 10-12
hours. Effectively reduce the cost.

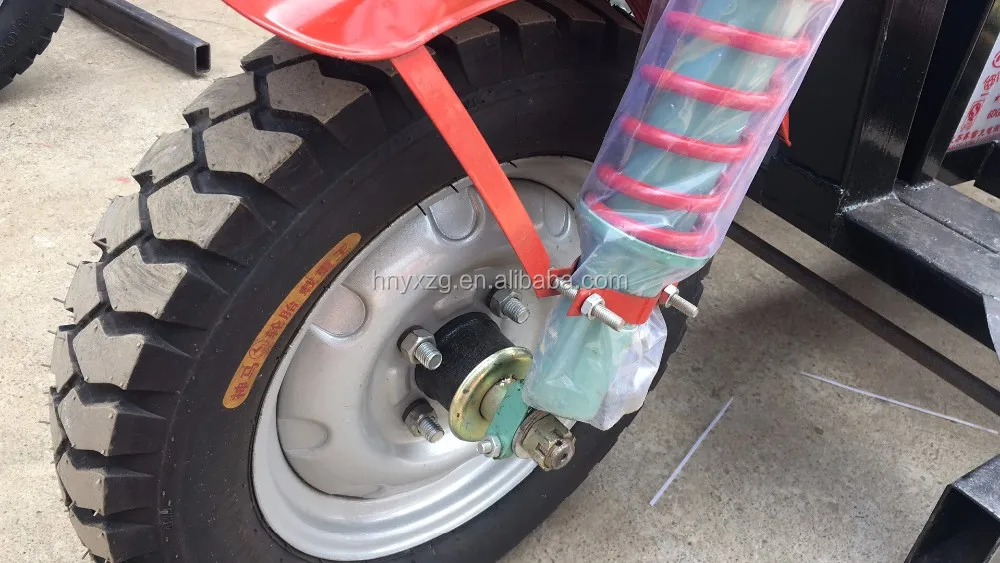

Name: tire

As to tire, our factory adopts the high quality tire of chaoyang brand, which is heavy-duty and durable. So it can apply to any road condition.
It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle.

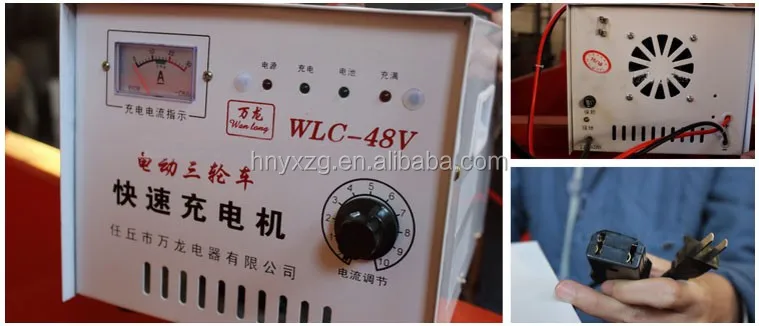

This is the battery Quick Charger.

The charger can use the household power 110v or 220v to charge directly. Charger jack is Chinese two pin plug, it can be customized the standard US or European plug.

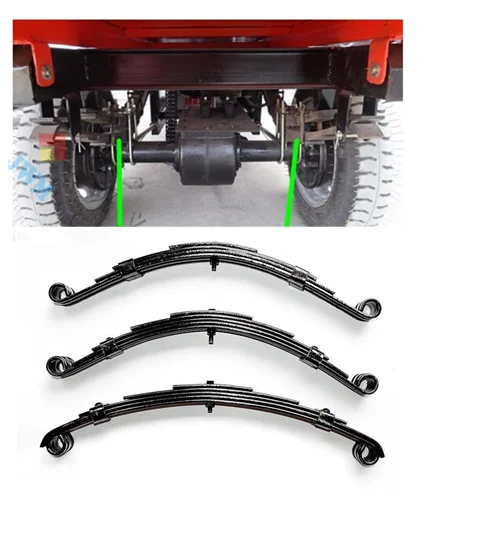

Spring steel plate


It is made of special steel, and it has high tensity, capricious, so it can buffer shock absorption.

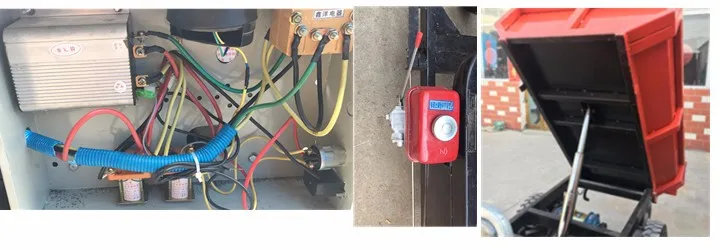

Hydrocylinder lifting control handle, the controller and Hydrocylinder lifting system

Near the lifting control handle the red tank is hydraulic oil tank, the Hydrocylinder and lifting motor can achieve self-unloading, very easy to opearte.

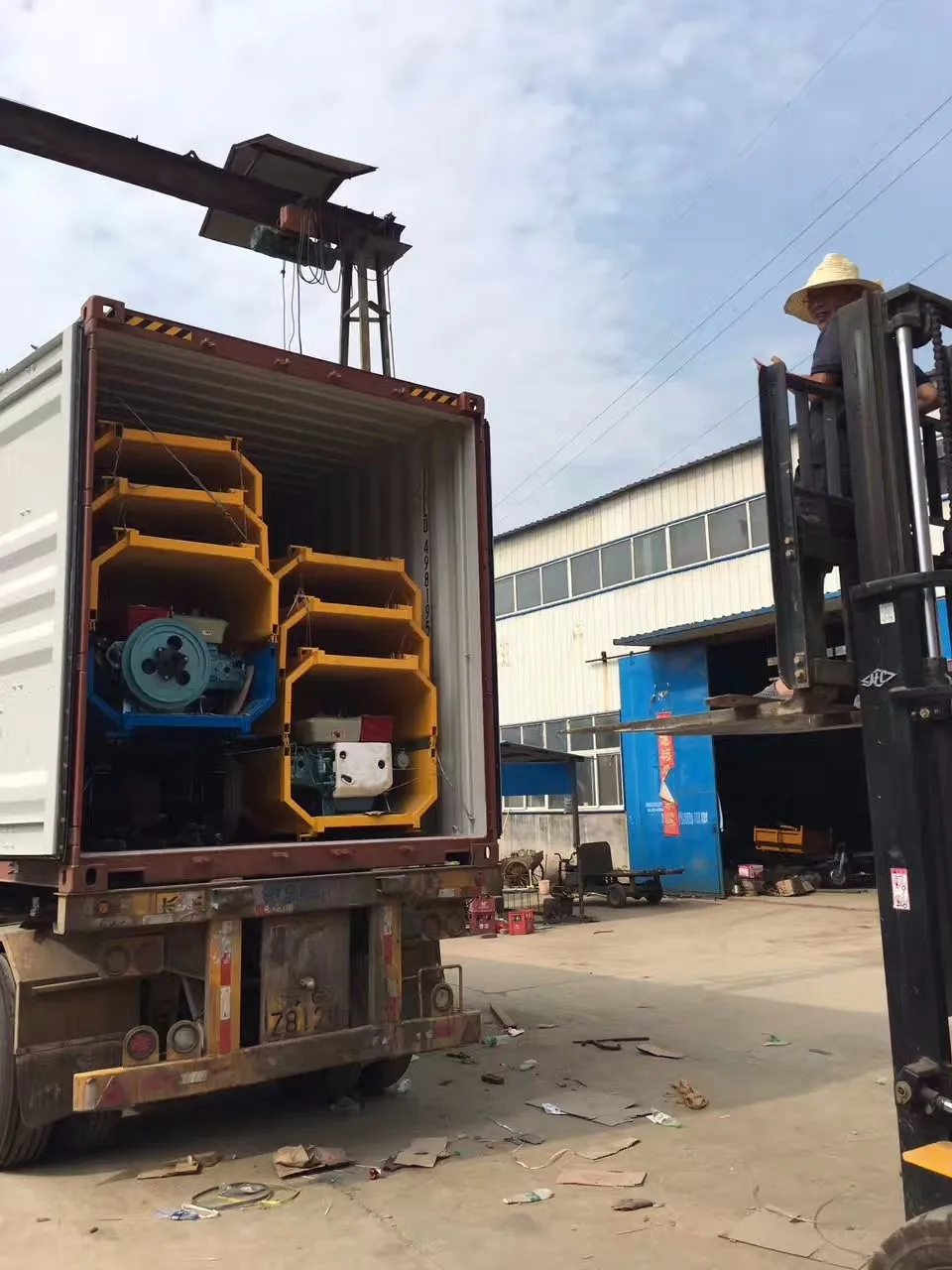

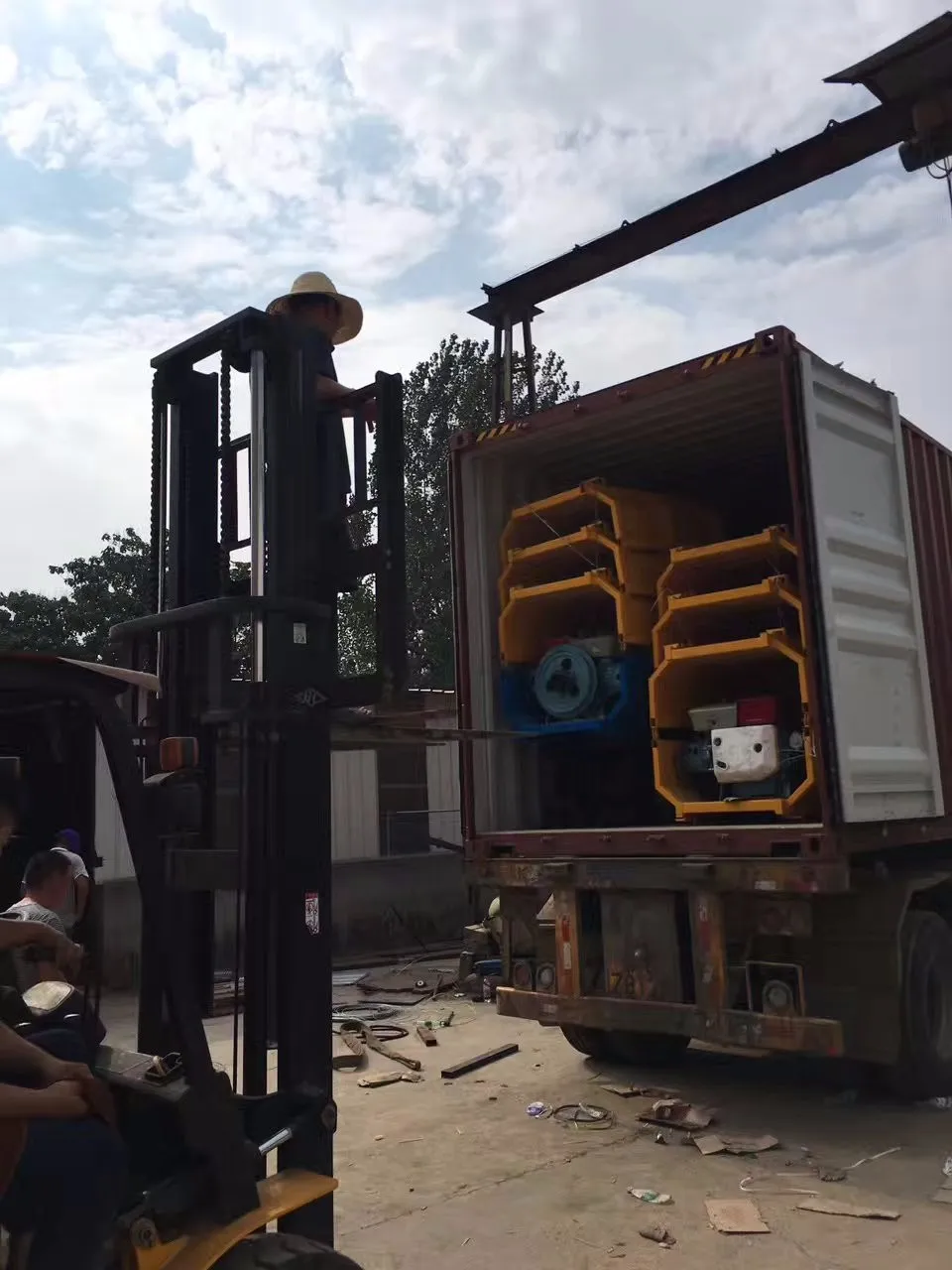

Packing & Delivery
Our Service

Pre-Sales Service                                                                                         After-Sales Service

* Inquiry and consulting support.                                                              *Training how to instal and use the machine.
* View our Factory.                                                                                             * Engineers available to service

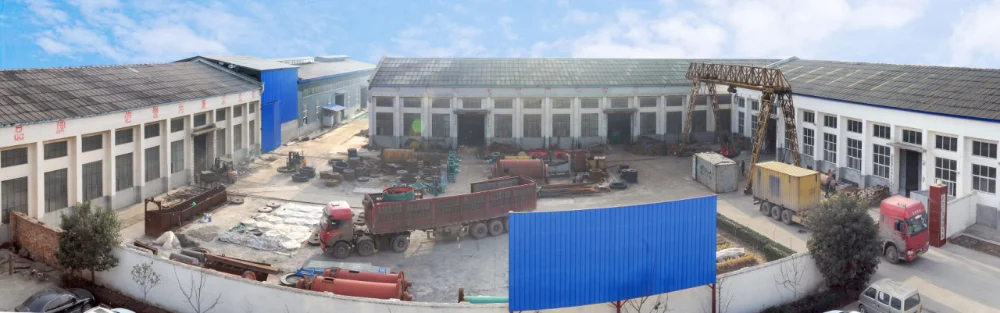

Our Company

Welcome to visit our faactory, If you have any questions ,contact me at any time
