TXK Япония Электрическая цепная таль 10 тонн 220 В с управлением
- Категории: Hoists >>>
- Поставщик: Jiali,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

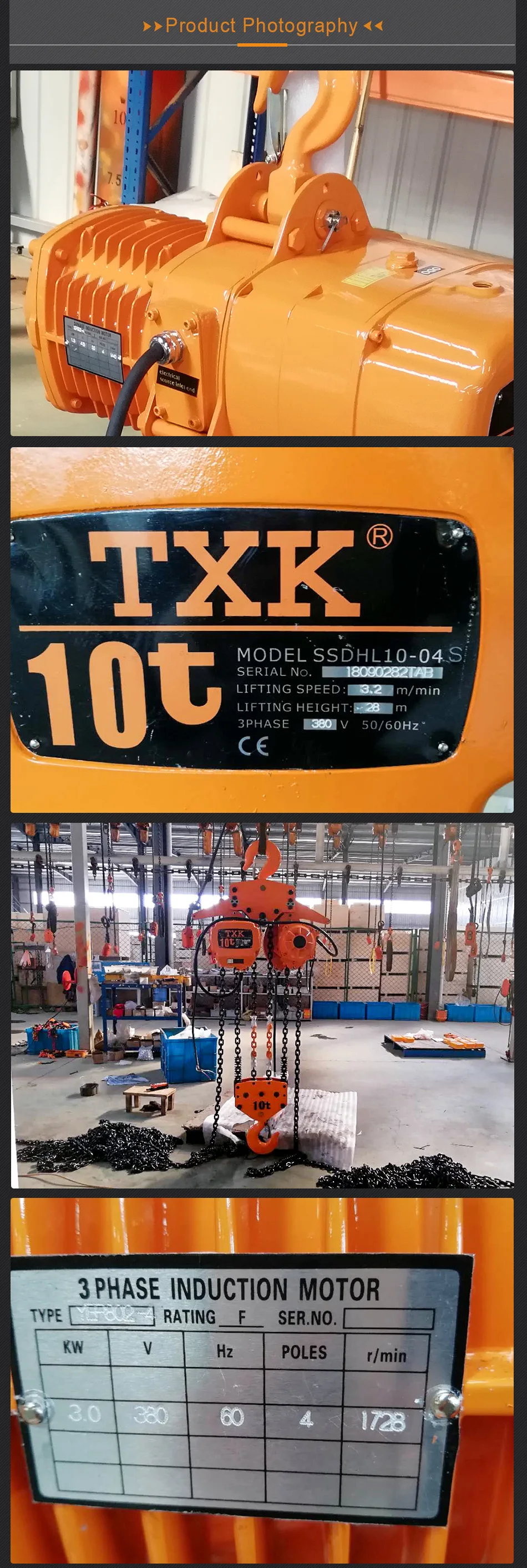

TXK Electric Chain Hoist

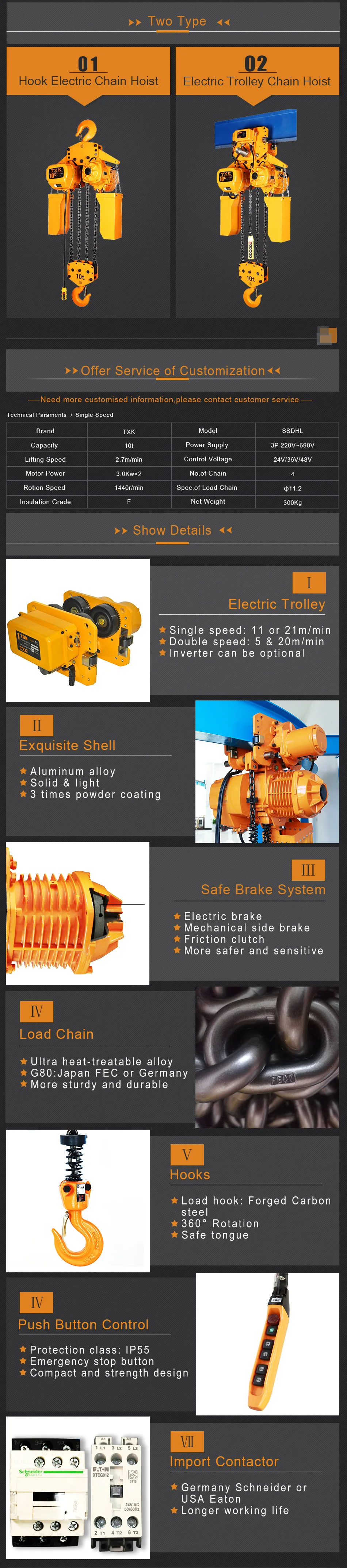

1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC 80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .

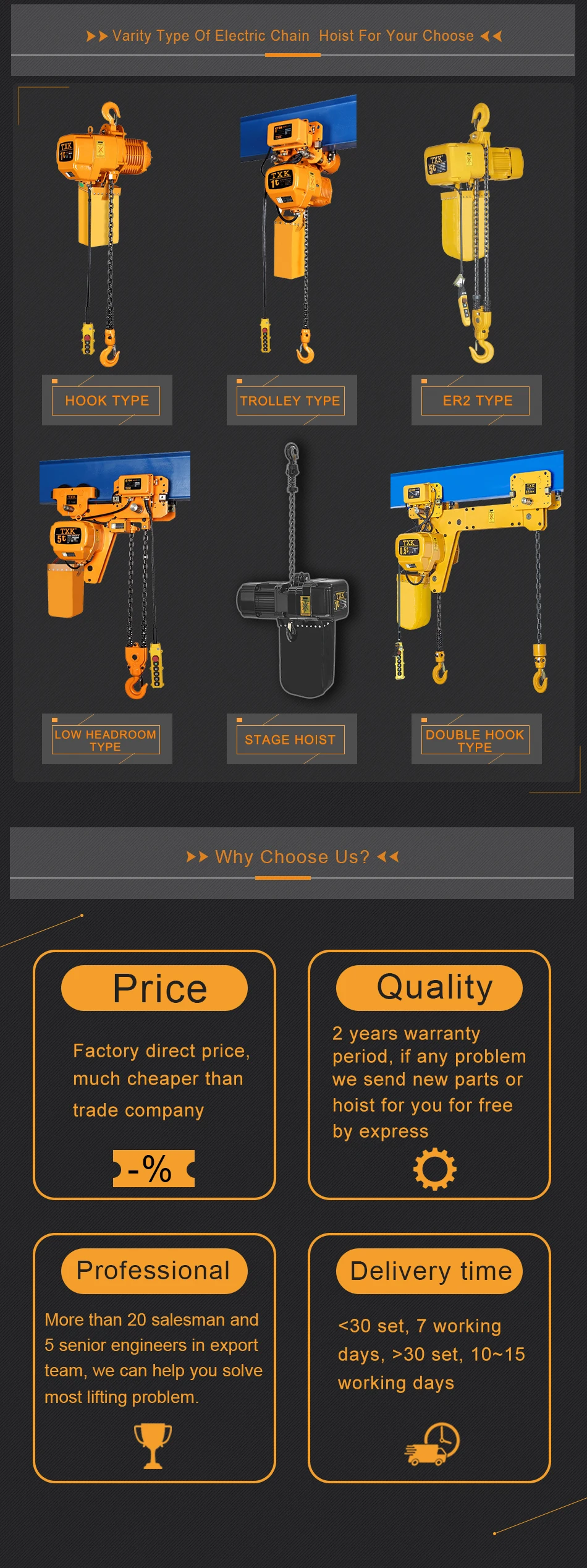

5. 3 phase electric chain hoist & Single phase electric chain hoist is optional
Packaging & Shipping
Packaging Details: Plywood Cases (Fumigation-free packing)
Shipping Details: 7 Days Rapid Delivery
| Single Speed | Technical Parameters | |||||||||
| Model | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting Speed(M/Min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 |
| Rotation Speed(R/Min) | 1440 | |||||||||
| Insulation Grade | F | |||||||||
| Power Supply | 3P 220V-690V | |||||||||
| Control Voltage | 24V/36V/48V | |||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ7.1 | φ11.2 |
| Net Weight(Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | ||
