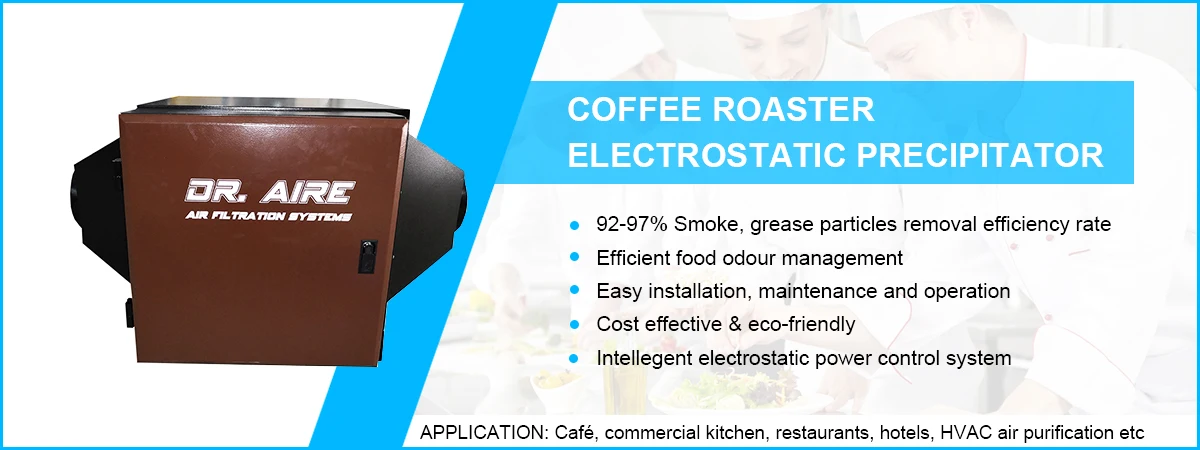

                                                                                      Coffee Roaster Smoke Filter

Coffee Roaster Smoke Filter Coffee Roaster Smoke Filter Coffee Roaster Smoke Filter

During cooling process for coffee roasting, a lot of smoke and smell  is exhausted from the cooler stack until the roasted coffee is cooled to a smokeless level. Ruihe Coffee Roaster Smoke Filter is designed for solving the smoke and smell.

we can offer 1,3,6,12,20,30,60,120,200kg different capacity coffee roaster models.

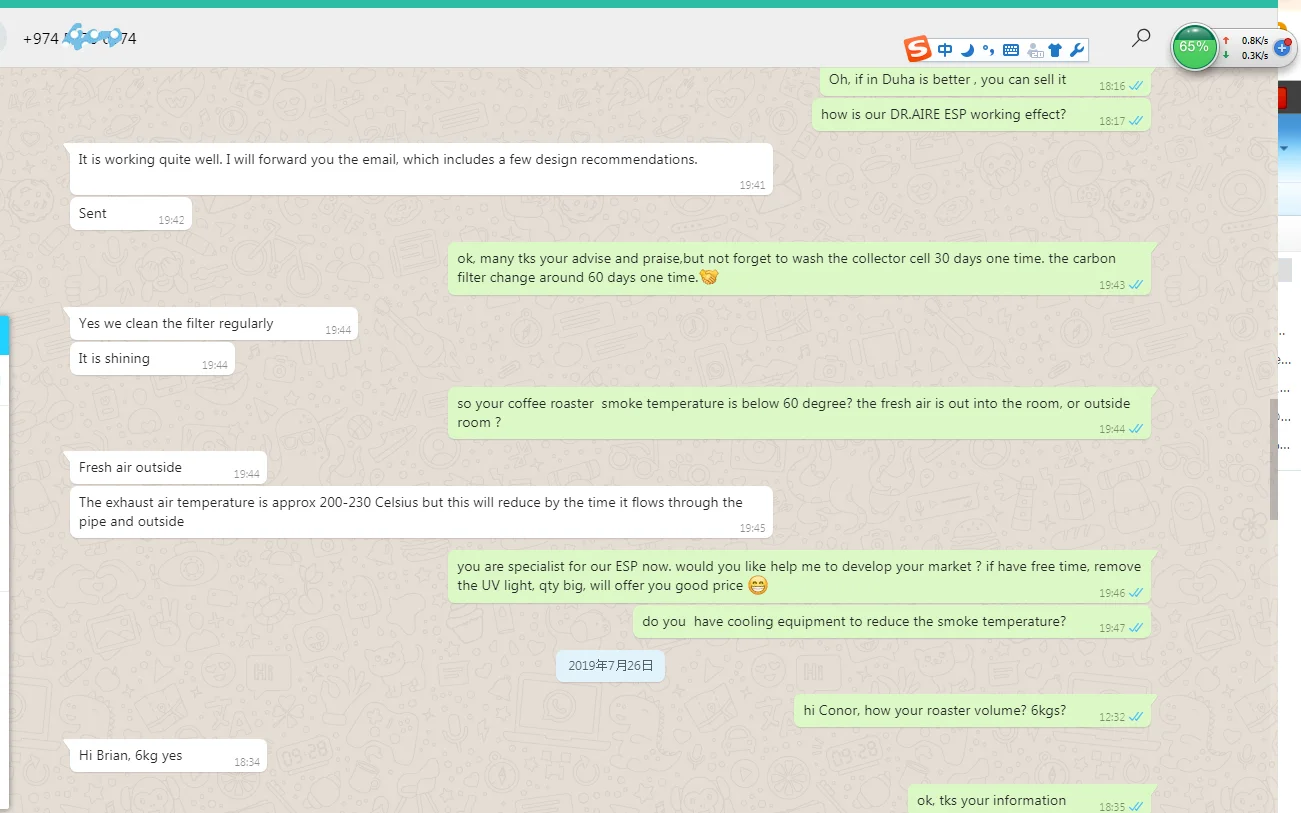

tks for our Ruihe customer support and offer me the ESP working video, from your whistle and words, know you are satisfied Ruihe ESP and profession service. After-sales service go on for you everyday.

Super Advantages:



1. Odor, smoke, oil control efficiently

2. High fume removal efficiency rate: 93-95% or >98%

3. Flexible/customized modular design,Easy installation, maintenance and     cleaning.

4. Cost effective & eco-friendly.

5. Certification: ISO9001, CE, ROHS

6. Application:coffee roaster fume and smell,Commercial kitchen,  BBQ ,



Electrostatic Precipitator Filter Parameter list
Model	Voltage	Power	Air volume (m³/h)	Model size (mm)	Frange size,Dia (mm)	Matched coffee roaster
DGRH-K-3500	220v 50/60 hz	120	3000	1240*765*690	200	1-2-3kg per batch
DGRH-K-2-3500	220v 50/60 hz	240	4000	1490*765*730	200	5-6kg per batch
DGRH-K-2-7000	220v 50/60 hz	640	6000	1490*860*875	400	8-12kg per batch
DGRH-K-2-10500	220v 50/60 hz	1040	8000	1490*915*940	500	15-20kg per batch





1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.



2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell



section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.



3. The particulates remain on the plates or drain down in to the sump.



4  The actived carbon filter remove odour containing compounds produced during cooking.



5. The cleaned air exits through the cabinet.

The First time choice for DR AIRE ESP, Forever Trust !
Welcome order.



Dongguan Rui zhaohe Environmental Protection Equipment Co., Ltd is one of leading manufacturers in China,specialized in manfacturing commercial, industial air pollution control machines.



DR AIRE is our brand,main products: commercial kitchen electrostatic precipitator (ESP), mobile cooking station ,BBQ cart with Smoke filter, industrial Esp, ductless range hood,,coffee Roasters smoke filter ,actived carbon filter, CNC oil mist collectorand etc.





 DR AIRE ESP teams not only sell the products, we also offer perfect air purification scheme  and professional service for you! Not miss the business opportunity ! 100% protect your order.
