Под заказ в наличии тип B + C AC 7ka 2P всплеск молния защита от грома с tuv
- Категории: >>>
- Поставщик: Gandian,Lightning,Protection,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Categories
| Professional surge protective device factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality |
Product Description
G20-B+C series 3 phase spd is designed according to IEC and GB standards. The products with a strong surge discharge capacity, discharge current of each 20~60kA(8/20μs), 7~12.5kA(10/350μs) levels of protection for low voltage distribution system, according to the different distribution system (TT/TN/IT) can choose a variety of combinations.
| ||||||
Product capability parameter | ||||||
Model | G20-B+C | G20-B+C | ||||
SPD port | One port | One port | ||||
SPD category | Combination type | Combination type | ||||
Test category | Class I+II test | Class I+II test | ||||
Rated voltage Un | 220V AC 50~60Hz | 220V AC 50~60Hz | ||||
Maximum continuous operating voltage Uc | 280V AC 50~60Hz | 280V AC 50~60Hz | ||||
Nominal discharge current In(8/20μs) | 30kA | 30kA | ||||
Maximum discharge current Imax(8/20μs) | 50kA | 60kA | ||||
Impulse current Iimp(10/350μs) | 7kA | 12.5kA | ||||
Voltage protection level Up(8/20μs) | 1.5kV | 1.6kV | ||||
Fuse or circuit breaker/Backup protector | 40A/80kA | 40A/100kA | ||||
response time tA | ≤25ns | ≤25ns | ||||

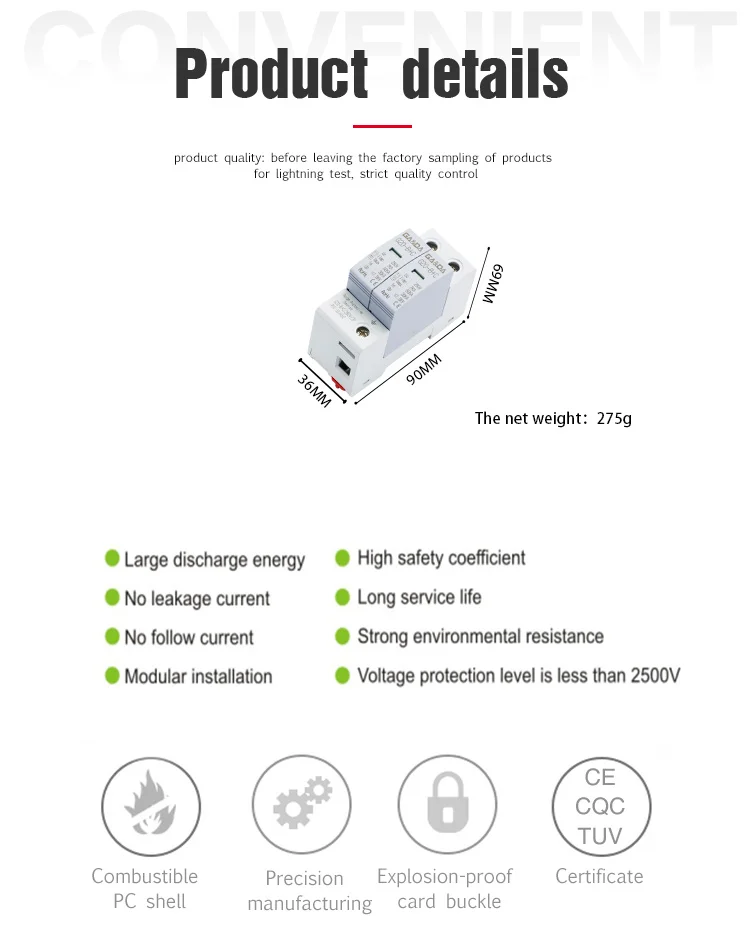

Size | 72x90x69 | 72x90x69 | ||||
Failure indication | Green: normal Red: invalid | |||||
Sectional area of wires | 6~25mm2 | |||||
Installation method | 35mm standard rail (EN50022/DIN46277-3) | |||||
Working environment temperature | -40~85℃ | |||||
Sheathing material | Plastic | |||||
Protection level | IP20 | |||||
Authentication | CQC CE Type test | |||||

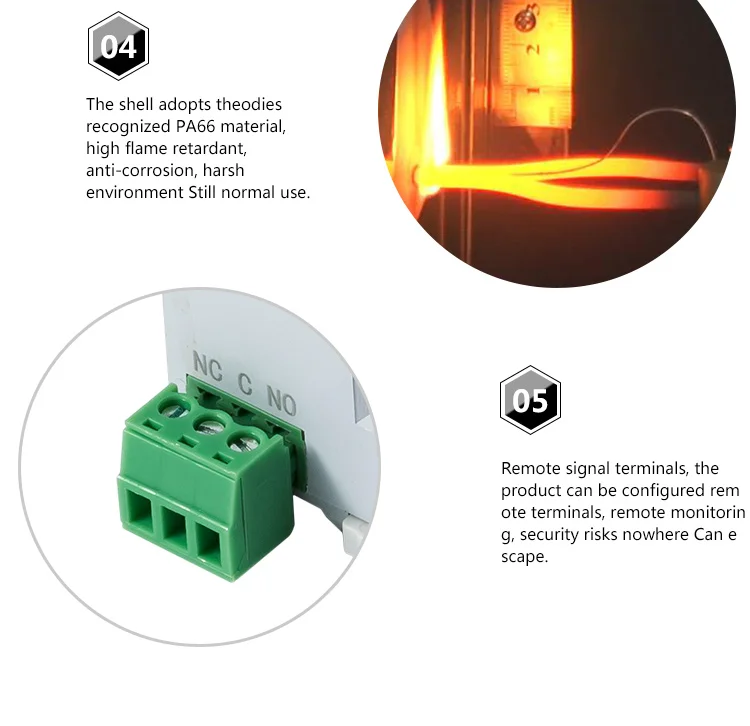

Remote alarm | Normally open / normally closed contact terminal (optional) | |||||
Remote signal interface connection capability | The maximum1.5mm2 single strand / cord | |||||
Almost all the parts of product are produced by our own work, better quality control, competitivly price, timely deliver. We are the factory! we are the source! | ||||||
lt is the product you are looking for, and click to send an inquiry!

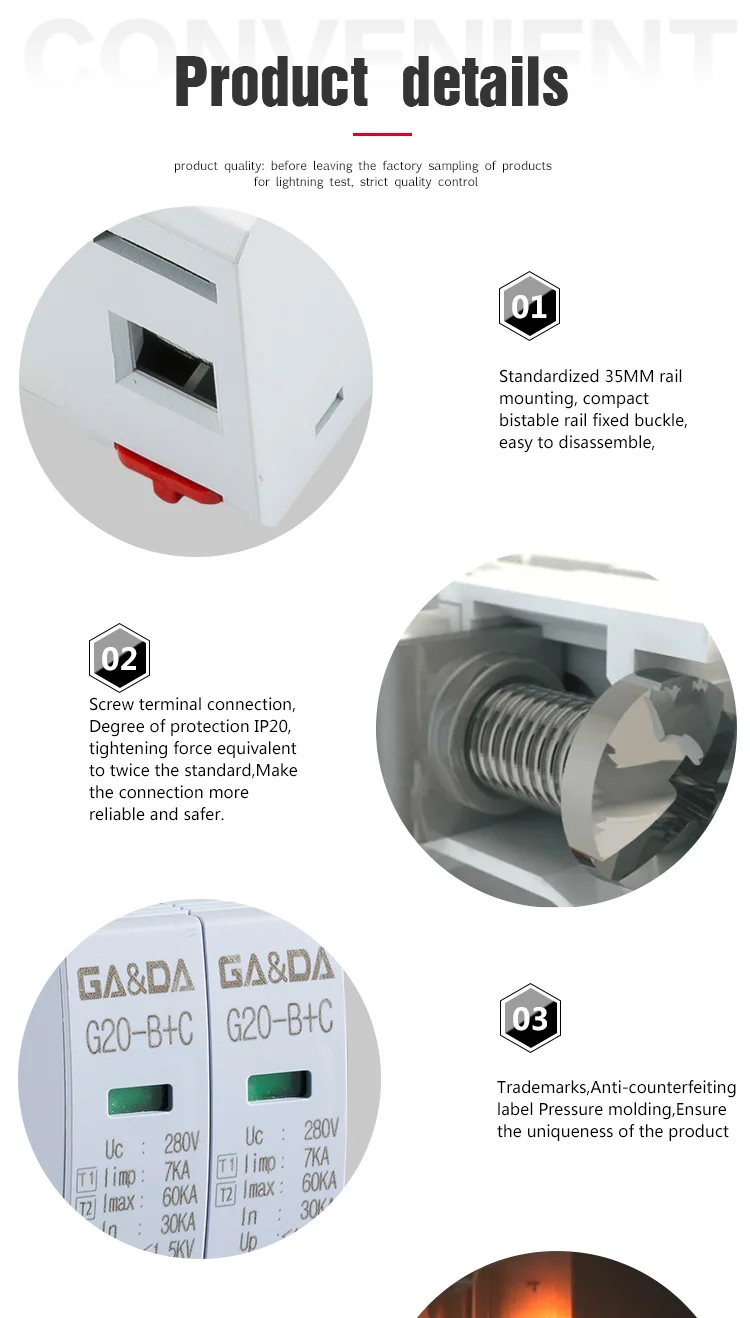

Detailed Images
Need to be customized, please click send more requirements!
As a factory supplier profit / Assurance for you | our products profit for you |
1. 100% Product quality protection | 1.Best design for you winner market |
2. 100% On-time shipment protection | 2.More than 10 years' manufacture for surge protector |
3. 100% Payment protection | 3 .more than 10+ years for export experience |
4.100% inspection before shipment | 4.All products passed CE,CB,Rohs,Tuv |
5. Most Popular "surge protector" factory | 5.One -stop service expariene more than 10+ years. |
Welcome to contact us for Inquiry & order | |
Certifications
Related Products
Company Profile
check below for more information on placing an order |
1. Inquiry-Professional quotation, or send inquiry item more details design,we start contact more details. |
2. Confirm the price, lead time, payment term etc. |
3. Our sales send the Proforma Invoice with our confirmation, or you order online to us directly. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage: After got the payment,we will inform customer and arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products . Confirm the estimated delivery time again. |
7. Clients make payment for balance and Ship goods , Inform the tracking number and check the status for clients. |
8. Order can be say “finish” when you receive the goods and satisfy with them. |
9. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better. |
START ORDER |
FAQ
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly
to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading compan?
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.PV type Solar spd device surge arrester equipment 2pole pv spd
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
