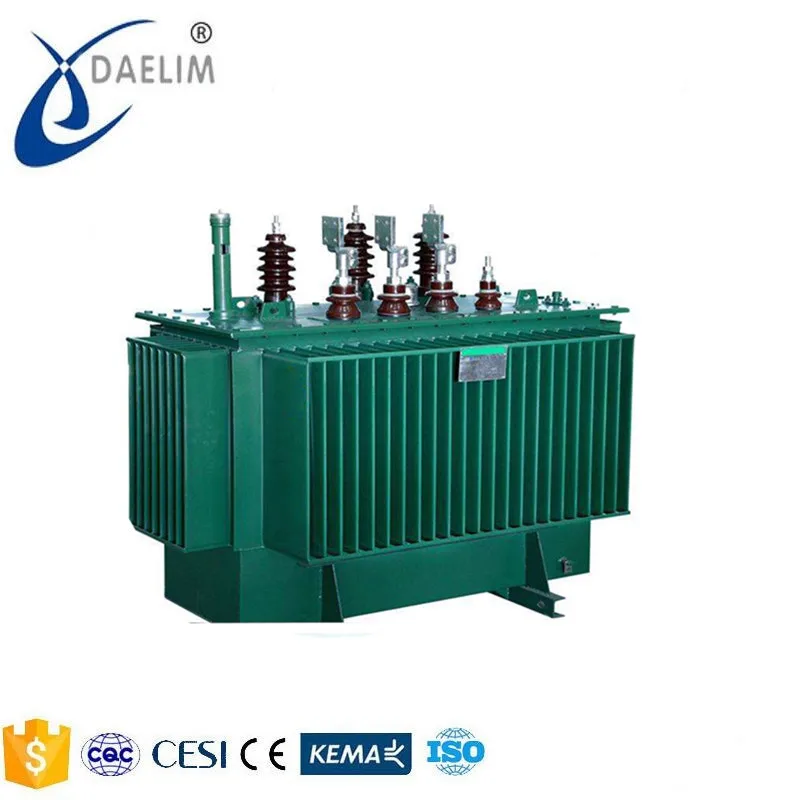

IEEE/CSA Standard Three Phase Two Winding Oil Immersed 7 mva power Distribution Transformer Price 11kv 415v



Product Description


Introduction of products


The performance of our SZ-M series,SZ series 10kV and 35kv load-ratio voltage transformer conform to the standard of IEC"Power transformer"and IEC60076 "Technical Parameters and Requirements of Three-phase Oil-immersed Power Transformer".The iron core is made of quality cold-rolled silicon steel sheet,and in full-miter non-puncture structure and the coil is made of quality oxygen-free copper,featuring good outlook and safe running.The product are widely used in power transmission and distribution of industrial and agricultural power networks.




Main functions and features


1 Load-ratio voltage regulation,high reliability,advanced level of performance,reasonable economical indicators.


2 The core joints are of stepped shape with 3 steps,and the surface of the core is coated with cured paint to lower losses and noise.


3 The winding has novel structure and its oil passage is reasonable designed.Its newly designed insulation structure helps enhance its mechanical strength and the short circuit withstanding ability.


4 The oil tank is in two types-fully enclosed type and the type fitted with an oil conservator.


























































































































































Main Technical Parameters for 10KV level SZ9-M,SZ10-M,SZ11-M Series three-phase full-sealed on-load-tap-changing distribution transformer
Rated
Power
(kva)		High
Voltage
(kv)		H.V.Tap
range		Low
Voltage
(kv)		Connection
symbol		Short
Circuit
Impendence
(%)		No-load loss(W) On-load loss(W)No load
current
(%)
S9S10S11S9S10S11
2006
6.3
10		±4x2.5%0.4Yyn0
Dyn11		448043038030602910341.5
2505605004503600342040.41.4
3156706005404320410047.61.4
4008007206405220496056.51.3
5009608607706210590059001.2
6304.5120010809607650727072701.1
8001400126011209360889088901
10001700153013601098010430104301
12501950176015601305012400124000.9
16002400216019201557014790147900.8
200052830255022601885017910179100.7
25003350302026802100019950199500.7

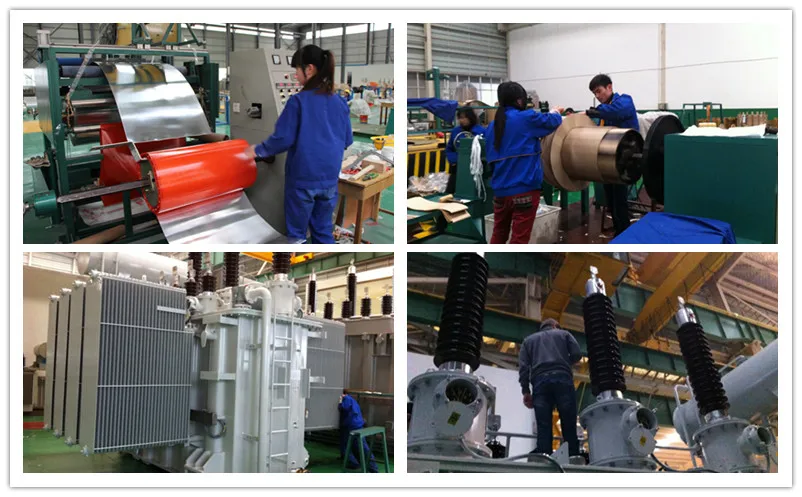

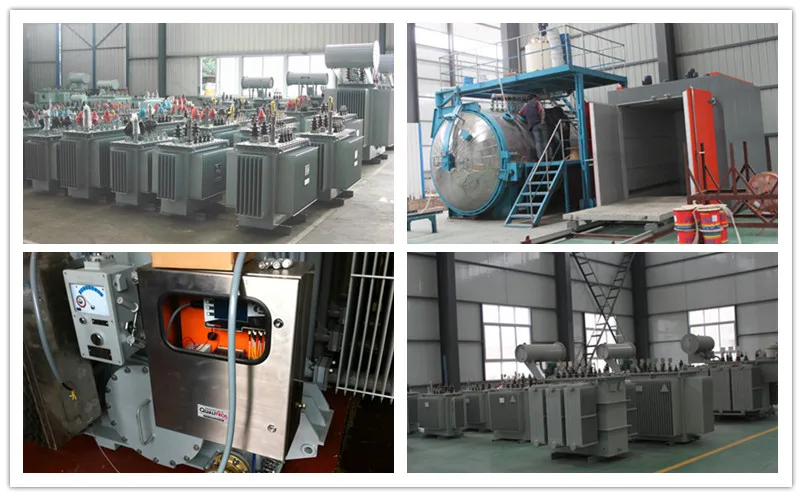

Part of workshop







Packaging & Shipping


 The standard procedure for making wooden case is as follows:



  •  Receipt of information required for the type of goods to be wood barrel customers.

  • Measure and create original designs for customers.

  • Select the type of wood suitable for the requirements of the goods.

  • Determine the delivery time.

  • Check the wood barrel technique.

  • Handover confirmation of work efficiency.





Certifications


Safe  Robust  Eco-friendly  Tempetature-resistant  Economical


Our products meet the requirements of national and international standards. This has been confirmed by comprehensive type tests according to the latest IEC and ANSI standards.


.jpg





Company Information



Located in China Central Place,a prosperous district in Beijing.Beijing Daelim Green EP Tech Co.,Ltd is mainly engaged in the import&export of electric products and equipment.Our business team has more than 15 years’ foreign business experience,and also has a unique understanding of electrical products and overseas markets.We have established and extended business relationships with customers and partners in Southeast Asia,the Middle East,Europe,Africa,North America and South America.


 The main products and equipment we are dealing with:power transformer,current transformer,potential transformer,vacuum&SF6 circuit breaker,load break switch,disconnector,switchgear panel,power plant,transmission line equipment.We provide competitive prices,high quality products,timely shipment and efficient service to develop our cooperation with all of our customers.


We are trading in accordance with international traditions traditions and practices.We would like to extend business with our customers and partners on the basis of cooperation and mutual benefit.





Know more about DAELIM,the company website address is:     http://www.daelim-electric.com/









Contact Details
























Factory Directly sales IEC/IEEE/CSA CSP Type 14.4kv Pole Mounted 15kva Distribution TransformerBEIJING DAELIM GREEN EP TECH CO.,LTD
Email: info12&daelim-electric.com
Phone & Whatsapp: +86-18268255086
Website: www.daelimtransformer.com
www.dealimbelefic.com




Any more information about our products if you need,just feel free to contact .
