Лабораторный фармацевтический модульный Дозирующий стенд класса

Описание и отзывы

Характеристики

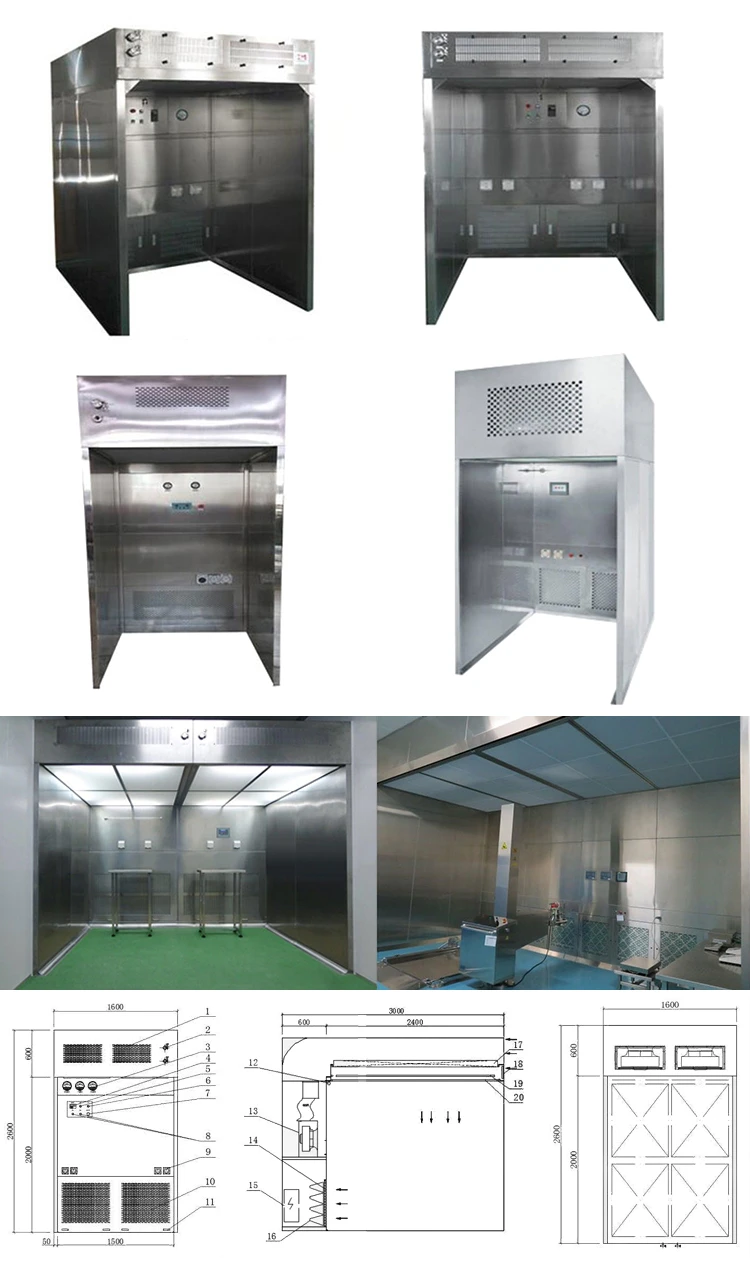

DB Series Negative Pressure Dispensing Booth

• used for sampling,weighing and analysis


• control powder and particles in operation area


• with PLC controller,airflow sensor and differential pressure sensor


• cleanliness monitoring optional

Model	DB-F/DB-P
Internal Size  W*H*D(mm)	1600*3000*2600	2000*3000*2600	2500*3000*2600
External Size(mm)	1500*2400*2000	1900*2400*2000	2500*2400*2000
Cleanliness	ISO5
Air Flow	0.45±20%
Pre-Filter	G4(90% 5um)
Medium-Filter	F8(85%-95% 0.3)
HEPA Filter	H14(99.995 0.3)
Power Supply	380V,50Hz(Advice if different)
Control Mode	VFD Control/Simens PLC Control
Rated Power	3kw	4kw	5kw
Total/Exhaust Volume	8000/800(m3/h)	10000/1000(m3/h)	13000/1300(m3/h)
UV Lamp	Optional
Light Intensity	≥300Lx
Nose	≤70dB(A)
Differential Press Gauge	0-60Pa,0-250Pa,0-500Pa
Socket	IP66,Qty.4
Material	SUS304
Products Standard	Q/320507 LDH016-2016

Q:Where have you exported your equipment?
A:We’ve already exported to more than 30 countries in Aisa,Europe,Middle East,Africa,South America.etc.

Q:Can you arrange the visit to your user?Can you customized the machine according to our requirements?
A:Yes,Of course!

Q:Is your equipment in accordance with GMP,WHO?
A:Yes,we will design and manufacture the equipment according to the requirement of GMP/WHO in your company.

Q:How about your after sale service?
A:We will reply you within 24hours by email or phone.
If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem.

Q:How about the staff training?
A:Normally,we will train your staffs during the installation in your site,you are also welcome to send your staff train in our factory.

Q:How long will the turnkey project take?
A:About 1 year from designing the layout to finish installation and commissioning.

Q:Which kind of after-sales service you can offer?
A:Except the regular service ,we can also provide you know-how transfer,and dispatch our qualified engineers to help you run the factory up to 6-12 months.
