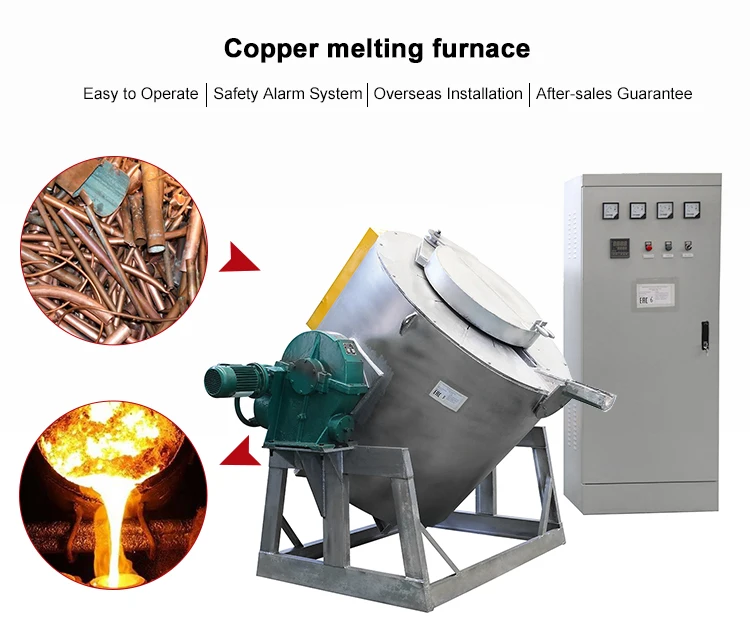

Product introduction: Copper melting furnace is a special melting furnace for non-ferrous metals such as bronze, brass and electrolytic copper. It is suitable for copper ingot processing and copper foundry industries.

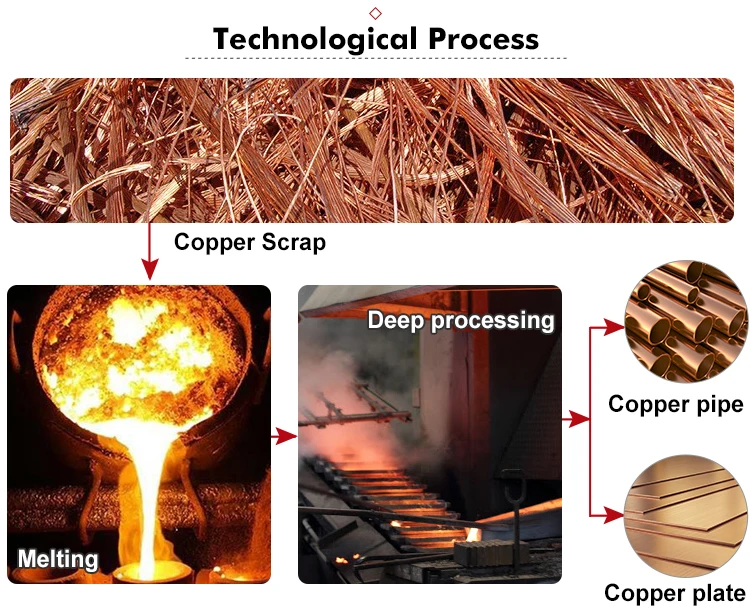

Technological Process
Product Parts Display

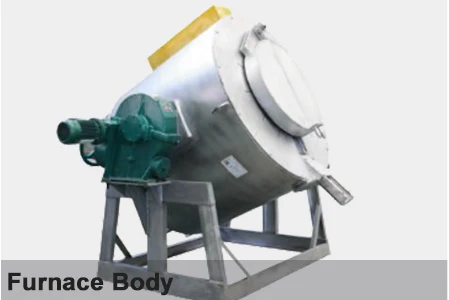

The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength, you can choose to use graphite crucible or make furnace lining

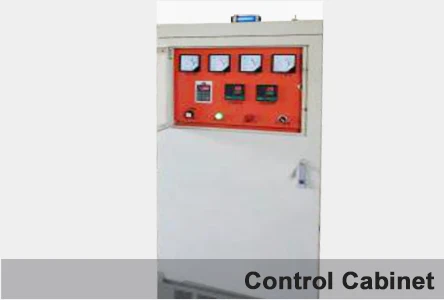

The main control board is microcomputer control, the whole machine is equipped with water temperature, water pressure, phase absence, overpressure, overcurrent, pressure/current limiting protection. It can also add smelting control system according to customer's requirements to accurately control the smelting process.

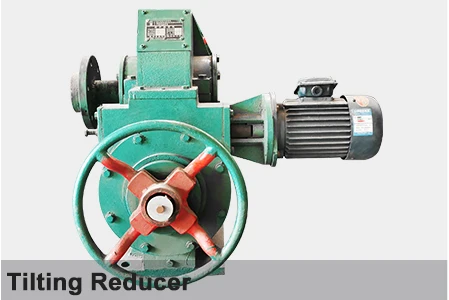

Furnace Tilting Reducer is used to control the rotary of the furnace body. The tilting reducer is equipped with three-stage turbine speed. With good self-locking and stable rotary performance.
Technical Parameter of induction melting furnace
Model
MF power
Input voltage
MF Voltage
Frequency
100KG
100kw
3ph,380V
750V
2000HZ
250KG
200kw
3ph,380V
750V
2000HZ
350KG
350kw
3ph,380V
750V
1500HZ
500KG
400kw
3ph,380V
1500V
1500HZ
750KG
500kw
3ph,380V
1500V
1000HZ
1T
850kw
3ph,660V
2400V
1000HZ
1.5T
1000kw
3ph,660V
2500V
1000HZ
2T
1500kw
3ph,660V
2500V
800HZ
Recommend Products

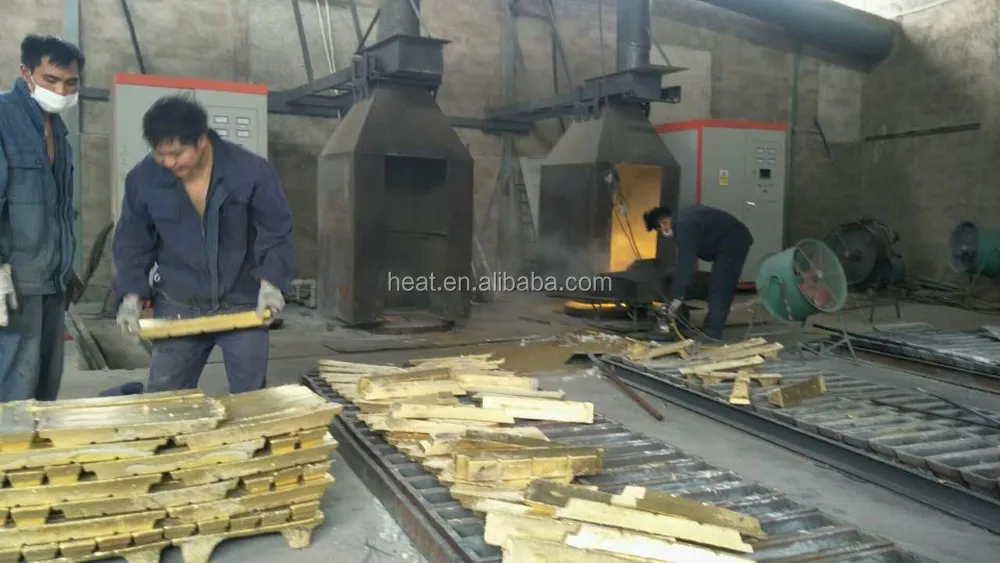

Customer site
Why Choose Us
Certifications
FAQ
1: Are you the Manufacturer or a trading company? We are direct manufacturer specialized in produce in machinery for 15 years.Our factory located in high industry zone,Luoyang city,henan province,where is the biggest industry machinery manufacturing base in china.
2: Why should we choose Hongteng?How do you ensure the quality? We have professional research staff and strict in Production,inspection and debugging and package process.We always insist on supply good pre-sales,order following,after sell service for our customers. We have professional QC person inspect machinery production.After production finished,all machines will be testing & debugging carefully before shipment.
3: Which kind of power supply do you supply? Electricity or gas? Electricity or gas
4: How can I trust your company and machine? Our factory have been in producing machinery for around 15 years ,our machine have exported to East Asia, South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints. Welcome to visit us,and have a face to face negotiation.
5: How do you control the quality? We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.
6: Which county do you exported to ? We have already exported our machines to many famous company in many countries, such as Vietnam,Indonesia,Myanmar,Qatar,Ukraine etc . Welcome customers to visit our factory.
7: How about your after sales service? After customers get machines,We will send our engineers to customer's workshop.We will supply installation & debugging & training service for customers till machine normal production.
