Машина горячего прессования для ламинирования на 500 градусов формования полимерной и композитной
- Категории: Press >>>
- Поставщик: Zhengzhou,CY,Scientific,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

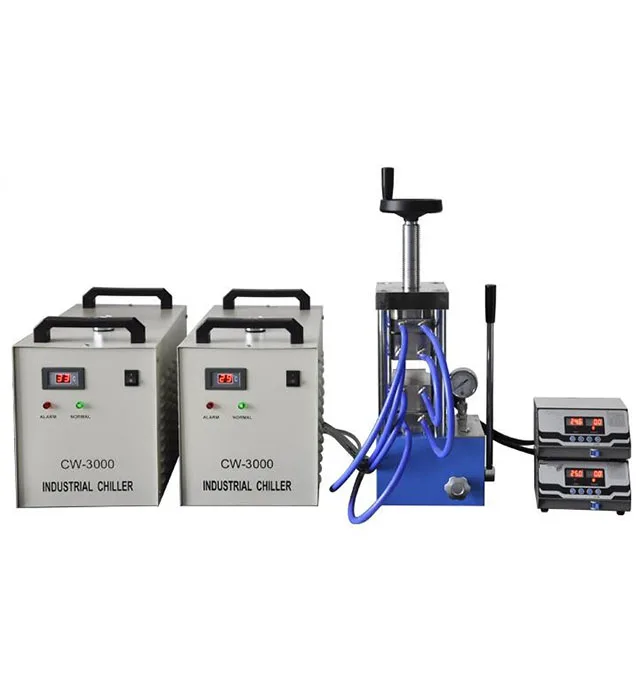

500 degree integrated double plate hot press with double plate heating 100X 100mm-CY-PCH-600CG
Product Description
Technical Parameters
Instrument model | PCH-600CG |
Pressure range | 0-24T (0- -34MPa) |
Piston diameter | Chrome cylinder φ 95mm (d) |
Overall structure of the main body | Utility model patent 20132 0040218.0 |

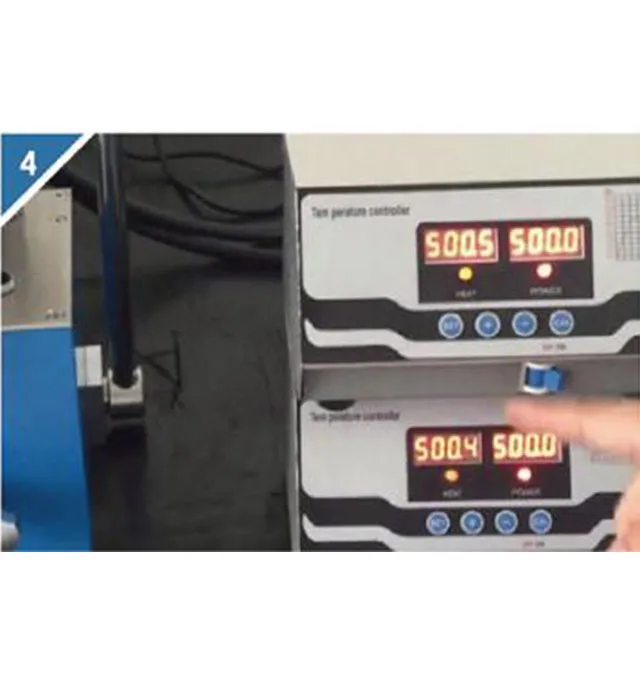

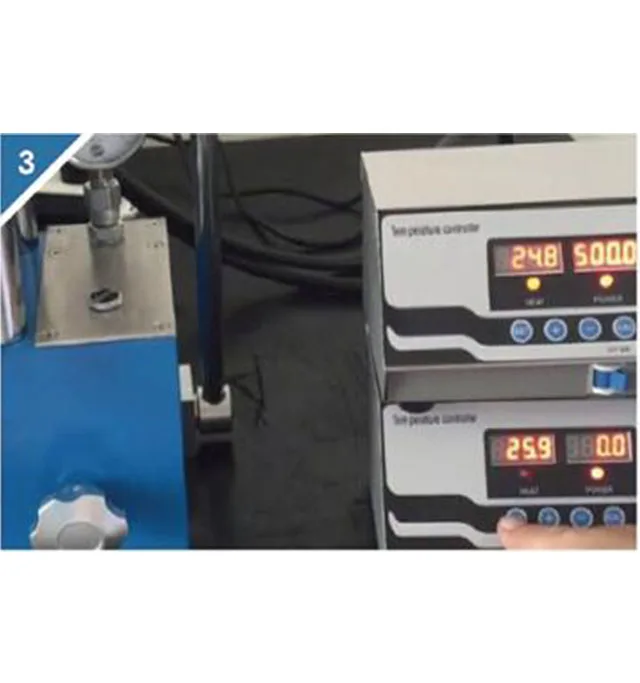

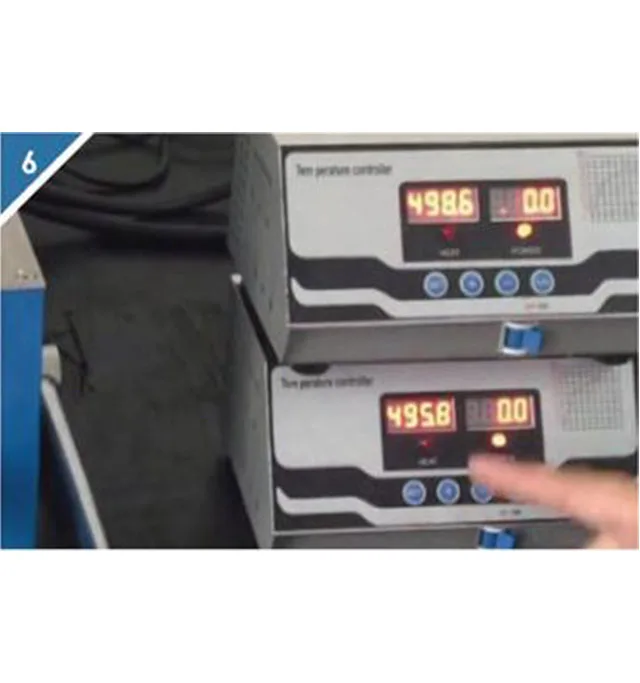

Thermostat temperature control | Room temperature -600.0 °C |
Mold heating temperature | Room temperature -500.0 °C |
Temperature control accuracy | 0.1°C |
Insulation method | Imported insulation board + water-cooled insulation board |

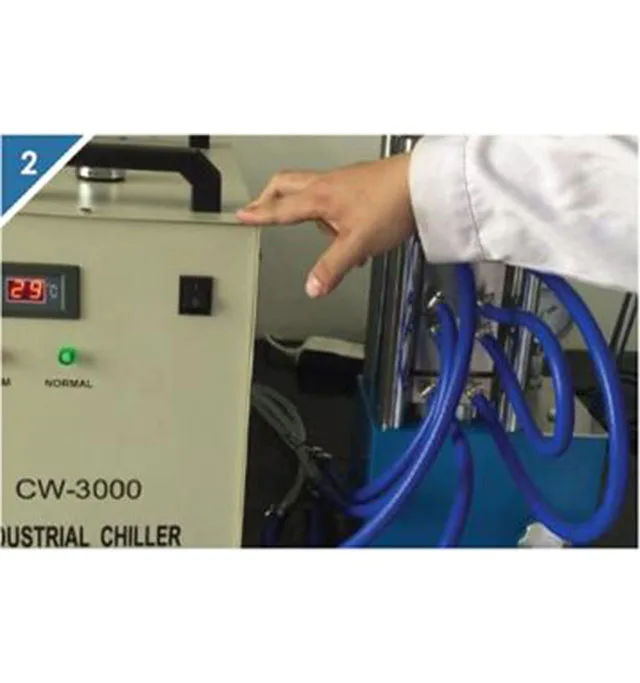

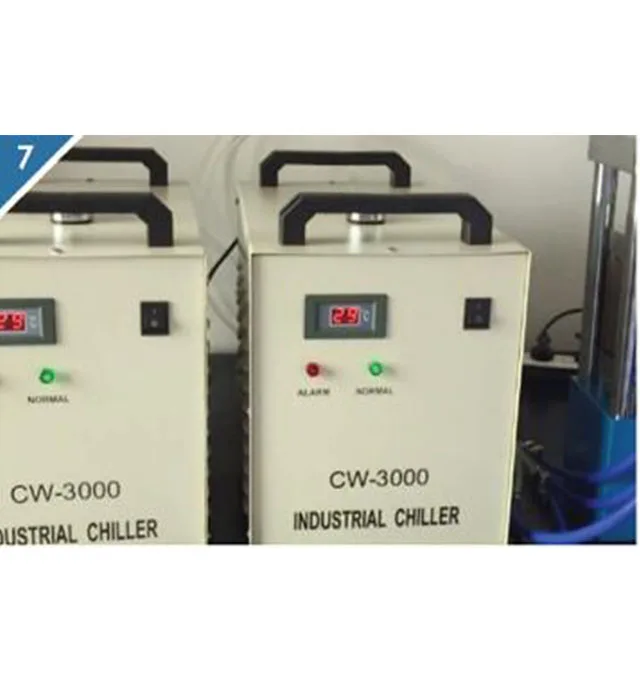

Cooling method | Water cooling and rapid cooling [water cooler optional] |
Mold size | Double plate heating 100X 100mm |
Host size | 245X175X500mm |
Overall size | 1000X470X500mm |
Power supply | 220V/ 1000W |
Host weight | 58Kg |
Company Information
Company Description:
Zhengzhou CY Scientific Instrument Co., Ltd is a professional high- tech enterprise,it has 20 years history of R&D,manufacture and sales in advanced materials.Many products are awarded as high-tech products and obtain patents.
Mainly products:
Muffle furnace | Atmosphere furnace | Tube furnace |
Dental sintering furnace | Vacuum furnace | Crucible furnace |
Bottom loading furnace | Car bottom furnace | Etc. |
Packaging & Shipping
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Contact Information
Pamela
