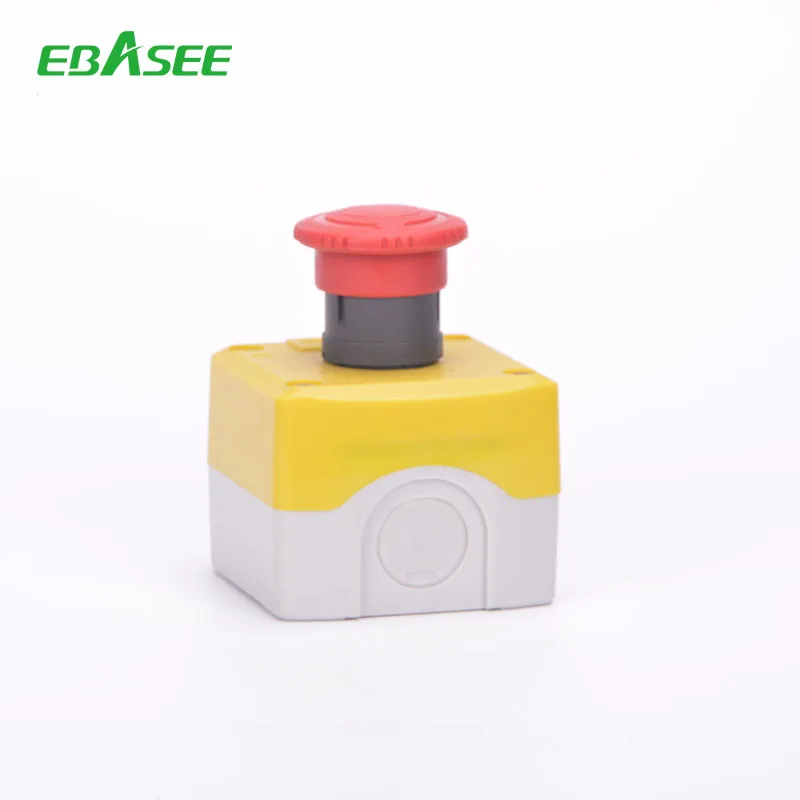

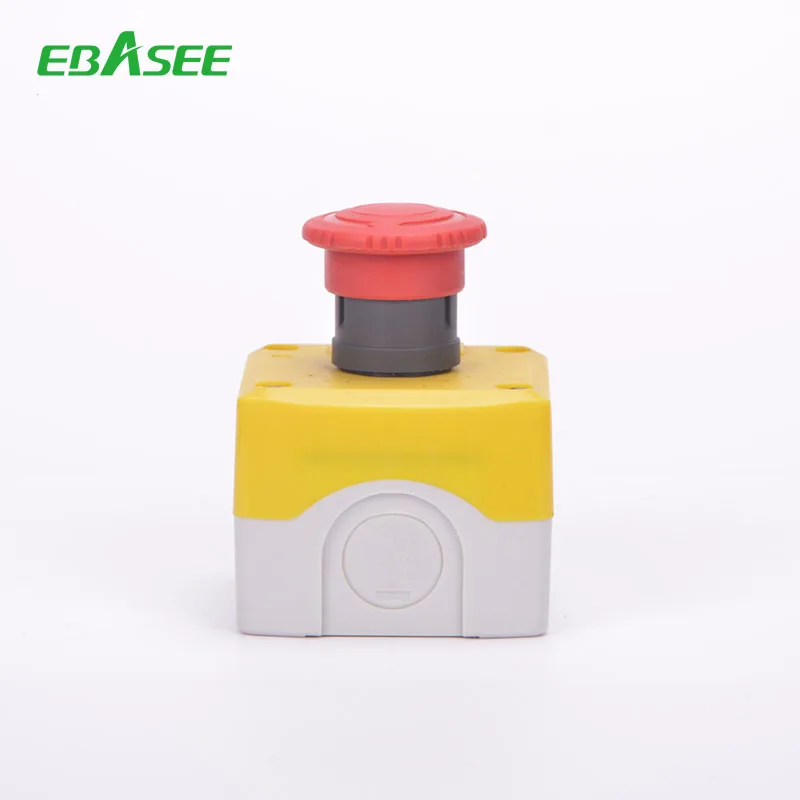

Водонепроницаемая нажимная кнопка аварийной остановки с грибовидной головкой серии XAL блок управления
- Категории: Push Button Switches >>>
- Поставщик: Shanghai,Tehow,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Related Products
Product Description
Control Station
Application
XAL Control station /BS push button switch is applicable to the motor of the voltage up 500V and the capacity up to 3kW for directly starting run and breaking,also for infrequently turning on and off load current. It’s characteristic of accurate on-off, safe and reliable,high intensity of machinery and widely used in machine tools textile machinery,etc.The switch is the best choice for machinery power.
Technical Parameter

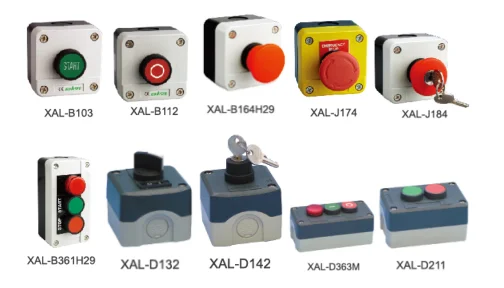

Reference | Weight kg | Marking on legend | Marking on button | Description | ||
Start-stop functions (Light gray lid with dark gray base) | ||||||
XAL-B103 | 0.12 | ___ | Start | 1 green flush push button spring return | ||
XAL B112 | 0.12 | ___ | O | 1 red flush push button spring return | ||
XAL B164H29 | 0.12 | Emergency stop | ___ | 1 red mushroom head push button,φ40mmspring return | ||
Emergency stop functions(yellow lid with dark gray base) | ||||||
XAL-J174 | 0.14 | Unmarked |
| 1 red mushroom head push button,φ40mm latching Turn to release | ||
XAL-J184 | 0.17 | Unmarked |
| 1 red mushroom head push button,φ40mm latching Key release (key 45°) | ||
Emergency stop functions with (yellow lid with dark gray base) | ||||||
XAL-J178 | 0.14 | Unmarked |
| 1 red mushroom head push button,φ40mm latching Turn to release | ||
Start-stop functions (Light gray lid with dark gray base) | ||||||
XAL-B211H29 | 0.165 | Start Stop | --- --- | 2 spring return push button 1 flush green 1 flush red | ||
XAL-B213 | 0.165 | --- --- | I O | |||
Reference | Weight kg | Marking on legend | Marking on button | Description | ||
Start-stop functions with pilot light(Light gray lid with dark gray base) | ||||||
XAL-B361H29 | 0.200 | Start Stop | --- --- | 1 red pilot light Direct supply≤130V Bulb not included(1) | ||
XAL-B373 | 0.205 | --- --- | I O | Bulb with BA 9s base fitting-130V(included) | ||
Detailed Images
Packaging & Shipping
Company Information
1. About us
Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.
EBASEE factory locates in Shanghai,China, covering an area of 5000m2.There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
2. Why us
3,Certification
4,FAQ
5, Contact us
