Manual Metal Bemo Standing Seam Roof Panel Curving Machine For Sale
The Galvalume Portable Standing Seam Roofing Panel Roll Former is used to make unexposed screw roof sheet.
Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels!
The material thickness varies from 0.4-0.8mm,in some places such as USA,they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.
Product Description
Product Pictures:

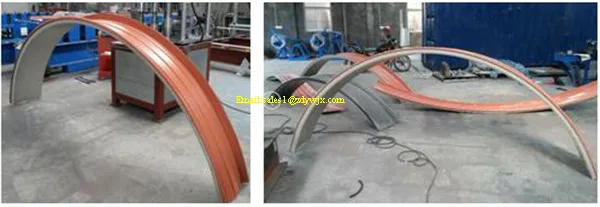

(Manual Metal Bemo Standing Seam Roof Panel Curving Machine For Sale)
2. Technical Parameters of Manual Metal Bemo Standing Seam Roof Panel Curving Machine For Sale:
Main Technical Parameters Of Bending Machine | |
Motor Power | 1.1KW |
Pressing Thickness | 0.6-0.9 mm |
Wheel Gear Box | Vertical gear reducer |
Forming Material | PPGI |
Type Of Transmission | By chain |
Applicable Panel | 220-530 Straight Panel And Sector Panel |
Forming Stations | 4 |
Adjusting Way | Manually adjust the front and back arcs,radius size |
Roller Materials | CNC S45C Steel with hard chrome coating |
Size of positive arc | The following instructions |
Size of anti-arc | The following instructions |
External Dimension | About 0.5m×0.8m×1.1m |
Electric Control | Simple switch control |
Weight of machine | About 300KG |
Working Voltage | 380V 50HZ 3 Phrase |
Manual Metal Bemo Standing Seam Roof Panel Curving Machine For Sale
2.2 Main Components:
No. | Name | Quatity |
3.1 | Decoiler | 1 set |
3.2 | Main Forming Machine | 1 set |
3.3 | Support Table | 3 sets |
3.4 | Bending Machine | 1 set |
3.5 | Conventional tools | 1 set |
3.6 | Operation instruction | 1 piece |
3. Design of Manual Metal Bemo Standing Seam Roof Panel Curving Machine For Sale:
Company Information
Packaging & Shipping
Package
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded in one 20’ container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
Our Services
1. We provide the technical support for whole life of self lock standing seam roof roll forming machine.
2. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
3. When need the technician to go abroad, we will arrange the technician.
